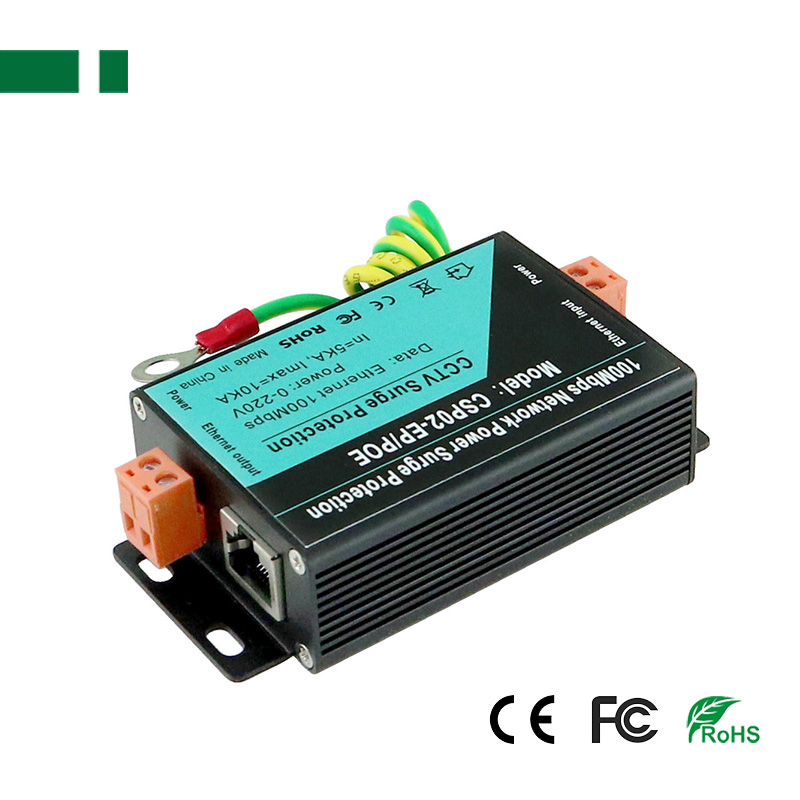

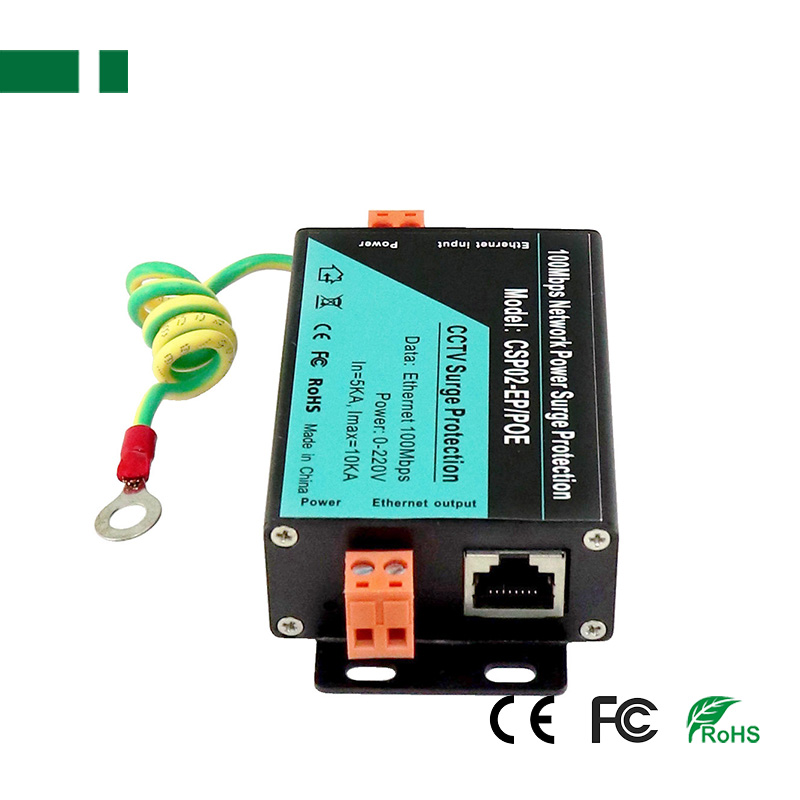

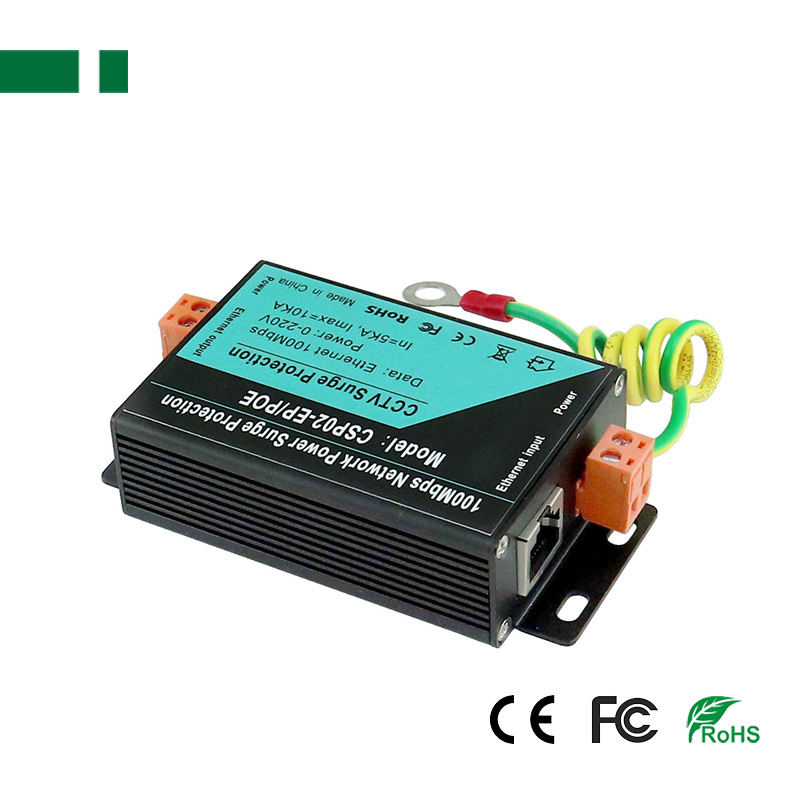

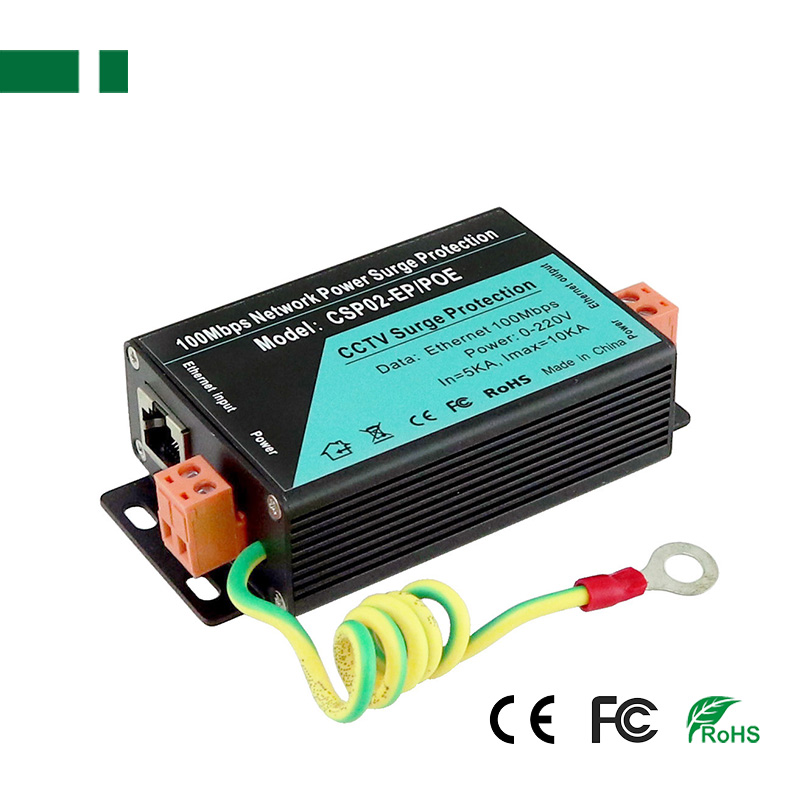

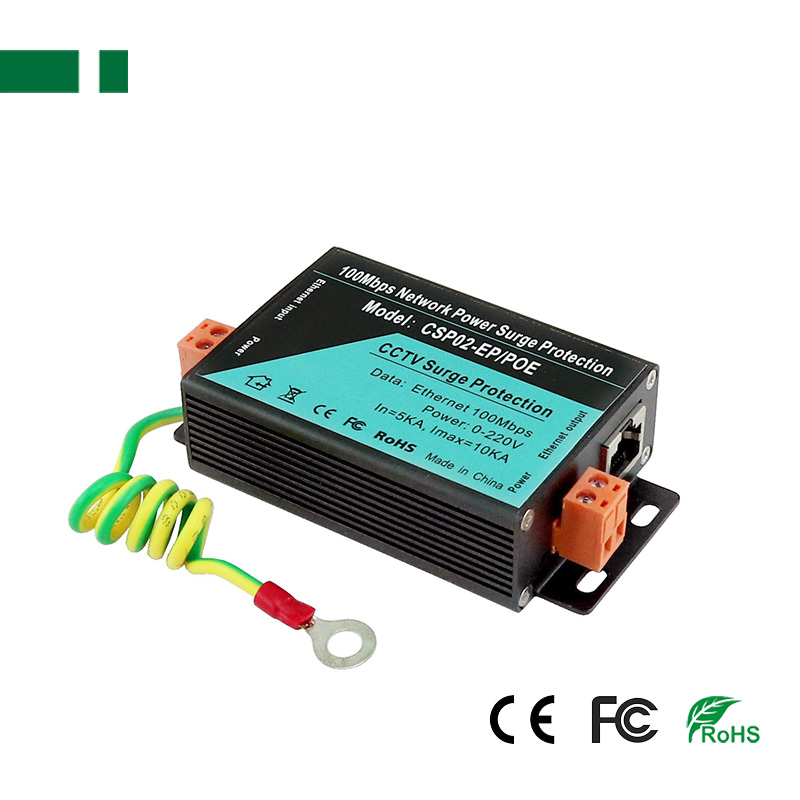

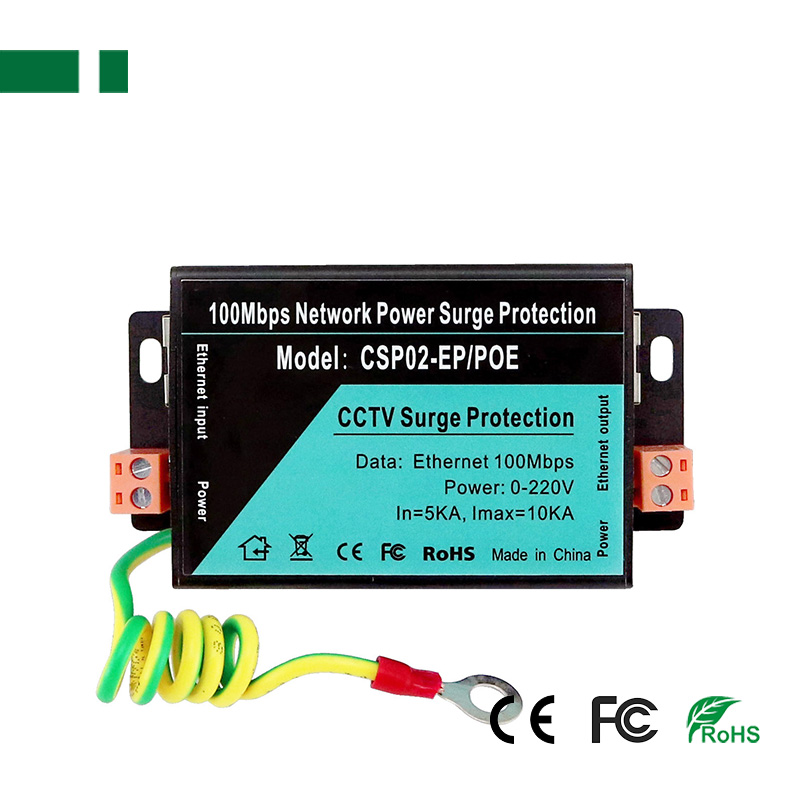

CSP02-EP/POE Protection POE Ethernet 100MHZ Network Power SPD and 0-AC220V power supply

  • Protection POE Ethernet 100MHZ Network Power SPD and 0-AC220V power supply
  • High transmission rate
  • Multi-level protection
  • Larger flow capacity
  • Product description: CSP02-EP/POE Protection POE Ethernet 100MHZ Network Power SPD and 0-AC220V power supply
  • INQUIRY   EMAIL

FEATURE:

◆ Protection POE Ethernet 10/100Mbps Network Power SPD and 0-AC220V power supply;
◆ Function Multi-level over voltage protection large capacity discharge current low limiting voltage;
◆ Quick reacting time low inserting loss;
◆ Grounding Mode Extending Line to ground;
◆ Outlook design Clear mark easily recognized;
◆ Aluminum shell delicate size simple installation;
IN=5KA,Imax=10KA

Specification:

Model CSP02-EP/POE CSP02-GEP/POE
Network Rated operation voltage DC48V
Max continuous operating voltage DC56V
Nominal discharge current in(8/20μs) 5KA
Max discharge current(8/20μs) 10KA
Voltage protection level(10/700μs) <56V
Reacting time 1ns
Inserting loss 0.2dB
Data transmission rate Vs 10/100Mbps 10/100/1000Mbps
Signal Bandwidth 10MHz
Power Nominal working voltage AC220V
Max continuous operating voltage DC470V
Nominal discharge current(8/20μs) 5KA
Max discharge current (8/20μs) 10KA
RLA 10A
Leakage Current 5μA
Reacting Time 25ns
Connector type RJ45 & Grip
Environment Working temperature -20°C to +50°C
Storage Temperature -40°C to +70°C
Humidity 0 to 95%
MTBF >30000hrs
Other Dimension 120*65*28mm, 140g
Test standard IEC61643-21 : 2000
