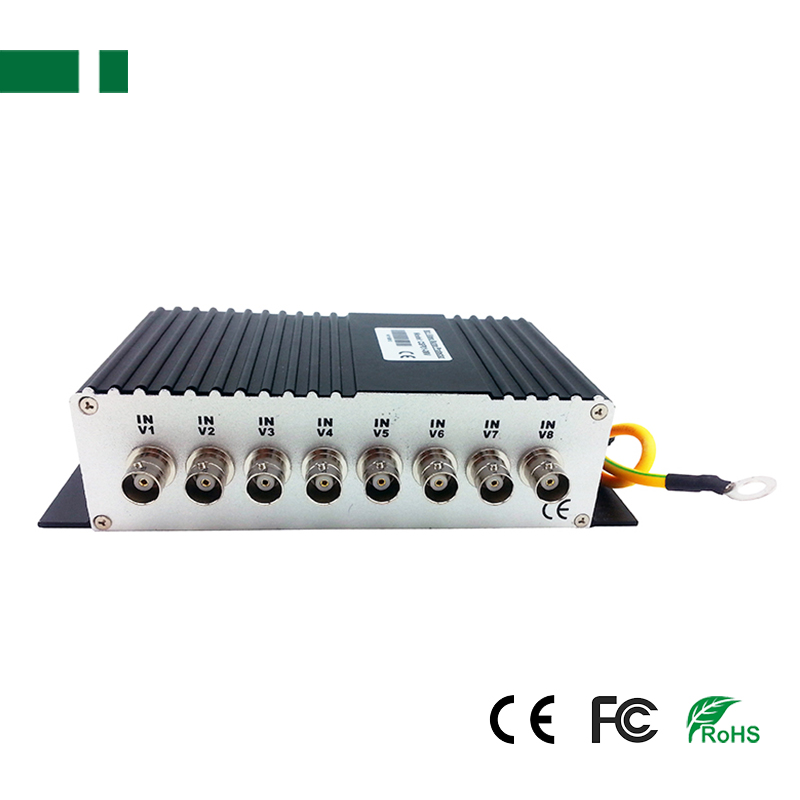

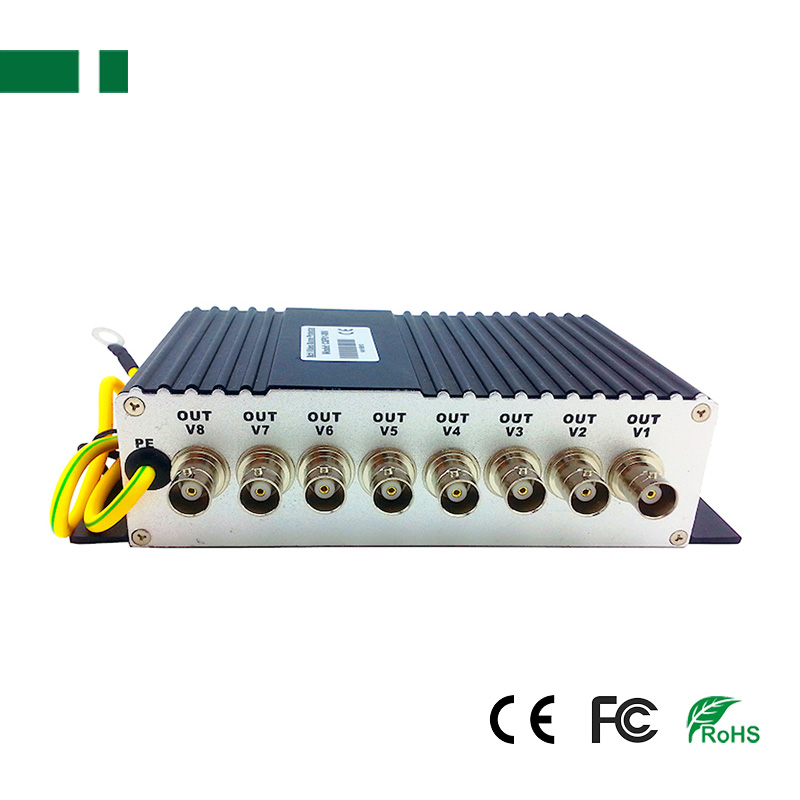

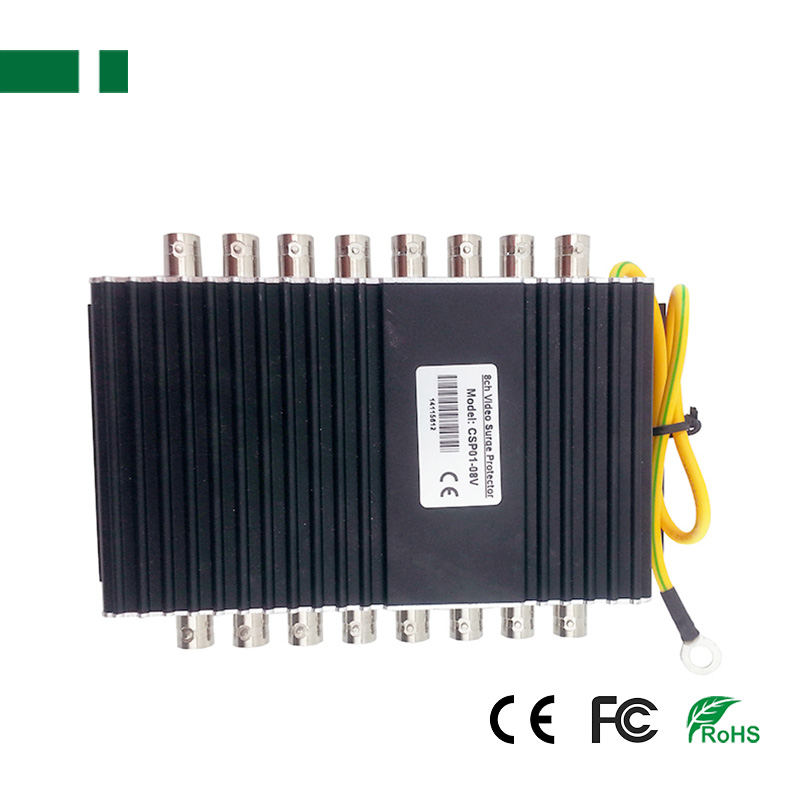

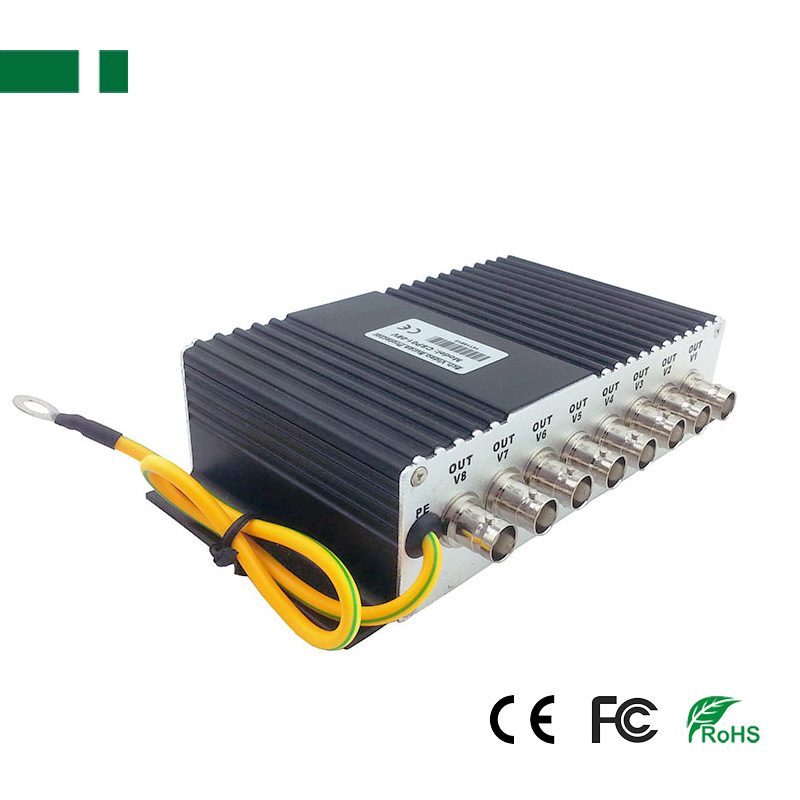

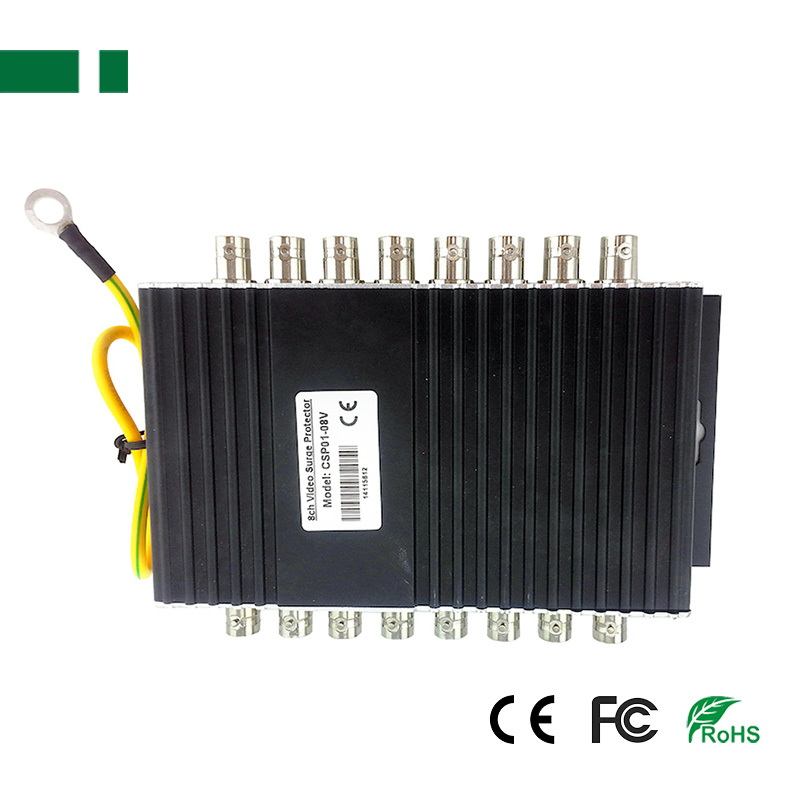

Video Surge Protector
High transmission rate
Multi-level protection
Larger flow capacity
Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure.
Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.
Product Parameter :
◆ 8 channel Video Surge Protector
◆ Multi-level protection
◆ Quickly response
◆ Less insertion loss
Specification:
| Model | CSP01-08V | |
| Video | Video channel | 8 channels |
| Rated operation voltage | 5V | |
| Max continuous operating voltage | 10V | |
| Nominal discharge current in(8/20μs) | 5KA | |
| Max discharge current(8/20μs) | 10KA | |
| Voltage protection level(10/700μs) | <20V | |
| Reacting time | ≤1ns | |
| Inserting loss | ≤0.5dB | |
| Inserting resistance | ≥0.4MΩ | |
| Signal Bandwidth | 10MHz | |
| Standing-wave ratio | ≤1.2 | |
| Environmental | Working temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C | |
| Humidity | 0 to 95% | |
| Stability | MTBF | >30000hrs |
