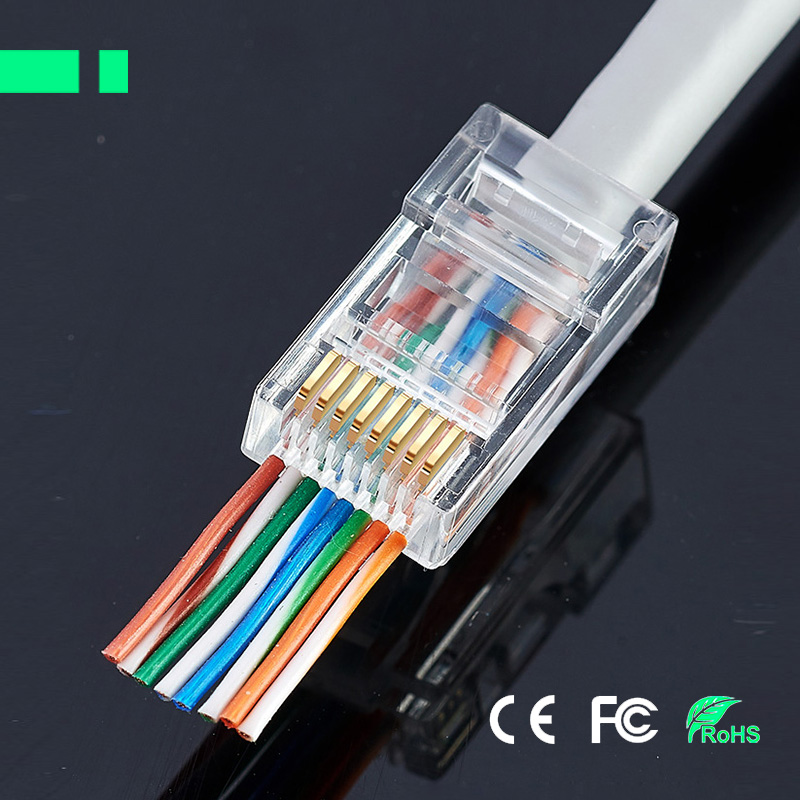

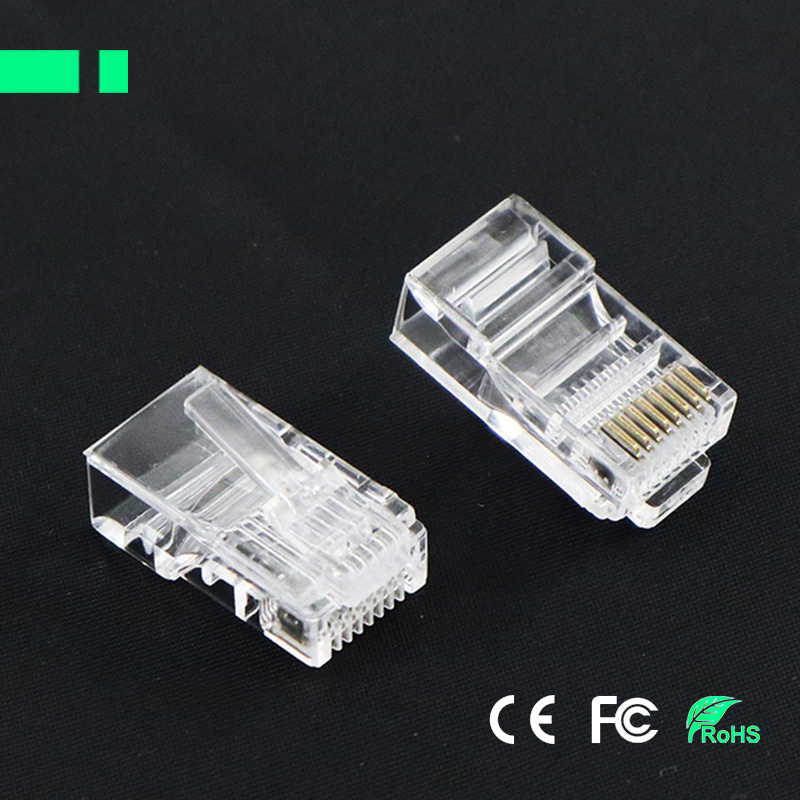

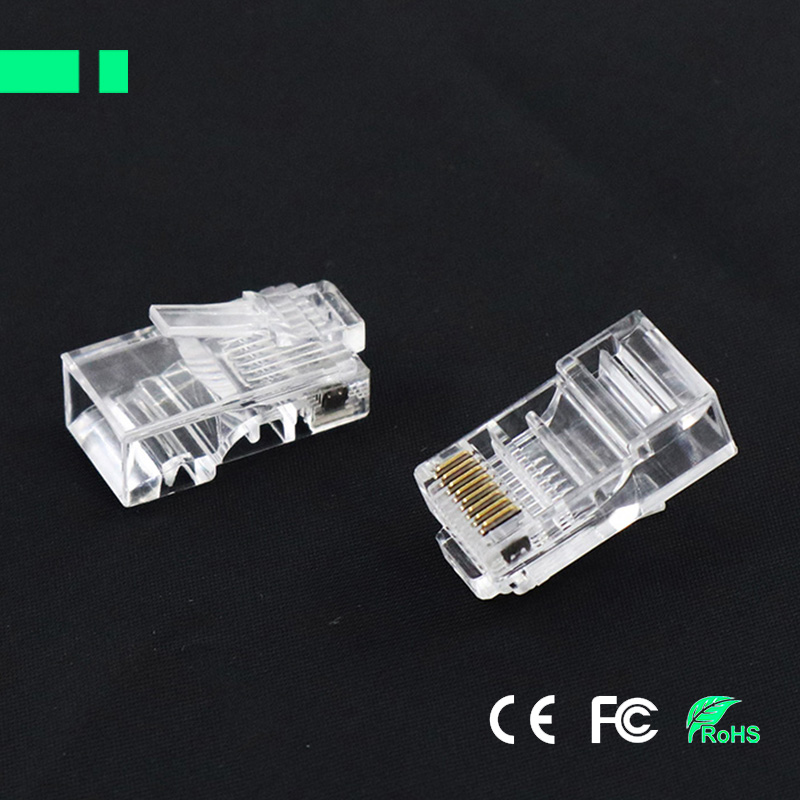

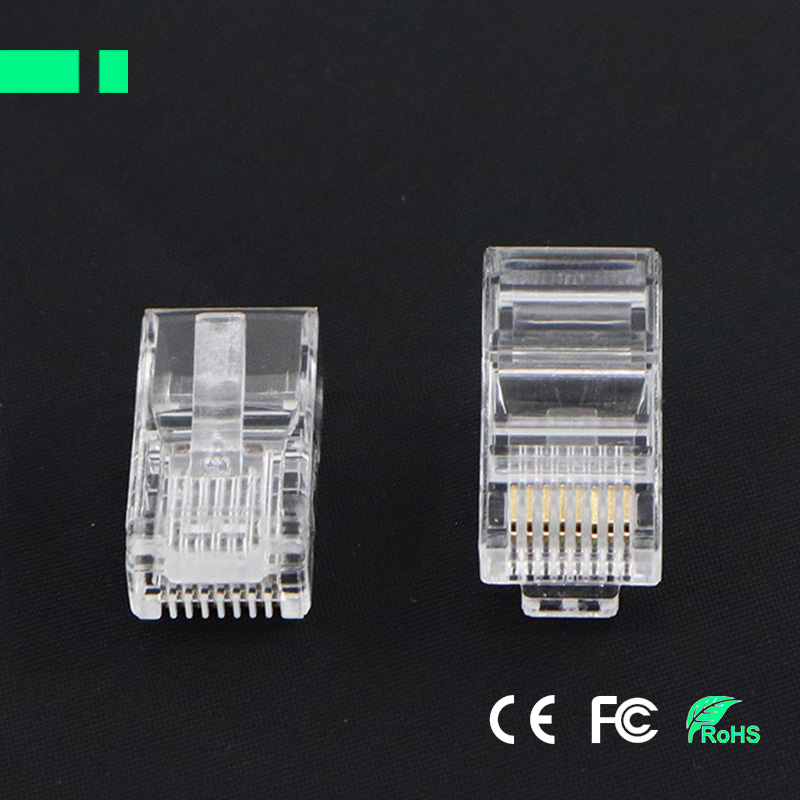

Perforable RJ45 Through Hole Network Connector
Interface: Cat5/5E/CAT6/CAT6A
Thread hole: Φ1.2 mm diameter
Wire OD: 23AWG
This product is a network cable connector, environmentally friendly PC material, crystal heads are transparent, flawless, and durable.
Description:
This product is a Network Cable RJ45 Adapter, environmentally friendly PC material, crystal heads are transparent, flawless, and durable.
Features:
1. Full-color gold-plated chips: enhanced transmission speed, stronger oxidation resistance.
2. Super five types of perforated crystal head: fast threading, to avoid the core not being inserted in the end, and the line sequence is wrong.

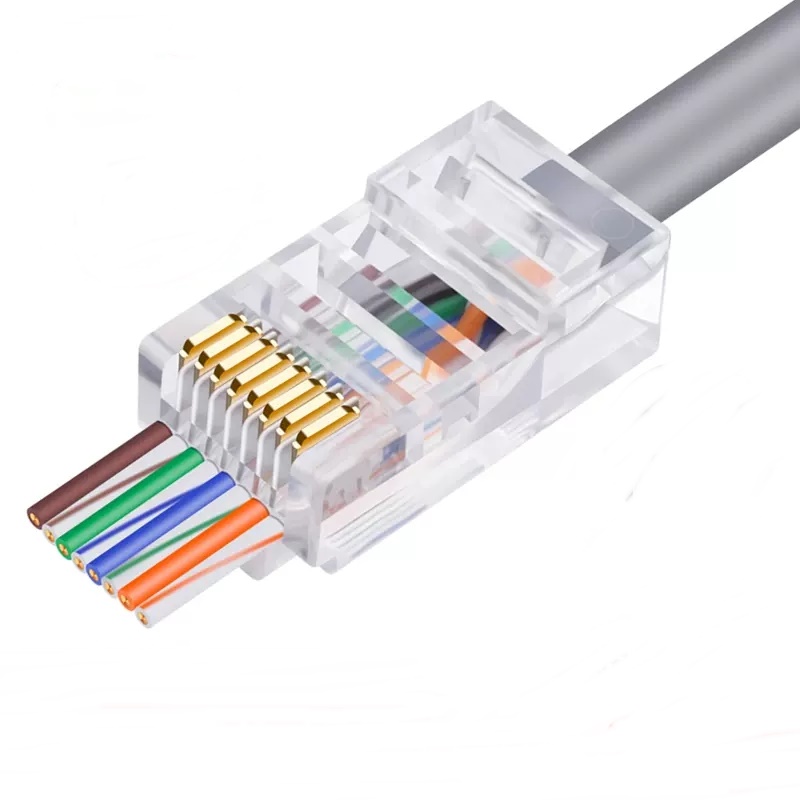

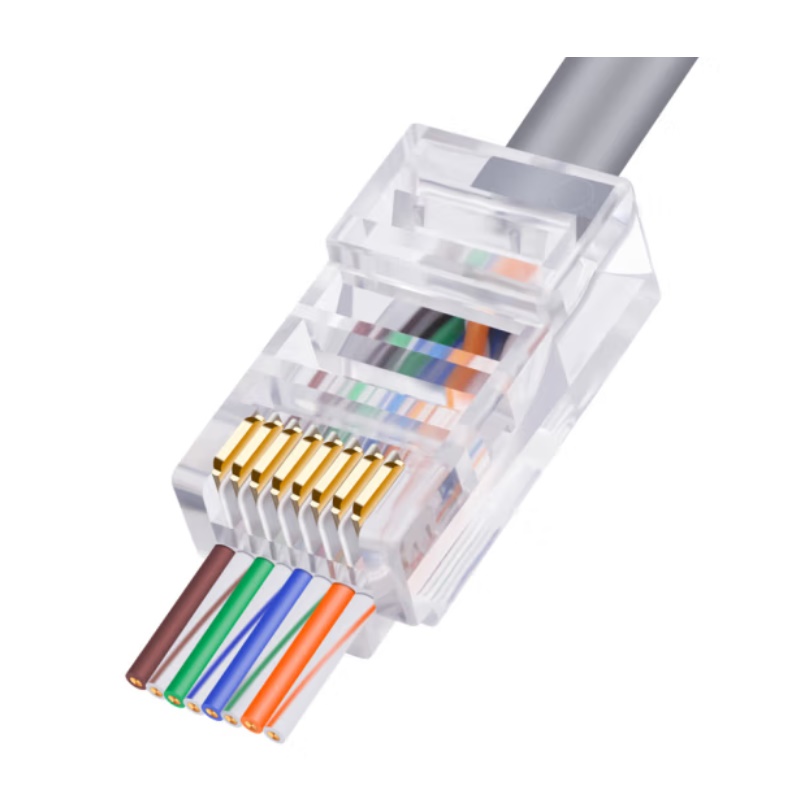

3. Easy threading: The network cable can be easily passed through the straight hole.
4. Bend-resistant shrapnel: The shrapnel has been strengthened and won't break after being bent at 180 degrees for more than 20 times.
5. Environmentally friendly PC material: environmentally friendly PC material, crystal heads are transparent, flawless, and durable.
Specification:
| Perforable RJ45 8P8C Through Hole CAT5E/6/6A Network Cable Connector | |||
| Model | CRJ-P5 | CRJ-P6 | CRJ-P6-2 |
| Interface | Cat5/5E RJ45 | Cat6 RJ45 | Cat6A RJ45 |

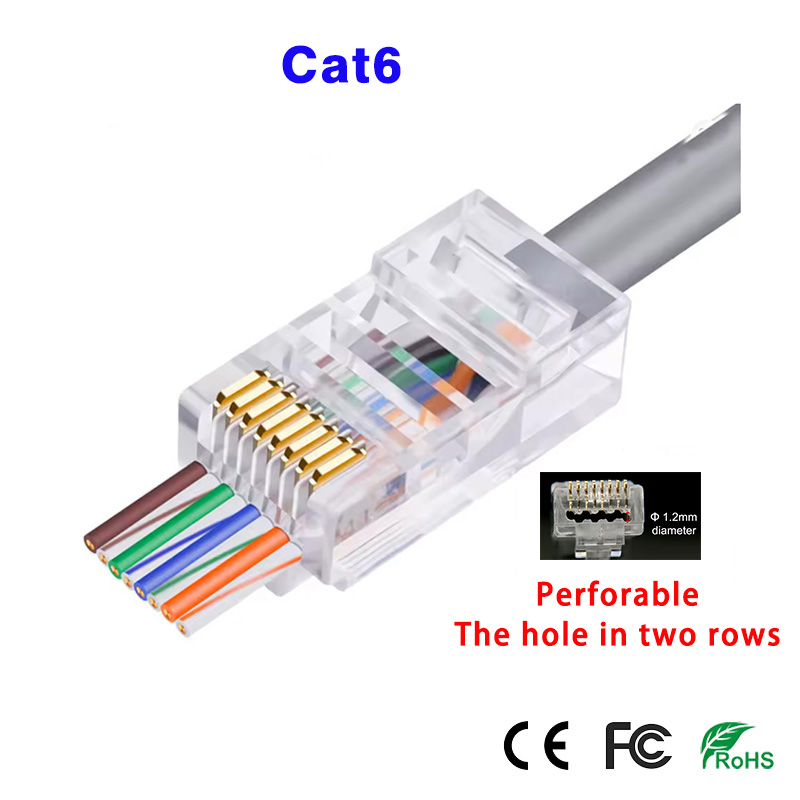

| Thread hole | Φ1.0 mm diameter | Φ1.1 mm diameter | Φ1.2 mm diameter |
| Conductor OD | Max 0.512mm | Max 0.57mm | |
| Categories | Unshielded type | ||
| Material | Environmentally - Friendly PC | ||
| Metal chips | 50μ color gold plated three-pronged chip. | ||
| Package | 100*RJ45 Plugs Connectors | ||
| Bandwidth | 100Mhz | 250Mhz | |
| Speed | 1000Mbps | ||
| Wire OD | 24-28AWG | 23-26AWG | 23-26AWG |
| Wire scheme | T568A, T568B | ||
| Standard | IEC60603-7 | ||
| Dimension | 22.5*6.6*11.6mm | ||
| Application | Compatible with all RJ45 interface equipment, desktop, notebook, router, switch, smart TV, set-top box, TV box, HUB, ADSL…… | ||
