CPOE-09MU DC48V-to-DC5V 100Mbps POE Cable with Micro USB Interface

CPOE-09MU DC48V-to-DC5V 100Mbps POE Cable with Micro USB Interface

● Power Input: DC44V-57V;
● Power Output: DC5V, 2.4A, 12W;

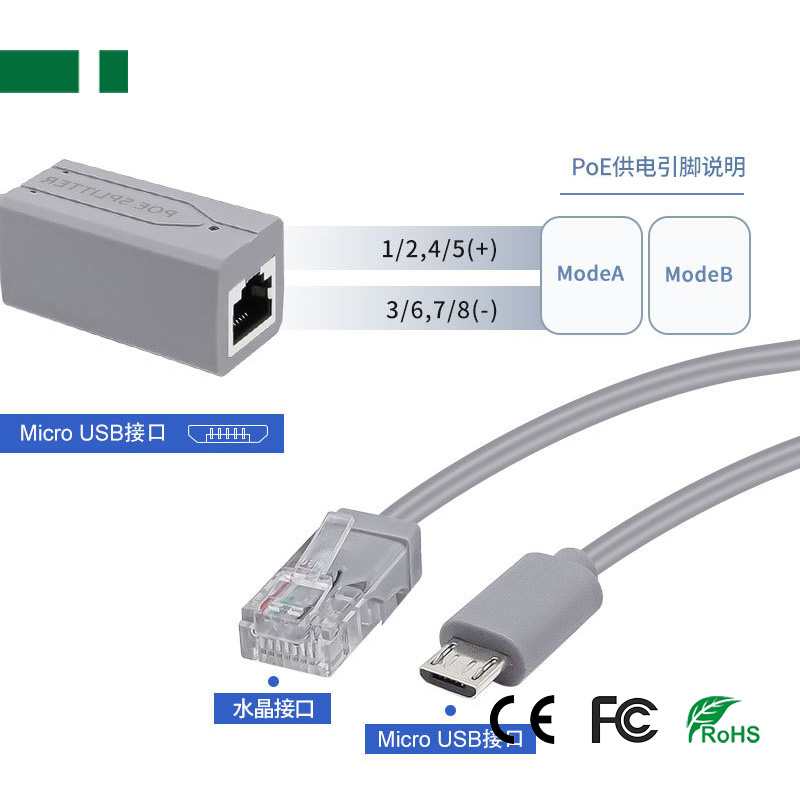

● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Data Pin: 1/2: (+), 3/6: (-);
Product description: This PoE Cable working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless acces
INQUIRY EMAIL

Description:
This PoE Cable working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.

Features:
● 10/100Mbps POE Splitter Cable;
● Power Input: DC44V-57V;
● Power Output: DC5V, 2.4A, 12W;
● Ports: RJ45(PoE) + RJ45(LAN) + Micro USB Interface;
● Network Speed: IEEE802.3at/af;
● Network Speed: 10/100Mbps;
● Data Pin: 1/2: (+), 3/6: (-);
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Supports various DC Power Adapters and Solar Power Battery Packs.

Speicification:

10/100Mbps DC48V-to-DC5V POE Splitter Cable
Model	CPOE-08MU	CPOE-09MU	CPOE-08TC	CPOE-09TC
Ports	PoE (RJ45) + LAN (RJ45) + Micro USB		PoE (RJ45) + LAN (RJ45) + Type-C
PoE Support	IEEE802.3at/af
Power Input	DC44V-57V	DC44V-57V	DC44V-57V	DC44V-57V
DC Output	DC5V, 2.4A, 12W	DC5V, 2.4A, 12W	DC5V, 2.4A, 12W	DC5V, 2.4A, 12W
DC Connector	Micro USB interface		Type-C interface
Data Speed	10/100Mbps
Data Pin	1/2: (+), 3/6: (-)
Power Pin	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Extend Distance	0~100M
Network Cable	Un-shielded or Shielded Cat5E, Cat6 or Better
Temperature	Working: -10℃~+50℃, Store: -20℃~+85℃
Humidity	Working: 20~90%RH, Store: 10~95%RH
Material	ABS Plastic Housing
