● Power Input: DC44V-57V;
● Power Output: DC12V, 1.2A
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Data Pin: 1/2: (+), 3/6: (-);
This DC48V-to-DC12V Rainy-proof PoE Cable working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device.
Description:
This DC48V-to-DC12V Rainy-proof PoE Cable working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.
Features:
● 10/100Mbps Rainy-proof Non-isolated POE Splitter Cable;
● Power Input: DC44V-57V;
● Power Output: DC12V, 1.2A;
● Ports: RJ45(PoE) + RJ45(LAN) + DC Male Plug Interface;
● Network Speed: IEEE802.3at/af;
● Network Speed: 10/100Mbps;
● Data Pin: 1/2: (+), 3/6: (-);
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Supports various DC Power Adapters and Solar Power Battery Packs.
Speicification:
| 100Mbps & 1.0Gbps DC48V-to-DC12V Rainy-proof POE Cable | |||
| Model | CPOE-07R | CPOE-07RA | CPOE-07RG |

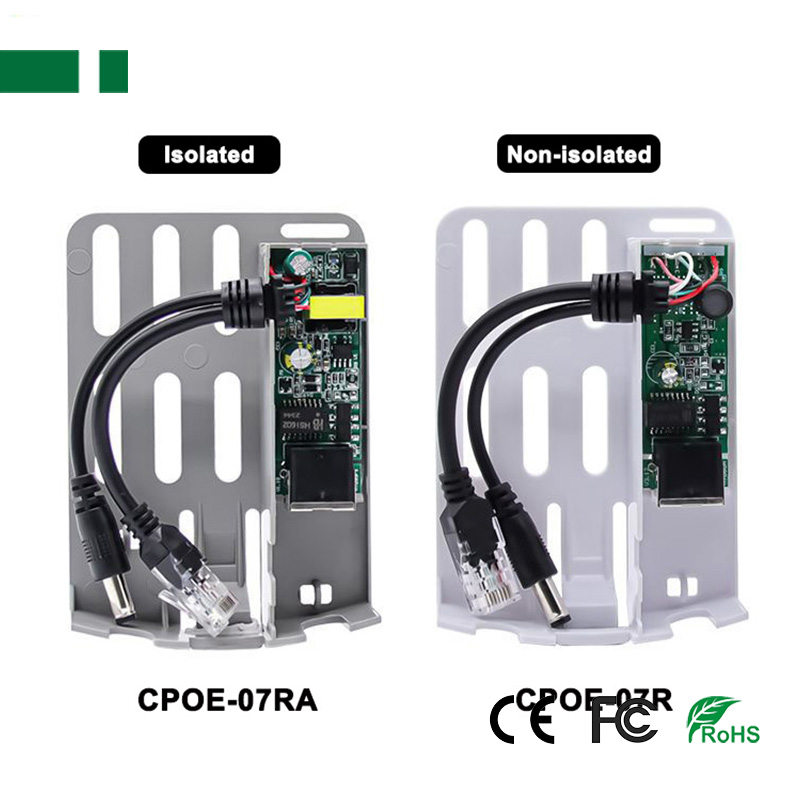

| Feature | Non-isolated Type | Isolated Type | |
| Ports | PoE (RJ45) + LAN (RJ45) + DC 5.5*2.1mm Interface | ||
| PoE Support | IEEE802.3at/af | ||
| Power Input | DC44V-57V | DC44V-57V | DC44V-57V |
| DC Output | DC12V, 1.2A | DC12V, 1.2A | DC12V, 2A |
| DC Connector | 5.5*2.1mm DC Male Plug | ||
| Data Speed | 10/100Mbps | 10/100Mbps | 1.0Gbps |
| Data Pin | 1/2: (+), 3/6: (-) | 1/2: (+), 3/6: (-) | 1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| Power Pin | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) | ||
| Extend Distance | 0~100M | ||
| Network Cable | Un-shielded or Shielded Cat5E, Cat6 or Better | ||
| Temperature | Working: -10℃~+50℃, Store: -20℃~+85℃ | ||
| Humidity | Working: 20~90%RH, Store: 10~95%RH | ||
| Material | ABS Plastic Housing | ||
