● Power Input & Output: DC12V~24V;
● Network Speed: IEEE802.3af;
● Data Pin: 1/2: (+), 3/6: (-);
● Power Pin: 4/5: (+), 7/8: (-);

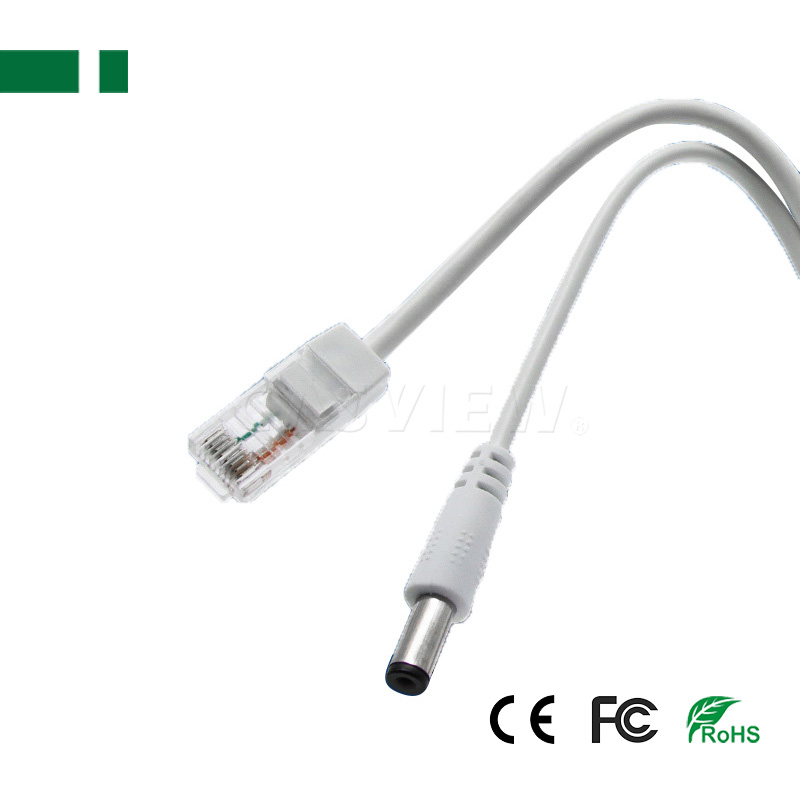

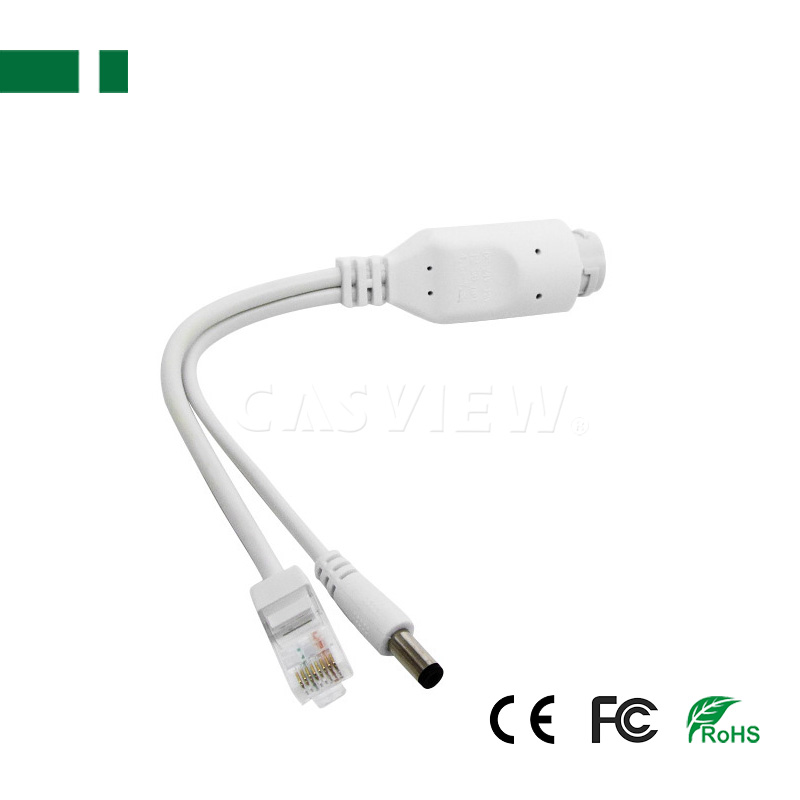

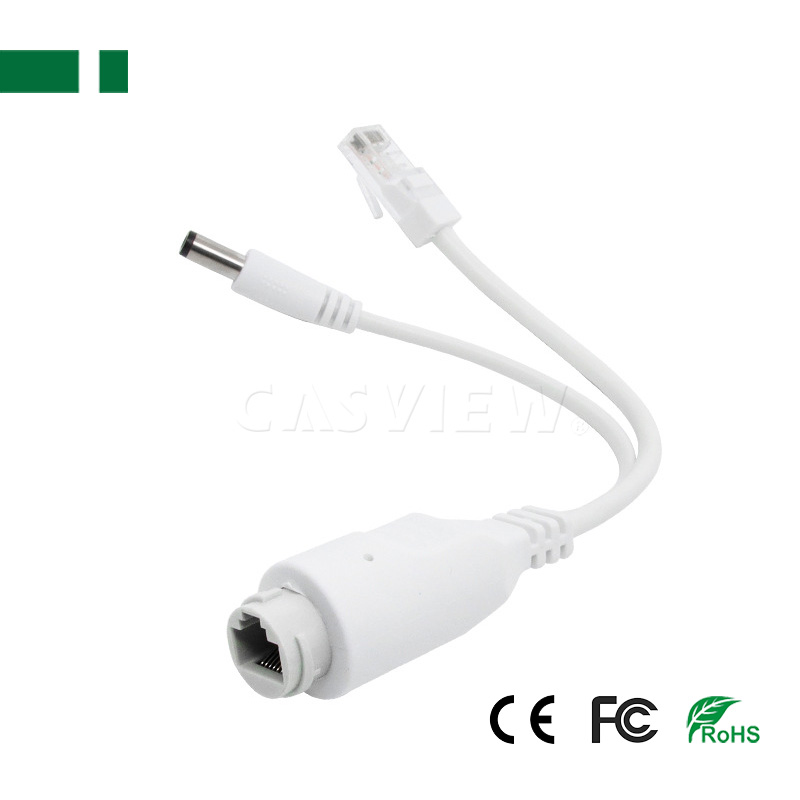

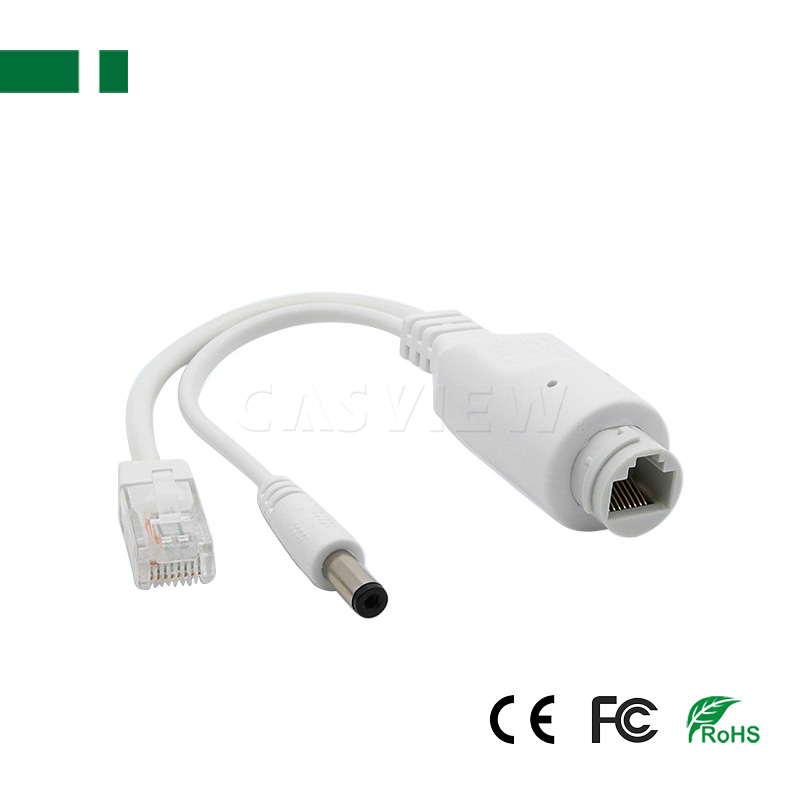

This Passive PoE Cable (POE Splitter + POE Injector) working with IEEE802.3af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.
Description:
This Passive PoE Cable (POE Splitter + POE Injector) working with IEEE802.3af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.
Features:
● 100Mbps Water-proof Passive POE Cable for IP Camera;
● Power Input & Output: DC12V~24V;
● Ports: RJ45(PoE) + RJ45(LAN) + DC(5.5*2.1mm);
● Network Speed: IEEE802.3af;
● Network Speed: 10/100Mbps;
● Data Pin: 1/2: (+), 3/6: (-);
● Power Pin: 4/5: (+), 7/8: (-);
● Supports various DC Power Adapters and Solar Power Battery Packs.
Speicification:
| 10/100Mbps Passive POE Cable (The Voltage of Power Supply: Input = Output) | ||||
| Model | CPOE-01 | CPOE-01WE | CPOE-01P | CPOE-06 |
| Ports | PoE + LAN + DC | PoE + LAN + DC | PoE + LAN + DC | PoE + LAN + DC |
| PoE Support | IEEE 802.3af | IEEE 802.3af | IEEE 802.3af | IEEE 802.3af |
| Power Input | DC5V~48V | DC5V~48V | DC5V~24V | DC12V~24V |
| DC Output | DC5V~48V | DC5V~48V | DC5V~24V | DC12V~24V |
| DC Connector | 5.5*2.1mm DC Female Plug | |||
| Data Speed | 10/100Mbps | |||
| Data Pin | 1/2: (+), 3/6: (-) | |||
| Power Pin | 4/5: (+), 7/8: (-) | |||
| Extend Distance | 30~40M | |||
| Network Cable | Un-shielded or Shielded Cat5E, Cat6 or Better | |||
| Temperature | Working: -10℃~+50℃, Store: -20℃~+85℃ | |||
| Humidity | Working: 20~90%RH, Store: 10~95%RH | |||
| Material | ABS Plastic Housing | |||
