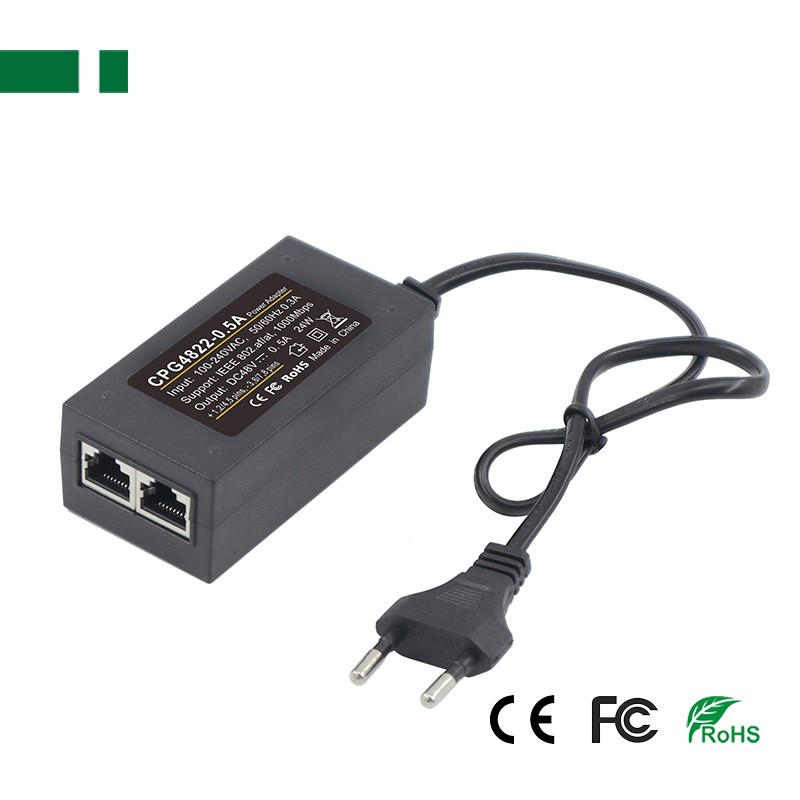

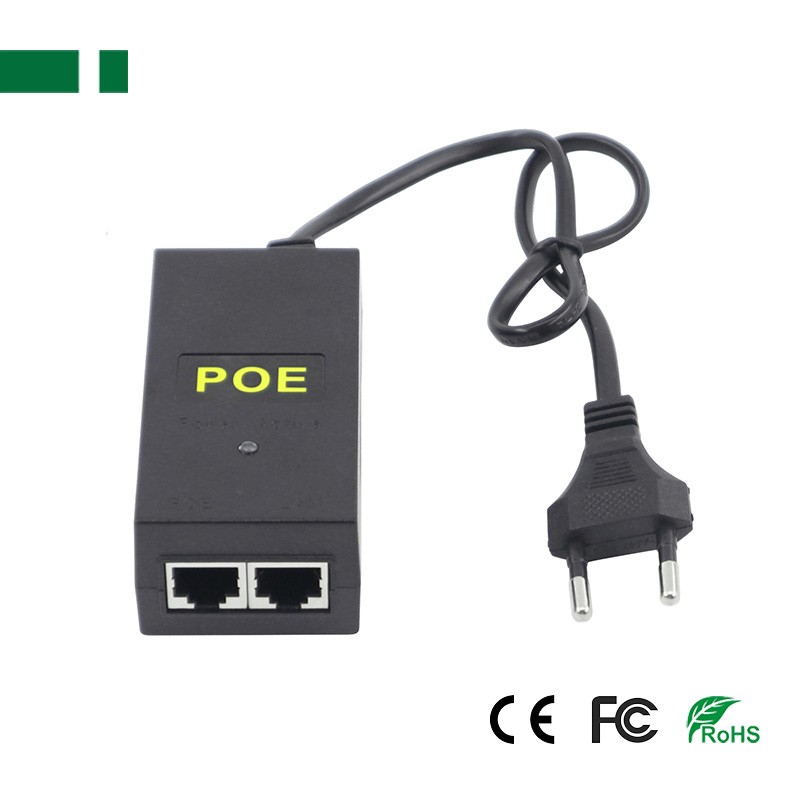

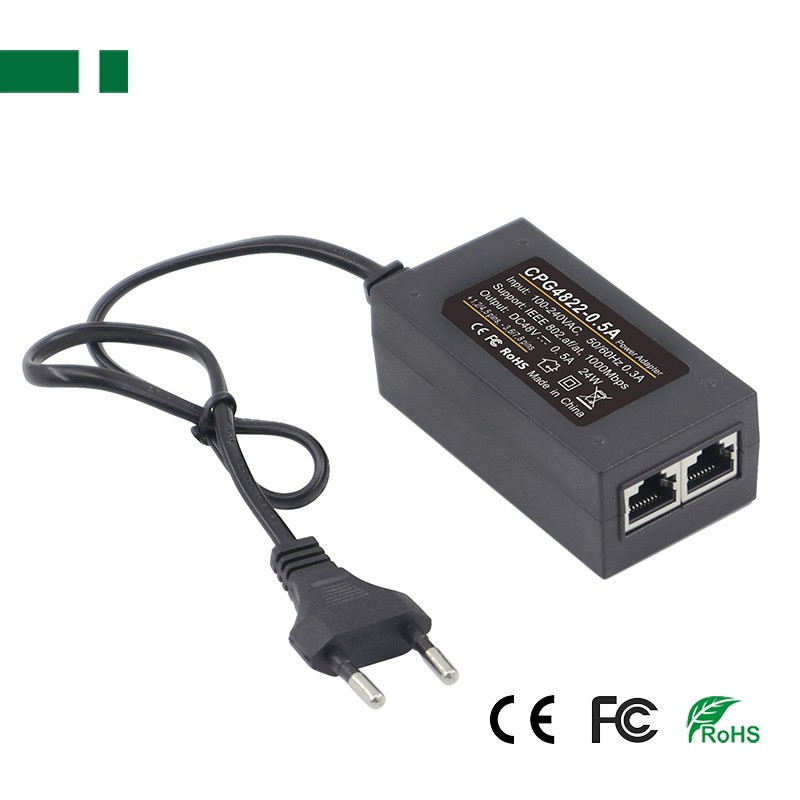

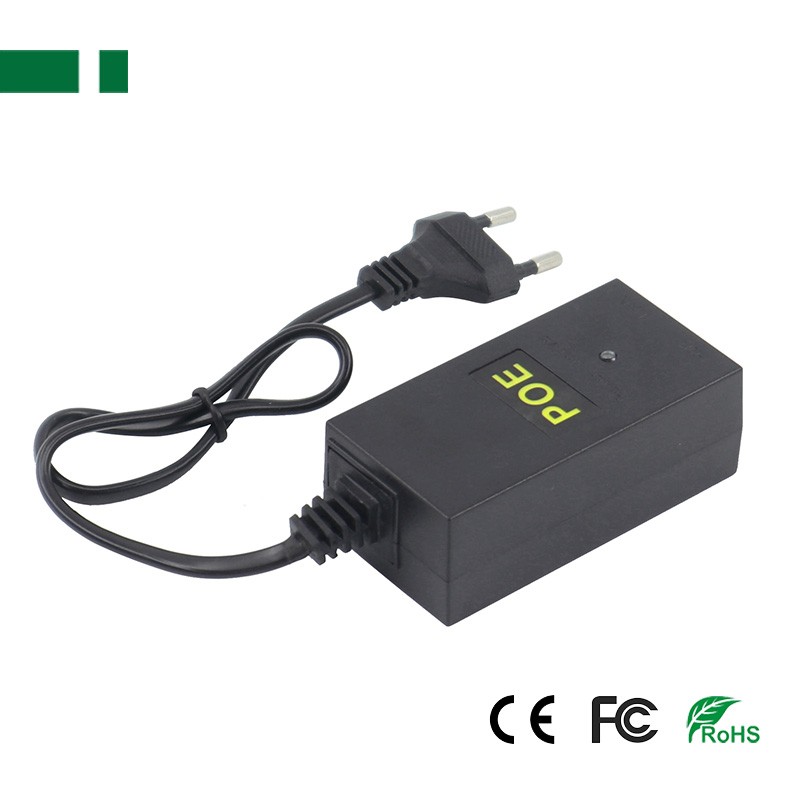

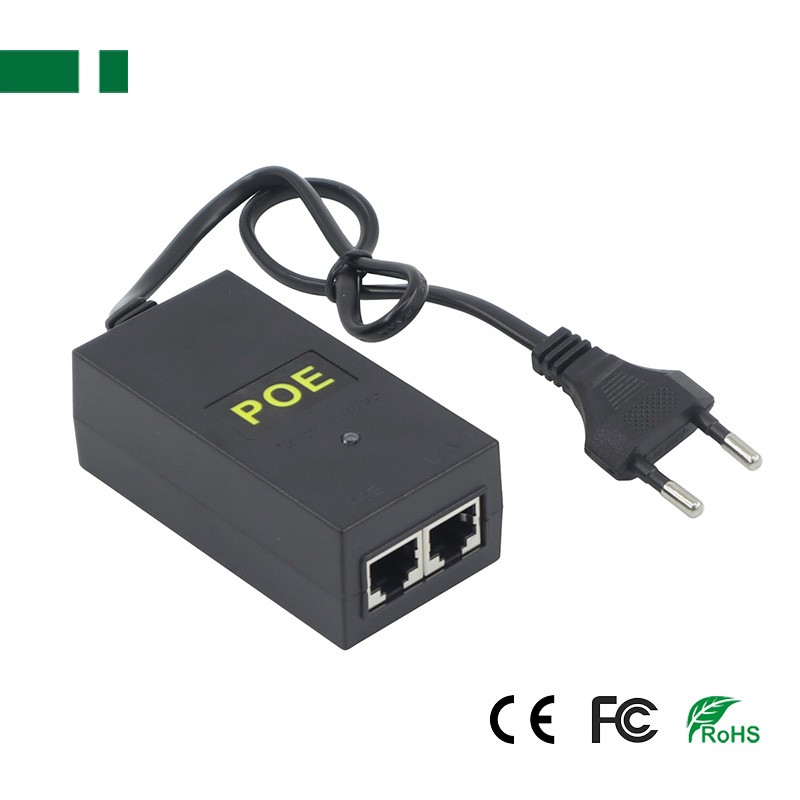

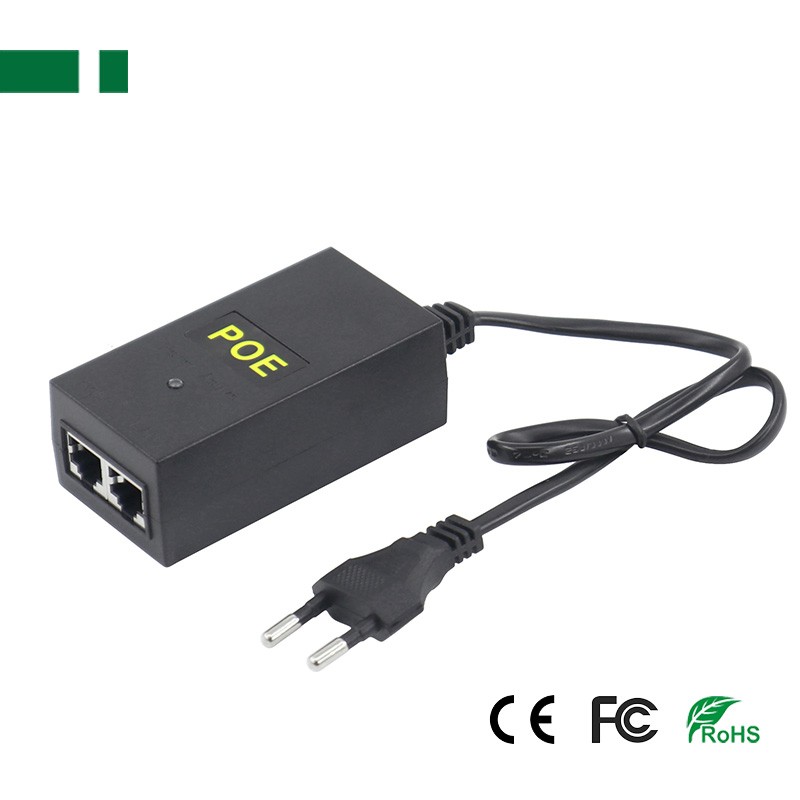

CPG4822-0.5A 1000Mbps 24W POE Power Adapter

1000Mbp Desktop POE Power Adapter for IP Camera Power Supply, DC12V, DC24V and DC48V optional
The ideal solution for applications in which an electrical outlet may not be available, the injector adapter can be used to power devices with poe support, such as IP cameras or wireless access points (WAPs). Compact, Wall-Mounted design makes it easy to install the adapter in areas where space is limited, and can be set in seconds without the need for configuration.
Features:
▪ Compatible with IEE802.3af/at POE protocol.
▪ Standard PD port power supply priority function.
▪ Forwarding Rate: 10/100/1000BASE-TX:148800pps/port
▪ Interface: LAN(DATA:1236), POE (DATA:1236; POWER: 4/5: +, 7/8: -)
▪ Power input Rated Voltage range: 100~240VAC
▪ Power output Rated voltage: DC48V
▪ Rated current: 0.5A
▪ Short circuit, over-current, and over-voltage protection
▪ System reliability: MTBF>100k hours
▪ Anti-thunder design, bearing positive and passive 5KB, 8/20uS electric shockwave up to 5 times for every minute.
▪ Failure alert function and FUSE.

Specification:
