POE Power Adapter

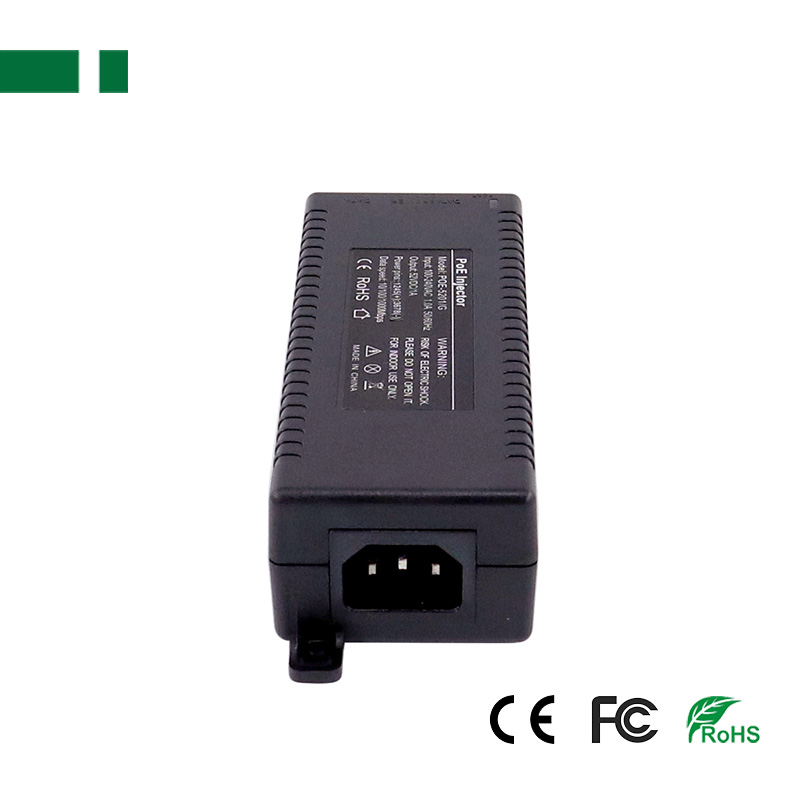

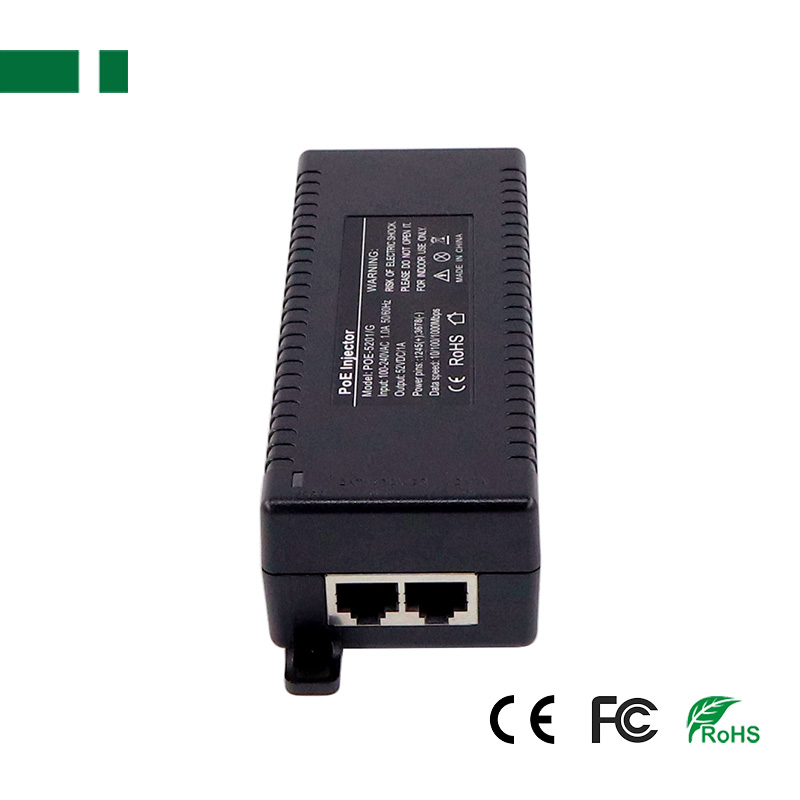

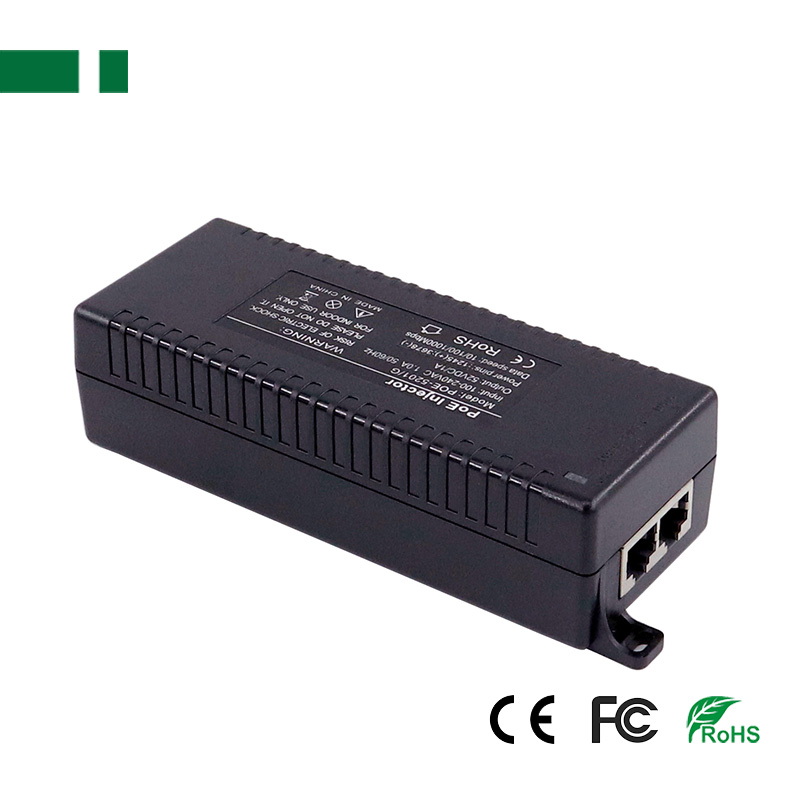

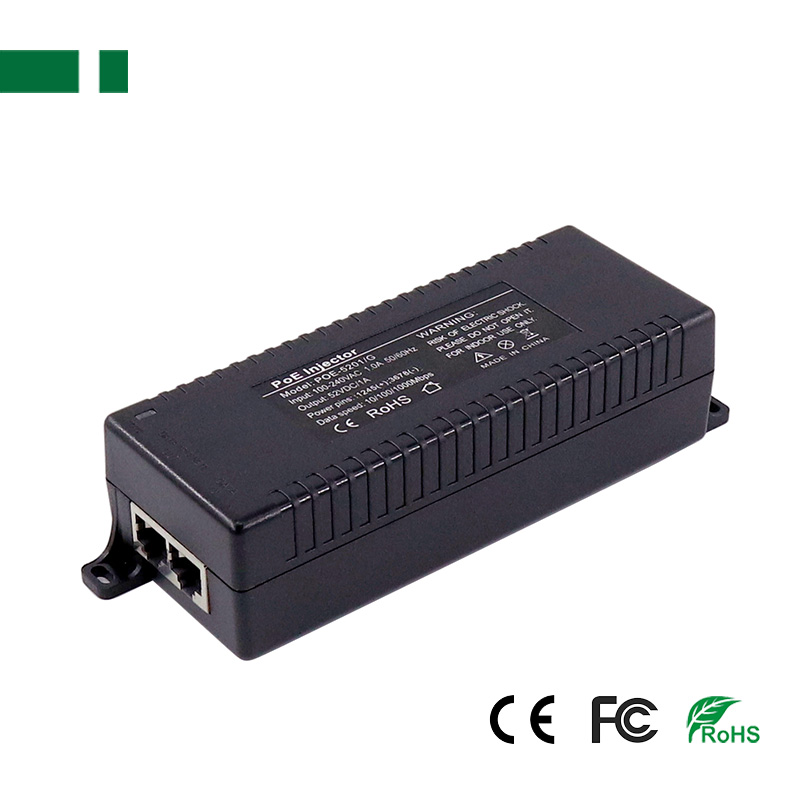

CPE5201-30W 1000Mbps POE Power Supply

30W Gigabit POE Injector Power Supply
Compatible: IEEE802.3af/at;
Data Pin: 1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-)
Power Pin: 1/2: (+), 3/6: (-)
Product description: The CPE5201-30W is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments.
INQUIRY EMAIL

DESCRIPTION:

The CPE5201-30W is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The CPE5201-30W supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and video phones.

It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC Power Adapters anymore. For all the function featured in CPE5201-30W, people can get the benefit of flexible network installation at lower cost, less downtime.

FEATURE:

● Gigabit POE Injector Max 30W Power over Ethernet;
● Data speed:10/100/1000Mbps;
● Compatible: IEEE802.3af/at;
● Output: DC48~56V;
● Power: 30W Max;
● Input Current: 100V-240V AC, 47-60Hz;
● Protections: Auto Recover Over-Voltage, Short Circuit, Over-Current;
● Applications: IP Camera/Phone, Wireless Access Point and Client Devices, Security Camera Systems.

SPECIFICATION:

	10/100/1000Mbps IEEE 802.3af/at/bt 30W/60W/90W POE Injector
Model	CPE5201-30W	CPE5201-60W	CPE5201-90W
PoE Support	IEEE 802.3af/at	IEEE 802.3af/at/bt	IEEE 802.3af/at/bt
Power Input	AC100V~240V, 50/60Hz
DC Output	DC52V 0.58A	DC52V 1.16A	DC52V 2.88A
PoE Power Supply	30W	60W	90W
Data Speed	10/100/1000Mbps
Data Pin	1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-)	1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-)	1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-)
Power Pin	1/2: (+), 3/6: (-)	1/2: (+), 3/6: (-) or 4/5: (+), 7/8: (-)	1/2: (+), 3/6: (-) or 4/5: (+), 7/8: (-)
Network Cable	Shielded Cat5, Cat5e, Cat6 or better
Extend Distance	0~100M
Temperature	Working: -10℃~+50℃, Store: -20℃~+85℃
Humidity	Working: 20~90%RH, Store: 10~95%RH
Dimension	1435740mm (LWH)	1435740mm (LWH)	1879242mm (LWH)
Weight	152g	196g	800g
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure.
