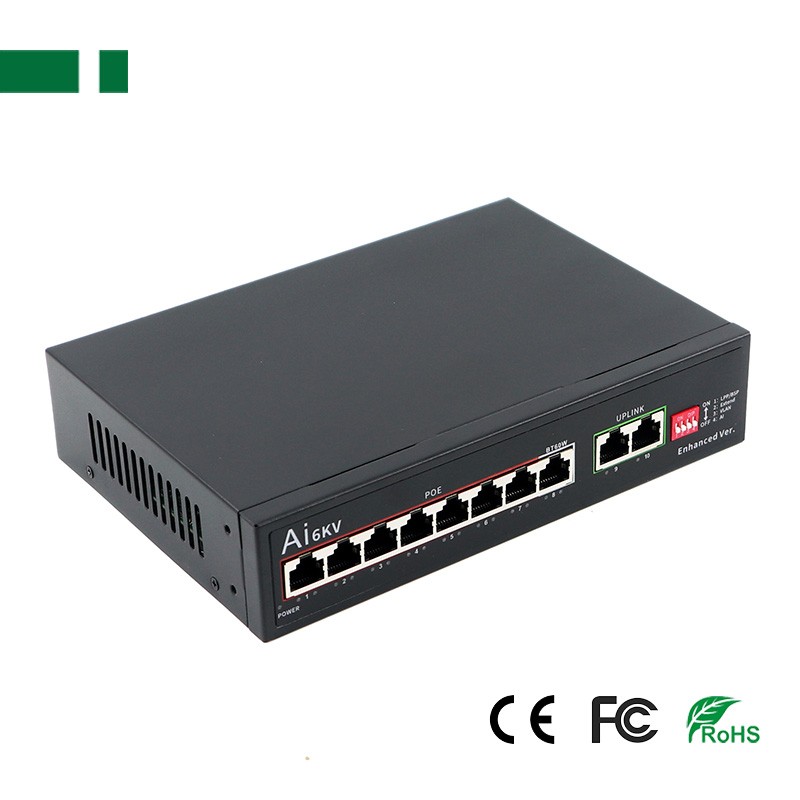

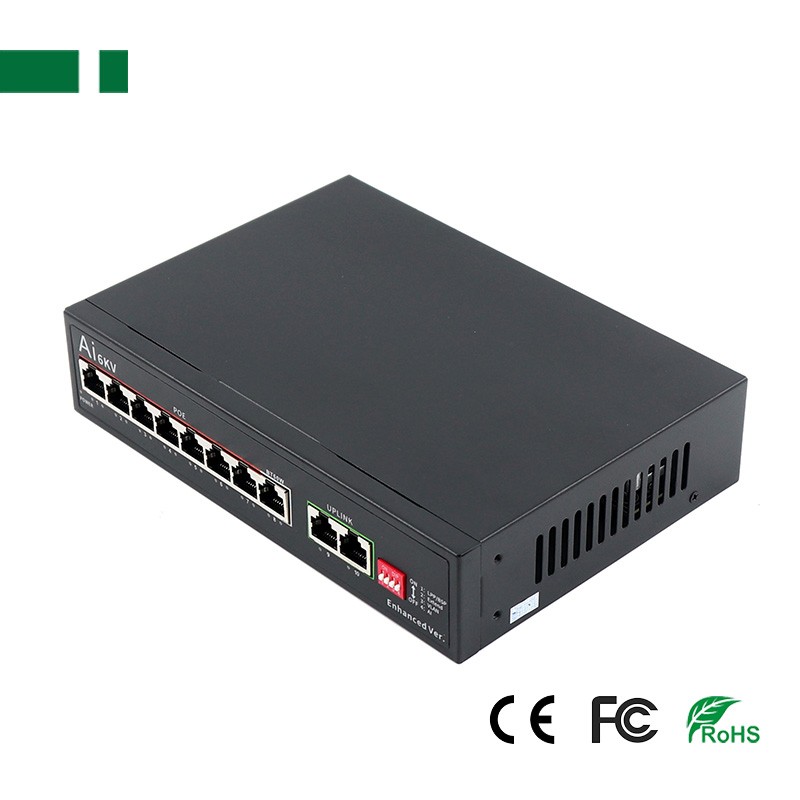

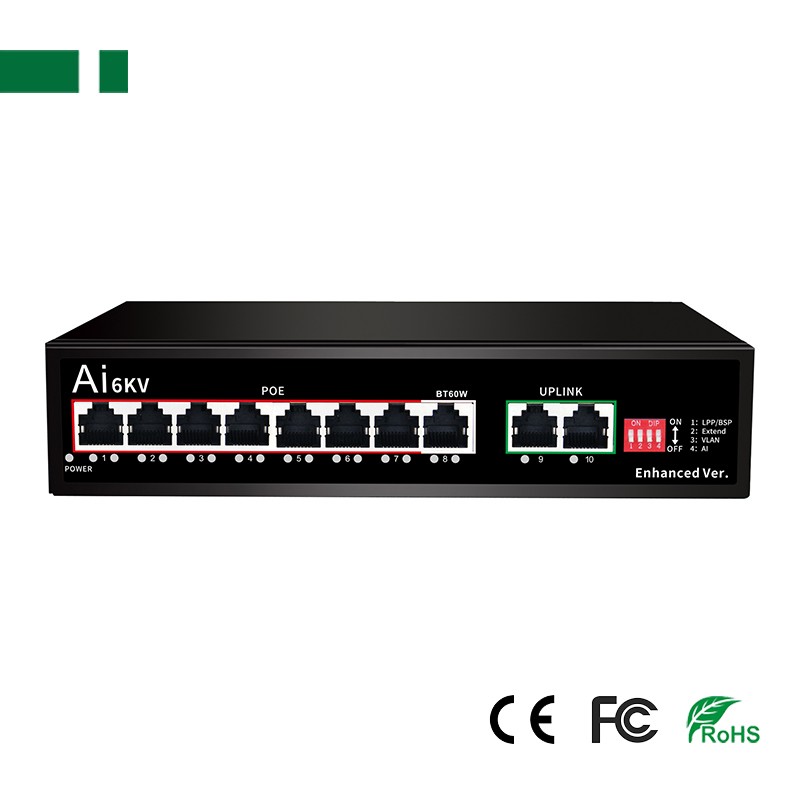

▪ 8 Port 6KV 10/100/1000M POE Switch(8+2 Built-in);
▪ POE Port: (1-BT+7-AT/AF) * 10/100/1000Mbps;
▪ Uplink Port: 2 * 10/100/1000Mbps;
▪ PoE Standard: IEEE 802.3AT/AF/BT;
▪ Build-in DC52V 120W power supply;
▪ Built in PoE Watchdog;
▪ Size: 202*140*45mm, G.W: 0.9KG.
The POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission.
Description:
The POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. The product support one key camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Feature:

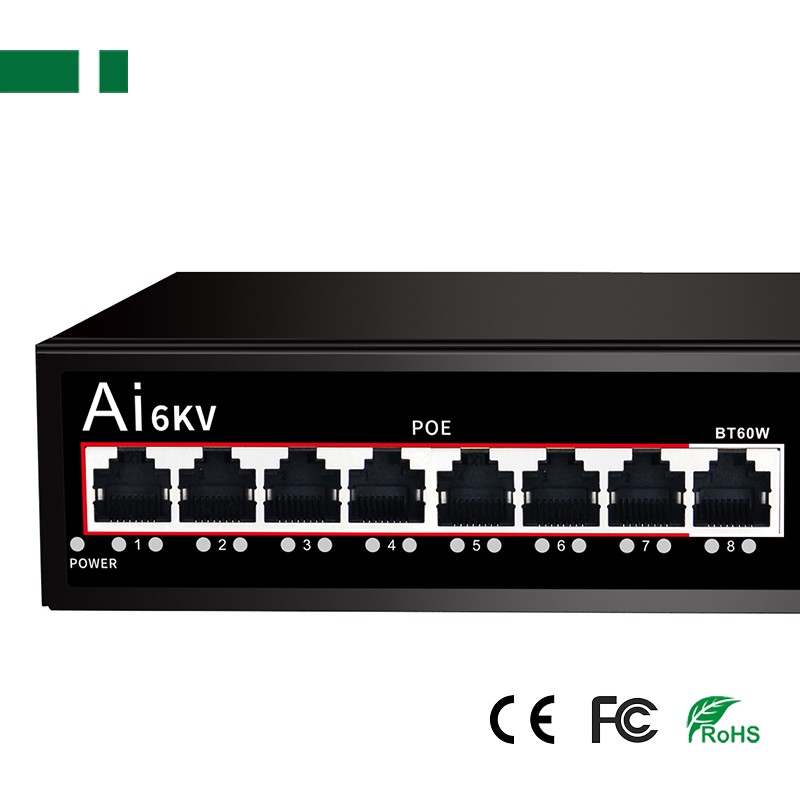

▪ 8 Port 6KV 10/100/1000M POE Switch(8+2 Built-in);
▪ POE Port: (1-BT+7-AT/AF) * 10/100/1000Mbps;

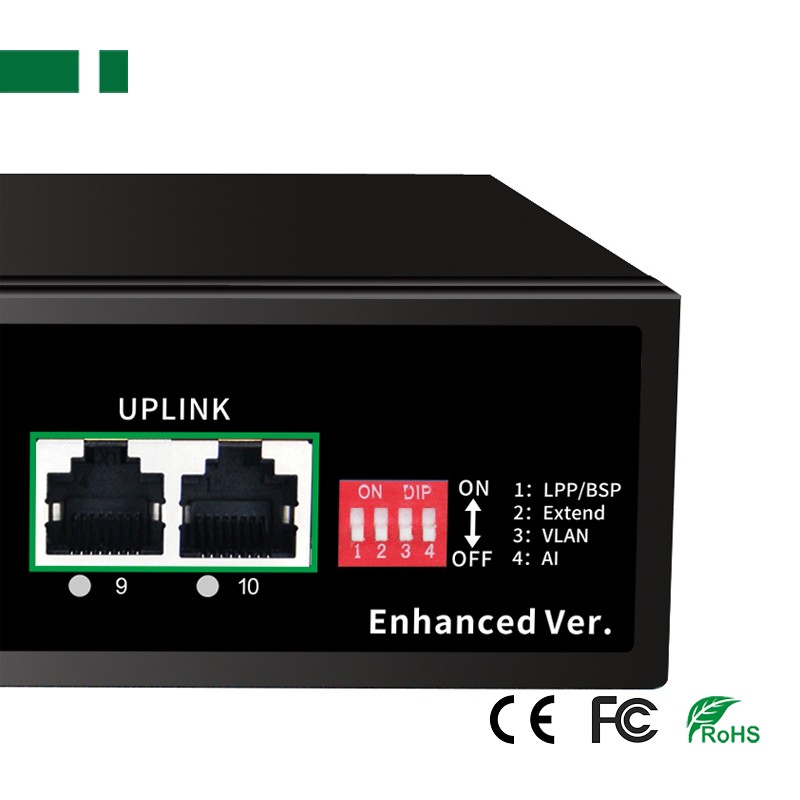

▪ Uplink Port: 2 * 10/100/1000Mbps;
▪ PoE Standard: IEEE 802.3AT/AF/BT;
▪ Build-in DC52V 120W power supply;
▪ Built in PoE Watchdog;
▪ The communication distance extends up to 250 meters;
▪ All port supported by MDI/MDIX auto flip and self negotiation;

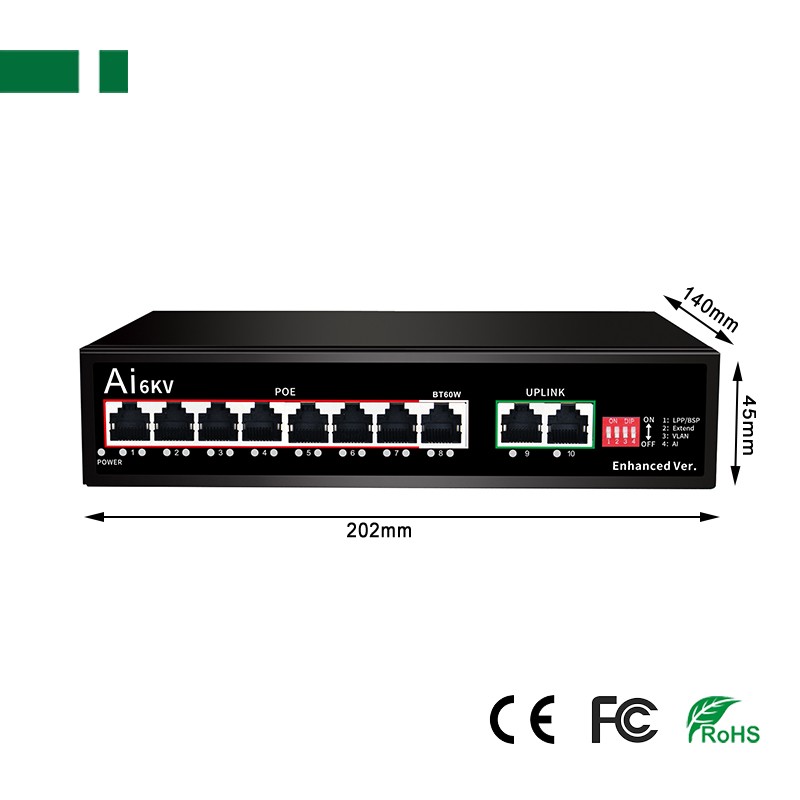

▪ Size: 202*140*45mm, G.W: 0.9KG.
Specification:
| Item | Enhanced PoE Switch with 6KV Lightning Protection | |
| Model | CPE-G6042BT | CPE-G5182BT |
| POE Port | 4*10/100/1000Mbps POE Ports | 8*10/100/1000Mbps POE Ports |
| Uplink Port | 2*10/100/1000Mbps Uplink Ports | 2*10/100/1000Mbps Uplink Ports |
| SFP Port | N/A | N/A |
| Network Standard | IEEE 802.3i, 802.3u, IEEE 802.3x, IEEE 802.3af | |
| POE Agreement | IEEE802.3af, IEEE802.3at, IEEE802.3bt (all ports) | IEEE802.3af, IEEE802.3at, IEEE802.3bt (the 8ch port) |
| Bandwidth | 20Gbps Full duplex | |
| Forwarding Mode | Forward-and-Storage | |
| POE Power Pin | End-Span (1/2: +; 3/6: -) | |
| PoE Data Pin | 1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-) | |
| Power Source | Built-in Power Supply: Input: 110-264VAC, 50/60Hz | |
| Power Supply | DC52V 320W | DC52V 120W |
| PoE Output | DC48-55V | DC48-55V |
| Lightning Protection | 6KV (all ports) | 6KV (all ports) |
| Watchdog | N/A | Support |
| POE Power | AF=15.4W & AT=30W (every port), BT=90W (every port) | AF=15.4W & AT=30W (every port), BT=60W (The 8ch port) |
| Transmist Medium | Category 5E/6 or over Category 5E/6 unshielded twisted pair cable | |
| Transmist Distance | 0-100m/100Mbps, 0-250m/10Mbps after used Extender function | |
| PoE Feature | All ports support MDI/ MDIX | |
| Temperature | Working: -10℃-50℃, Storage: -40℃-70℃ | |
| Humidity | Working & Storage: 10%-95% , non-condensing | |
| Dimension | 312*185*46mm (L*W*H) | 202*140*45mm (L*W*H) |
