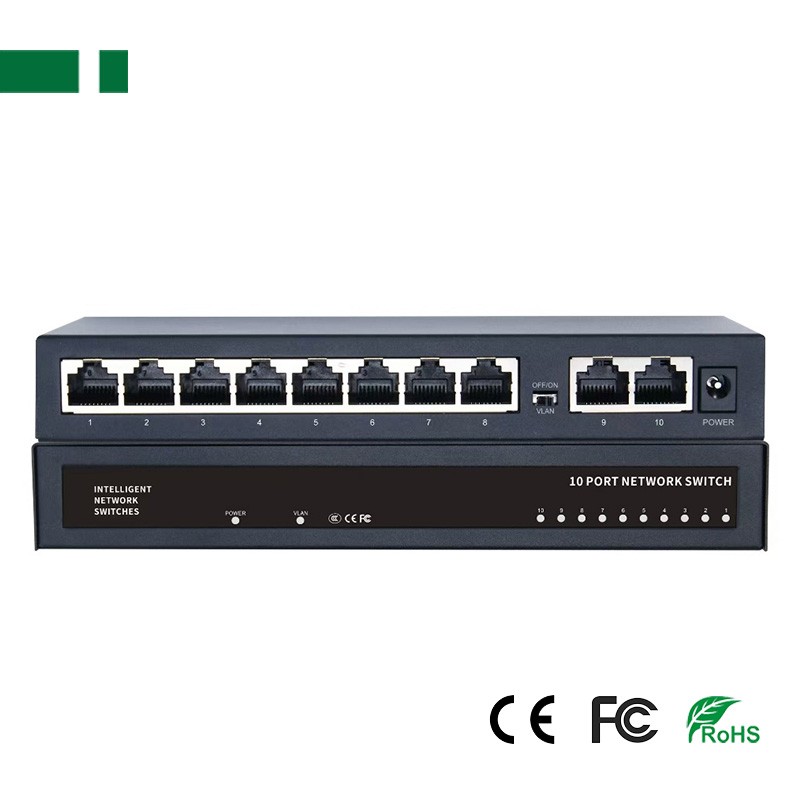

▪ 10 Port 10/100/1000Mbps POE Switch with External Power;
▪ POE Port: (8-AT/AF) * 10/100/1000Mbps;
▪ Uplink Port: 2 * 10/100/1000Mbps;
▪ PoE Standard: IEEE 802.3AT/AF;

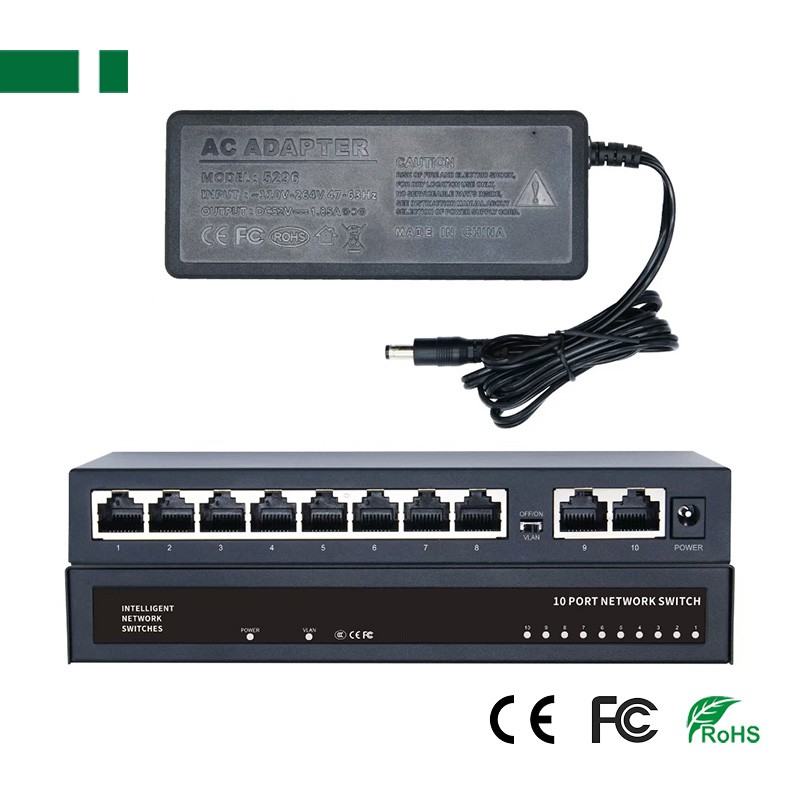

▪ Power Supply: DC52V 96W External Power;
▪ Data signal port:12345678, Distance: 0~100M;
▪ Size: 181*62*27mm, G.W: 0.631KG.
▪ The POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission.
Description:
The POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. The product support one key camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Feature:
▪ 10 Port 10/100/1000Mbps POE Switch with External Power;
▪ POE Port: (8-AT/AF) * 10/100/1000Mbps;
▪ Uplink Port: 2 * 10/100/1000Mbps;
▪ PoE Standard: IEEE 802.3AT/AF;
▪ Power Supply: DC52V 96W External Power;
▪ Data signal port:123456786, Distance: 0~100M;
▪ All port supported by MDI/MDIX auto flip and self negotiation;
▪ Size: 181*62*27mm, G.W: 0.631KG.
Specification:
| Item | 10/100/1000Mbps PoE Switch with External Power Supply | |||
| Model | CPE-4041W | CPE-4082W | CPE-G4041W | CPE-G4082W |
| POE Port | 4*10/100Mbps POE Ports | 8*10/100Mbps POE Ports | 4*10/100/1000Mbps POE Ports | 8*10/100/1000Mbps POE Ports |
| Uplink Port | 1*10/100Mbps Uplink Ports | 2*10/100Mbps Uplink Ports | 1*1000Mbps Uplink Ports | 2*1000Mbps Uplink Ports |
| SFP Port | N/A | |||
| Network Standard | IEEE 802.3i, 802.3u, IEEE 802.3x, IEEE 802.3af | |||
| POE Agreement | IEEE802.3af, IEEE802.3at | |||
| Bandwidth | 20Gbps Full duplex | |||
| Forwarding Mode | Forward-and-Storage | |||
| POE Power Pin | End-Span (1/2: +; 3/6: -) | End-Span (1/2: +; 3/6: -) | ||
| PoE Data Pin | 1/2: (+), 3/6: (-) | 1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-) | ||
| Power Source | External Power Supply: Input: 110-264VAC, 50/60Hz | |||
| Power Supply | DC52V 48W | DC52V 96W | DC52V 48W | DC52V 96W |
| PoE Output | DC48-55V | DC48-55V | DC48-55V | DC48-55V |
| Lightning Protection | N/A | |||
| Watchdog | N/A | |||
| POE Power | AF=15.4W & AT=30W (every port) | |||
| Transmist Medium | Category 5E/6 or over Category 5E/6 unshielded twisted pair cable | |||
| Transmist Distance | 0-100M | 0-250M | 0-100M | 0-100M |
| PoE Feature | All ports support MDI/ MDIX | |||
| Temperature | Working: -10℃-50℃, Storage: -40℃-70℃ | |||
| Humidity | Working & Storage: 10%-95% , non-condensing | |||
| Dimension | 100*50*27mm (L*W*H) | 181*62*27mm (L*W*H) | 100*50*27mm (L*W*H) | 181*62*27mm (L*W*H) |
