CPE-G5180BE 8 Ports Full Gigabit POE Switch

  • 8 Ports Full Gigabit POE Switch
  • 8*10/100/1000Mbps PoE ports
  • 2*10/100/1000Mbps SFP port
  • Support IEEE802.3AF/AT
  • Product description: The POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security su
  • INQUIRY   EMAIL

Description:
The POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and  fluent transmission. The product support one key  camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Feature:
1. 8 ports 10/100/1000Mbps PoE switch with 8 ports PoE ports and 2 SFP ports;
8*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps SFP port;
2. Support IEEE802.3AF/AT;
3. Build-in DC52V 2.3A 120W power supply;
4. The communication distance extends up to 100 meters;
5. All port supported by MDI/MDIX auto flip and self negotiation;
6. Support 8*10/100/1000Mpbs adaptive high speed forwarding data packet non-lost;
7. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode;
8. Fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
9. Application: Wireless Access Point, IP Camera, IP Phone, Computer Networks etc..

Specification:

8 Ports Switch with 8*10/100/1000Mbps PoE Ports
Model CPE-G5182B CPE-G5180BE CPE-G5182BE
Network Ports POE Ethernet Port 8*10/100/1000Mbps; RJ45 ports; Max. 30W
Uplink Port 2*10/100/1000Mbps N/A 2*10/100/1000Mbps
SFP Port N/A 2*10/100/1000Mbps 2*10/100/1000Mbps
Transmission Medium Cat5/ 5E/ 6 standard Network Cable
Standard Network Standard IEEE 802.3i, 802.3u, IEEE 802.3x, IEEE 802.3af
Switch Capacity 20Gbps Full duplex
Packet Forwarding Rate 1.488Mpps/port
Forwarding Mode: Store-and-Forward
MAC Table 2K
Power Over Ethernet POE Standard IEEE802.3af, IEEE802.3at
POE Power Supply Type End-Span(1/2: +; 3/6: -)
PoE Data Pin 12+ 36- 45+ 78-,  Distance: 0~100M
POE Power Consumption af=15.4W(every port), af=30W(every port)
Transmission Distance: 0-100m/100/1000Mbps
PoE Feature All ports support MDI/MDIX
LED Status Indicator Power Indicator Light on: Powering; Light off: No Power
VLAN Indicator Green light on: VLAN mode; Light off: normal mode
PoE Port indicator Light off:  Link is disconnected, Red light on: Powering but data disconnected, Light flash quickly: Data Transmitting
General Power Source Built-in Power Supply: Input: 110-264VAC, 50/60Hz
PoE Power Budget DC52V 2.3A 120W
Power Consumption: <5W
ESD Air discharge: 1.5KV, Contact discharge: 1.5KV
Anti-Thunder Level Common mode: 2KV, Differential mode: 1.5KV
Working temperature -10-50
Relative Humidity 10%-95% , non-condensing
Storage Temperature -40-70

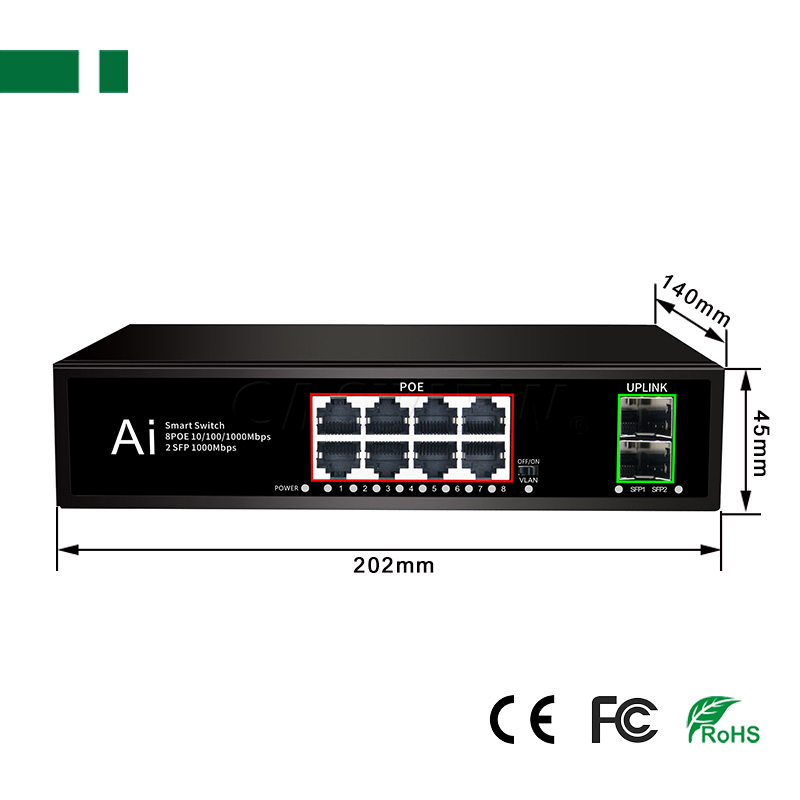

Dimension (L×W×H) 202*140*45 mm
Color Black
Weight 1KG 1KG 1.1KG
