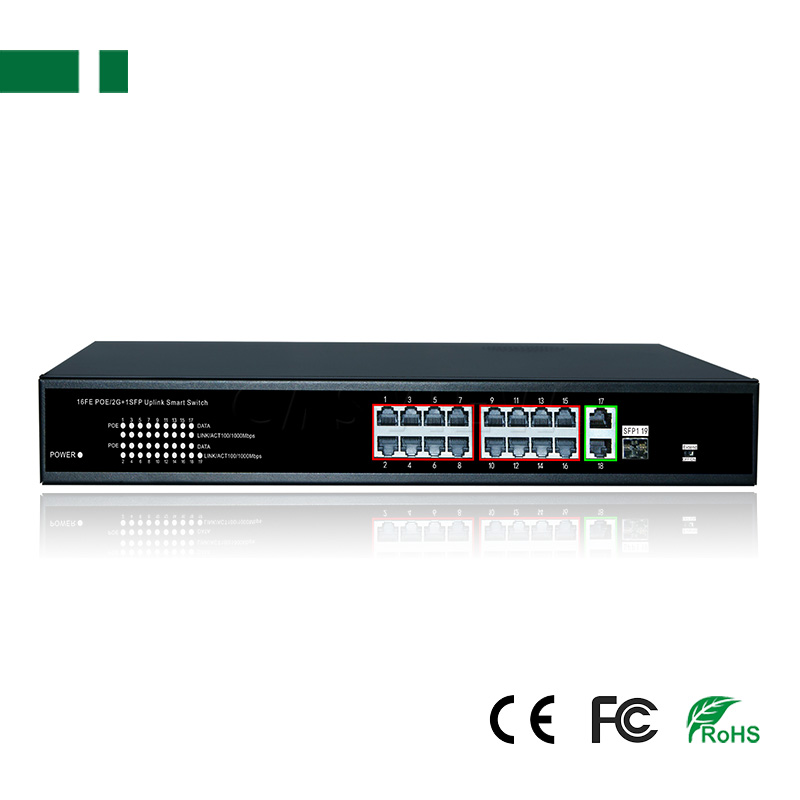

CPE-7162BE 16 Ports 100Mbps POE Switch

  • 16 Port 10/100M POE Switch(4+2 Built-in)
  • 16*10/100Mbps PoE ports
  • 2*10/100/1000Mbps uplink port
  • 1*10/100/1000Mbps SFP port;
  • Product description: The POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security su
  • INQUIRY   EMAIL

Description:
The POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and  fluent transmission. The product support one key  camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Feature:
1. 16 ports 10/100Mbps PoE switch with 16 ports PoE ports and 2 uplink ports and 1 SFP port;
16*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port, 1*10/100/1000Mbps SFP port;
2. Support IEEE802.3AF/AT;
3. Build-in  DC52V 5.8A 300W power supply;
4. The communication distance extends up to 250 meters;
5. All port supported by MDI/MDIX auto flip and self negotiation;
6. Support 16*10/100Mbps adaptive high speed forwarding data packet non-lost;
7. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode;
8. Fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
9. Application: Wireless Access Point, IP Camera, IP Phone, Computer Networks etc..

Specification:

16 Ports Switch with 16*10/100Mbps PoE Ports
Model CPE-7162BE CPE-7242BE
Network Ports POE Ethernet Port 16*10/100Mbps; RJ45 ports; Max. 30W 24*10/100Mbps; RJ45 ports; Max. 30W
Uplink Port 2*10/100/1000Mbps; Max. 100M
SFP Port 1*10/100/1000Mbps 2*10/100/1000Mbps
Transmission Medium Cat5/ 5E/ 6 standard Network Cable
Standard Network Standard IEEE 802.3i, 802.3u, IEEE 802.3x, IEEE 802.3af
Switch Capacity 7.2Gbps Full duplex 8.8G Full Duplex
Packet Forwarding Rate 0.1488Mpps/port
Forwarding Mode: Store-and-Forward
MAC Table 2K
Power Over Ethernet POE Standard IEEE802.3af, IEEE802.3at
POE Power Supply Type End-Span(1/2: +; 3/6: -)
PoE Data Pin 1/2: +; 3/6: -
POE Power Consumption af=15.4W(every port), af=30W(every port)
Transmission Distance: 0-100m/100Mbps, 0-250m/10Mbps after used Extender function
PoE Feature All ports support MDI/MDIX

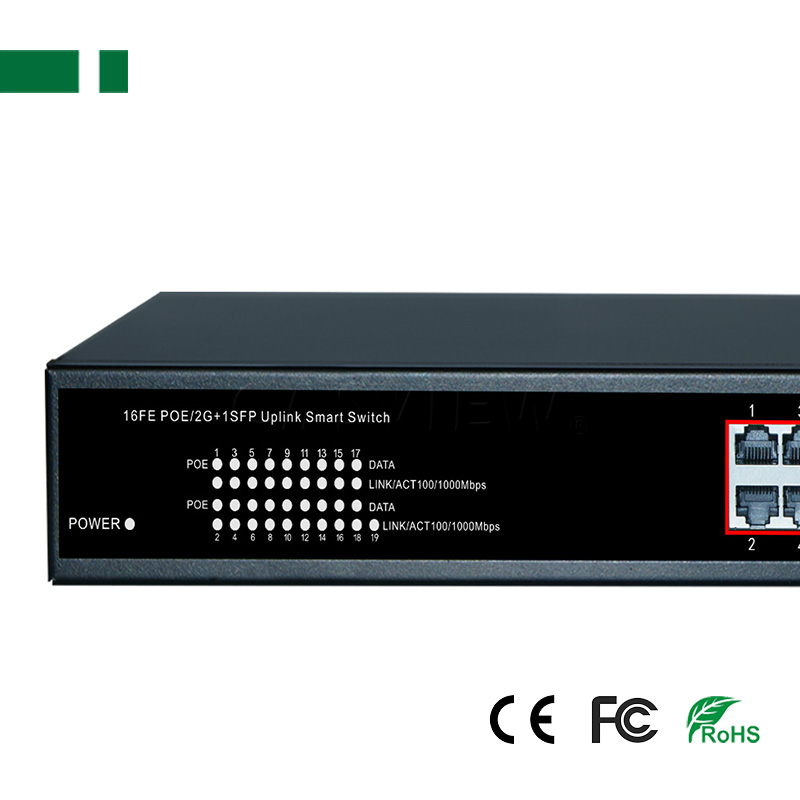

LED Status Indicator Power Indicator Light on: Powering; Light off: No Power
VLAN Indicator Green light on: VLAN mode; Light off: normal mode
PoE Port indicator Light off:  Link is disconnected, Red light on: Powering but data disconnected, Light flash quickly: Data Transmitting
General Power Source Built-in Power Supply: Input: 110-264VAC, 50/60Hz
PoE Power Budget DC52V 5.8A 300W DC52V 6.7A 350W
Power Consumption: <5W
ESD Air discharge: 1.5KV, Contact discharge: 1.5KV
Anti-Thunder Level Common mode: 2KV, Differential mode: 1.5KV
Working temperature -10-50
Relative Humidity 10%-95% , non-condensing
Storage Temperature -40-70

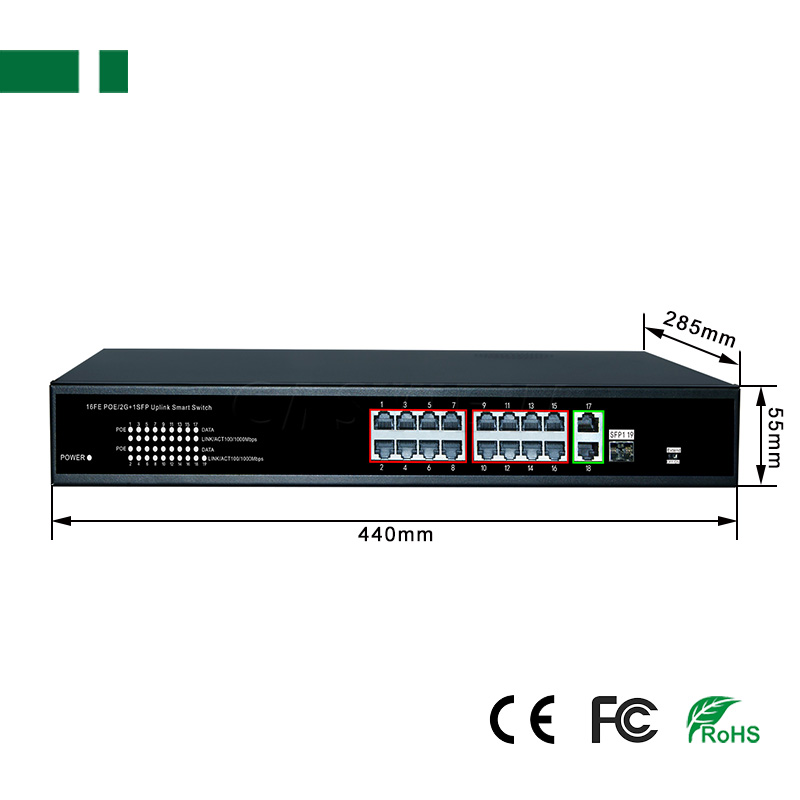

Dimension (L×W×H) 440*285*55mm
Color Black
Weight 3.95KG 4.3KG
