POE Splitter & Injector

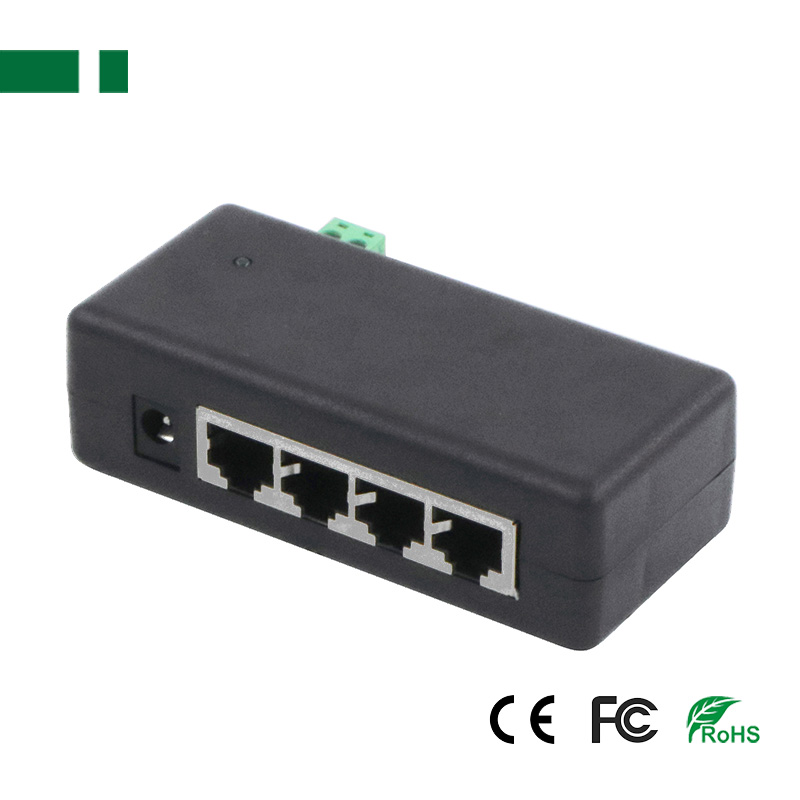

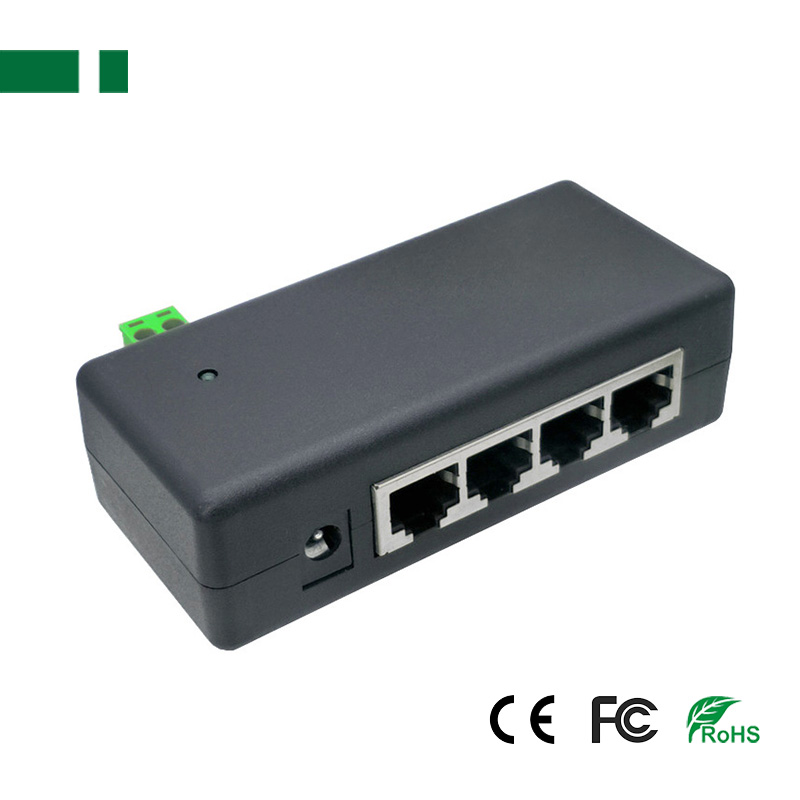

CPE-104 4 ports 100Mbps POE Injector for IP Camera

CPE-104 4 ports 100Mbps POE Injector for IP Camera

4-CH 100Mbps POE Injector Power over Ethernet for IP Camera
● Power Input & Output: DC9V~48V;
● Data Pin: 1/2: (+), 3/6: (-);
● Power Pin: 4/5: (+), 7/8: (-);
Product description: This Passive PoE Injector working with IEEE802.3af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wirele
INQUIRY EMAIL

Description:
This Passive PoE Injector working with IEEE802.3af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.

Features:
● 4-CH 100Mbps POE Injector Power over Ethernet for IP Camera;
● Power Input & Output: DC9V~48V;

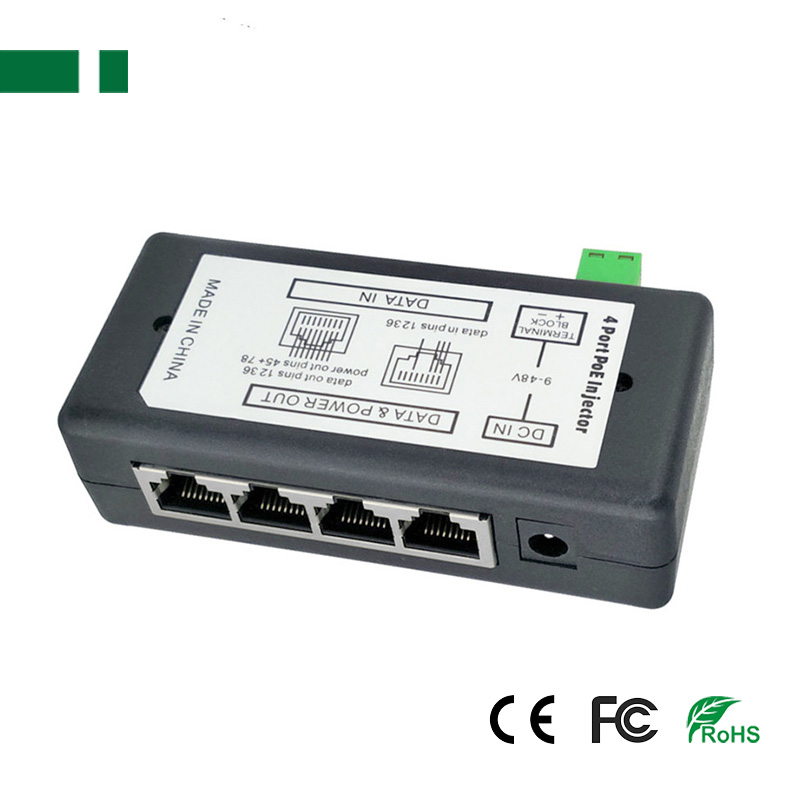

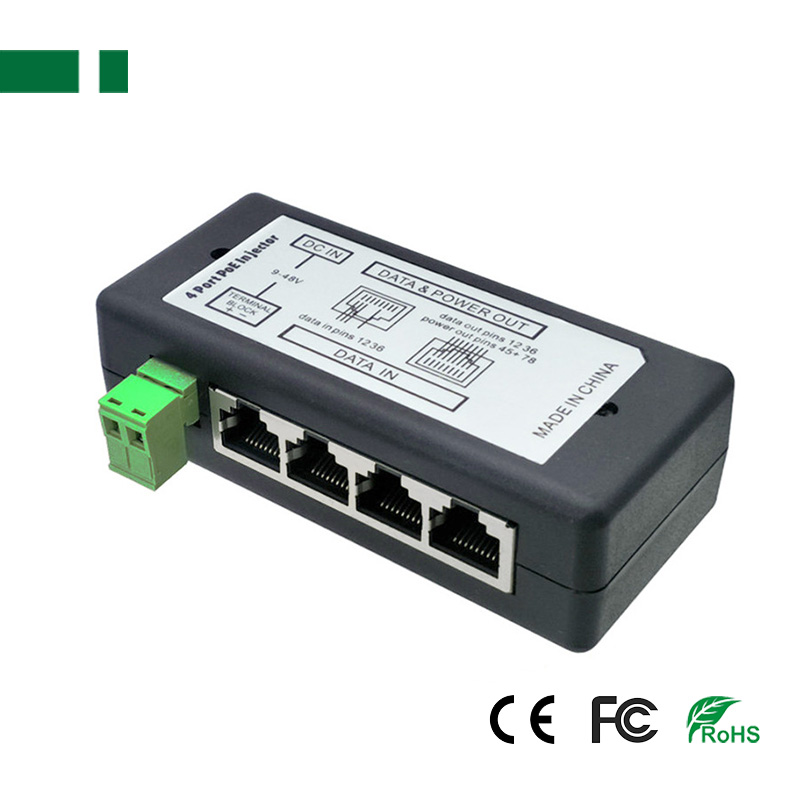

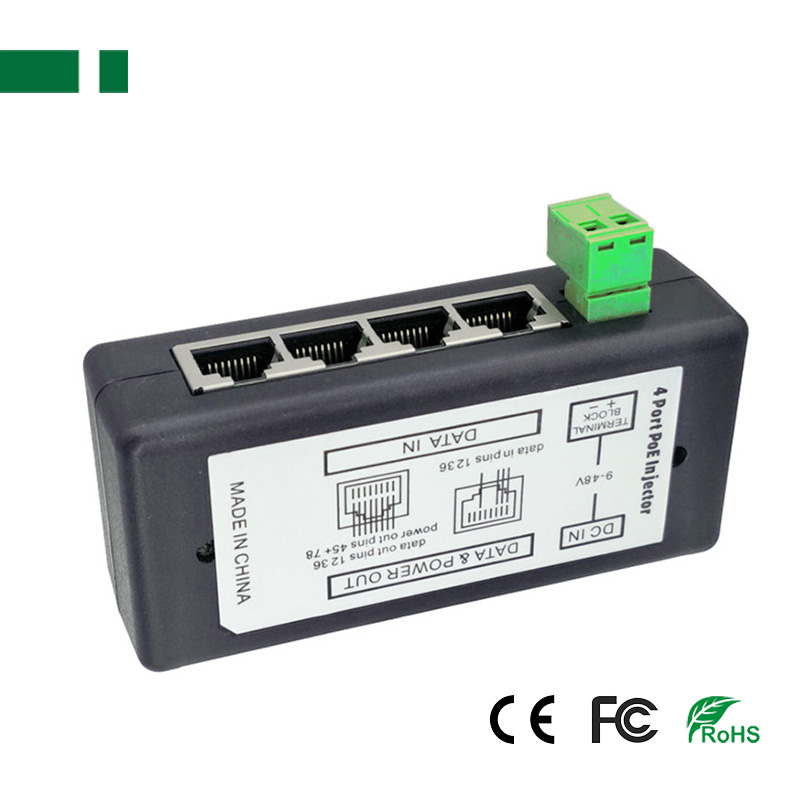

● Ports: 4* RJ45 (PoE) + 4* RJ45 (LAN) + 1* DC (5.5*2.1mm);
● Network Speed: IEEE802.3i;
● Network Speed: 10/100Mbps;
● Data Pin: 1/2: (+), 3/6: (-);
● Power Pin: 4/5: (+), 7/8: (-);
● Supports various DC Power Adapters and Solar Power Battery Packs.
Note:If you need support POE IP camera, Please use 48VDC Power Adapter to support this injector.

Speicification:

100Mbps IEEE 802.3af Passive Power Over Ethernet POE Injector (The Voltage of Power Supply: Input = Output)
Model	CPE-101B	CPE-102B	CPE-103B	CPE-104	CPE-108
Ports	1PoE + 1LAN + 1*DC	1PoE + 1LAN + 1*DC	1PoE + 1LAN + 1*DC	4PoE + 4LAN + 1*DC	8PoE + 8LAN + 1*DC
PoE Support	IEEE 802.3af	IEEE 802.3af	IEEE 802.3af	IEEE 802.3i	IEEE 802.3af
Power Input	DC5V~48V/2A	DC5V~48V/2A	DC5V~48V/2A	DC9V~48V/1-4A	DC12V~48V/10-25A
DC Connector	5.5*2.1mm DC Female Plug
PoE Output	DC5V~48V	DC5V~48V	DC5V~48V	DC9V~48V	DC12V~48V
Data Speed	10/100Mbps
Data Pin	1/2: (+), 3/6: (-)
Power Pin	4/5: (+), 7/8: (-)
Network Cable	Un-shielded or Shielded Cat5E, Cat6 or Better
Extend Distance	0~100M
Temperature	Working: -10℃~+50℃, Store: -20℃~+85℃
Humidity	Working: 20~90%RH, Store: 10~95%RH
Material	ABS Plastic Housing

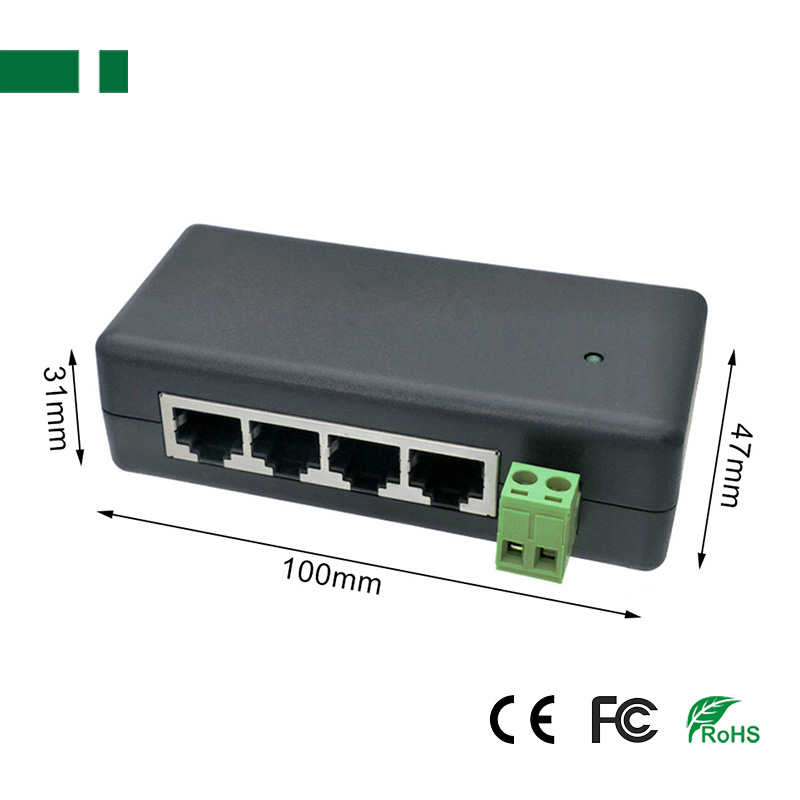

Dimension	502724mm (LWH)	582821mm (LWH)	602722mm (LWH)	1004731mm (LWH)	1455027mm (LWH)
Weight	24g	24g	35g	110g	148g

More Optional: 100Mbps & 1.0Gbps IEEE 802.3af Passive POE Injector
More Models	Ports	Data Speed	Data Pin	Power Pin
CPE-101B	1PoE + 1LAN + 1*DC	100Mbps	1/2: (+), 3/6: (-)	4/5: (+), 7/8: (-)
CPE-102B	1PoE + 1LAN + 1*DC	100Mbps	1/2: (+), 3/6: (-)
CPE-G102B	1PoE + 1LAN + 1*DC	1.0Gbps	1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-)
CPE-103B	1PoE + 1LAN + 1*DC	100Mbps	1/2: (+), 3/6: (-)
CPE-G103B	1PoE + 1LAN + 1*DC	1.0Gbps	1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-)
CPE-104	4PoE + 4LAN + 1*DC	100Mbps	1/2: (+), 3/6: (-)
CPE-G104	4PoE + 4LAN + 1*DC	1.0Gbps	1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-)
CPE-108	8PoE + 8LAN + 1*DC	100Mbps	1/2: (+), 3/6: (-)
CPE-G108	8PoE + 8LAN + 1*DC	1.0Gbps	1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-)
CPE-G1016	16PoE + 16LAN + 1*DC	1.0Gbps	1/2: (+), 3/6: (-), 4/5: (+), 7/8: (-)

Notes: Suggestions for Choosing DC Power Adapters
DC Power Input	DC5V	DC9V~12V	DC15V	DC24V	DC48V
PoE Supply Distance	Max. 10M	Max. 30M	Max. 30M	Max. 80M	Max. 100M
Power Adapter	4-Port: DC48V 2-3A (Recommend), 8-Port: DC48V 4-5A (Recommend), 16-Port: DC48V 6-8A (Recommend)
