POE Injector & Splitter

  • CPE-102FF RJ45 Splitter and Combiner uPOE cable
  • CPE-102FF RJ45 Splitter and Combiner uPOE cable
  • CPE-102FF RJ45 Splitter and Combiner uPOE cable
  • CPE-102FF RJ45 Splitter and Combiner uPOE cable
  • CPE-102FF RJ45 Splitter and Combiner uPOE cable
CPE-102FF RJ45 Splitter and Combiner uPOE cableCPE-102FF RJ45 Splitter and Combiner uPOE cableCPE-102FF RJ45 Splitter and Combiner uPOE cableCPE-102FF RJ45 Splitter and Combiner uPOE cableCPE-102FF RJ45 Splitter and Combiner uPOE cable

CPE-102FF RJ45 Splitter and Combiner uPOE cable

  • RJ45 Splitter and Combiner uPOE cable-Kit of 2
  • Support use as uPoE operation
  • Support use as Ethernet doubler operation
  • Application: WLAN, routers, switches, internet telephony, security monitoring etc
  • Product description: RJ45 Splitter and Combiner uPOE cable-Kit of 2 Injector (Connect to the POE switch): RJ45 Male to RJ45 Female, Supports transmission of power from POE switch. Splitter (Connect to the IPC): RJ45 Fem
  • INQUIRY   EMAIL

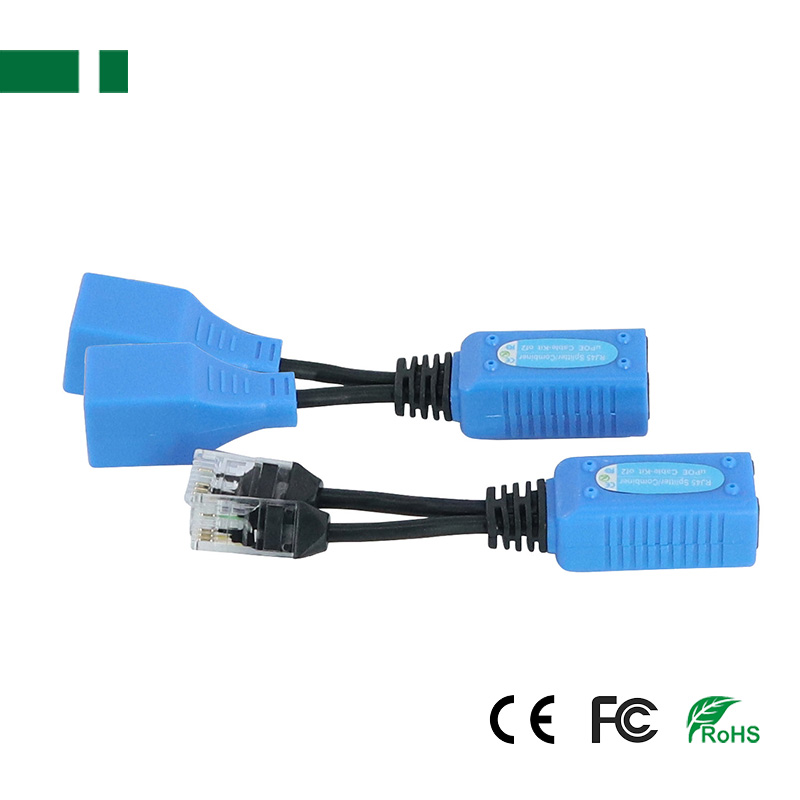

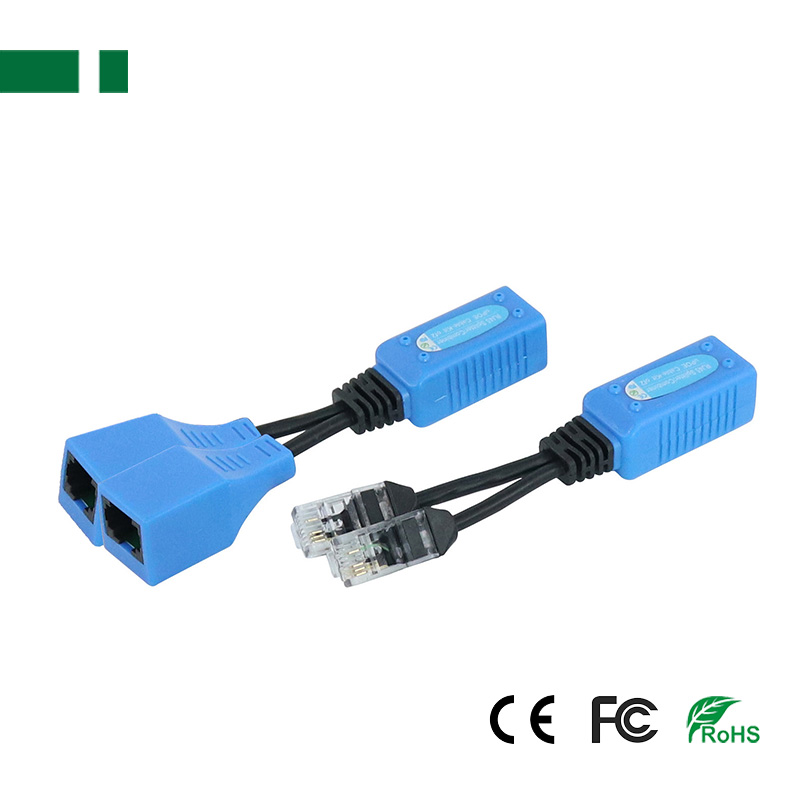

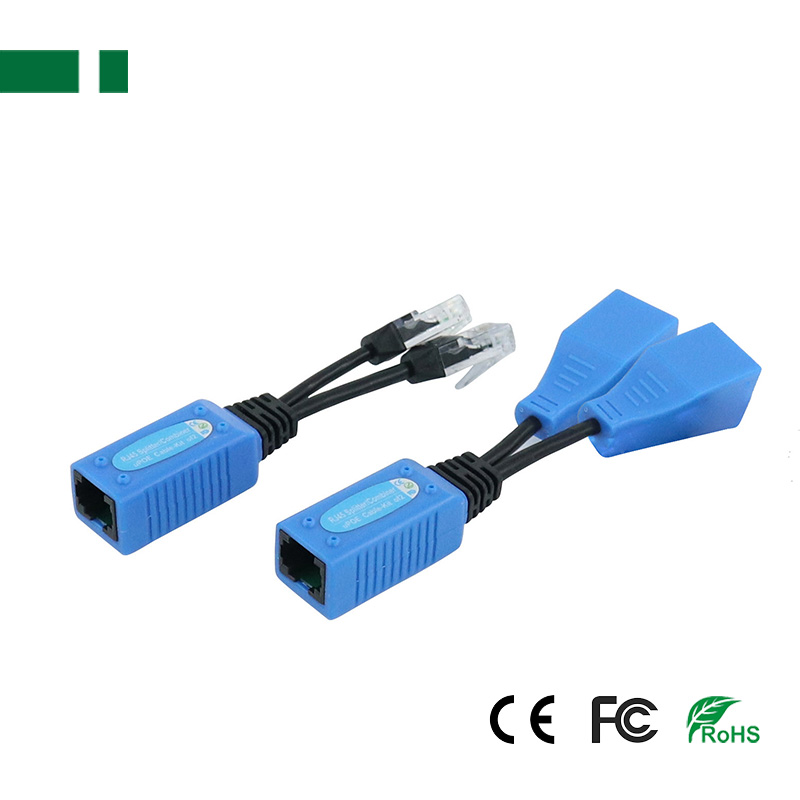

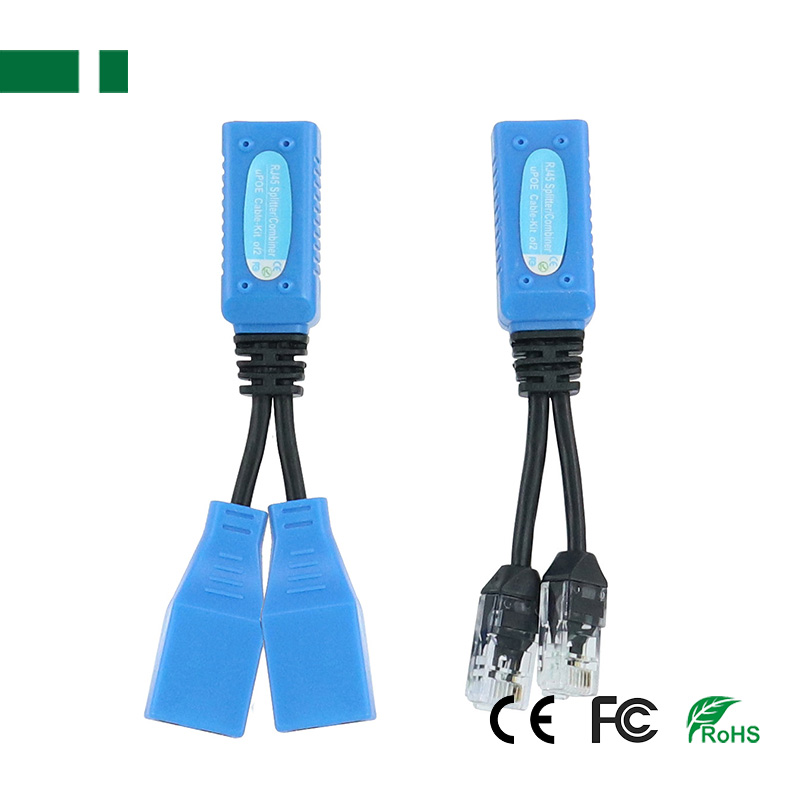

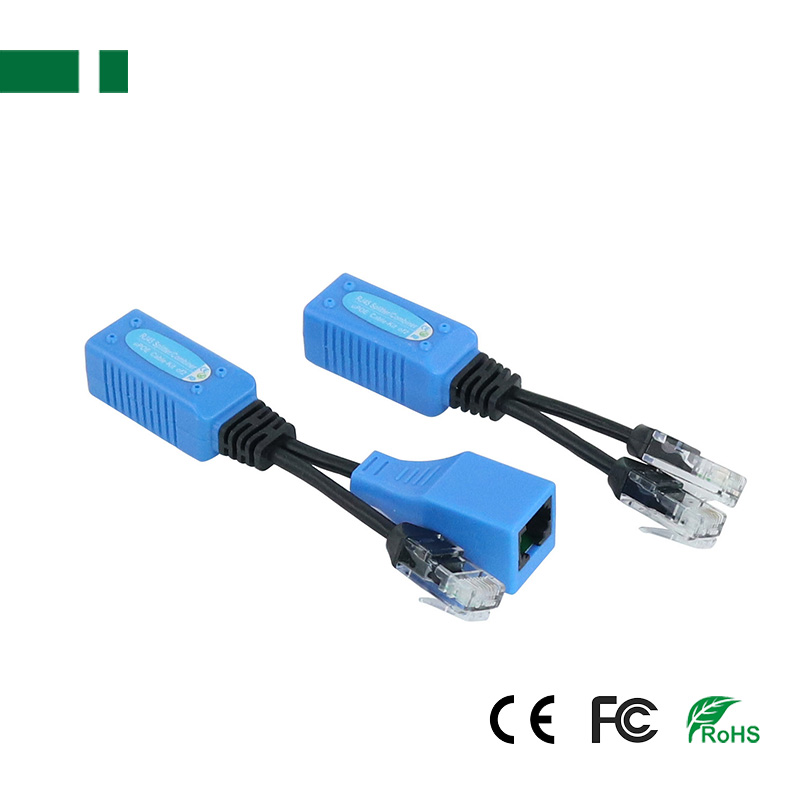

RJ45 Splitter and Combiner uPOE cable-Kit of 2
Injector (Connect to the POE switch): RJ45 Male to RJ45 Female, Supports transmission of power from POE switch.
Splitter (Connect to the IPC): RJ45 Female to RJ45 Male, Supports power supply to IPC.

Use as uPoE operation:
• Use with a injector to double the power into one device from 25 watts to 50 watts- combines two 802.3at ports into one uPOE port.
• Supports gigabit data rates and 50 watts per CAT-6 cable
• Use two for each uPOE device-one on the PoE side and one on the LAN side of a PoE Switch device.

Use as Ethernet doubler operation:
• Use to put two 10/100 ethernet circuits onto one long run ethernet cable with or without PoE.
• Supports 2 individual 10/100 data rate connections and up to 25 watts for each(50watts total) on CAT5e.
• Connect two male RJ45 to your switch, then remotely connect each male RJ45 to your camera, WIFI or phone. Use any CAT5e cable between the two device.


Feature:

• It provides a low cost solution for either use case.
uPoE operation is intended for use with PoE Switch devices.
Ethernet doubler operation is intended for use with any 10/100 switch with our without PoE .
• Save the Cables, Tubes cost. And Save the installation cost and Time.
• Can work up to 30-40 metres(depending on the quality of the cable and the power draw of the device).
• Passive PoE- means that input and output voltage are equal.
• Use with IP security camera, wireless access point and other devices.
• Application: WLAN, routers, switches, internet telephony, security monitoring etc

Specifications:
Power sources .........................................................................................................PoE switch or injector
8 wires, 4 Pair split 10/100Mbps Connector ............................................................Female RJ45
4 wire, 2 pair split 10/100 connector ........................................................................Male/Female RJ45 with 1/2 and 3/6
Supports ...................................................................................................................5V, 12V, 24V, 48V
Input voltage Max .....................................................................................................up to 57V
Input Current at 48V .................................................................................................65Ma per pair-60 Watts total
Transmission distance .............................................................................................30-40m
Color ........................................................................................................................Blue
Material ....................................................................................................................Plastic
Operating Temp. ......................................................................................................0℃~50℃
Size .........................................................................................................................125mm Cable Length
Package size ...........................................................................................................223*90*22mm
Weight ......................................................................................................................57g
