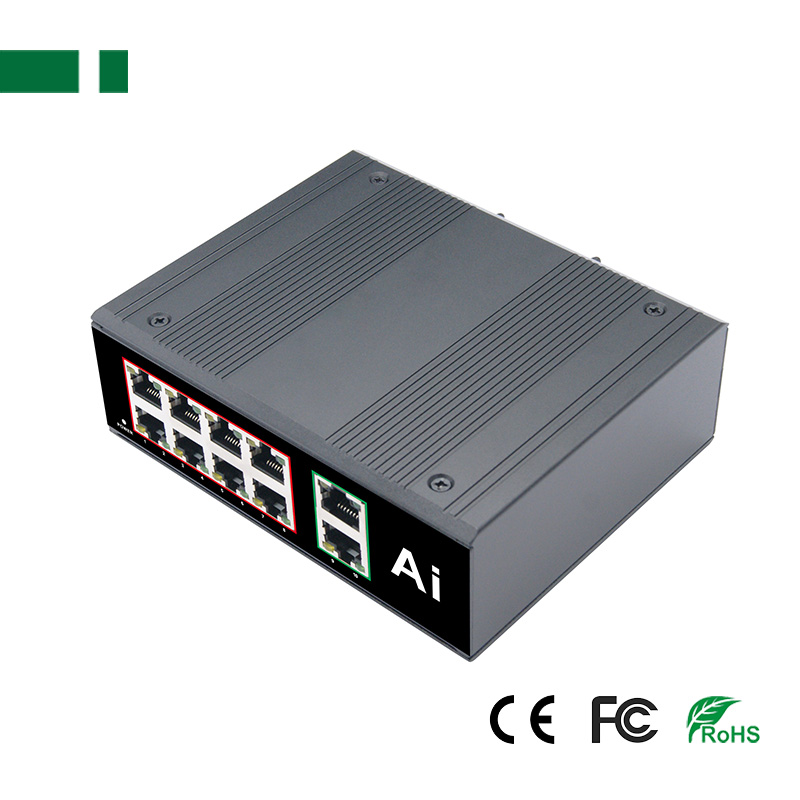

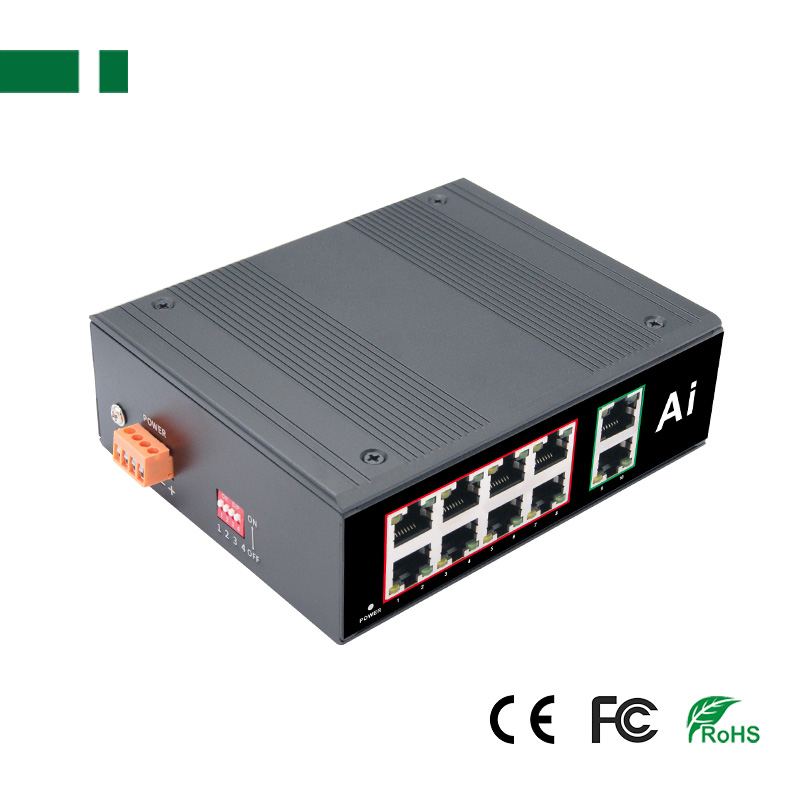

8 Ports 100Mbps Industrial POE switch
Support 2* 10/100Mbps Uplink Port
Support IEEE 802.3, IEEE 802.3u, IEEE802.3x
DC44V-55V Dual Power input
The Industrial POE switch can be widely used in Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries;
Description:
The Industrial Ethernet POE Switch can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a eco-friendly low power industrial Ethernet Switch.
Features:

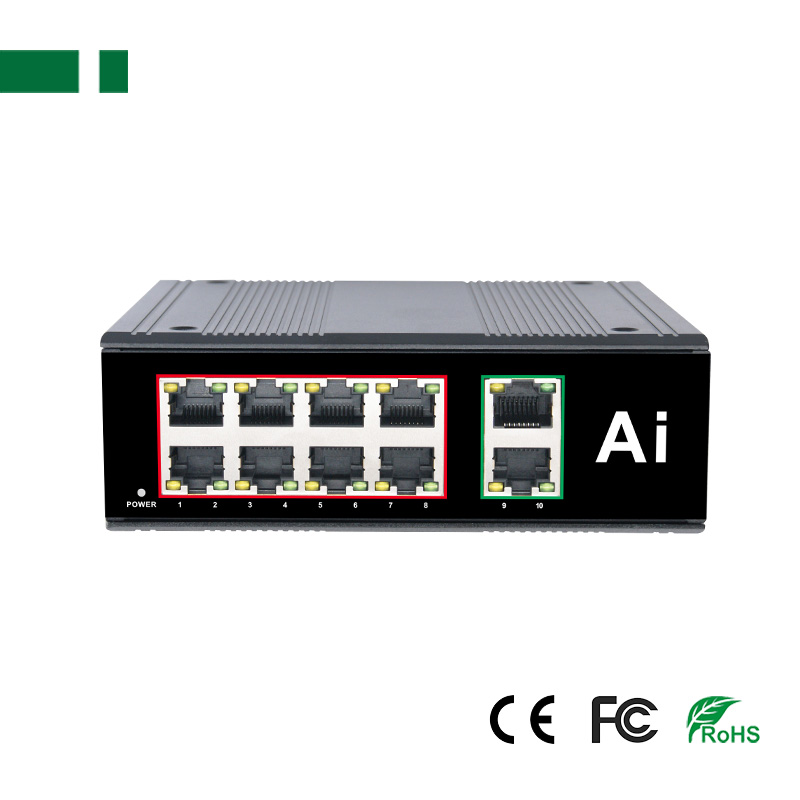

1. Support 8*10/100Mbps POE ports and 2* 10/100Mbps Uplinkport;
2. The 1-4 ports support extend to 250 meters;
3. Ethernet port supports 10/100Mbps self-adaptation;
4. Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4w);
5. Support IEEE 802.3, IEEE 802.3u, IEEE802.3x Standard;
6. Support ring network and network storm protection;
7. Support the AI watchdog

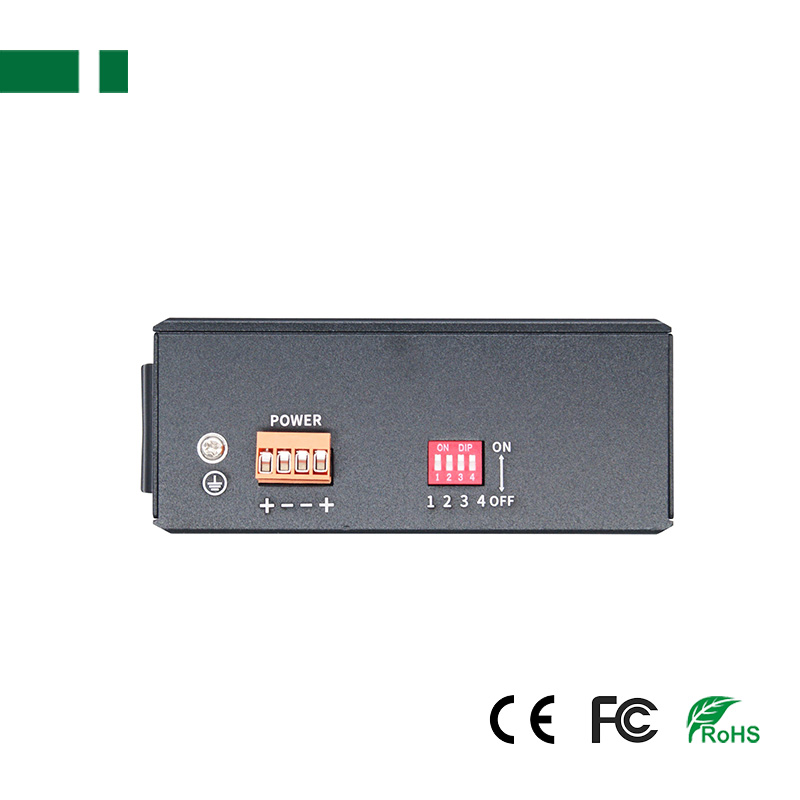

8. DC44V-55V Dual Power input.
9. Surge Protection: General 6KV, Differential 2KV; ESD 15KV(Air), 8KV (Contact);

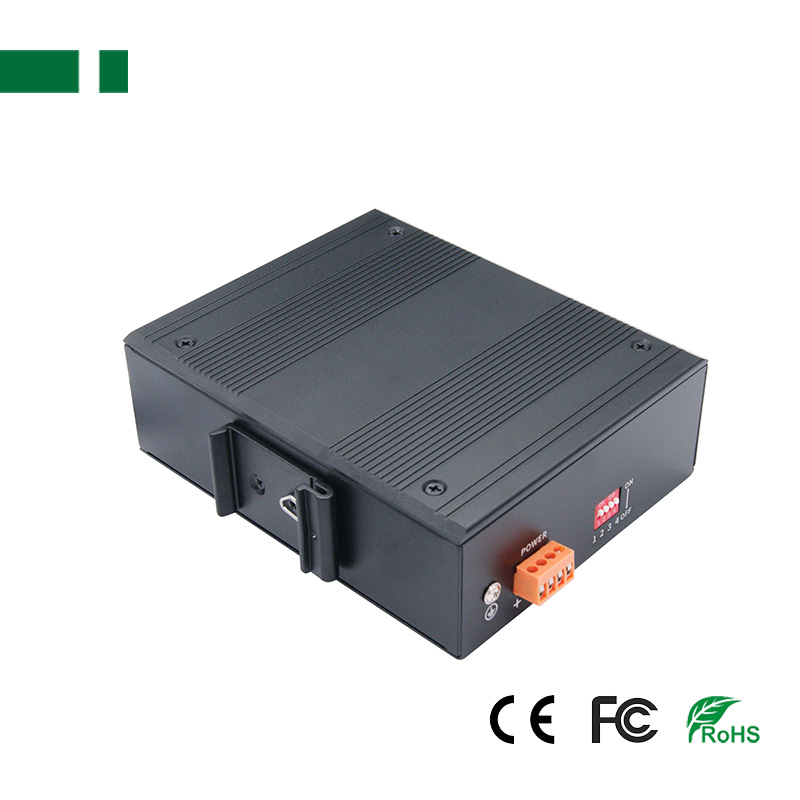

10. High strength iron shell, DIN35 Rail installation
Specification:
| Model | CPE-0802 | CPE-G0802 | CES-0802 | CES-G0802 | |
| Network Ports | POE Ethernet Port | 8*10/100Mbps POE Ports | 8*10/100/1000Mbps POE Ports | N/A | N/A |
| Ethernet Port | N/A | N/A | 8*10/100Mbps RJ45 | 8*10/100/1000Mbps RJ45 | |
| Uplink Port | 2*10/100Mbps Uplink | 2*10/100/1000Mbps Uplink | 2*10/100Mbps Uplink | 2*10/100/1000Mbps Uplink | |
| SFP Port | N/A | ||||
| SC Port | N/A | ||||
| Standard | Network Protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3x (Flow Control) | |||
| POE Protocol | IEEE802.3af (15.4W), IEEE802.3at (30W） | N/A | |||
| POE Feature | All portssupport MDI/ MDIX | N/A | |||
| Forwarding Mode | Store-and-Forward | ||||
| Bandwidth | 2.0Gbps | 20Gbps | 2.0Gbps | 20Gbps | |
| MTBF | 100,000 hours | ||||
| General | Power Input | DC44V-55V Dual Power input | DC12V-55V Dual Power input | ||
| Type of input | 4-Pin IndustrialTerminal (Block V1+, V1-, V2+, V2-) | ||||
| Network Medium | Cat5E/ 6/ 7/ 8 standardNetwork Cable | ||||
| Data Pin | 1/2:+; 3/6: - | 1/2/4/5: +; 3/6/7/8: - | 1/2: +; 3/6: - | 1/2/4/5: +; 3/6/7/8: - | |
| Power Pin | 1/2:+; 3/6: - | 1/2: +; 3/6: - | N/A | ||
| Transmission Distance | 1-4 Port: 250m/10Mbps | 1st Port: 250m/10Mbps | 1-4 Port: 250m/10Mbps | 1st Port: 250m/10Mbps | |
| ESD | Air discharge: 15KV, Contact discharge: 8KV | ||||
| Anti-Thunder Level | Common mode: 6KV, Differential mode: 2KV | ||||
| Industrial Standard | EMI: FCC Part 15 CISPR (EN55032) classA, EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) | ||||
| Humidity | Working: 10%~90%，Storage: 5%~90%，non-condensing | ||||
| Temperature | Working: -40~80°C, Storage: -40~85°C | ||||

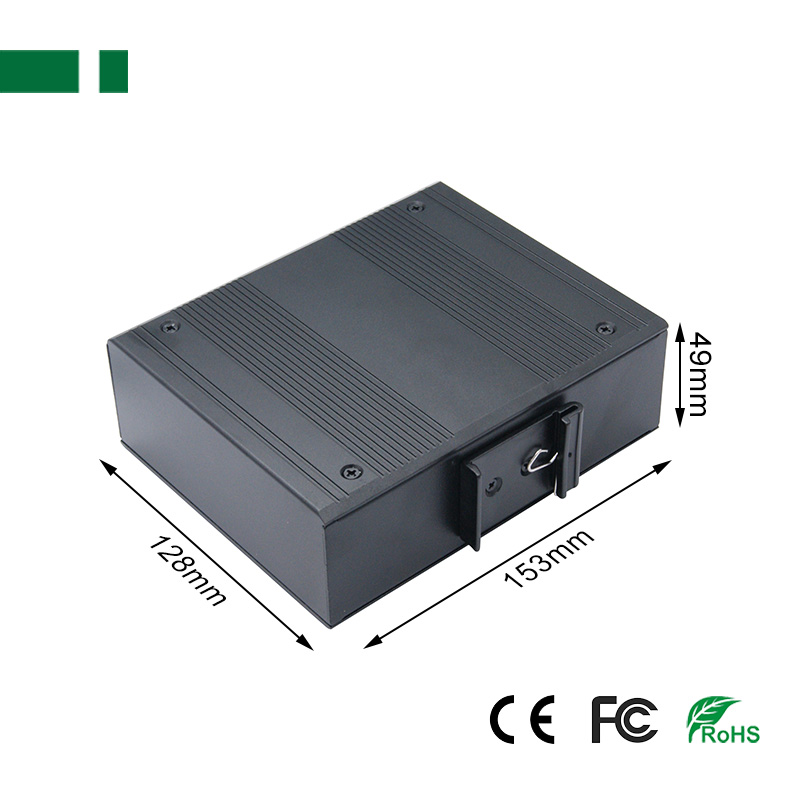

| Dimension | 153*128*49mm (L×W×H), 0.7kg | ||||
Application:
1. Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.;
2. Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries;
3. Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications;
4. Real-time monitoring: simultaneous transmission of real-time control signals, images and data;
5. Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances.
Packing list:
Industrial Switch: *1pc;
User Manual: *1pc;
Certification: *1pc;
Pull-arm: *1pc.
