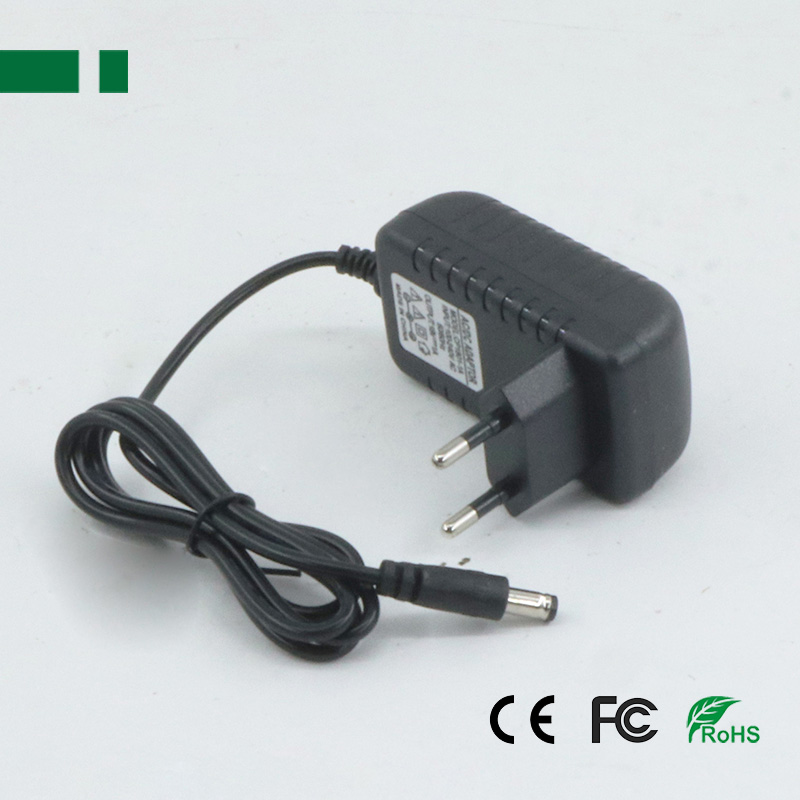

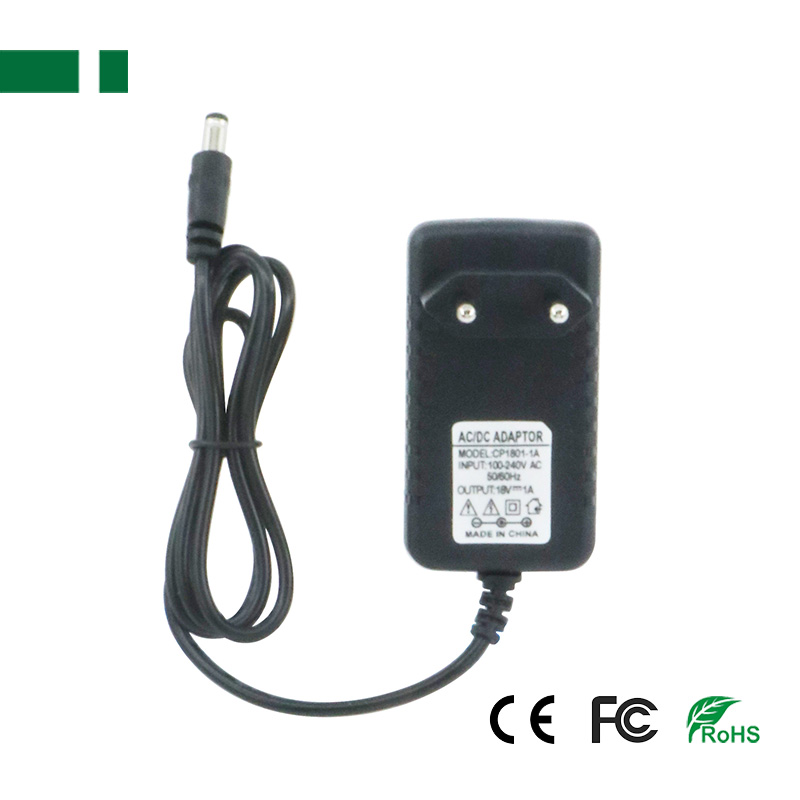

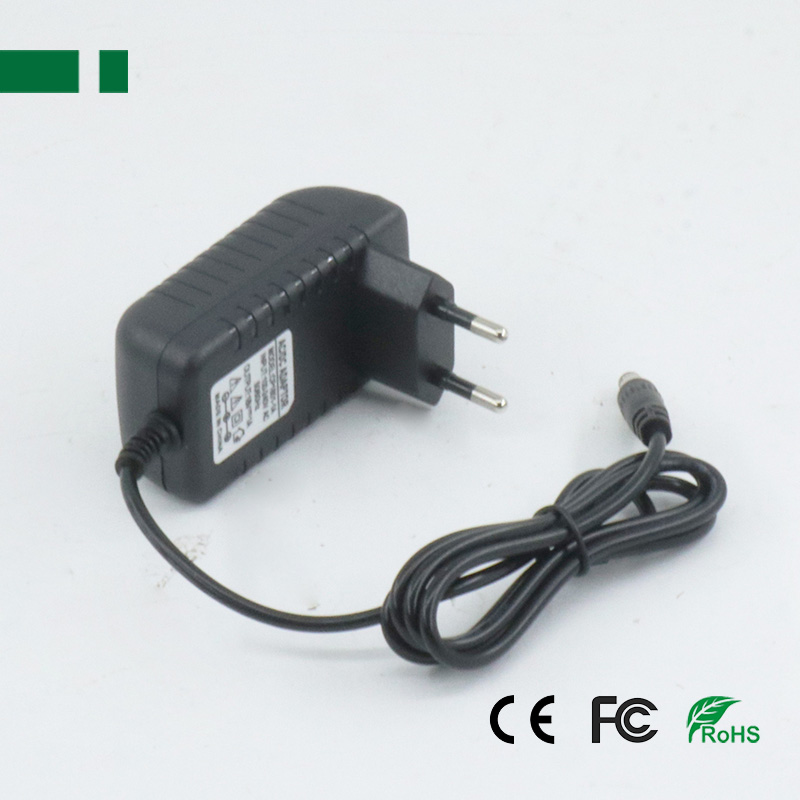

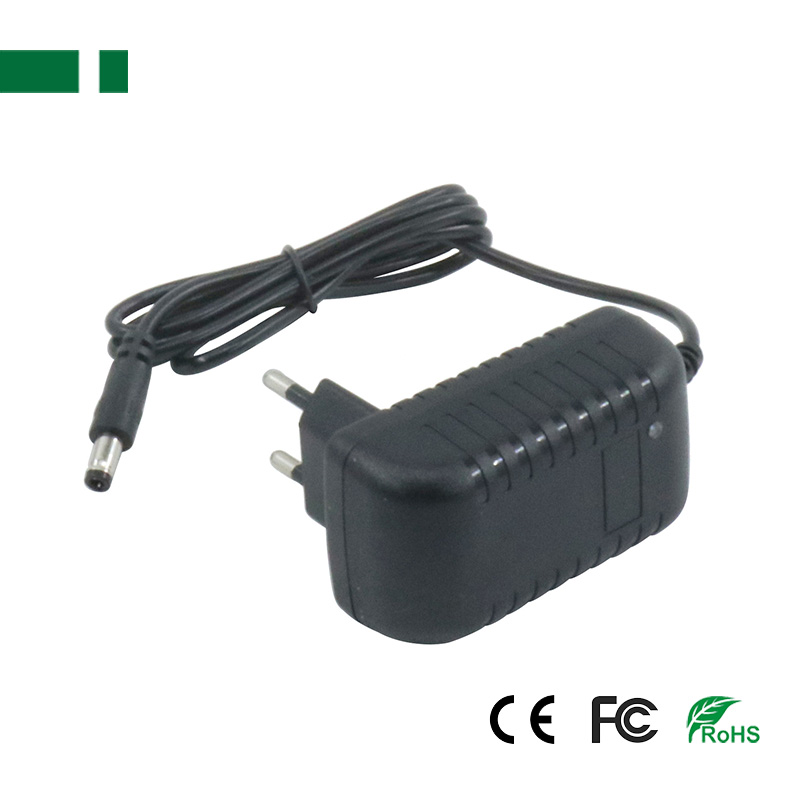

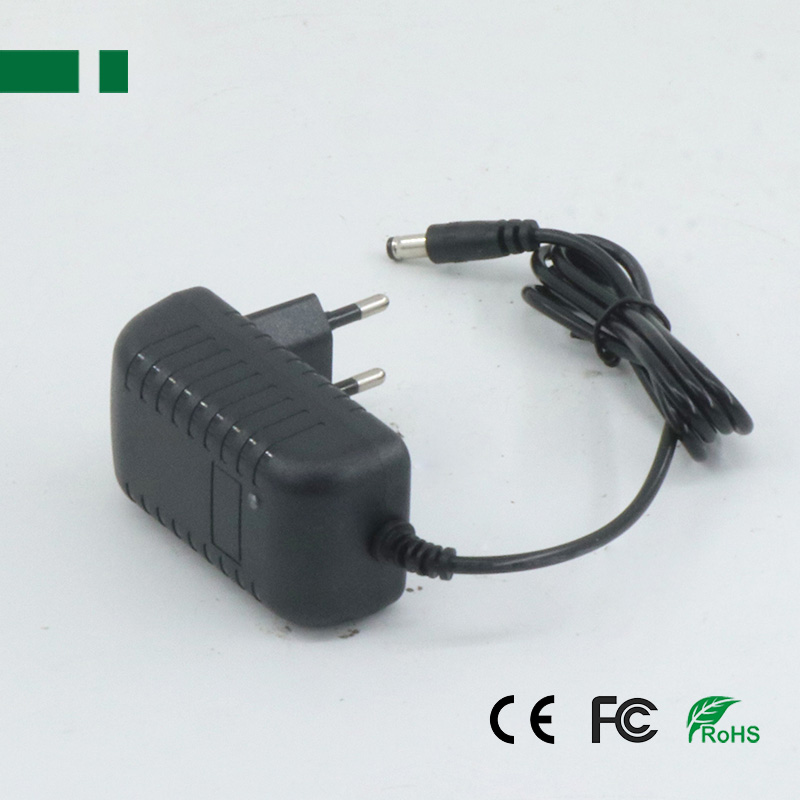

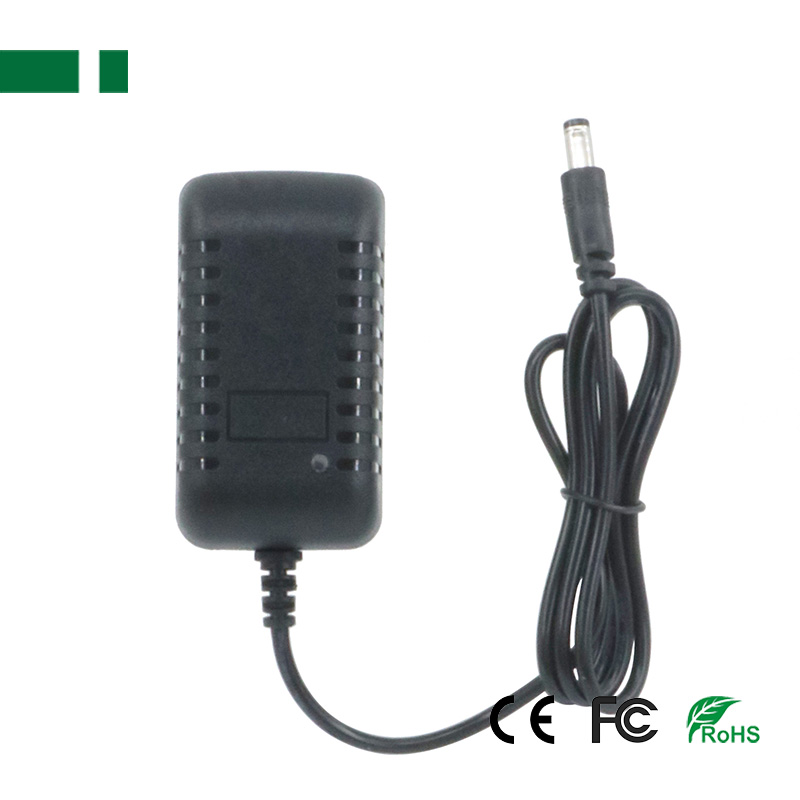

DC18V 1A 18W Power Adapter
Output voltage & current: DC18V 1A
100% full load burn-in test
Input voltage range: 85~264VAC
An AC-DC power supply or adapter is an electrical device that obtains electricity from a grid-based power supply and converts it into a different current, frequency, and voltage. AC-DC power supplies are necessary to provide the right power that an electrical component needs.
Features:
1. 18W Output Power Adapter
2. Output voltage & current: DC18V 1A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Specification:
| Model | CP1801-1A | CP1801-2A | CP1801-5A |
| DC output Voltage | 18V±10% | ||
| Output Current Range | 0-1A | 0-2A | 0-5A |
| Wave and Noise | 120mVp-p | ||
| DC output Power | 18W | 36W | 90W |
| Efficiency | 85% | ||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||
| Voltage Range | 100~240VAC 47-63Hz | ||
| Input Current | 0.16A/ 115V, 0.08A/ 230V | 0.32A/ 115V, 0.16A/ 230V | 0.78A/115V, 0.39A/230V |
| Leakage Current | <1mA/ 240VAC | ||
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | ||
| Dimension | 30*40*75mm(L*W*H) | 48*32*85mm(L*W*H) | 136*63*35mm(L*W*H) |
| Weight | 66g | 96g | 298g |
| Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||
| Temperature | Working: -10°C~+50°C, Store: -20°C~+85°C | ||
| Humidity | Working: 20~90%RH, Store: 10~95%RH | ||
| Temperature coefficient | ±0.03%°C(0~50°C) | ||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | ||
| Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | ||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | ||
| CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | ||
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||
| Notes | 1. All parameters NOT specially mentioned are measured at
230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure | ||
