Fiber Optic Connector

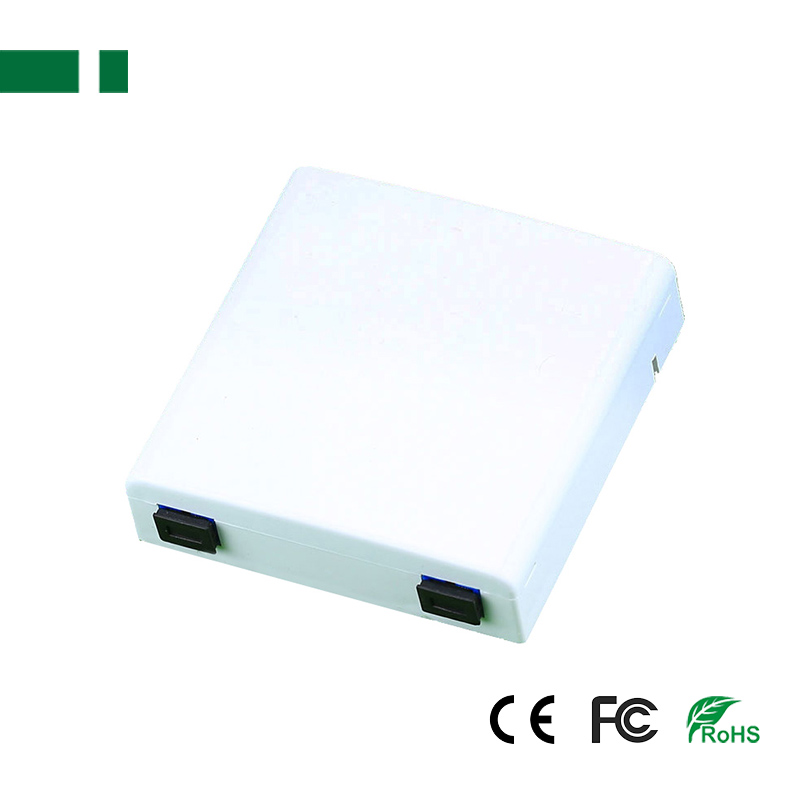

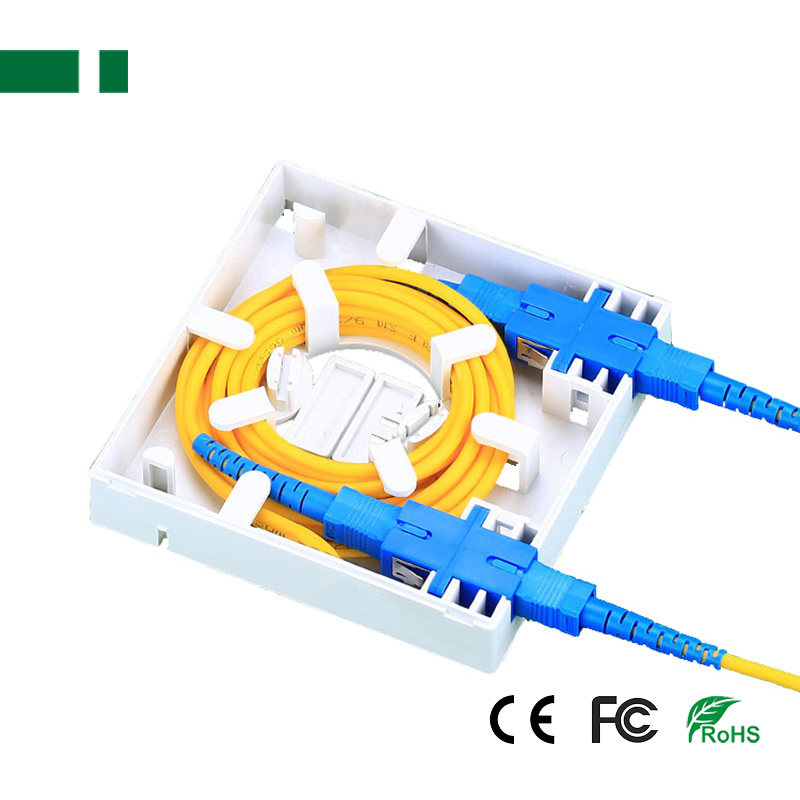

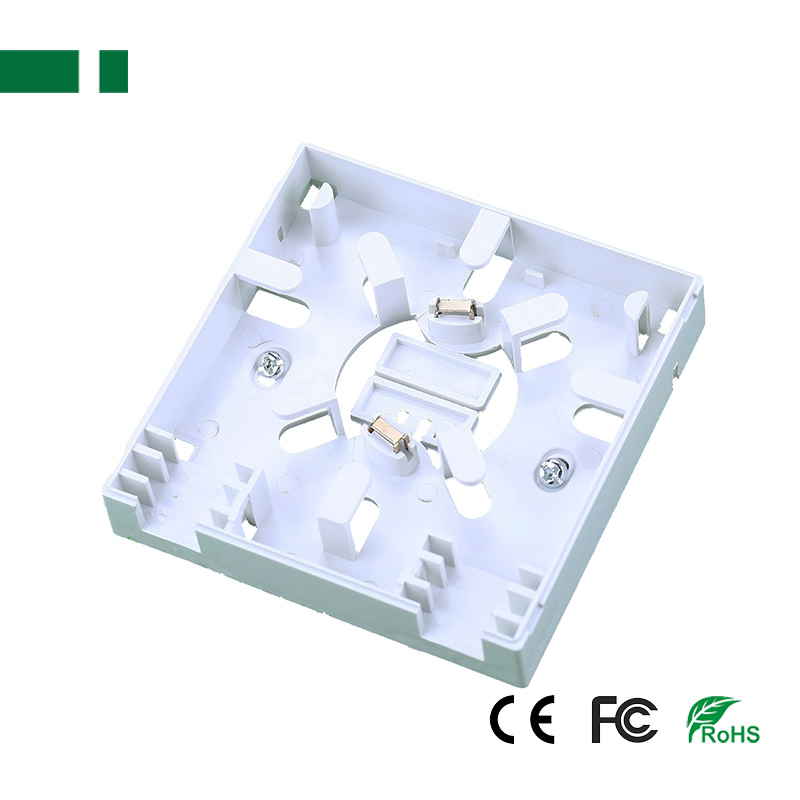

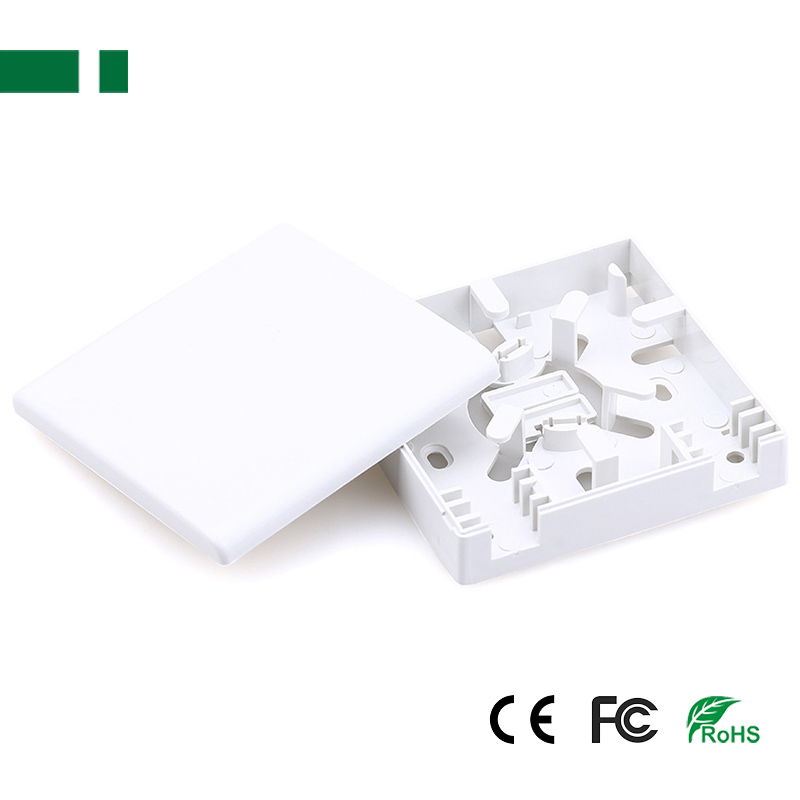

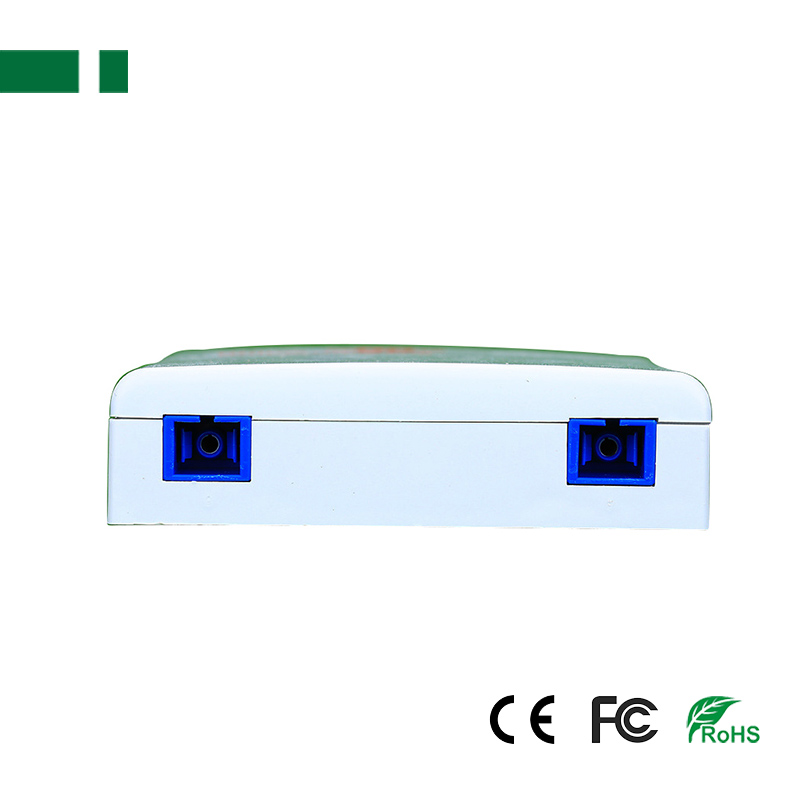

CP-86SC 2 Core SC FTTH fiber optic socket panel
- 2 Core SC FTTH fiber optic socket panel
- Installation way: Fixed by screw
- Material: With fire-proof ABS plastic
- Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
- Product description: Be made in white fire-proof ABS plastic, the 86-fiber optical socket is designed in compact structure, small size, light weight and pleasing appearance.
2 Core SC FTTH fiber optic socket panel fiber optic terminal junction box 86 type information panels
Be made in white fire-proof ABS plastic, the 86-fiber optical socket is designed in compact structure, small size, light weight and pleasing appearance. Fiber optical socket is widely used in FTTH ending application.
(not include the fiber optic cable and SC adaptor)
Features:
1. Small size, high quality with ABS plastic
2. Low insertion loss
3. Easy to install
Technical parameter:
Be made in white fire-proof ABS plastic, the 86-fiber optical socket is designed in compact structure, small size, light weight and pleasing appearance. Fiber optical socket is widely used in FTTH ending application.
(not include the fiber optic cable and SC adaptor)
Features:
1. Small size, high quality with ABS plastic
2. Low insertion loss
3. Easy to install
Technical parameter:
| Model | CP-86SC |
| Available Cable | 3.1mm*2.0mm rubber fiber cable |
| Insertion loss | <0.5dB |
| Reflection loss | ≥45dB (PC panel) |
| ≥60dB(APC panel) | |
| Tensile strength | >20N |
| Outlet No. | 2 |
| Material | With fire-proof ABS plastic |
| Adaptor | SC |
| Installation way | Fixed by screw |

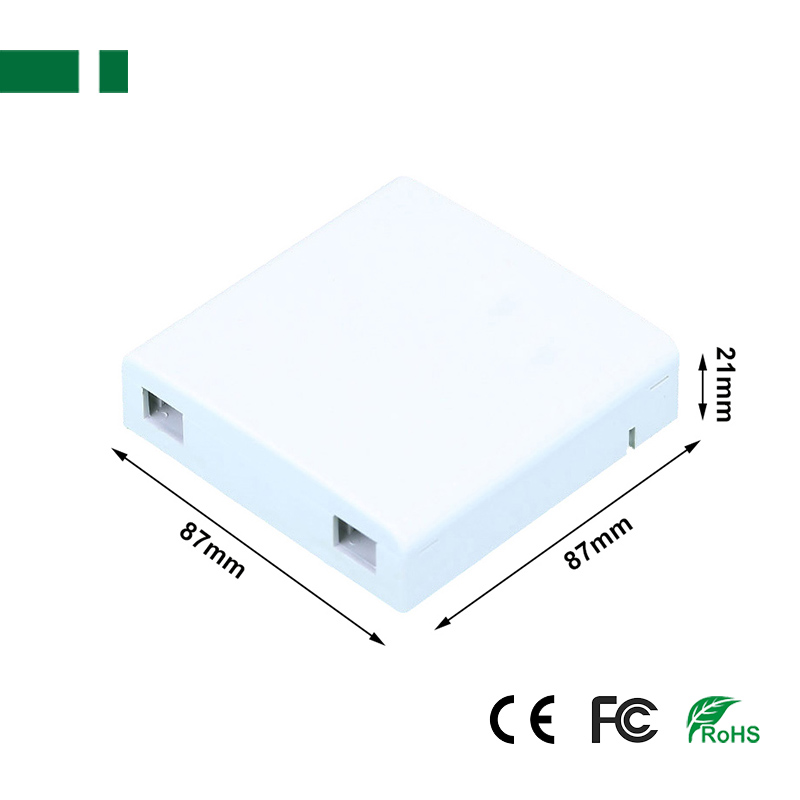

| Size | 86mm*86mm*21mm |
