CM12-4M 12mm 4-Pin Aviation Core Air Plug Socket Male Connector

  • 12mm 4-Pin Aviation Core Air Plug Socket Male Connector
  • Mounting Hole Diameter: 12mm
  • Pins Number: 2/3/4/5/6/7 pins
  • Material: Zinc Alloy/ Copper Ally
  • Product description: Aviation plug and socket connector, as the name implies, refers to the connector components used in the aviation field. It is a general-purpose connector in the industry say.
  • INQUIRY   EMAIL

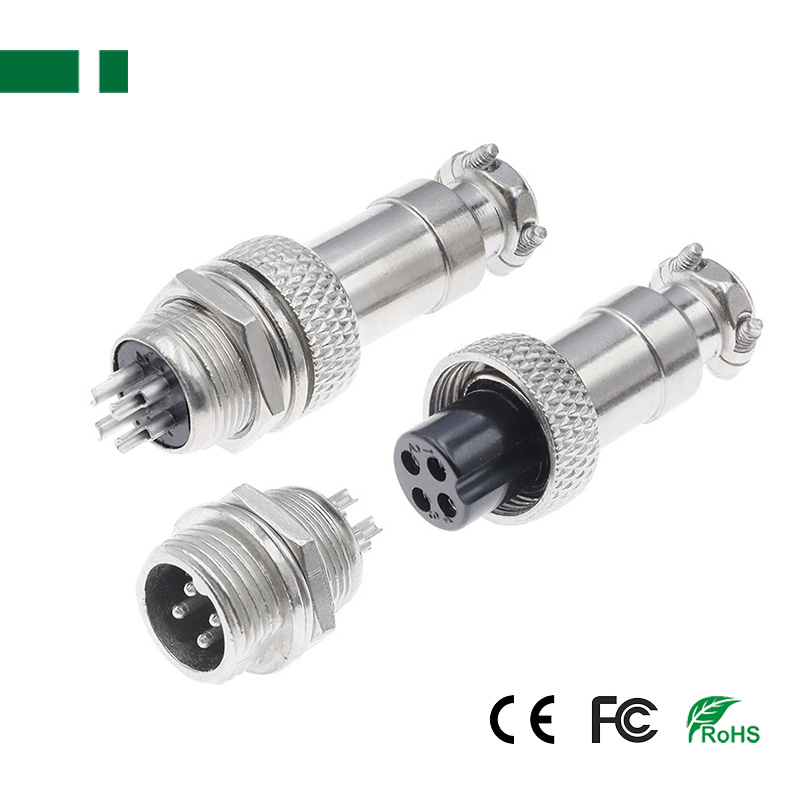

12mm 4-Pin Aviation Core Air Plug Socket

Description:
Aviation plug and socket connector, as the name implies, refers to the connector components used in the aviation field. It is a general-purpose connector in the industry say. There are countless connectors for power transmission and signal transmission in the aviation field, and the product series is also extremely wide. Therefore, an aviation plug head socket does not refer to a plug socket of a model. CM12 aviation connector is one of them.

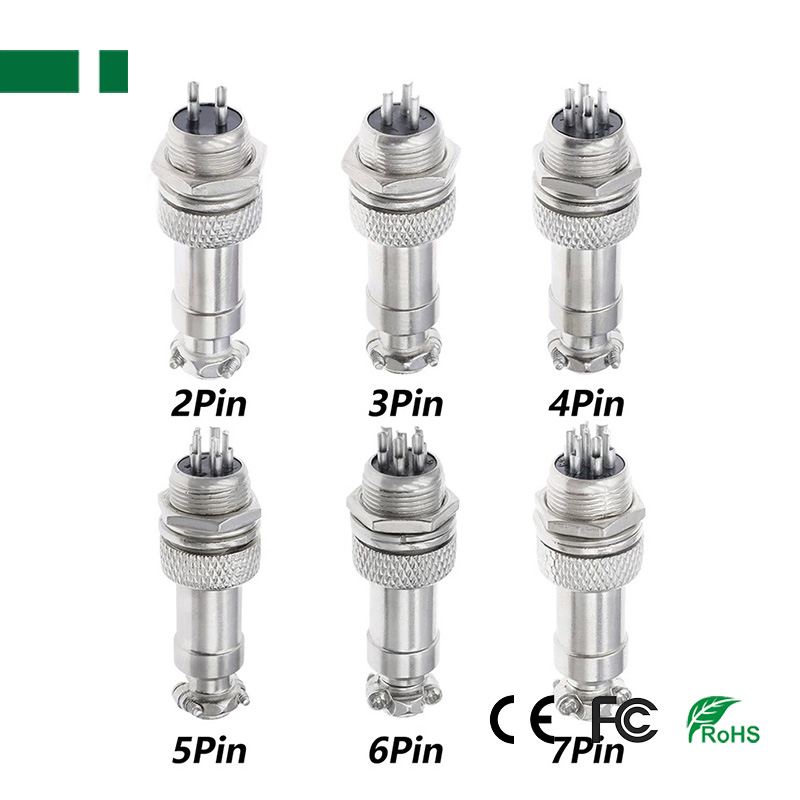

The CM12 aviation connector standard is available in many pin counts. Including 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin.

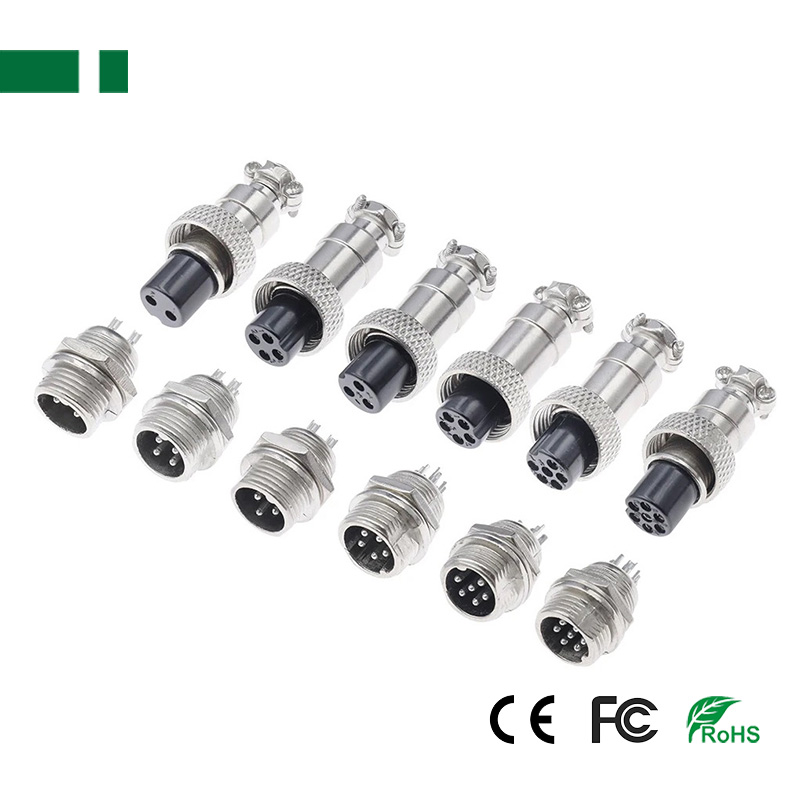

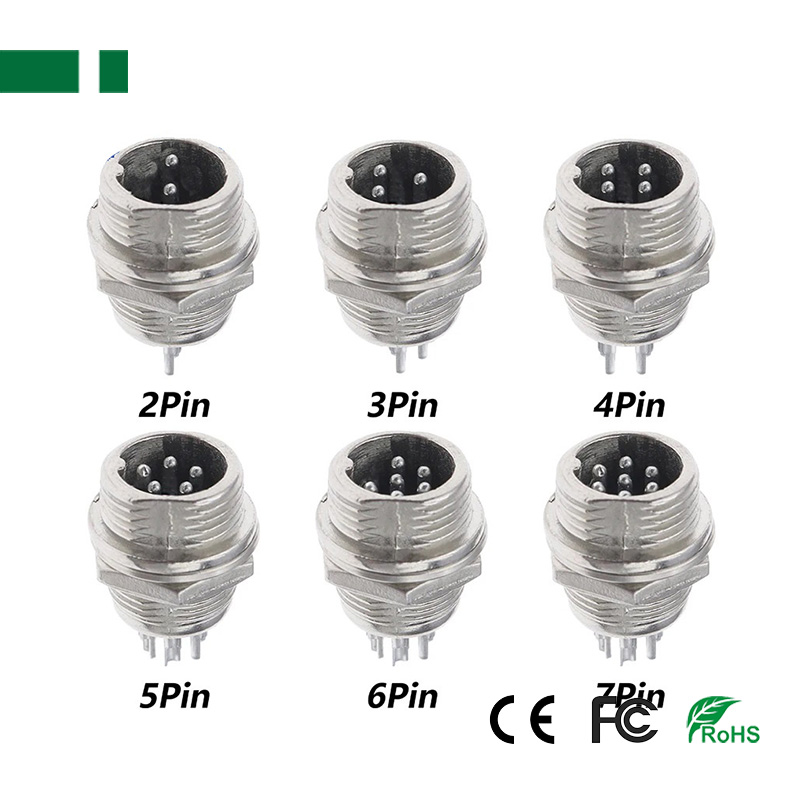

Male type Model CM12-2M CM12-3M CM12-4M CM12-5M CM12-6M CM12-7M

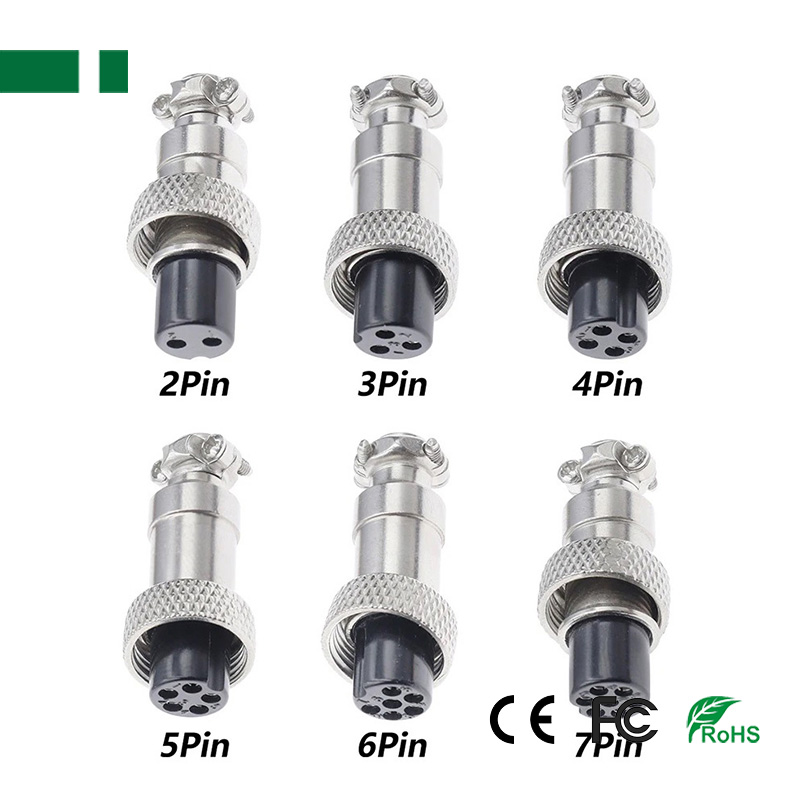

Female type Model CM12-2F CM12-3F CM12-4F CM12-5F CM12-6F CM12-7F
Pins 2P 3P 4P 5P 6P 7P
Rated Current 5A
Rated Voltage 125V
Housing Material Zinc Alloy
Pin Material Solid Copper Pins
Rubber core Material Bakelite
Wiring Weld
Service Life 1000 times
Technology Electroplate: Silver Plating
Withstand Voltage 1500V/Min 1000V/Min
Insulation Resistance 1500MΩ 1000MΩ
Contact Resistance 10MΩ
Contact Hole Size 1.15mm

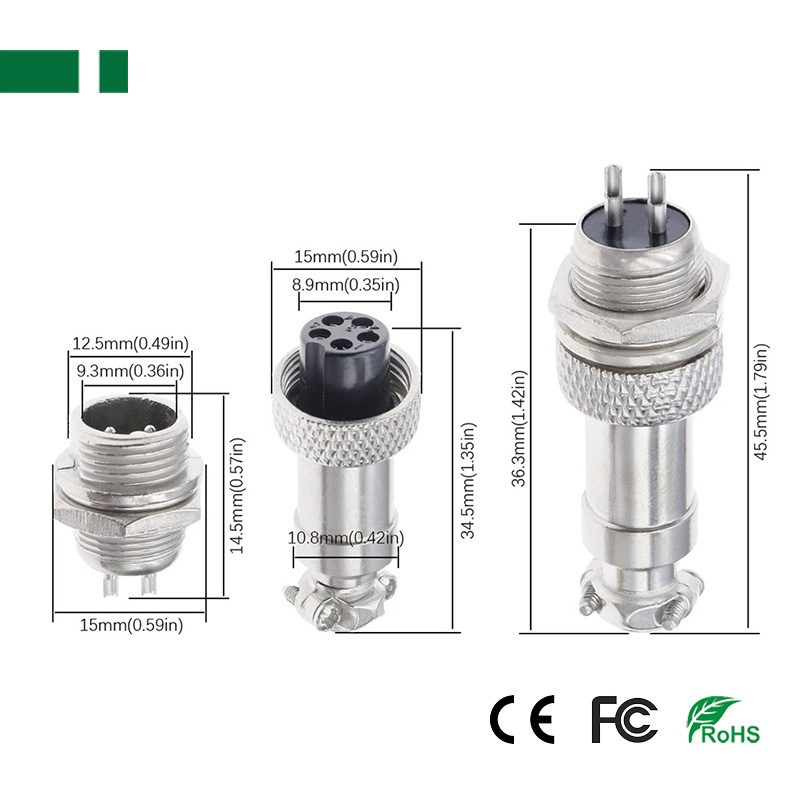

Cut-out size 12mm

Feature:
1. CM12 Aviation Connector
Mounting Hole Diameter: 12mm
Pins Number: 2/3/4/5/6/7 pins
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤5.0mm

2. CM16 Aviation Connector
Mounting Hole Diameter: 16mm
Pins Number: 2/3/4/5/6/7/8/9/10 cores
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤7.5mm

3. CM20 Air Connector
Mounting Hole Diameter: 20mm
Pins Number: 2/3/4/5/6/7/8/9/10/12/14/15 Pin cores
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤9.5mm
