CM12-4F 12mm 4-Pin Aviation Core Air Plug Socket Female Connector

12mm 4-Pin Aviation Core Air Plug Socket

Description:
Aviation plug and socket connector, as the name implies, refers to the connector components used in the aviation field. It is a general-purpose connector in the industry say. There are countless connectors for power transmission and signal transmission in the aviation field, and the product series is also extremely wide. Therefore, an aviation plug head socket does not refer to a plug socket of a model. CM12 aviation connector is one of them.

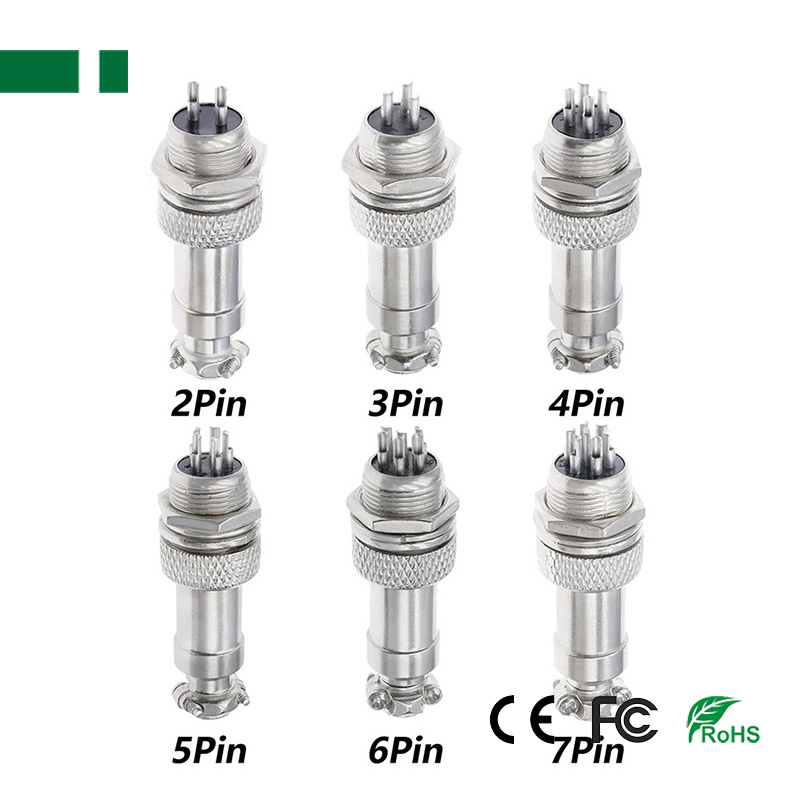

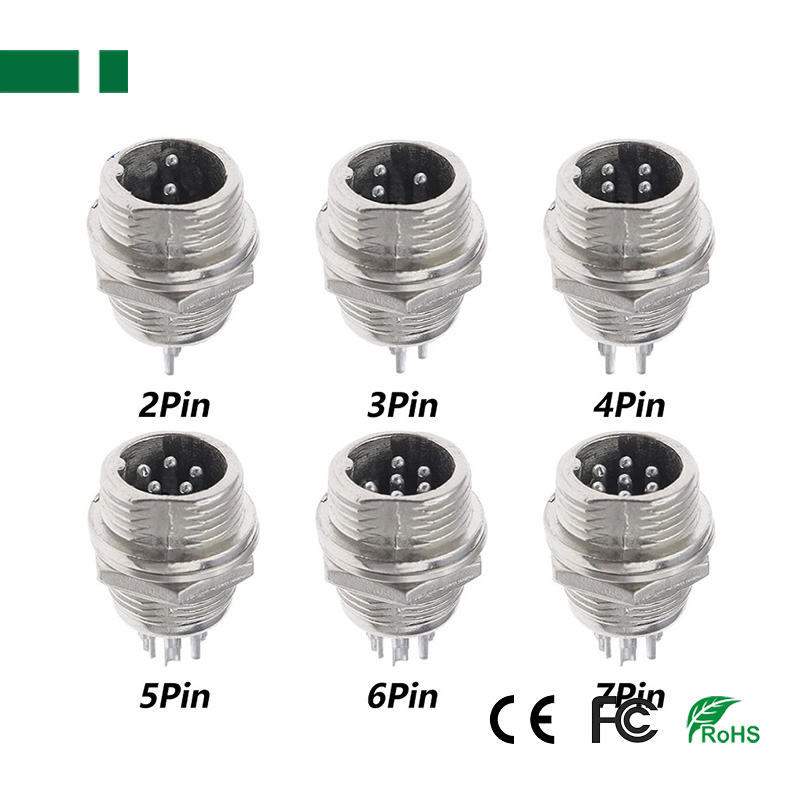

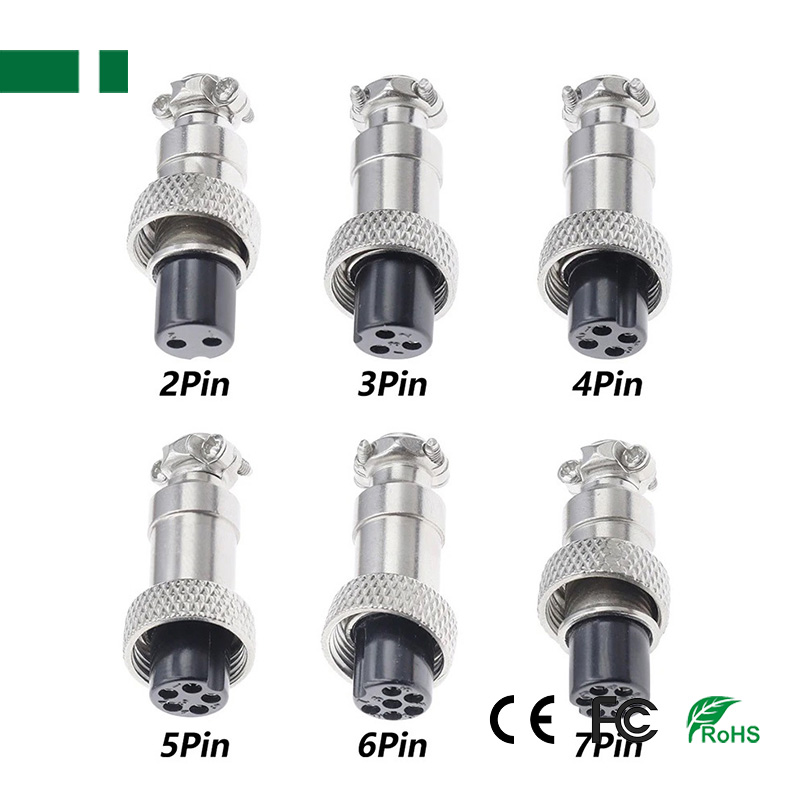

The CM12 aviation connector standard is available in many pin counts. Including 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin.

Feature:
1. CM12 Aviation Connector
Mounting Hole Diameter: 12mm
Pins Number: 2/3/4/5/6/7 pins
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤5.0mm

2. CM16 Aviation Connector
Mounting Hole Diameter: 16mm
Pins Number: 2/3/4/5/6/7/8/9/10 cores
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤7.5mm

3. CM20 Air Connector
Mounting Hole Diameter: 20mm
Pins Number: 2/3/4/5/6/7/8/9/10/12/14/15 Pin cores
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤9.5mm
