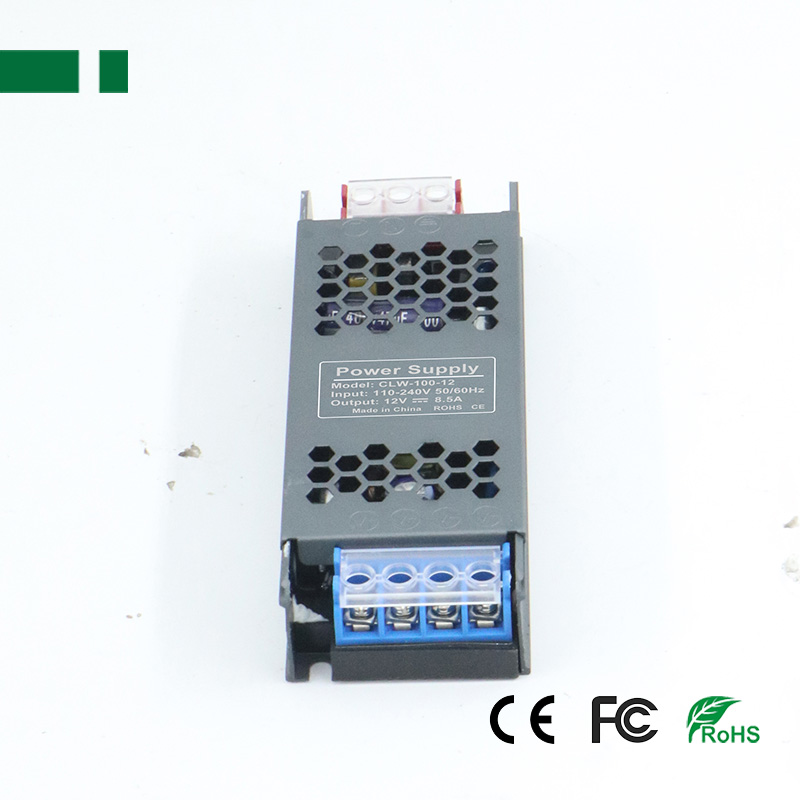

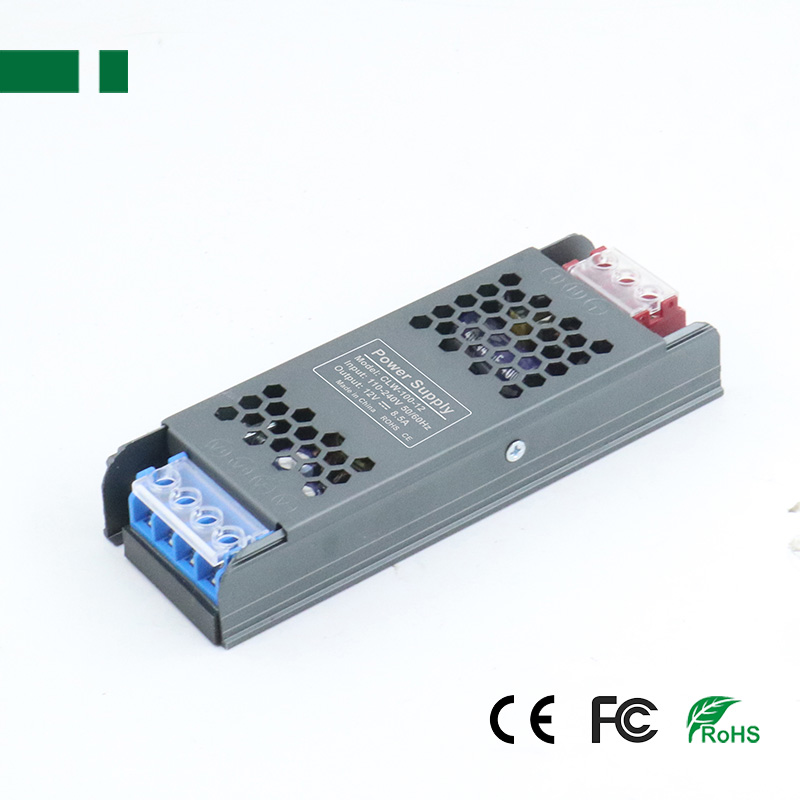

100W Water proof Power Supply
Input voltage range: 110~240VAC
Waterproof grade IP65 or IP67
DC12V and DC24V optional
Waterproof AC-DC power supply is available in many configurable power variations, including Waterproof 12V AC-DC power supply, waterproof 24V AC-DC power supply, and waterproof grade IP65 or IP67.
Waterproof AC-DC power supply is available in many configurable power variations, including Waterproof 12V AC-DC power supply, waterproof 24V AC-DC power supply, and waterproof grade IP65 or IP67.
Power Supply with a wide range of options available to suit your design parameters such as variable AC Input Voltage, DC output voltage variations, connectorization options to match system needs, connectors, and custom chassis options available upon request.
Features:
1. 100W Output Water-proof Power Supply
2. Output voltage & current: DC12V 8.3A
3. Input voltage range: 110~240VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);
| DC12V-DC24V Waterproof AC-DC power supply for LED Lightbox | |||||
| More Model | DC Output | Input Voltage | Input Current | Dimension | Weight |
| CLW-60-12 | DC12V 5A 60W | 110~240VAC | 0.56A/115V, 0.28A/230V | 155*44*20mm | 260g |
| CLW-100-12 | DC12V 8.3A 100W | 110~240VAC | 0.9A/115V, 0.45A/230V | 180*54*20mm | 380g |
| CLW-150-12 | DC12V 12.5A 150W | 110~240VAC | 1.34A/115V, 0.67A/230V | 225*54*20mm | 460g |
| CLW-300-12 | DC12V 25A 300W | 180~240VAC | 1.1A/230V | 235*76*36mm | 1050g |
| CLW-400-12 | DC12V 33.3A 400W | 180~260VAC | 1.8A/230V | 255*76*36mm | 1220g |
Specification:
| Model | CLW-100-12 | CLW-100-24 | |
| Output | DC output Voltage | 12V±5% | 24V±5% |
| Output Current Range | 0-8.3A | 0-4.15A | |
| Wave and Noise | 120mVp-p | ||
| DC output Power | 100W | ||
| Efficiency | 0.85 | ||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||
| Input | Voltage Range | 110~240VAC 50-60Hz | |
| Input Current | 0.9A/115V, 0.45A/230V | ||
| Leakage Current | <1mA/ 240VAC | ||
| Inrush Current | Cold start 36A/ 230VAC | ||
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | |
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||
| High-temperature | RTH3>=65°C FANON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||
| Environment | Working temperature and humidity | -10°C~+50°C, 20~90%RH | |
| Store temperature and humidity | -20°C~+85°C, 10~95%RH | ||
| Temperature coefficient | ±0.03%°C(0~50°C) | ||
| Vibration | 10~500Hz,2G 10min./1cycle, Period for 60min, EACH AXES | ||
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | |
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||
| Other | Dimension | 180*54*20mm(L*W*H) | |
| Weight | 0.38kg | ||
| Notes | 1. All parameters NOT
specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure | ||
