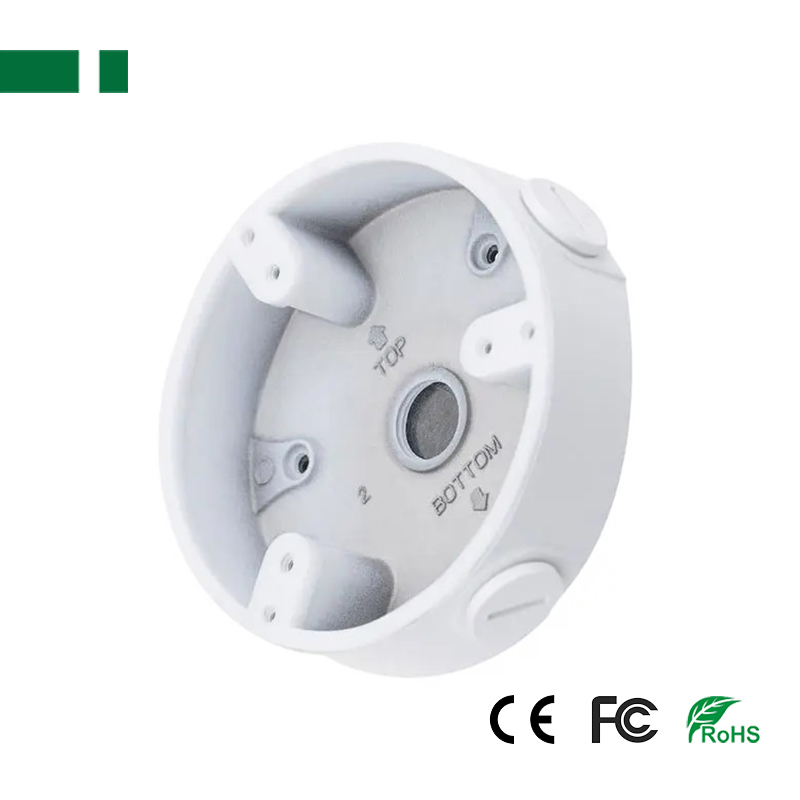

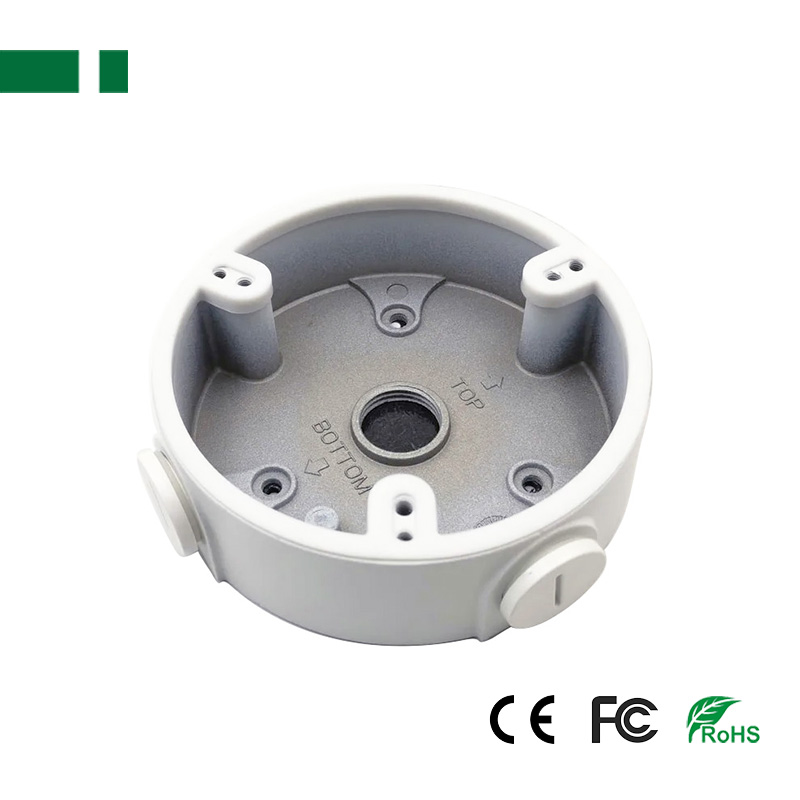

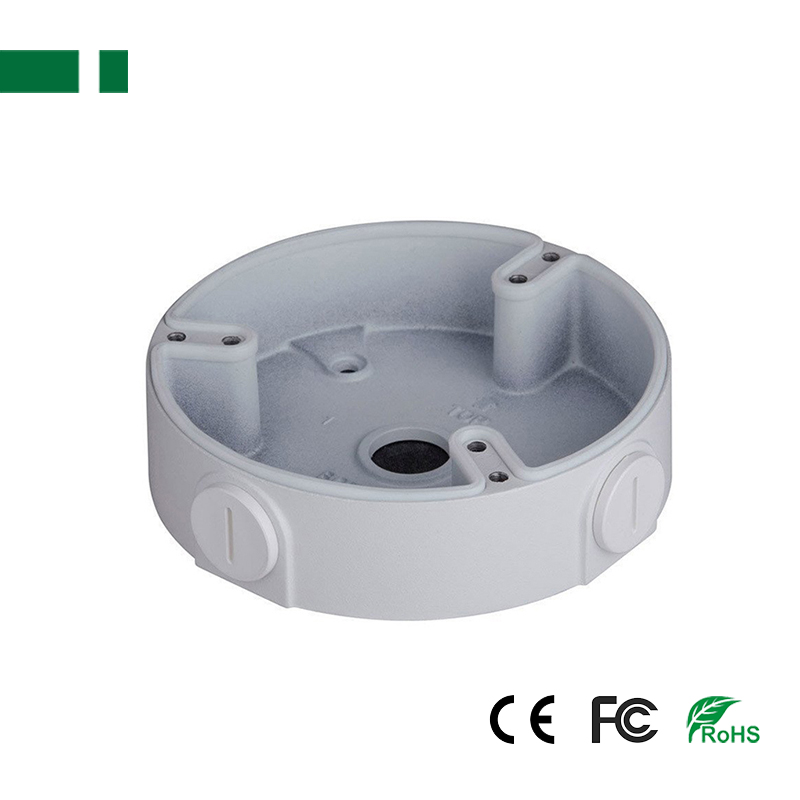

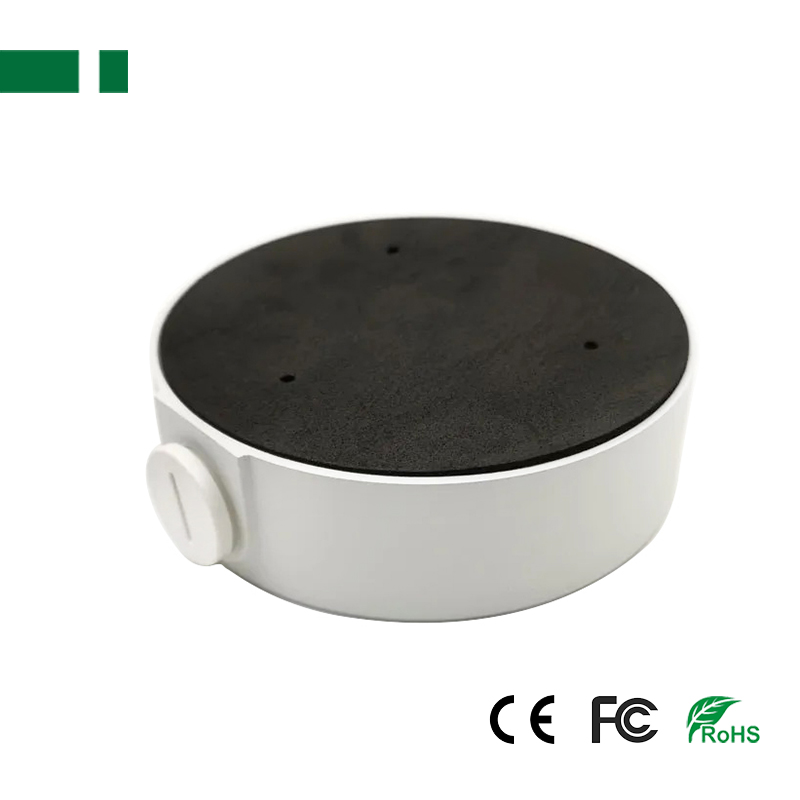

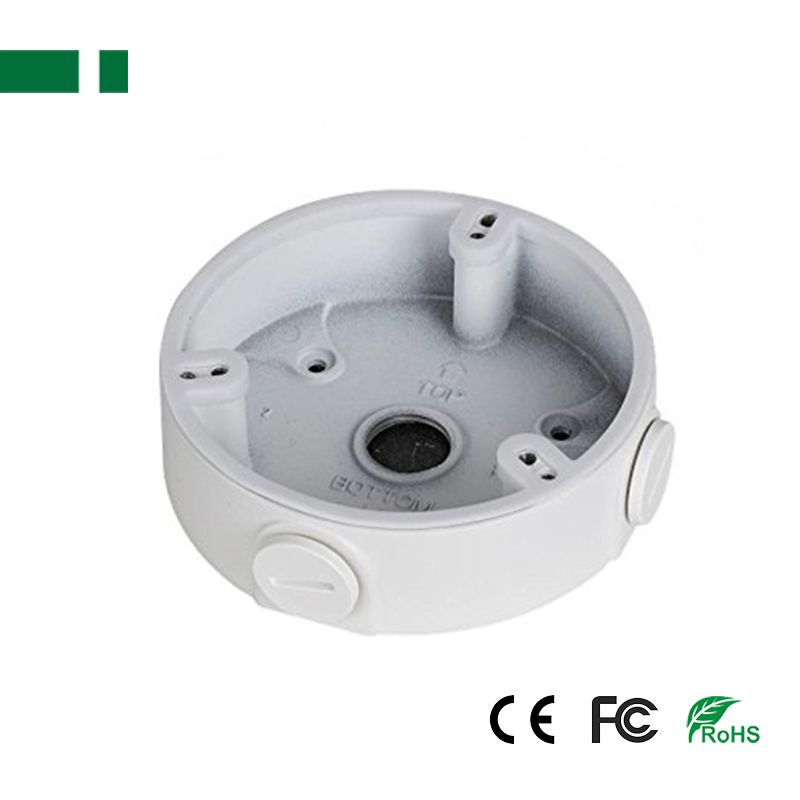

Dahua Bracket DH-PFA135 Junction Box
Dimension: φ90mmx34.1mm
Dahua Bracket & Junction Box
Hikvision Bracket & Junction Box
This bracket is only applicable to Dahua Cameras, in order let the bracket better matching your camera, please refer to the Dahua official website to check if the bracket is match your camera,so that you can match perfectly.
This Bracket is only applicable to Dahua Cameras, in order let the bracket better matching your camera, please refer to the Dahua official website to check if the bracket is match your camera,so that you can match perfectly.
Material: Aluminum

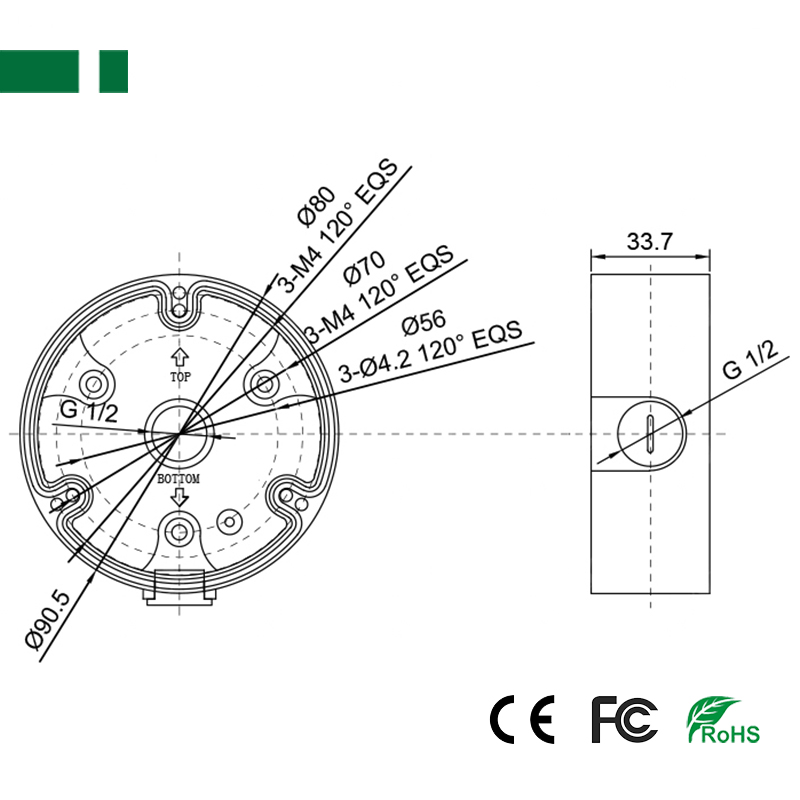

Dimension: φ90mmx34.1mm(φ3.54”x1.34”)
Inch Thread: M20(G1/2”)
Load Bearing: 1.0kg(2.2lb)
Weight: 0.16kg(0.35lb)
Color: White
Specification:
| Aluminum Bracket & Junction Box | |||
| Model | Dahua-Bracket-DH-PFA135-Junction-Box.html target='_blank'>CJB-7135 | Dahua-Bracket-DH-PFA136-Junction-Box.html target='_blank'>CJB-7136 | Dahua-Bracket-DH-PFA137-Junction-Box.html target='_blank'>CJB-7137 |
| Dahua Model | DH-PFA135 | DH-PFA136 | DH-PFA137 |
| Dimension | φ90mmx34.1mm | Φ110.0mmx34.0mm | φ122x34.2mm |
| Weight | 0.16kg | 0.19kg | 0.24Kg |
| Load Bearing | 1.0kg(2.2lb) | ||
| Inch Thread | M20(G1/2”) | ||
| Material | Aluminum | ||
| Color | White | ||
