3.5 inch IPS touch screen, 480*320 resolution
H.265/H.264, 4K video display via mainstream
Dahua, Hikvision, Axis etc ONVIF camera test
DC12V 2A, DC48V PoE power output
The 3.5 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment.

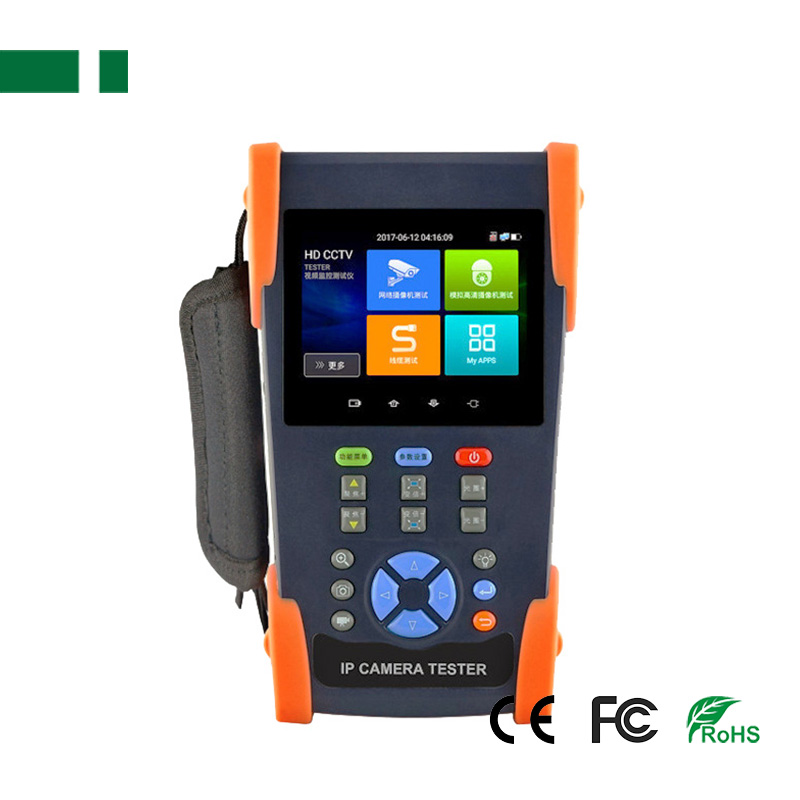

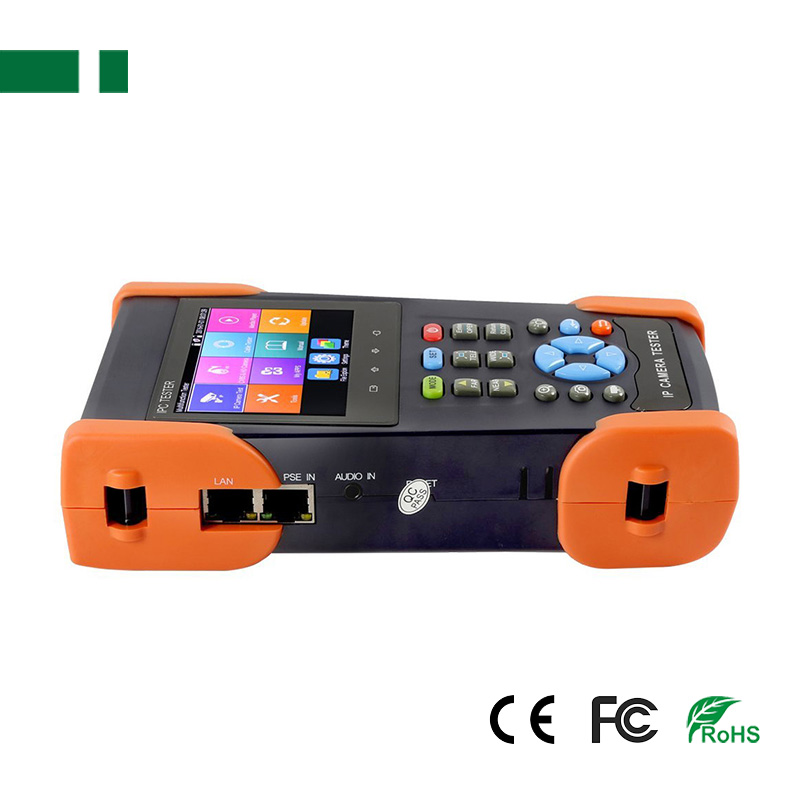

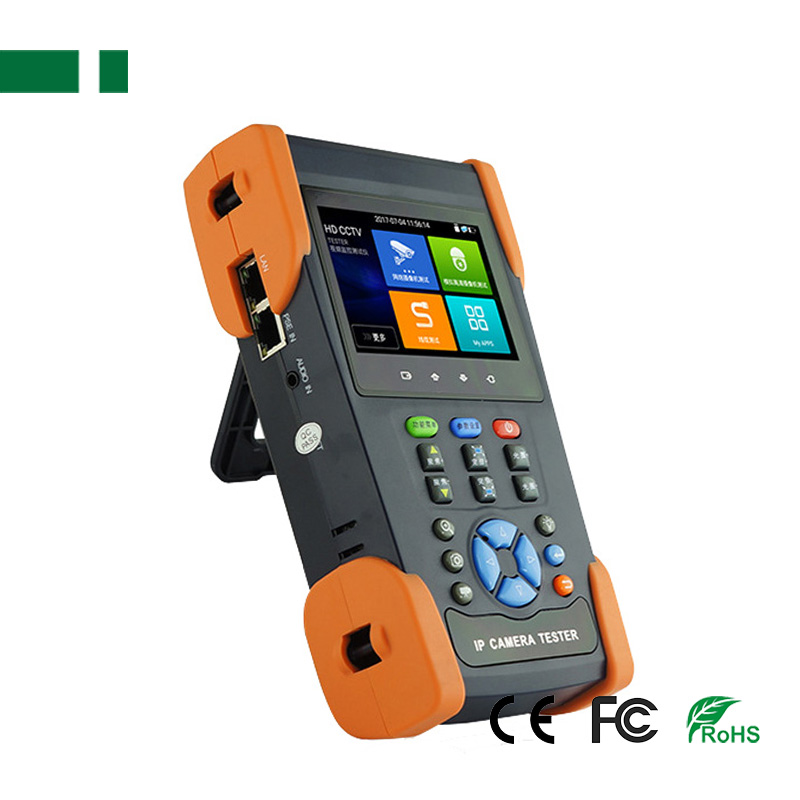

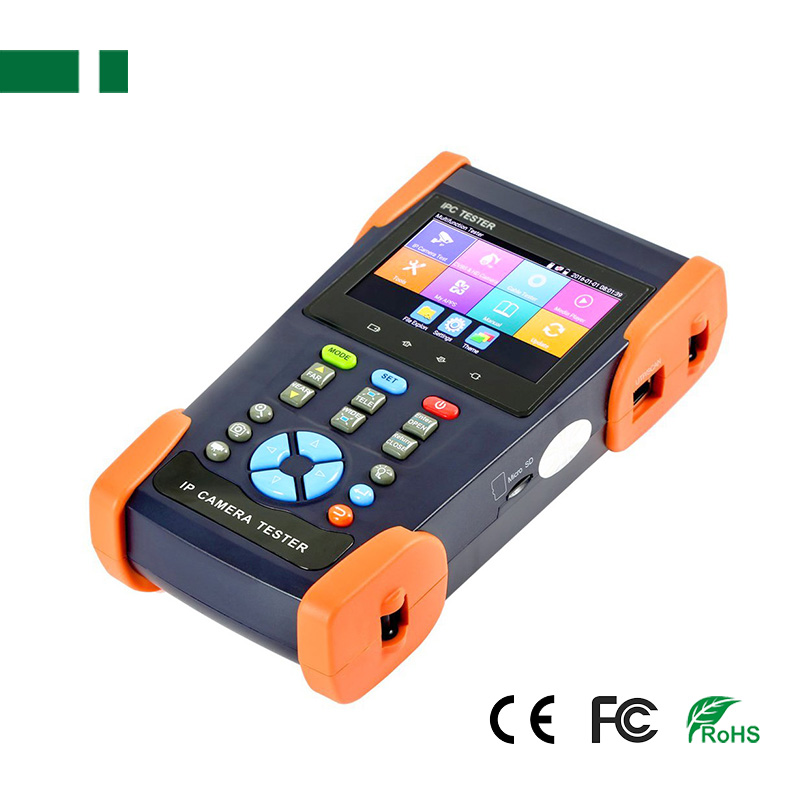

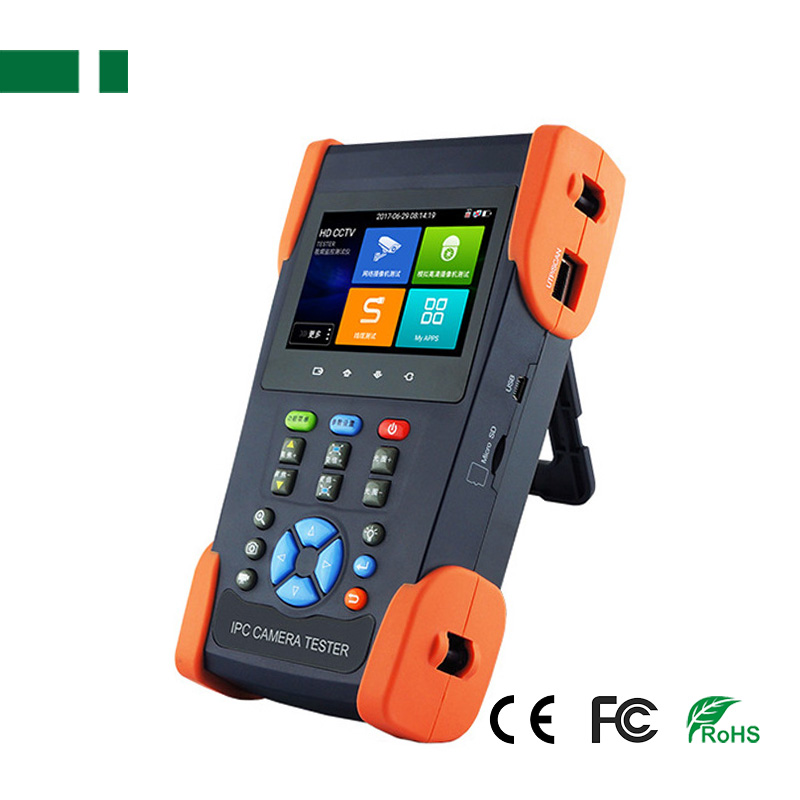

3.5-inch Analog IP Camera Tester with 48V PoE Power output
The 3.5-inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 480*320 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additionally, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take all in one camera tester, making working conditions safer and increasing productivity。
Feature:
● 3.5-inch IPS touch screen, 480*320 resolution
● 8MP TVI, 8MP CVI, 8MP AHD camera test*
● H.265/H.264, 4K video display via mainstream
● Dahua, Hikvision, Axis etc. ONVIF camera test
● Built in WIFI, create WIFI hotspot
● DC12V 2A, DC48V PoE power output
● RJ45 cable TDR test, test cable quality
● Rapid ONVIF, auto view video, create testing report
● Tester Play: Tester, mobile phone, PC display at the same time
Specification:
| LCD | Item series | CIPC-35 Plus series | |
| Display | New 3.5 inch IPS touch screen ,480*320 resolution | ||
| Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | |
| Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement* | |||
| PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||
| CVBS loop test | the tester send and receive color bar generator signal , check BNC cable | ||
| IP camera test | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | ||
| 4k/H.265/H.264 | Rapid Video | Auto view the video, create testing report | |
| Hik test tool | activate hikvision camera , modify the user name, password and IP parameters | ||
| Coaxial HD test * | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu * | ||
| 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS,UTC control/ call OSD menu * | |||
| 8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu * | |||
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back | ||
| Analog Video out | Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable | |
| PoE power output | 48V PoE power output, max power 25.5W | ||
| Power output | DC12V power | DC12V /2A power output | |
| Cable test | TDR cable test * | BNC cable, Network Cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit. measurement range 1.2KM * | |
| Cable tracer * | search BNC cable, network cable and telephone cable from the mess cables * | ||
| UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen | ||
| RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M. | ||
| TesterPlay | screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone) | ||
| Network test | Trace route, Link monitor , DHCP server, port flashing , Ping test | ||
| Wi-Fi | Built in WIFI,speeds150M,display wireless camera image | ||
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
| Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal | ||
| PoE test | Measurement POE Switch or PSE power supply voltage and cable connection status | ||
| Drop-down menu | You can select PoE power switch ,IP setting,CVBS, LAN info , HDMI IN functions etc in any interface | ||
| External power supply | DC 12V 1A | ||
| Battery | Built-in 7.4V Lithium polymer battery ,2400mAh | ||
| Rechargeable | After charging 3~4 hours, normal working time 8 hours | ||
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc | ||
| Auto off | 1-30 (mins) | ||
| Working Temperature | -10℃---+50℃ | ||
| Working Humidity | 30%-90% | ||
| Dimension/Weight | 194mm x 112mm x 48mm / 540g | ||
| Below are customizable functions, TVI (H)or AHD(A) can be added into tester, but If add below other functions into tester, MOQ is 50 units), if you add one of “A/D/H” ,then cannot choose “T”, the “O” and “V” cannot be chosen at the same time. | |||
| M* | Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement | ||
| O* | Optical power meter, Wavelength：1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss relative measurement | ||
| V* | Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM | ||
| T* | TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM | ||
| A* | AHD camera test, 8MP AHD test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu | ||
| H* | TVI camera test: 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu | ||
| D* | CVI camera test : 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS,UTC control / call OSD menu | ||
| L* | Video level meter: PEAK ,SYNC signal level, color burst chroma level measurement | ||
| C* | Cable tracer: Search BNC cable, network cable and telephone cable from the mess cable | ||
| Note: “*” sign mean functions are customizable | |||
