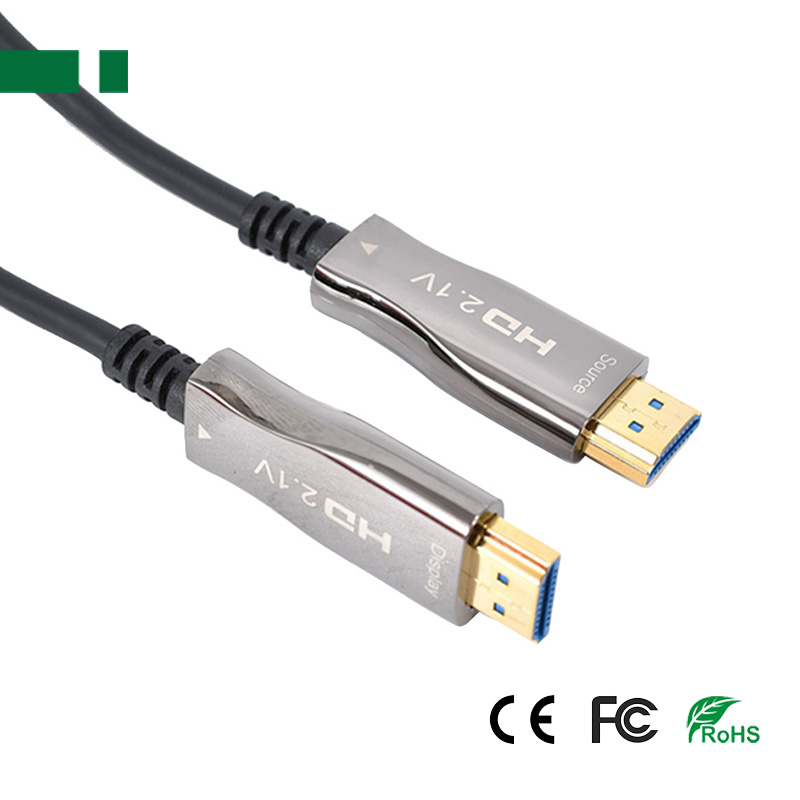

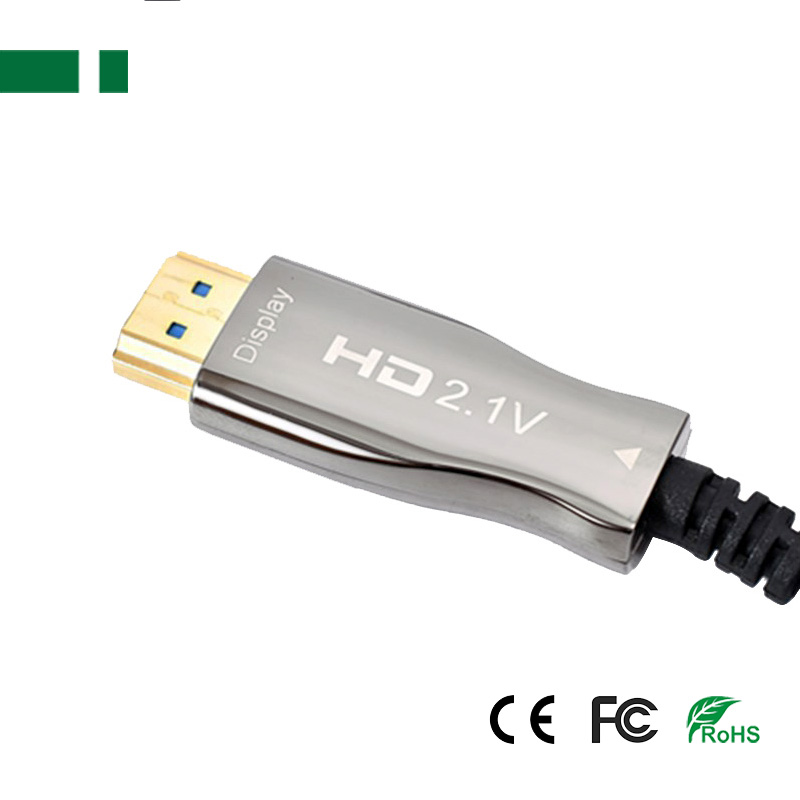

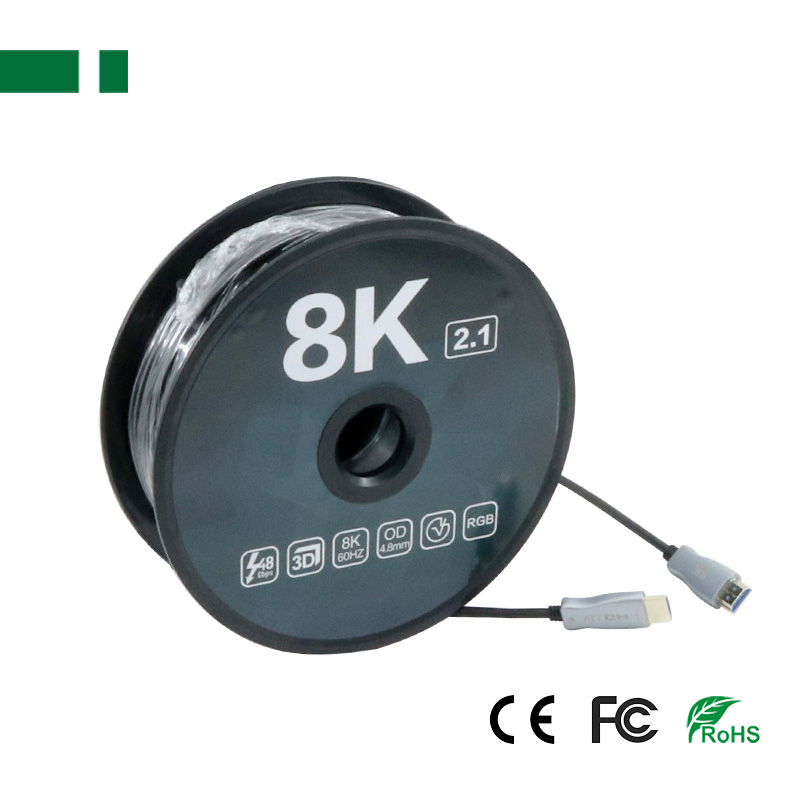

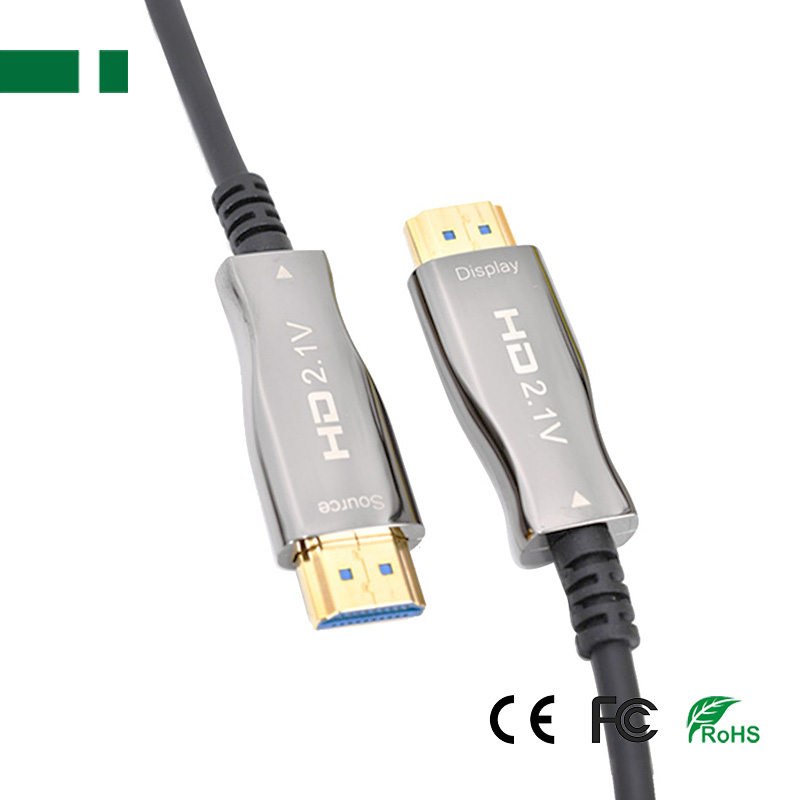

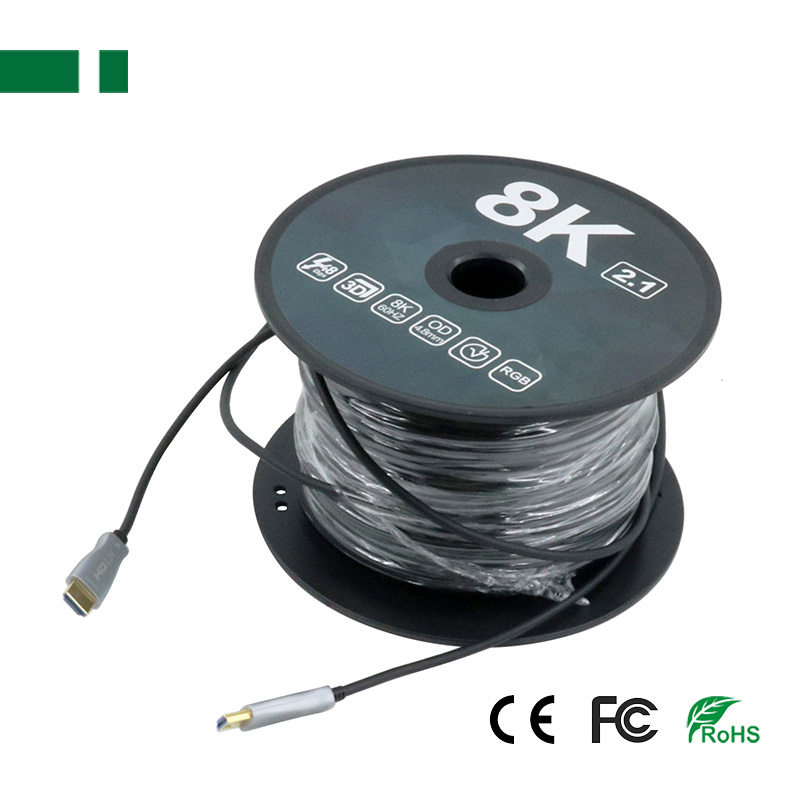

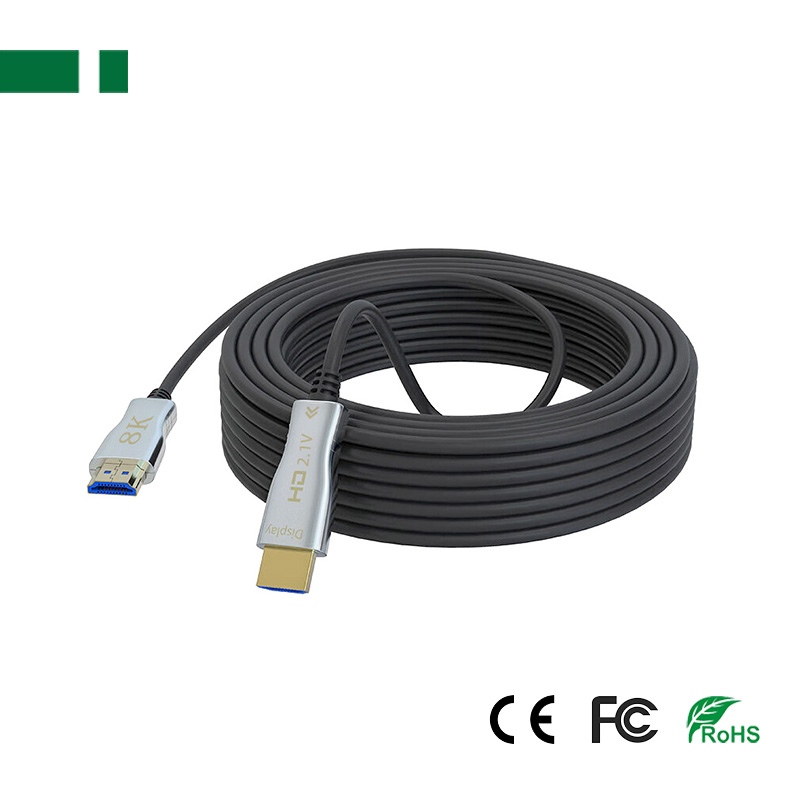

CHM-OF10-8K 8K@60Hz 2.1V Optic Fiber HDMI Cable CHM-OF20-8K CHM-OF30-8K CHM-OF40-8K CHM-OF50-8K CHM-OF60-8K CHM-OF80-8K CHM-OF100-8K

8K@60Hz HDMI-Compatible 2.1 Fiber Optic Cable for TV Xbox PS5 switch display apple-tv

Specification:

Model	CHM-OF10-8K	CHM-OF15-8K	CHM-OF20-8K	CHM-OF30-8K	CHM-OF40-8K	CHM-OF50-8K	CHM-OF60-8K	CHM-OF80-8K
Protocol	HDMI 2.1
Transmission rate	48Gbps(12Gbps per channel)
Resolution	8K@60Hz/ 4K@120Hz
Input port	HDMI Type A
Output port	HDMI Type A
Power Supply	Low power consumption, no external power supply required
Cable specifications	4*optical fiber
Fiber specifications	4-core multimode fiber
Maximum length	Max. 300M
Cable cover	PVC
Color	Black
Wire size	4.8mm±0.1mm
Minimum bend radius	6mm
Maximum tensile load	221 N
Temperature	Operating: -20℃  To +70℃, Storage: -40℃ To +80℃
Input voltage	+5V
Power consumption	≤500mW
Weight	275g	424g	485g	939g	1193g	1404g	1643g	2154g
Packing list	Connector dust filter cover, Cable tie			Connector dust filter cover, Cable tie, Reel

Feature:

1. 8K Fiber HDMI 2.1 Cable --It supports High-speed 48Gbps, 8K@60Hz, 4K@120Hz, 2K@120Hz, Dynamic HDR, Dolby Vision, eARC, HDCP 2.2&2.3, 3D, 32 Audio Channels, 4:4:4 RGB, ALLM, QFT, QMS, VRR, DSC etc. Backward compatible with version 2.0 / 1.4 / 1.2 / 1.1.

2. Slim & Flexible Fiber HDMI Cable -- Compared with traditional copper core cables, they have a greater bandwidth, faster speed, less signal attenuation, greater resistance to electromagnetic interference, are slimmer and more flexible, have a stronger bending strength, and a longer service life, which is the development direction of future cables.

3. Long Distance Lossless Transmission -- Fiber optic hdmi cable can achieve lossless transmission, the longest transmission distance of up to 300m. Copper hdmi cord can't reach 18Gbps for more than 15m, while fiber hdmi cables can reach and without signal loss.

4. High Quality HDMI Cable -- The long hdmi cable feature gold-plated connectors to prevent oxidation and are protected by a zinc alloy Housing. Withstands over 20,000+ bending cycles.

5. Attention -- Fiber optic hdmi cable is one-directional transmission, the SOURCE plug connects video devices such as TV Box, PS5, PS4, PS3, Blu-ray Players, Xbox Series, Laptop etc. The DISPLAY plug connects display devices such as TV, Displays, Projector, Moniter etc. So make sure you plug in each end correctly, you will get no image from the device.

6. Superior Gaming Experience -- Compared to 4K hdmi cable, 8K hdmi cable add enhanced audio return channel (eARC) to deliver HD audio and the highest audio quality. It also support variable refresh rate (VRR), which solves the problem of freezing and tearing of the picture for smoother gaming.

7. Compatible with HDMI Devices -- Set-top boxes, video games (ps3/ps4/ps5), blu-ray dvd players, xbox series, uhd tv, hd tv, digital audio, various inch monitors, computer, hdtv 4k fire netflix and other hdmi-enabled device.
