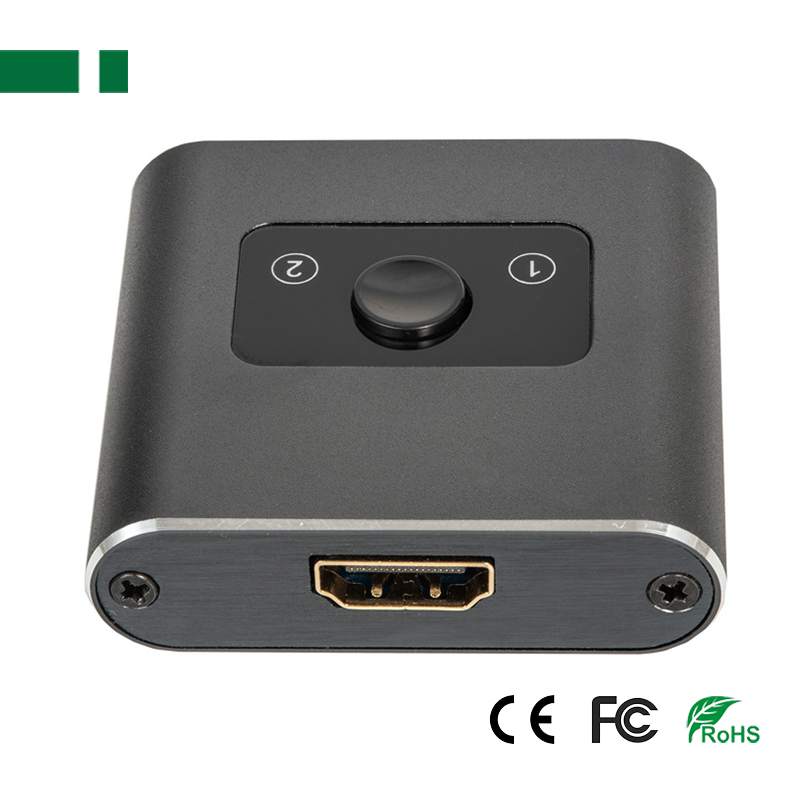

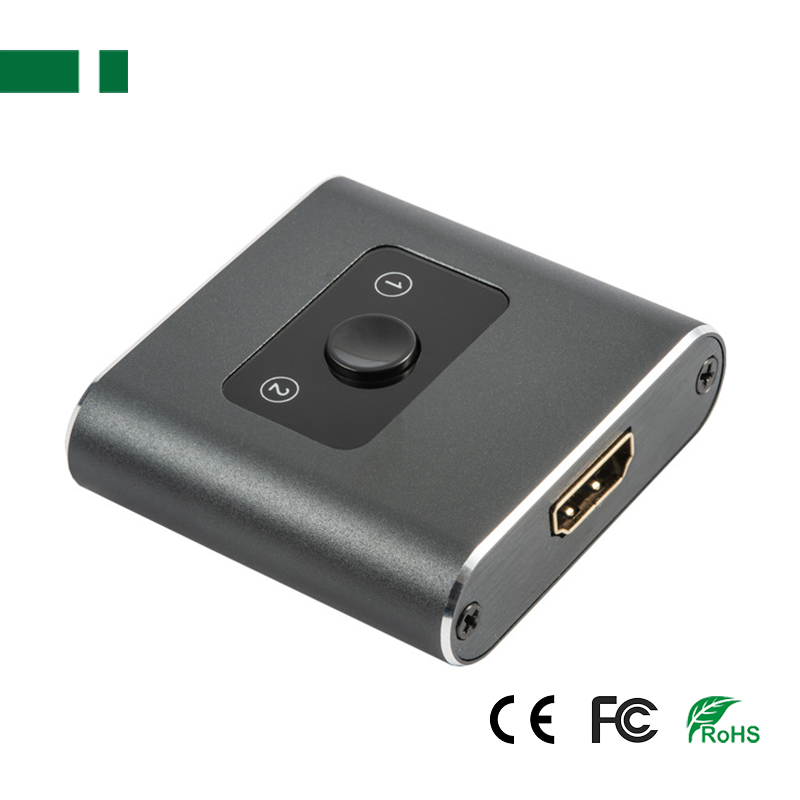

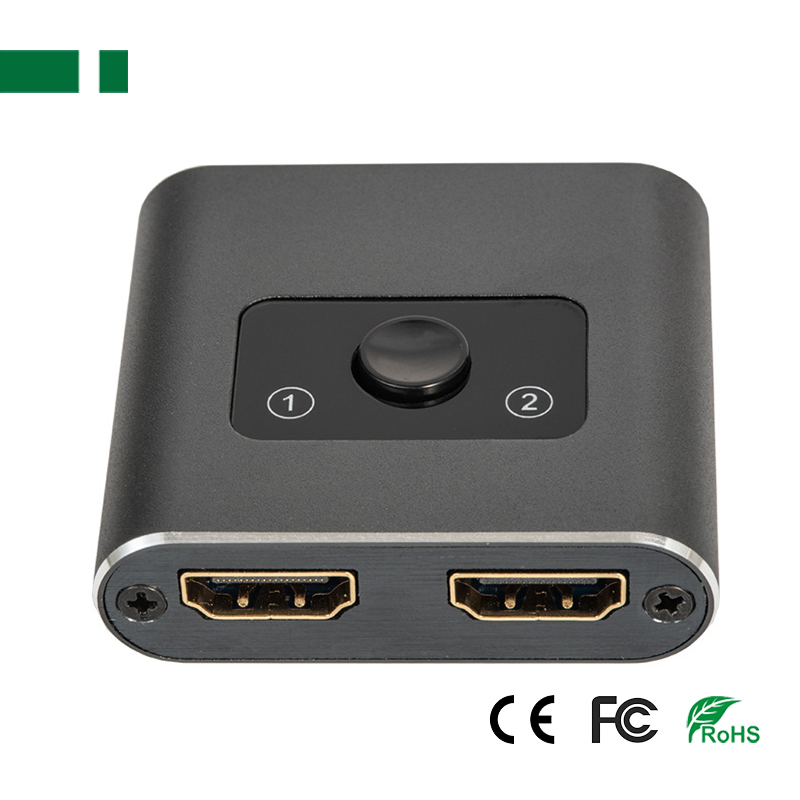

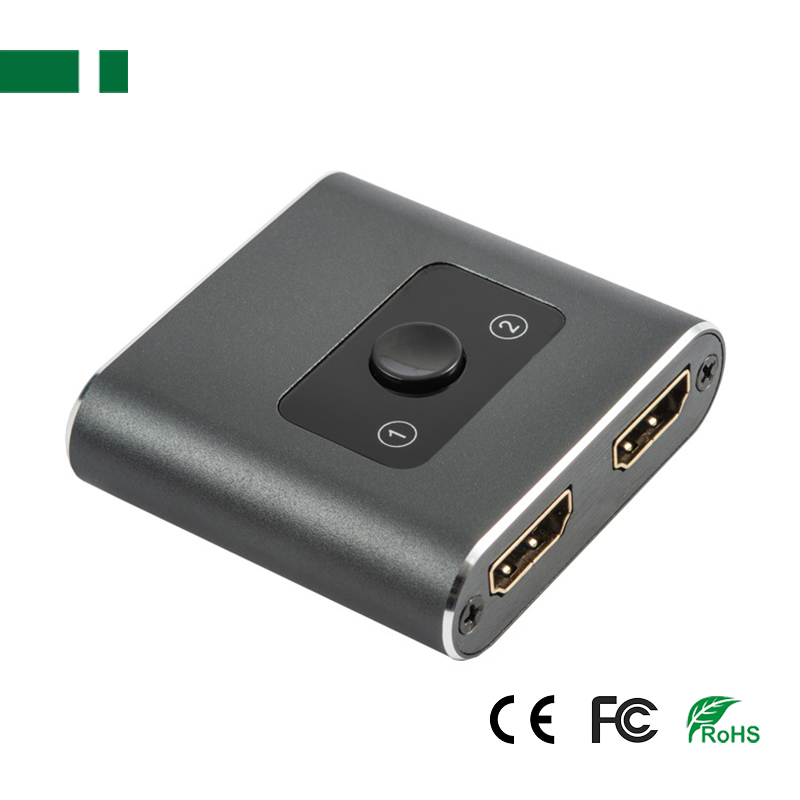

CHM-B102 4K 3D HDMI Bi-Direction switcher

CHM-B102 4K 3D HDMI Bi-Direction switcher

4K 2x1 HDMI Bi-Direction switcher
1 HDMI input with 2 HDMI output
2 HDMI input with 1 HDMI output
Supports up to 4K@30Hz, 3840*2160@30Hz
Product description: HDMI Switcher a Bi-Direction HDMI switcher. It has one switch button on top and two LED indicator lights. The button actually allows you to choose one of two modes: whether you transmit signal from on
INQUIRY EMAIL

4K 2x1 HDMI Bi-Direction switcher 2 in1 Out for PS4/3 TV Box Switcher Adapter

HDMI Switcher a Bi-Direction HDMI switcher. It has one switch button on top and two LED indicator lights. The button actually allows you to choose one of two modes: whether you transmit signal from one appliance to the other two or the other way around. This means that this switcher is bi-directional–the HDMI signal can go either way.

Feature:

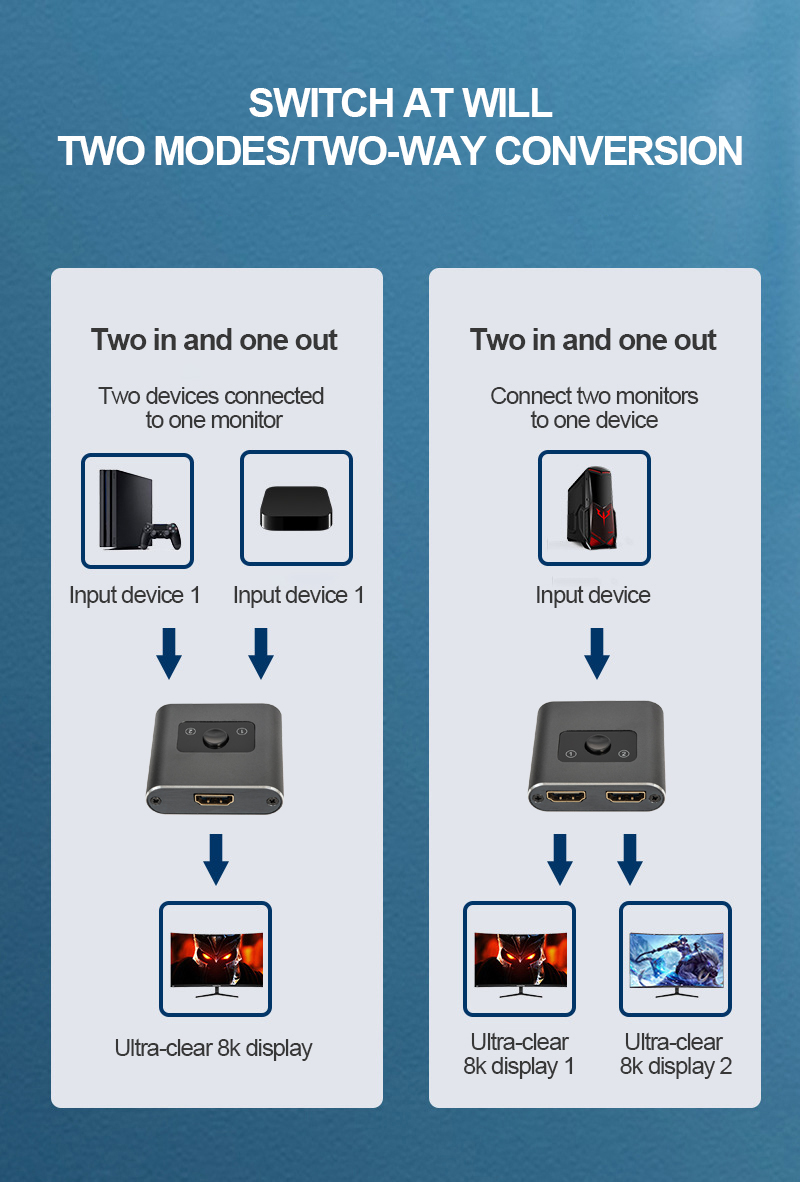

1. 1 HDMI input with 2 HDMI output

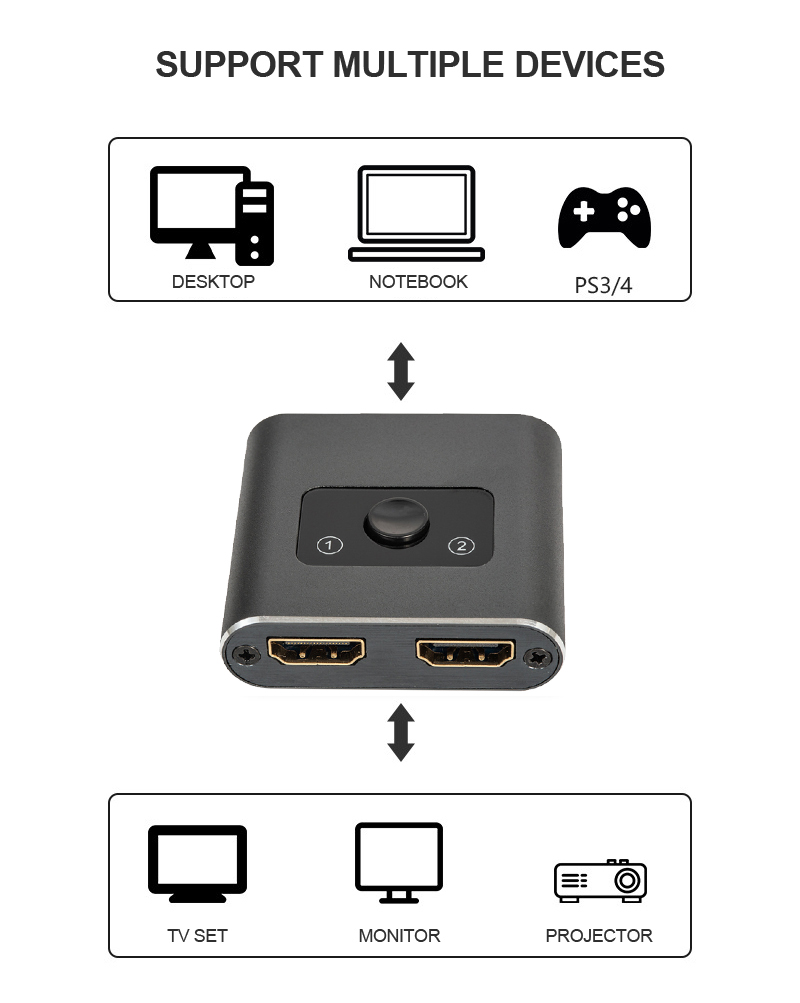

Connect 1 HDMI Host device (DVD player, PS3 or others) and transmits to 2 HDMI Monitors or TVs.
2. 2 HDMI input with 1 HDMI output
Connect 2 HDMI Host devices (DVD player, PS3 or others) and transmits to 1 HDMI Monitor or TV.
3. Power free.
4. Max operation current: 15mA.
5. Full compliance with the HDMI specification V1.0, V1.1, V1.2, V1.3, V1.4.
6. Supports up to 4K@30Hz, 3840*2160@30Hz, compatible with 480i/480P, 576P, 720P, 1080i/1080P
7. Main control: Manual electron select.
8. Support input up to 5 metres AWG26 HDMI standard cable length, output up to 5 metres AWG26 HDMI standard cable length.
9. With 2 LEDs & Display worwing port (Green: Display working port).
10. 3 HDMI A/F connectors.
11. Support HDMI plug & play. Easy install & operation.

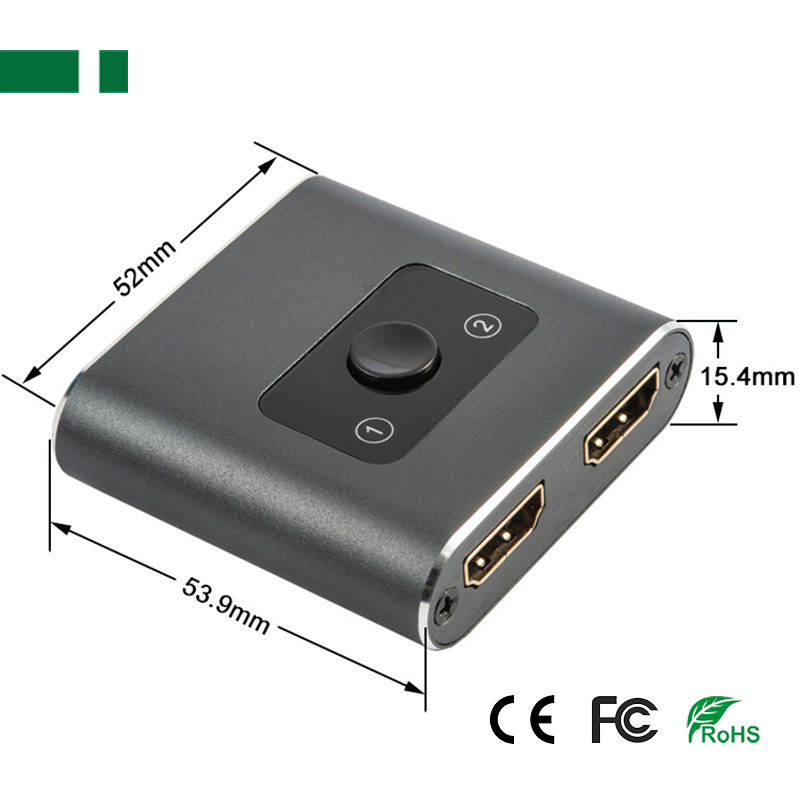

12. Size: 53.9*52*15.4mm, Weight: 66g.
