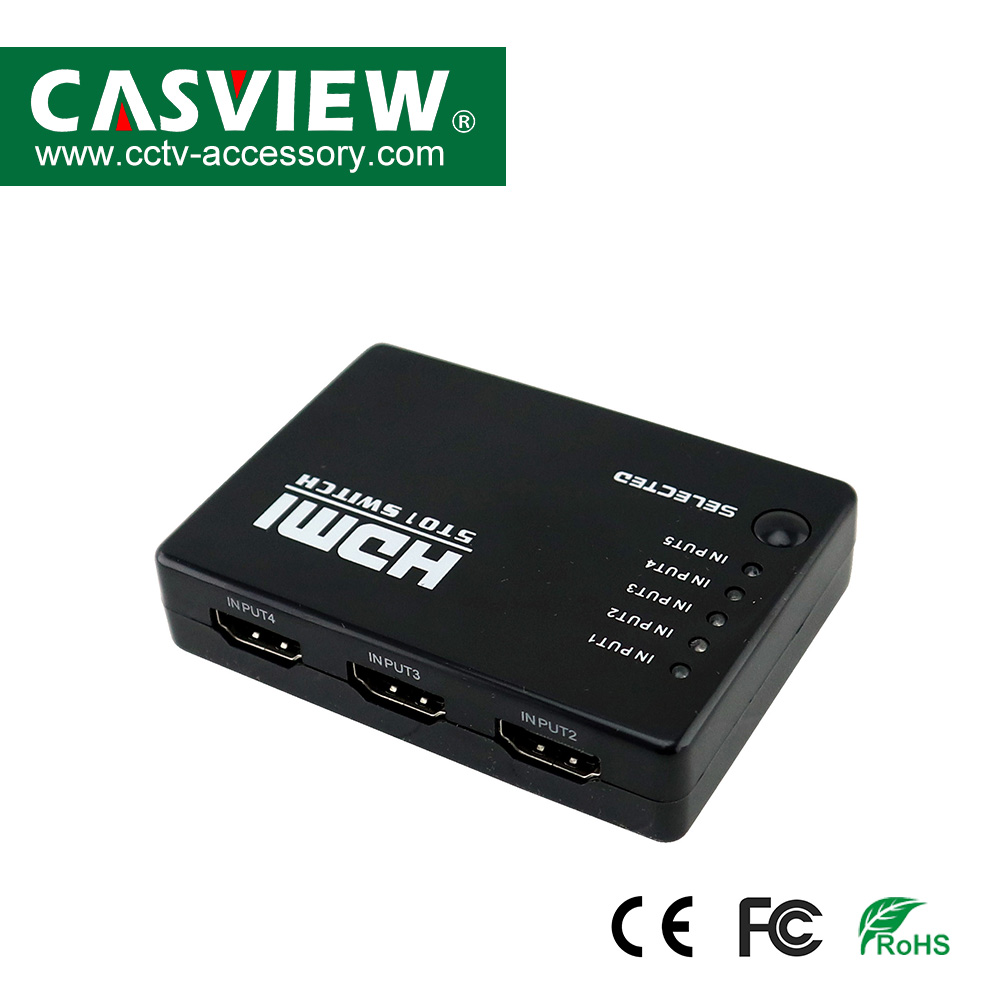

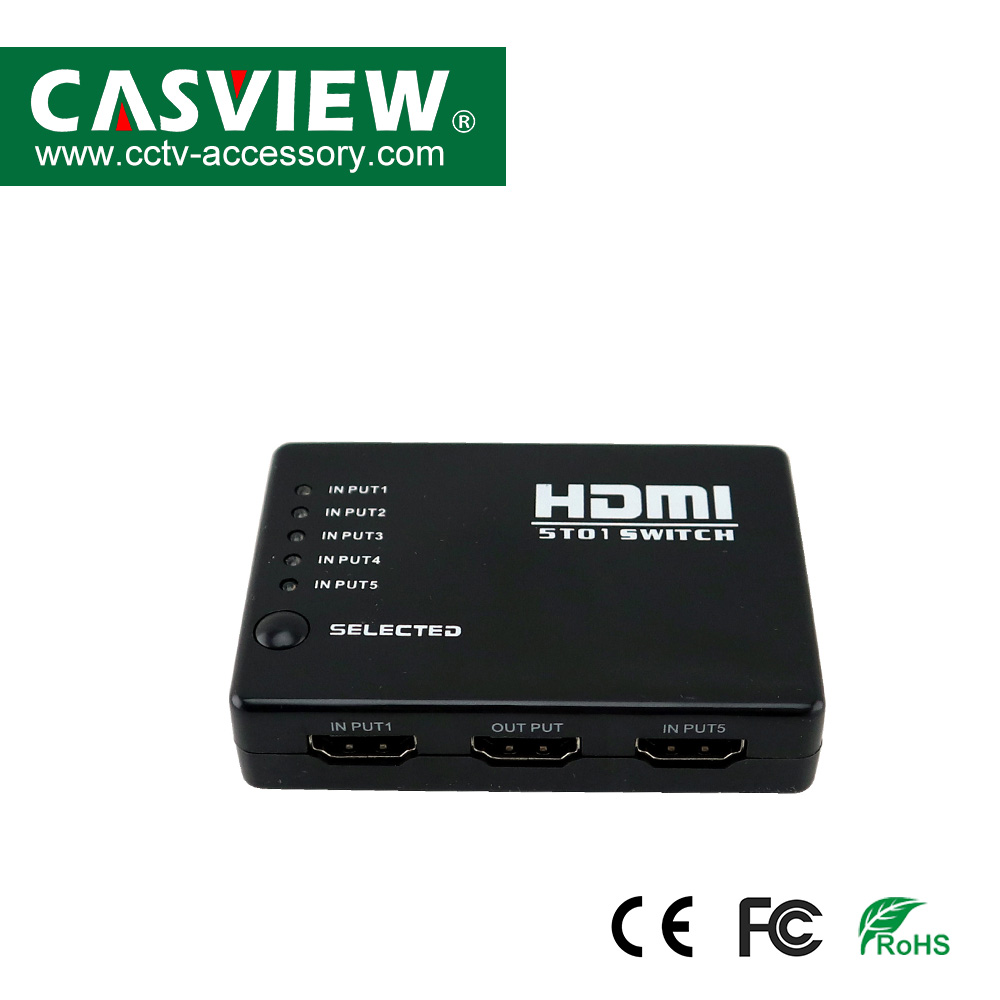

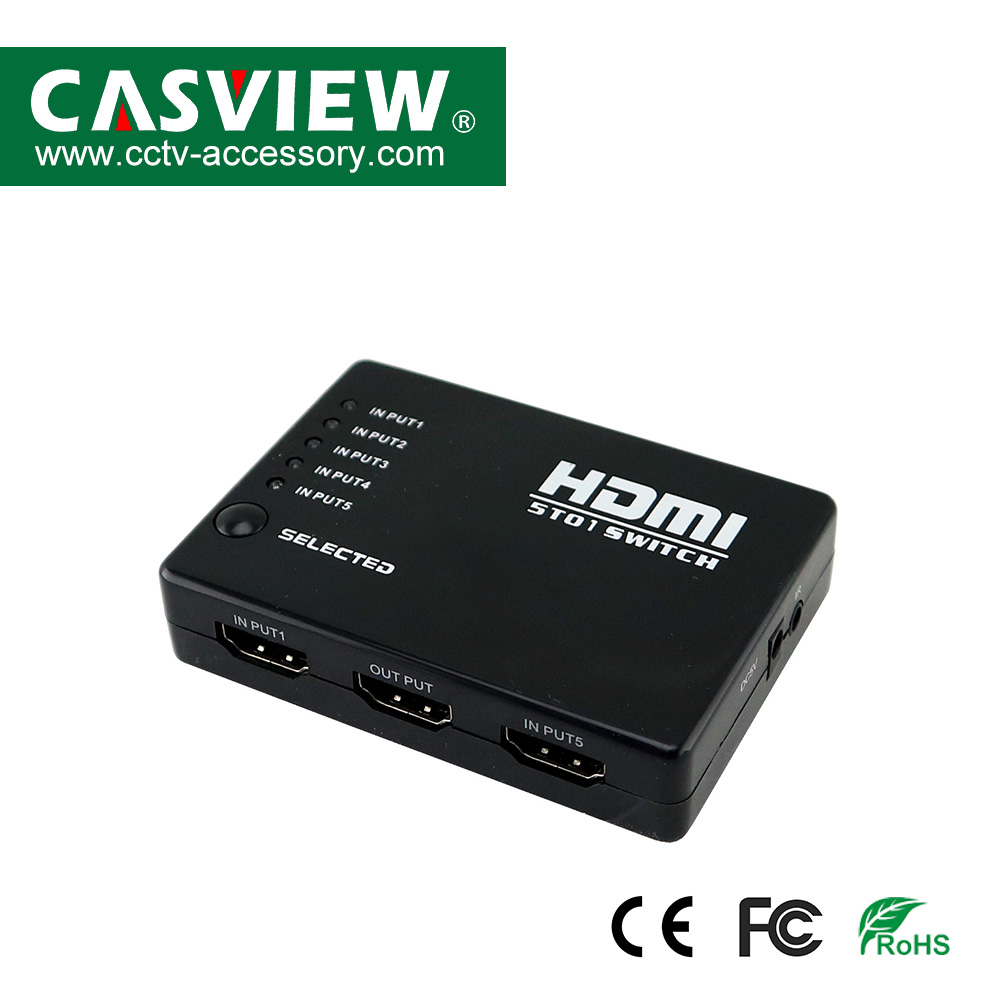

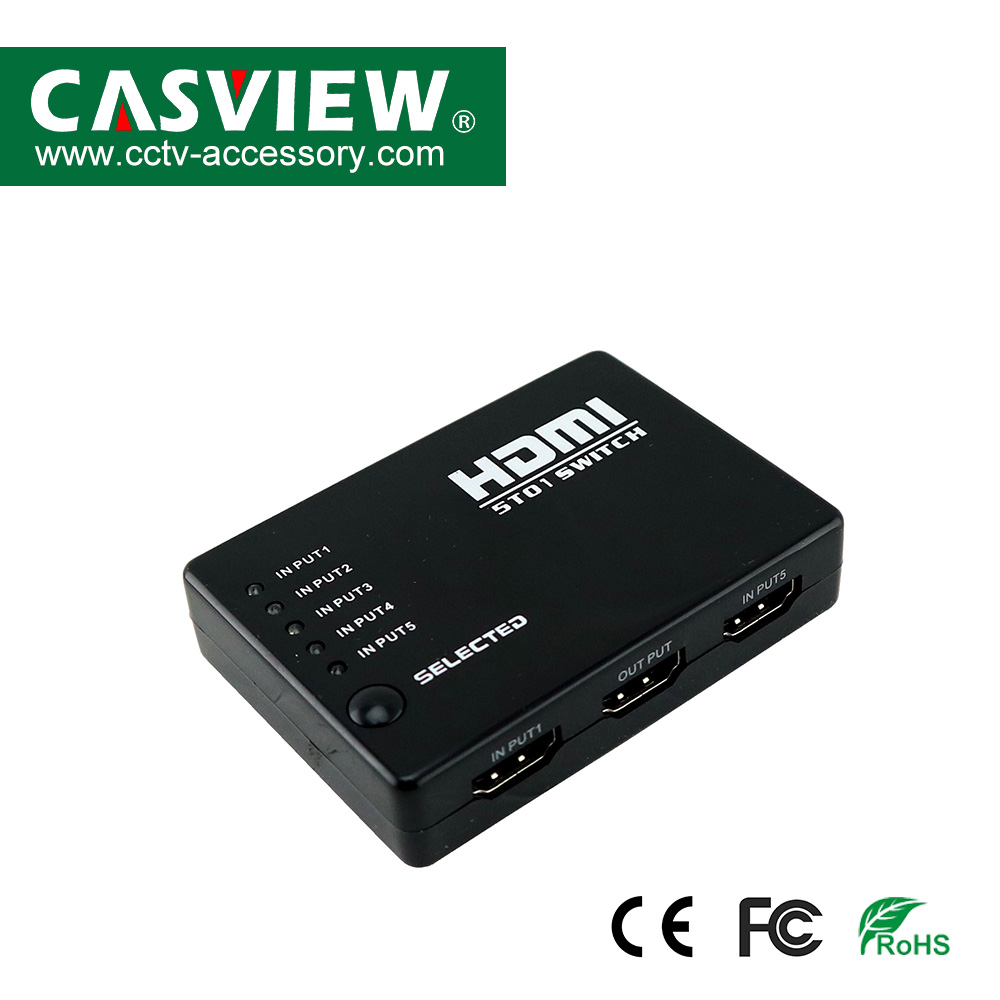

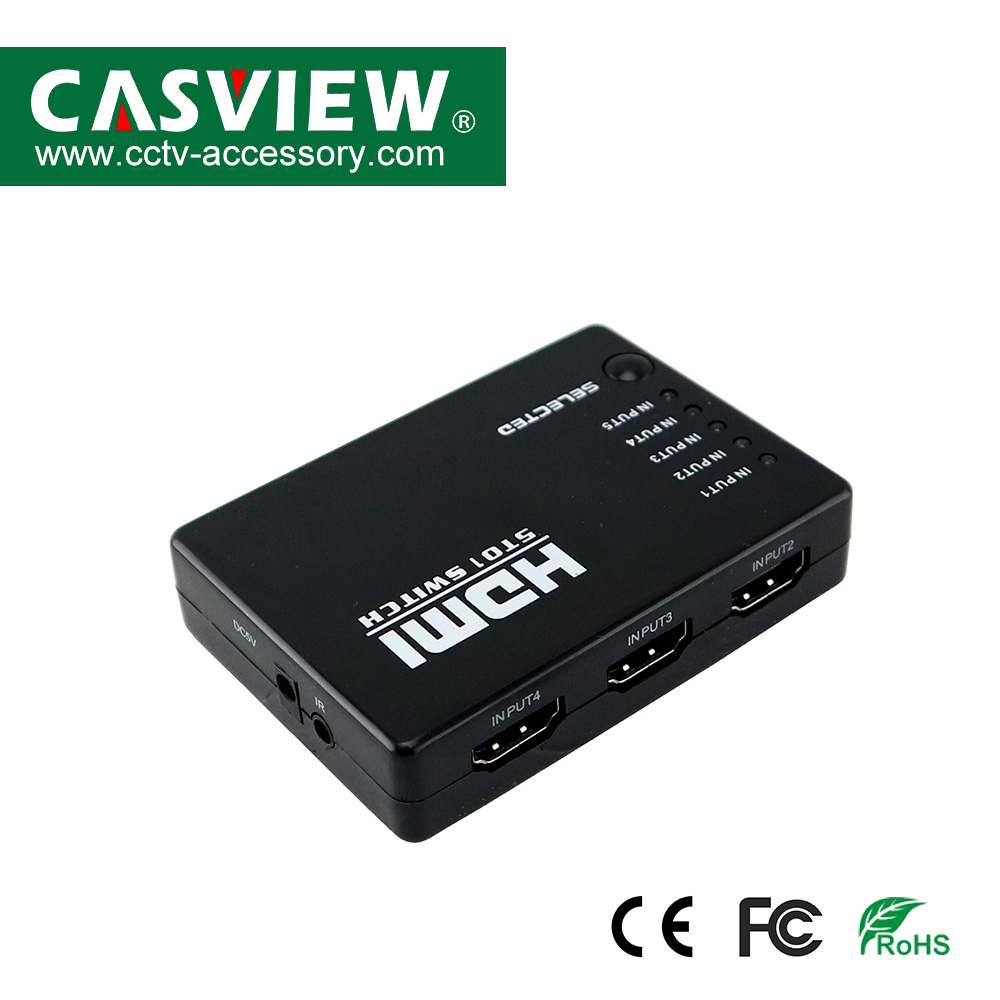

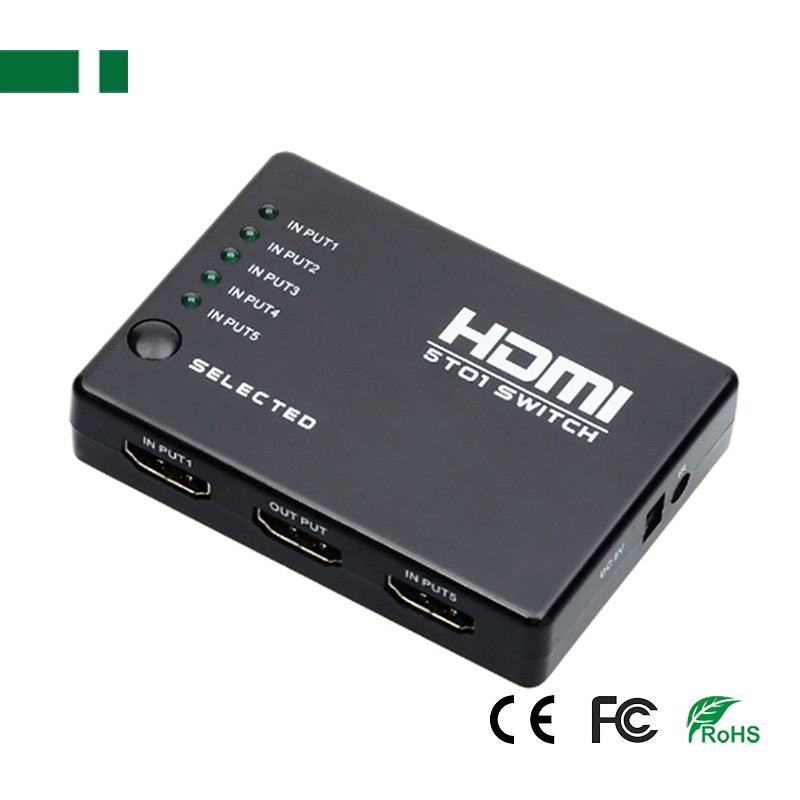

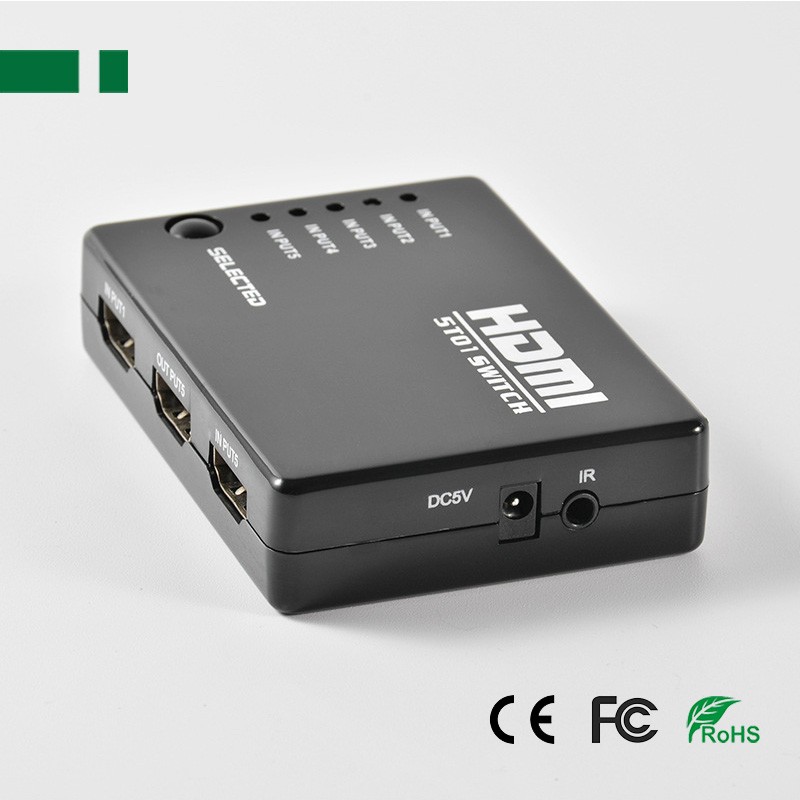

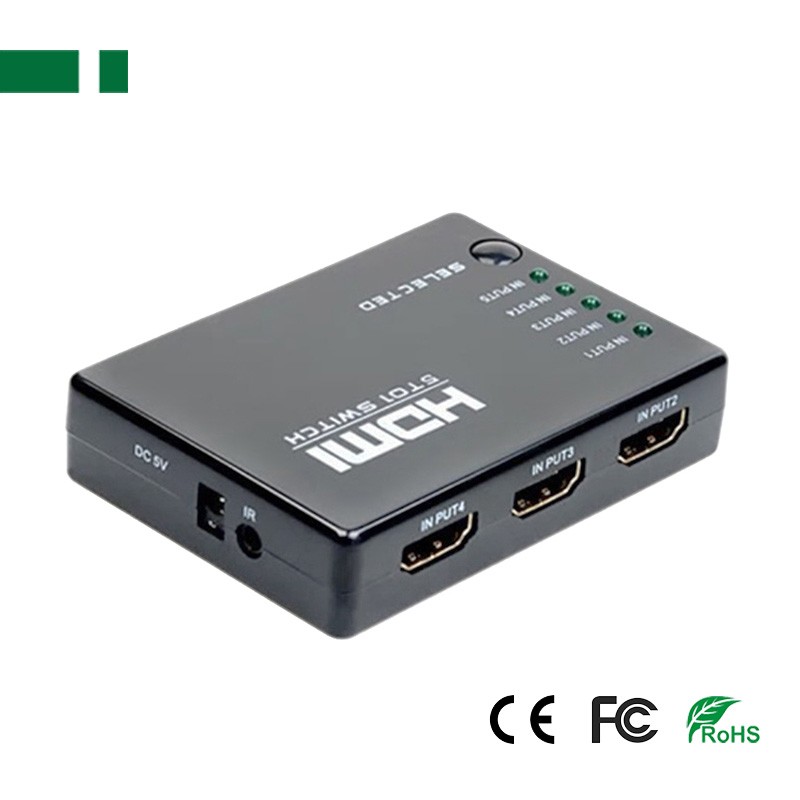

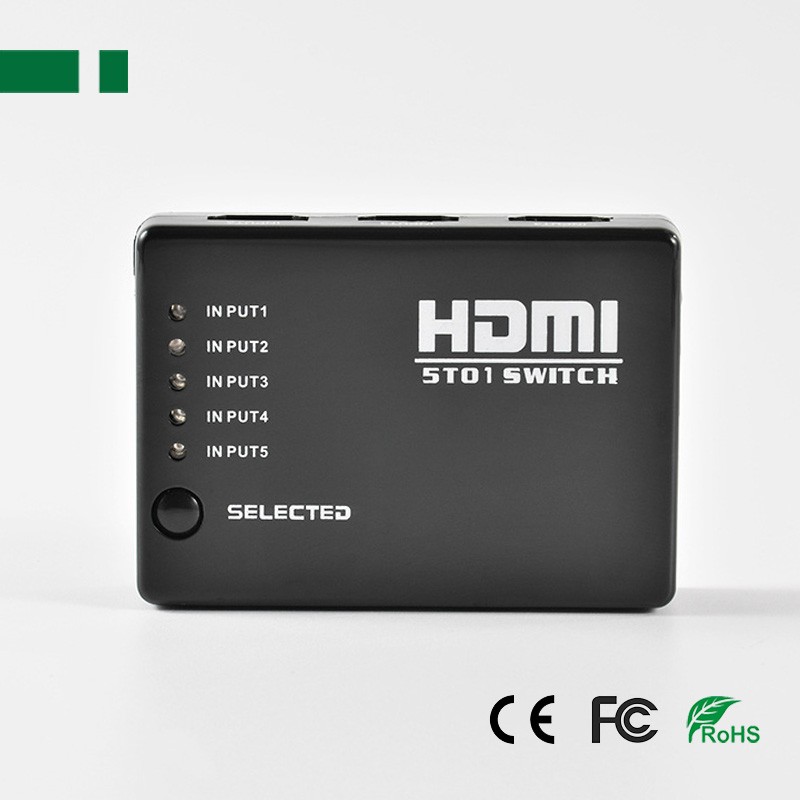

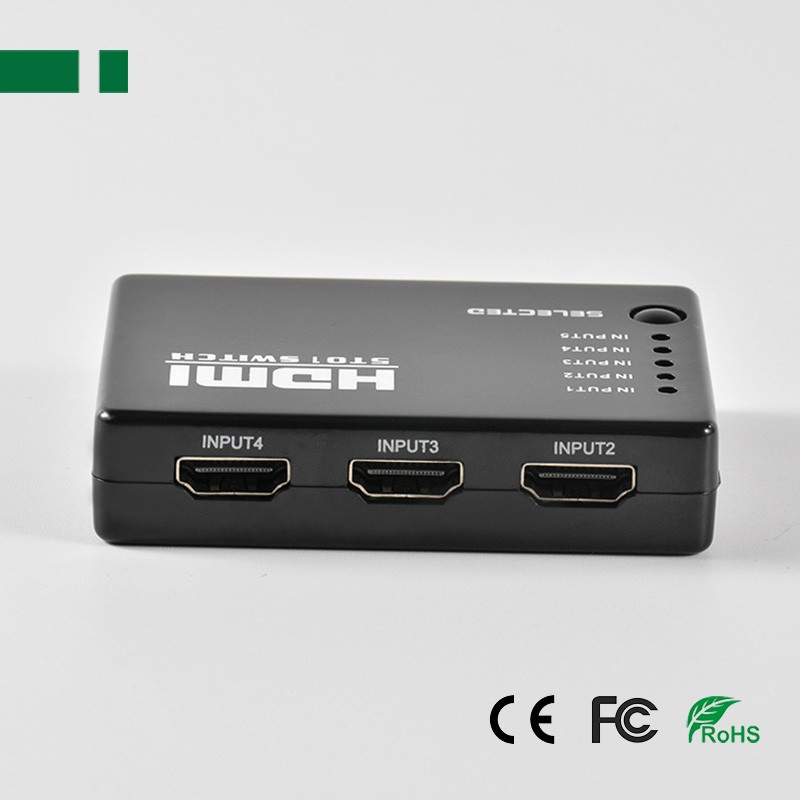

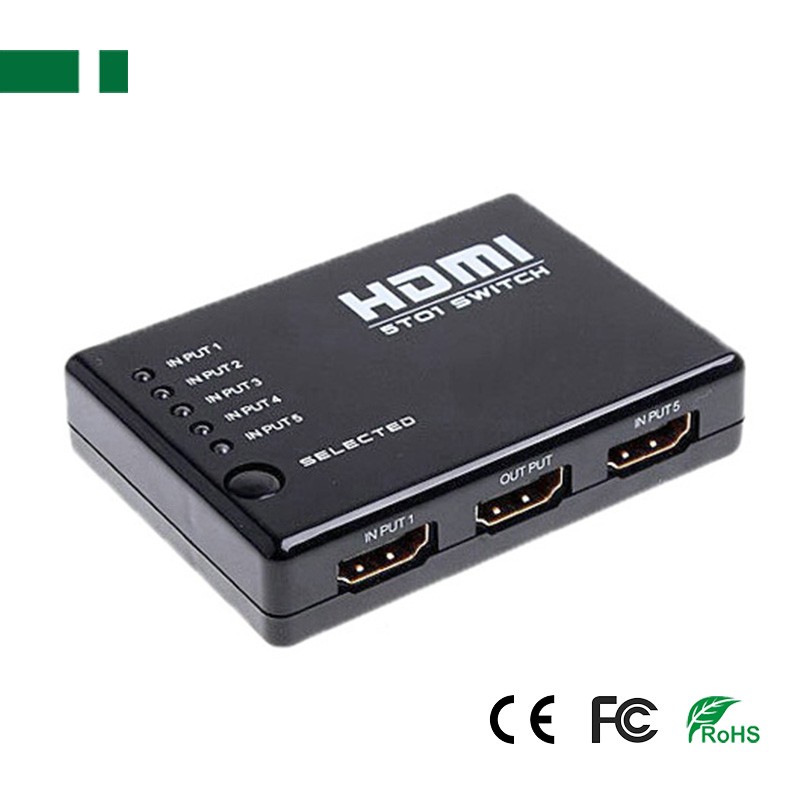

▪ 1080P@60Hz 5*1 HDMI Switcher
▪ Support with HDMI 1.3b.
▪ Supports 3D devices.
▪ Support up to 1920*1080P@60Hz;
▪ Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC;
▪ Digital audio format;
▪ Dimension: 82*58*19mm (L*W*H);
▪ An HDMI switch is a device that allows you to connect multiple HDMI sources into a single display port and switch between them. So, you could connect your gaming console, Blu-ray player, and TV to the switch and then have the box select which device to display on the TV at any given time.
Description:
An HDMI switch is a device that allows you to connect multiple HDMI sources into a single display port and switch between them. So, you could connect your gaming console, Blu-ray player, and TV to the switch and then have the box select which device to display on the TV at any given time.
Feature:
▪ 1080P@60Hz 5*1 HDMI Switcher
▪ Support with HDMI 1.3b.
▪ Supports 3D devices.
▪ Support up to 1920*1080P@60Hz;
▪ Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC;
▪ Digital audio format, as DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR);
▪ Support Full HD, Full 3D (If your devices support 3D);
▪ Dimension: 82*58*19mm (L*W*H);
▪ Good compatibility, for DVD, SB interface, STB, PS3, PC, DV, DLP Video Projector and other HDMI devices.
Specification:
| Model | CHM-301 | CHM-302 | CHM-303 | CHM-501 |
| HDMI Input | 3chs HDMI input | 3chs HDMI input | 3chs HDMI input | 5chs HDMI input |
| HDMI Output | 1ch HDMI output | 1ch HDMI output | 1ch HDMI output | 1ch HDMI output |
| HDMI Connector | 19-Pin HDMI Female Port | |||
| HDMI Version | HDMI 1.3 | |||
| HDCP Version | HDCP 1.1 | |||
| Support Video Format | up to 1920*1080P /60Hz | |||
| Max band width | 250MHz | |||
| Max baud rate | 2.5Gbps | |||
| Temperature | Operating: -15℃ to +55℃, Storage: -10℃ to +70℃ | |||
| Humidity | Operating: 10% to 80%RH (No Condensation), Storage: 5% to 90%RH (No Condensation) | |||
| Material | ABS Plastic Housing | |||
| Dimension | 66*66*15mm (L*W*H) | 83*62*16mm (L*W*H) | 82*58*19mm (L*W*H) | 82*58*19mm (L*W*H) |
| Weight | 55g | 92g | 107g | 109g |
