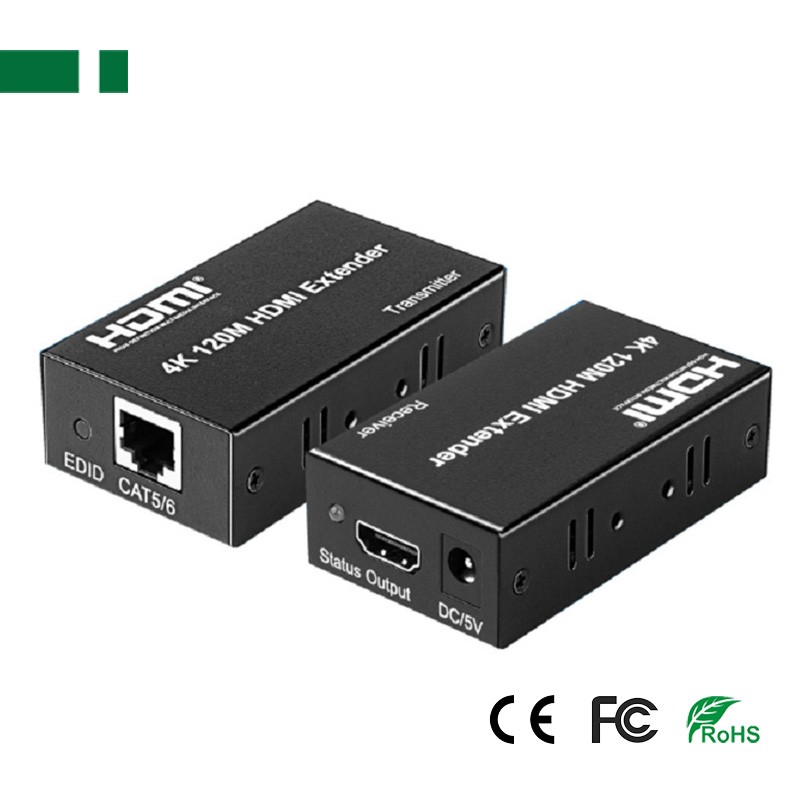

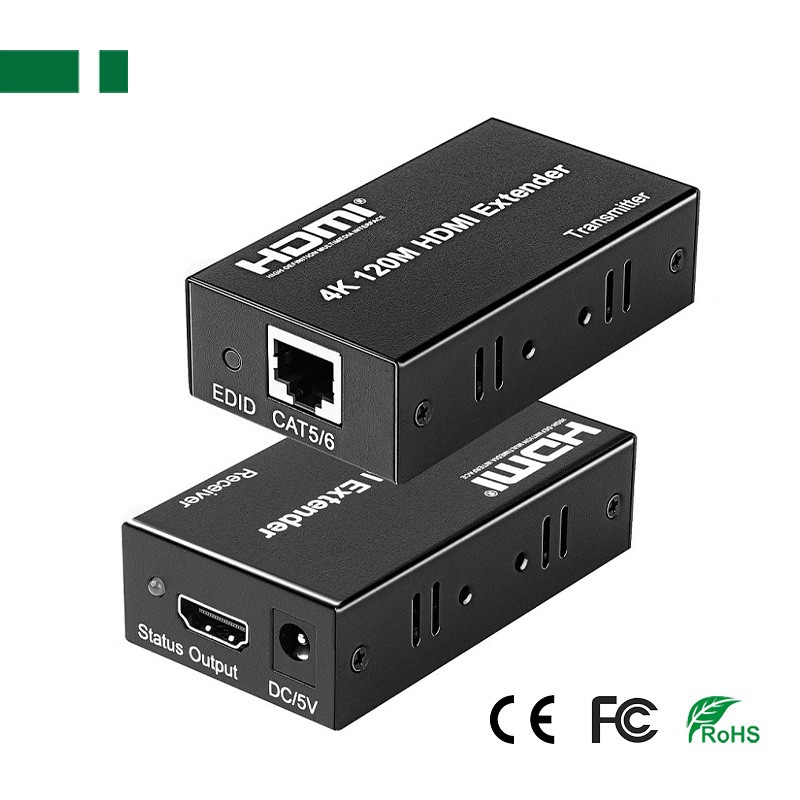

CHDT-120-4K 120M 4K@30Hz HDMI Video Extender

Description:

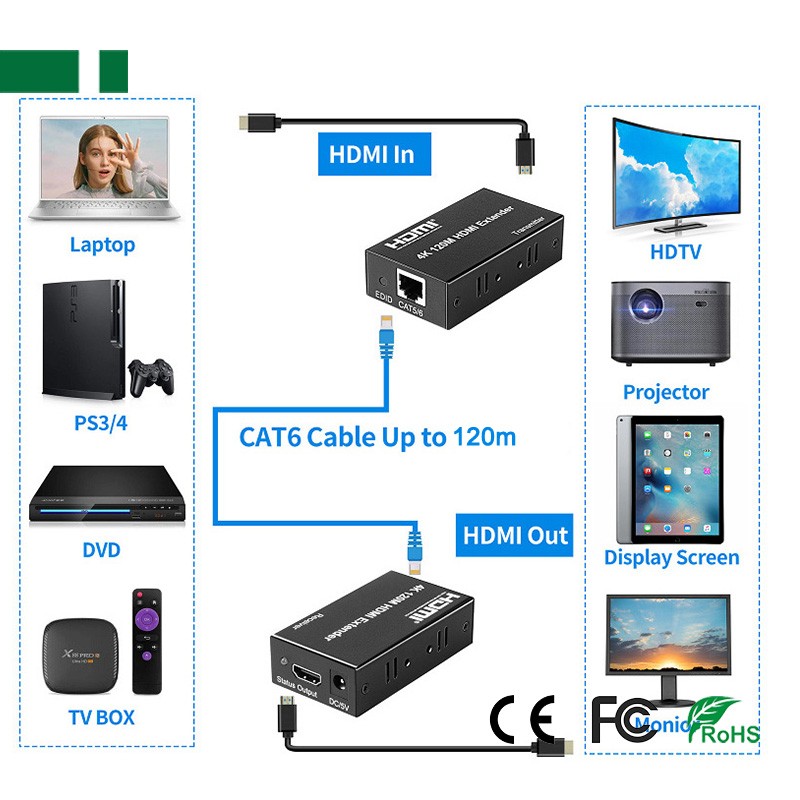

The HDMI Extender use  cat-6(recommended) cables up to 120 metres instead of HDMI Cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.This hdmi extender offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Feature:

▪ 120M 4K@30Hz HDMI Video Extender;

▪ Support HDMI 1.4b;

▪ Support 3D, 4K/1080P/720P/576P/576i/480P/480i;

▪ Compliant with HDCP 1.2;

▪ Cable distance support: Over 120m with twisted-pair;

▪ Operation frequency: up to 340MHz;

▪ HD data rate: 3*3.4Gbps;

▪ Power Supply: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A;

▪ Dimensions: 84*47*22mm, 101G.

▪ Weight: TX/RX: approx. 101g

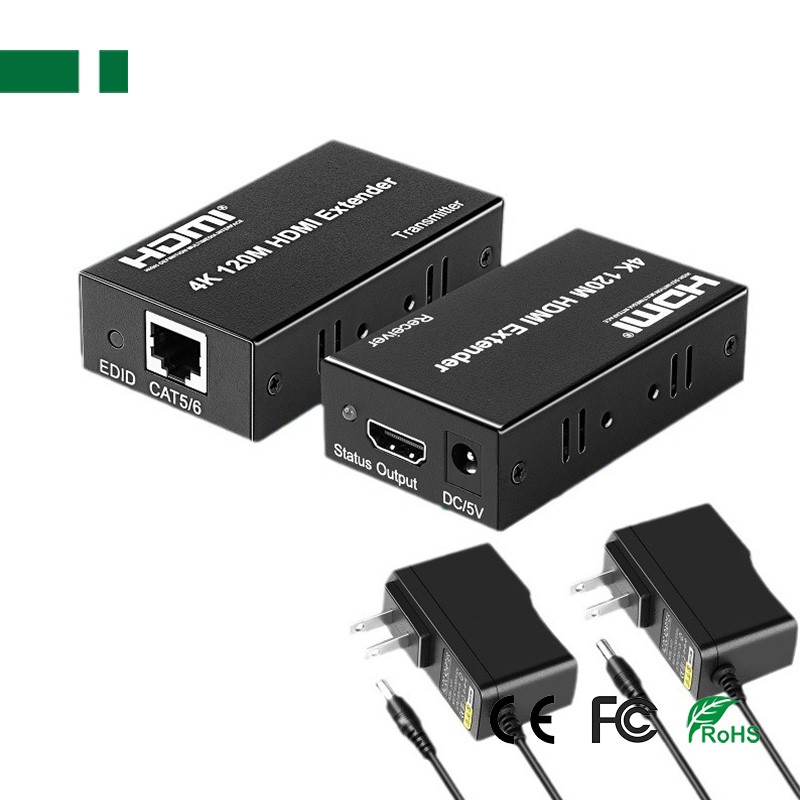

Package:

▪ HDMI Extender sender *1;

▪ HDMI Extender receiver *1;

▪ Power Adapter *2;

▪ User manual.
