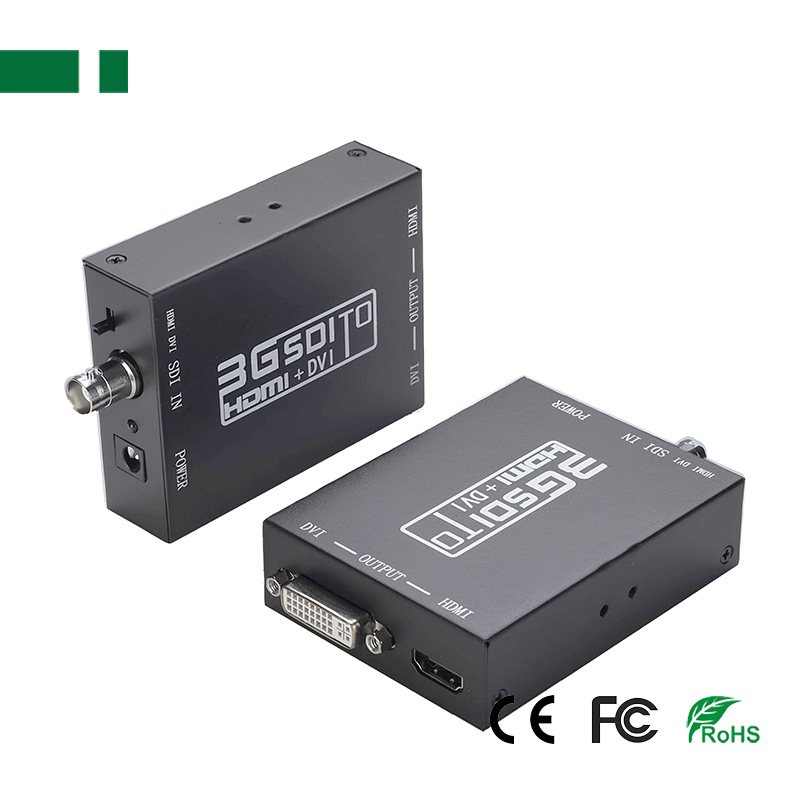

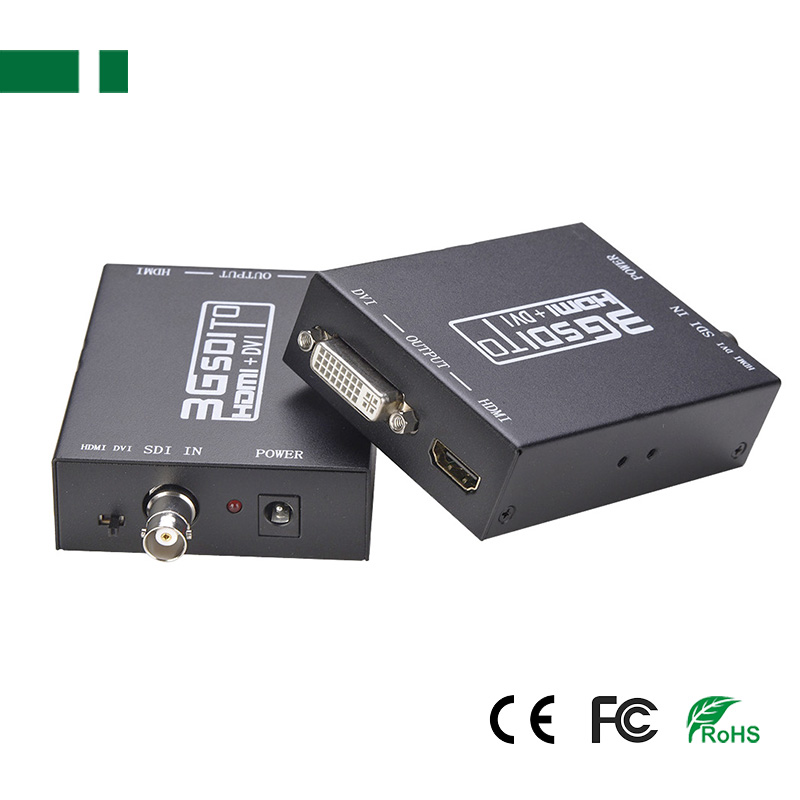

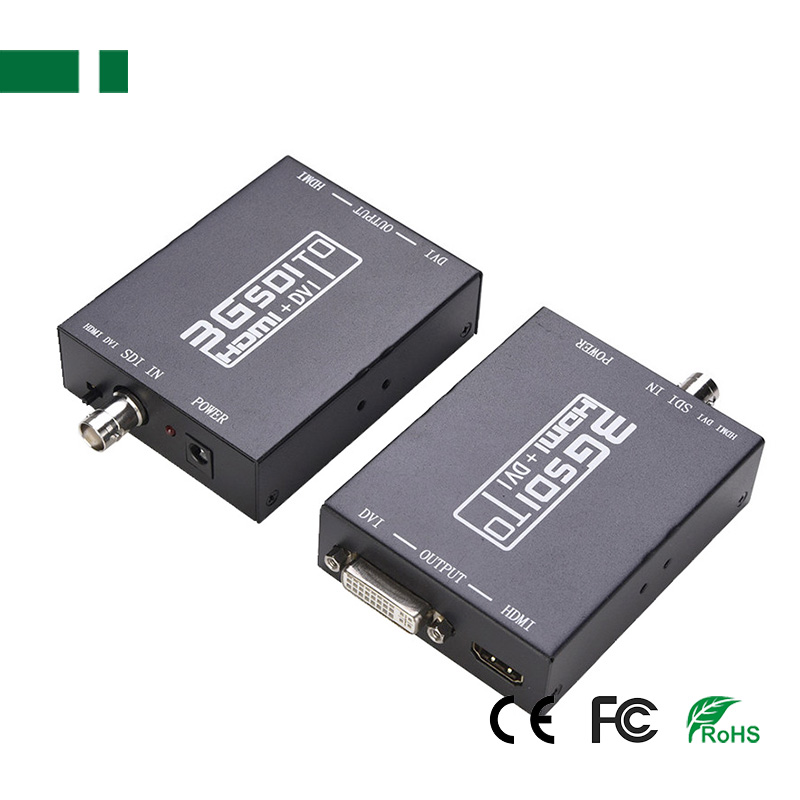

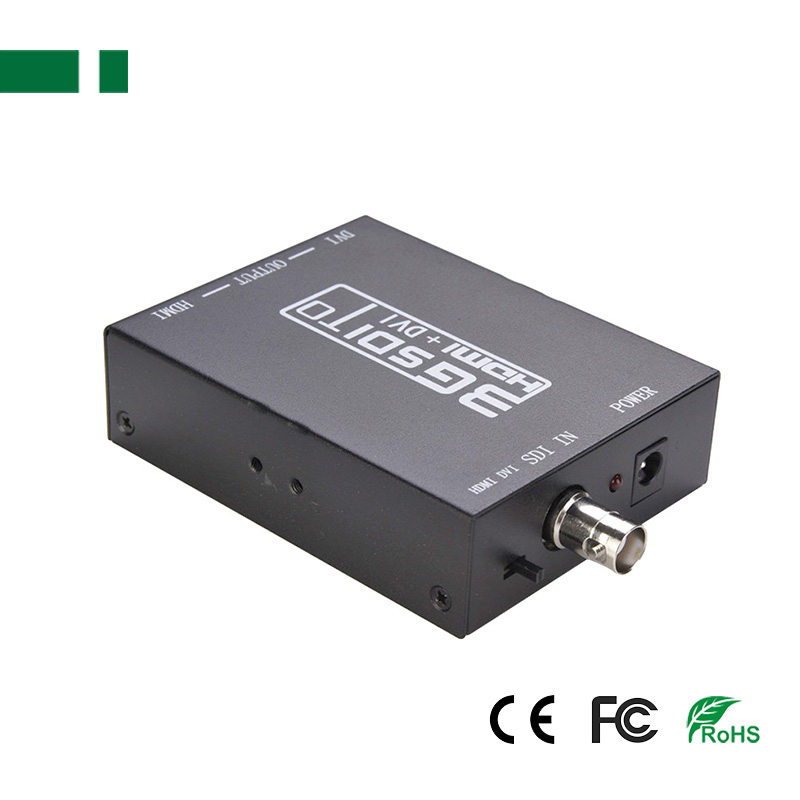

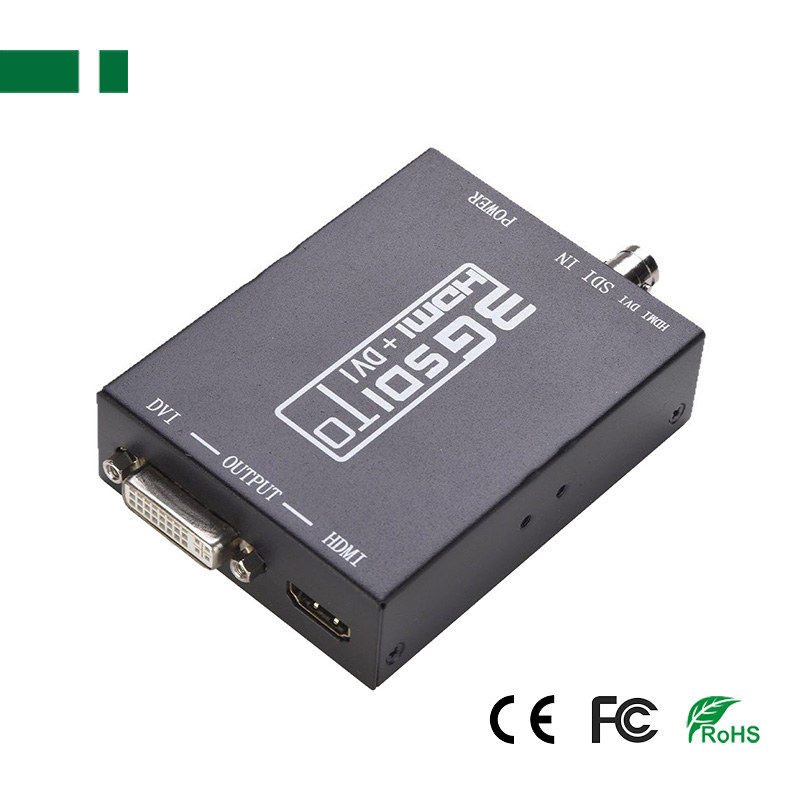

1080P@60Hz SDI to HDMI + DVI Converter
Power Supply: DC5V
SDI Transmission Rates: 2.970 Gbit/s, 1.485 Gbit/s;
Supports SDI output distance up to 100M(3G-SDI), 200M(HD-SDI), or 300M(SD-SDI);

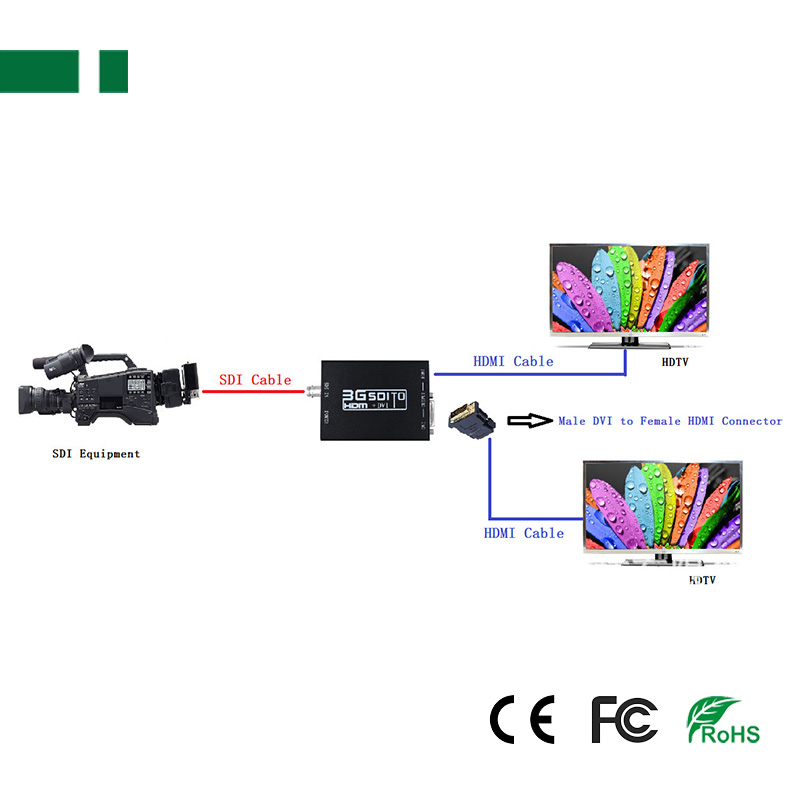

The SDI to HDMI + DVI Converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HD and DVI displays while ensuring high bit rates of 2.97Gbit/s to give you fast signal transmission without any loss.
Introduction
The SDI to HDMI + DVI Converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HD and DVI displays while ensuring high bit rates of 2.97Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI and DVI displays thanks to the built in HD converter.
Features:
1. 1080P@60Hz SDI to HDMI + DVI Converter;
2. Input Port: 1 * BNC (SD-SDI/ HD-SDI/ 3G-SDI);
3. Output Port: 1 * HDMI (1080P, 720P) + 1 * DVI (1080P, 720P);
4. SDI Transmission Rates: 2.97Gbit/s, 1.485Gbit/s;
5. Supports SDI output distance up to 100M(3G-SDI), 200M(HD-SDI), or 300M(SD-SDI);
6. Size: 115*68*25mm, 393g.
Specification:
| 1080P@60Hz SDI (SD-SDI/ HD-SDI/ 3G-SDI) to HDMI Converter | |||||
| More Model | CHDS-2001 | CHDS-2002 | CHDS-2003 | CHDS-2004 | CHDS-2005 |
| Input Port | 1 * BNC (SD-SDI/ HD-SDI/ 3G-SDI) | ||||
| Output Port | HDMI*1 | HDMI*1 + BNC(SDI)*1 | 3*RCA + BNC(SDI)*1 | VGA*1 + BNC(SDI)*1 | HDMI*1 + DVI*1 |
| Transmit Rate | 3G-SDI(SMPTE 424M/425M-AB): 2.970 Gbit/s), HD-SDI(SMPTE 292M): 1.485 Gbit/s) | ||||
| Distance | 3G-SDI: Max. 100M, HD-SDI: Max. 200M, SD-SDI: Max. 300M | ||||
| Power Supply | DC5V | ||||
| ESD Protection | ±8kV (air-gap discharge), ±4kV (contact discharge) | ||||
| Dimension | 80*43*23mm | 97*55*23mm | 115*68*25mm | 115*68*25mm | 115*68*25mm |
| Weight | 150g | 130g | 357g | 357g | 393g |
| 1080P@60Hz HDMI to SDI (SD-SDI/ HD-SDI/ 3G-SDI) Converter | |||||
| More Model | CHDS-1001 | CHDS-1002 | |||
| Input Port | 1 * HDMI (1080P/60Hz, 1080i/60Hz, 720P/60Hz, 576i, 480i) | ||||
| Output Port | 1 * BNC (SD-SDI/ HD-SDI/ 3G-SDI) | 2 * BNC (SD-SDI/ HD-SDI/ 3G-SDI) | |||
| Transmit Rate | 3G-SDI(SMPTE 424M/425M-AB): 2.970 Gbit/s), HD-SDI(SMPTE 292M): 1.485 Gbit/s) | ||||
| Distance | 3G-SDI: Max. 100M, HD-SDI: Max. 200M, SD-SDI: Max. 300M | ||||
| Power Supply | DC5V | ||||
| ESD Protection | ±8kV (air-gap discharge), ±4kV (contact discharge) | ||||
| Dimension | 80*43*23mm | 97*55*23mm | |||
| Weight | 150g | 130g | |||
