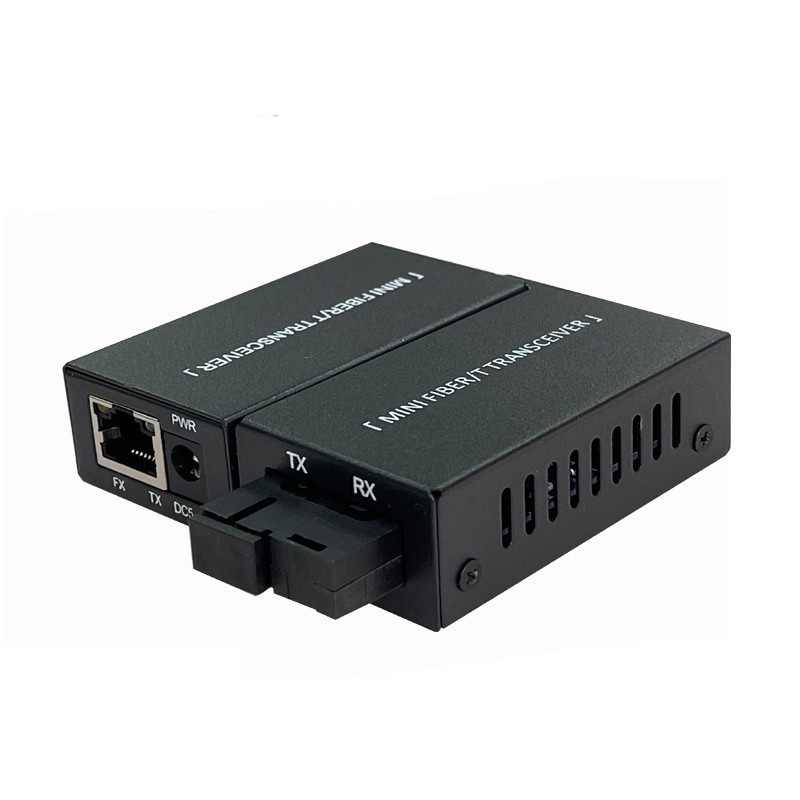

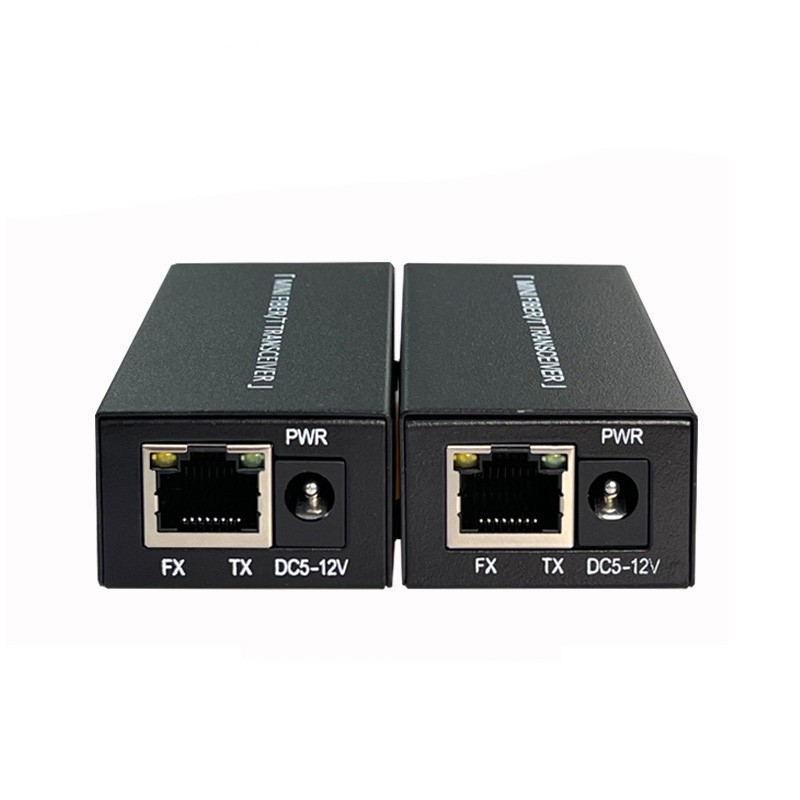

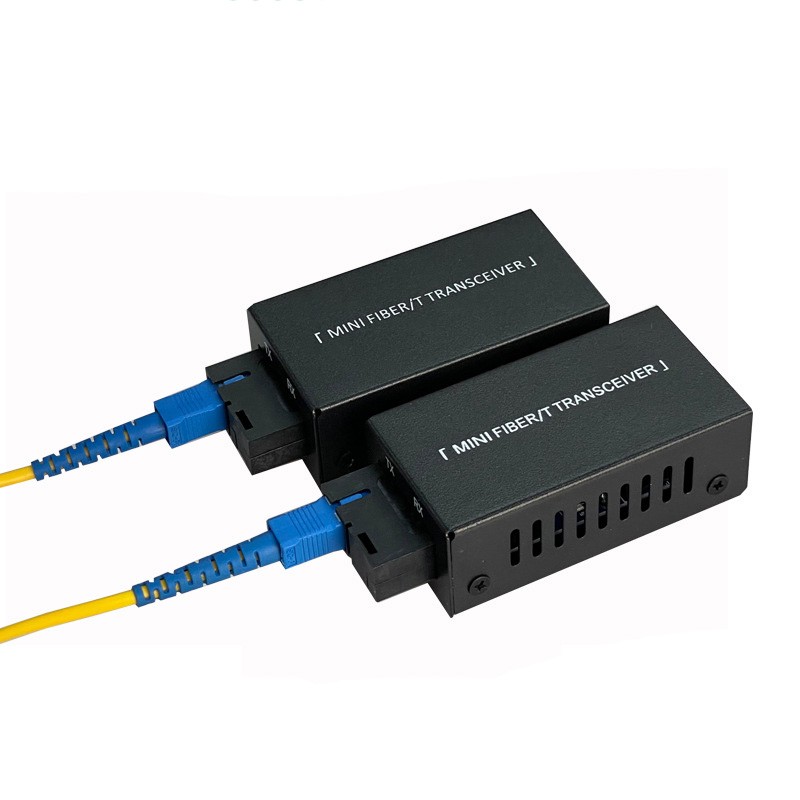

CFS-G104-1F1E-M3 CFS-G104-1F1E-M20 SFP1.25G Mini Gigabit Fiber Optic Transceiver

Description

Type: Optic Media Converter

Transmission Distance: Single-mode up to 3km or 20km optional

Fiber Optic Connector: SC/APC, SC/UPC

Ethernet Connector: RJ45

Ethernet Rate: 100/1000Mbps

Fiber Port Speed: 1.25G

Wavelength: A-Side TX 1310nm / RX 1550nm, B-Side TX 1550nm / RX 1310nm

Instruction

The Gigabit Ethernet Media Converters with an external power supply are designed to transmit and receive 100/1000Mbps data over optical fiber.

The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments.

The optical interface operates at a 1000Mbps Ethernet rate.

Both are environmentally hardened to operate in extreme temperatures.

Features

One 1.25Gbps full-duplex fiber port and one 1000M Ethernet port.

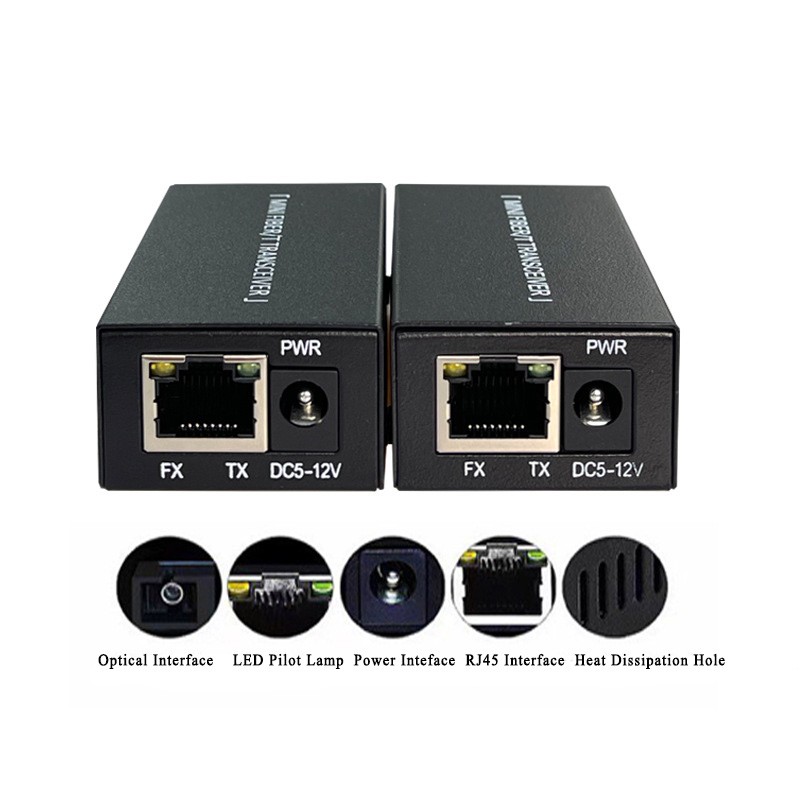

Each port has a complete LED Indicator light for installation, commissioning, and maintenance.

Support 9K Jumbo Packet.

Support direct forwarding mode, which supports less time delay.

Low power consumption, only 1.5W in full load condition.

Support isolation protection function, and good data security.

Small size, suitable for installation in various places.

Auto-negotiation low power consumption chips to ensure a very long time and stable operation.

The Quantity As Your Choice!!

Optional Models:

CFS-G104-1F1E-M3  3KM Mini Gigabit Fiber Optic Media Converter

CFS-G104-1F1E-M20  20KM Mini Gigabit Fiber Optic Media Converter

CFS-104-1F1E-M25 25KM Mini Fiber Optic Media Converter
