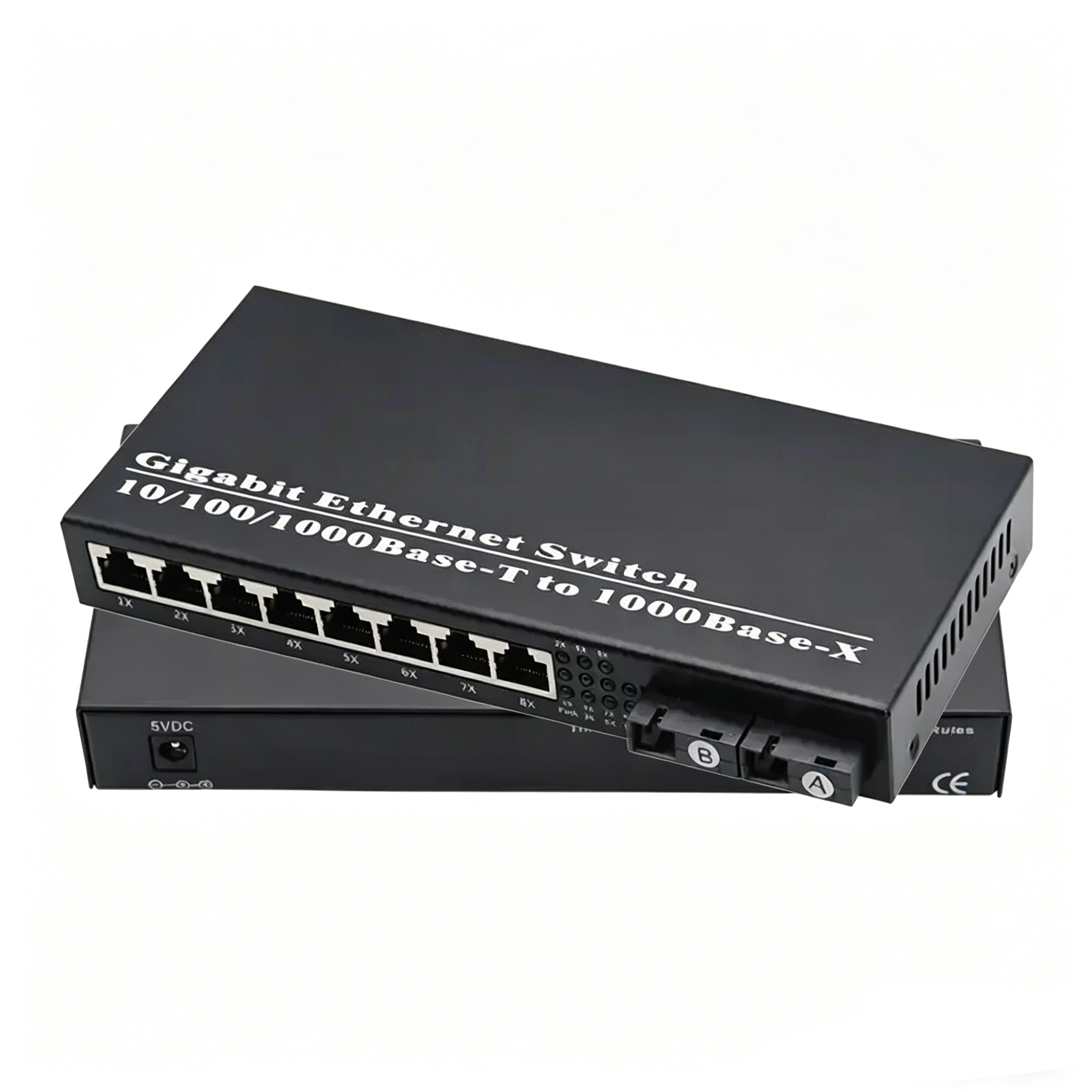

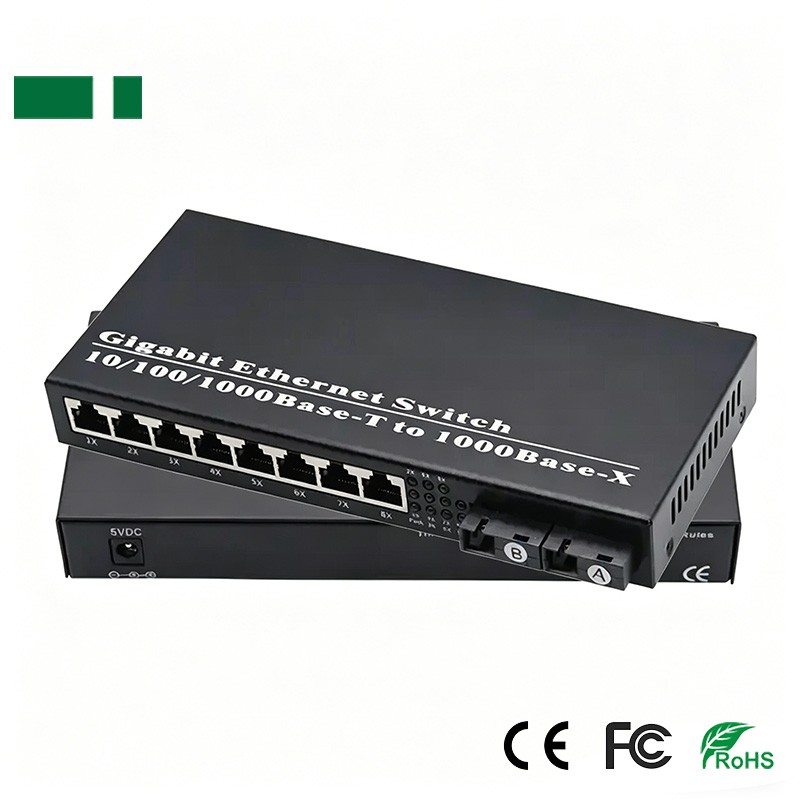

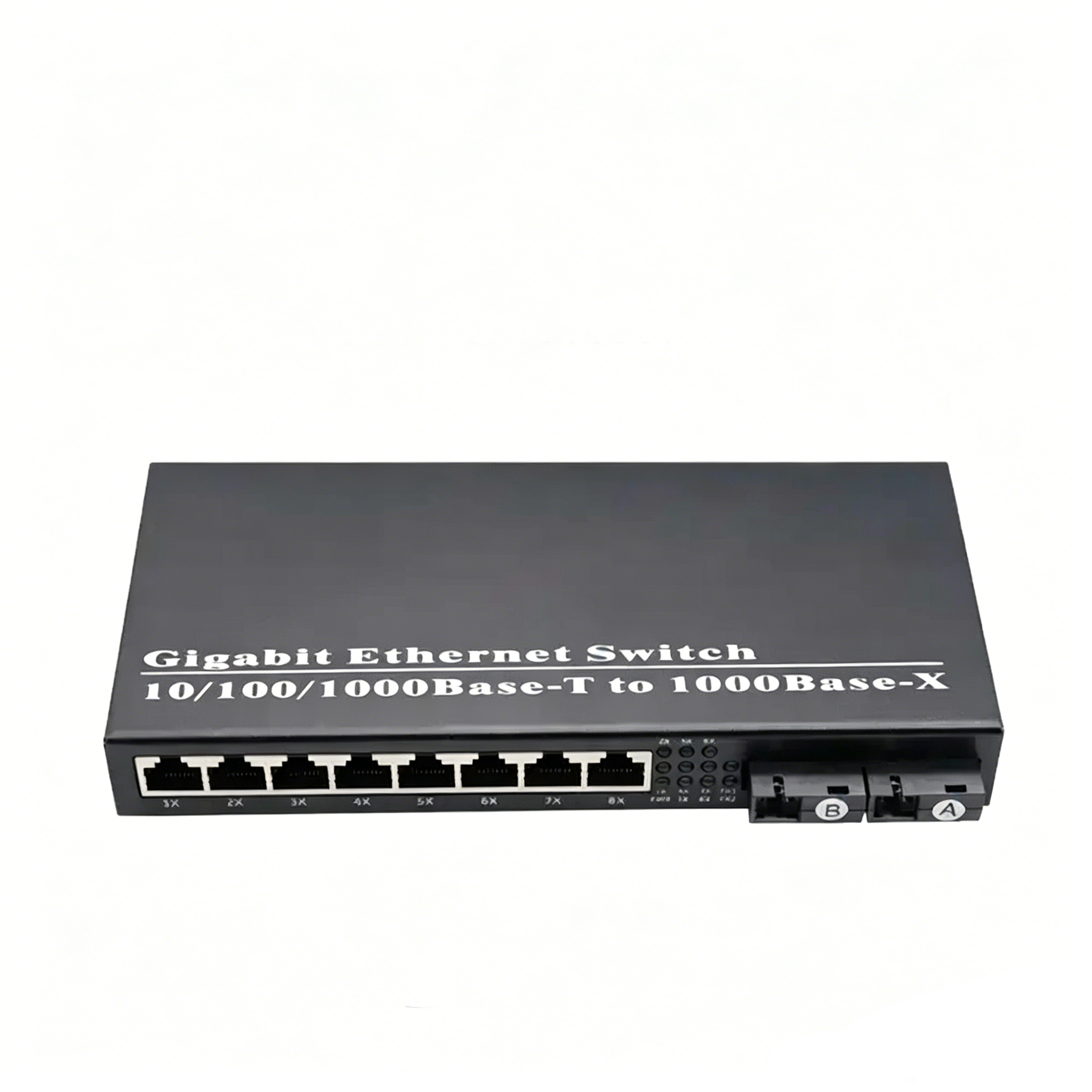

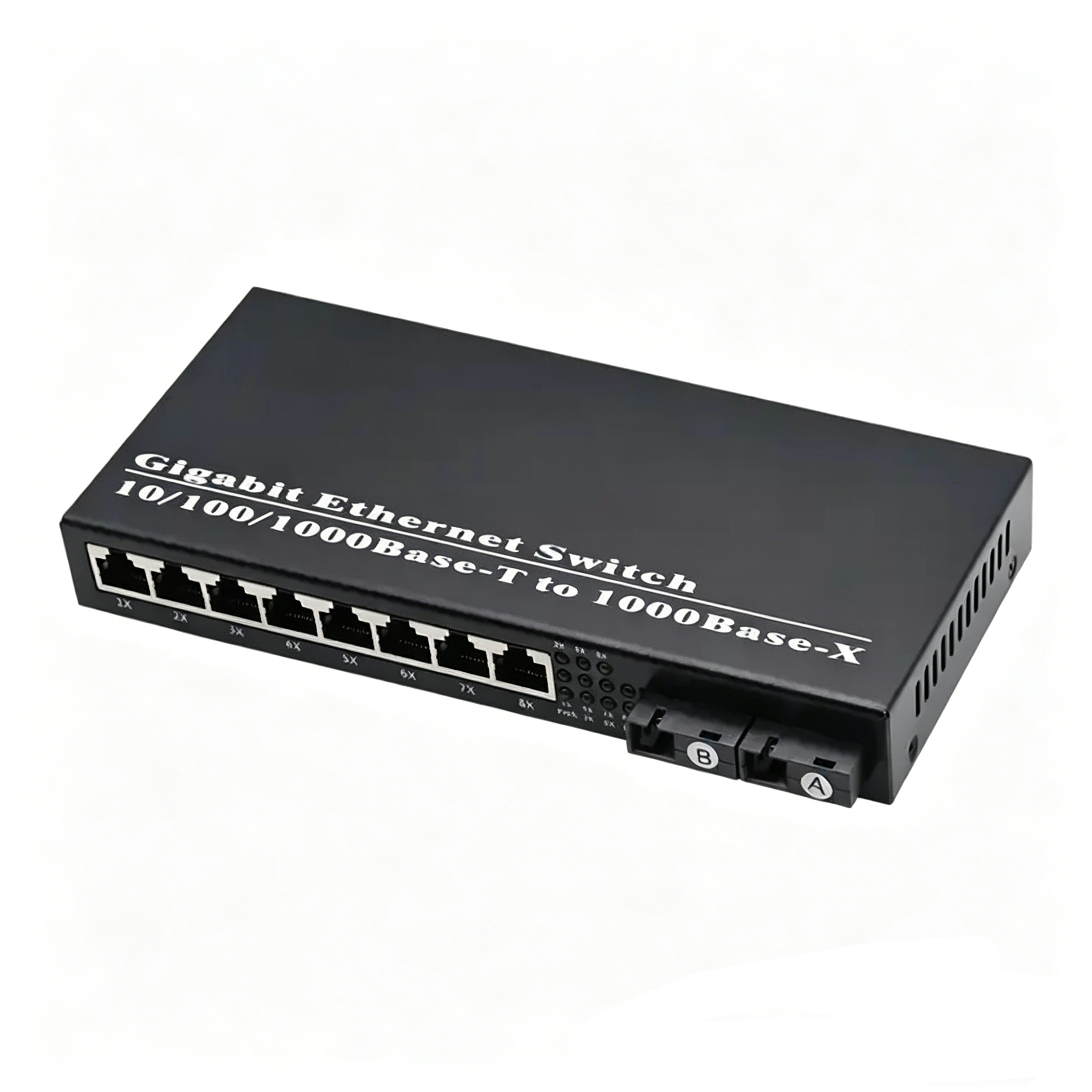

CFS-G102-2F8E Gigabit 2 SC to 8 RJ45 Fiber Optic Transceiver

Gigabit 2 SC to 8 RJ45 Fiber Optic Transceiver

Instruction
The Gigabit Ethernet Media Converters with an external power supply are designed to transmit and receive 100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments.

Type: 1000Mbps Optic Media Converter
Power: DC 5V
Power Adapter: EU/US Plug
Connector A: 2 TX/RX SC Port
Connector B: 8 RJ45 Port
Fiber Port Type: SC/FC/ST/LC Optional
Ethernet Port Rate: 10/100/1000Mbps adaptive
SC Port Rate: 1000Mbps
Wavelength: 1310nm / 1550nm
Distance: 20KM

Feature
2*1000Mbps full-duplex fiber port and 8*1000Mbps Ethernet port.
Each port has a complete LED Indicator light for installation, commissioning, and maintenance.
Support 9K Jumbo Packet.
Support direct forwarding mode, which supports less time delay.
Low power consumption, only 1.5W in full load condition.
Support isolation protection function, and good data security.
The optical fiber transmission distance depends on the performance of the SC module, please choose according to your needs.
Small size, suitable for installation in various places.
Auto-negotiation low power consumption chips to ensure a very long time and stable operation.
