Specification:
ITEM
Fiber
Optic Single-mode Fast Connector
Model
CFC-02LCU
CFC-02LCA
CFC-02SCU
CFC-02SCA
CFC-02FCU
CFC-02FCA
CFC-02STU
Type
LC
SC
FC
ST
Ferrule
UPC
APC
UPC
APC
UPC
APC
UPC

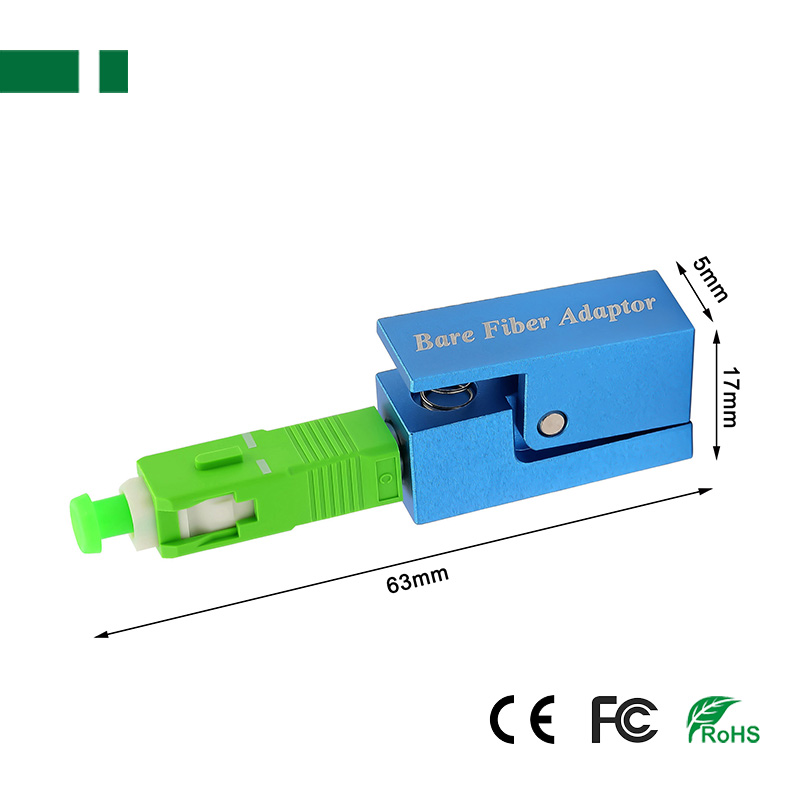

Dimension
57*17*5mm
63*17*5mm
52*17*5mm
61*17*5mm
Net Weight
19.1g
19.1g
18g
16.5g
Fiber Diameter
125μm(657A
& 657B)
Tight Cladding Diameter
250μm
Housing
ABS + Metal
Scope of Application
3.0*2.0mm
Butterfly shaped leather Cable
Application
Single mode FTTH COLD connection
Insert Loss
<0.3dB
Return Loss
≥50dB
≥65dB
≥50dB
≥65dB
≥50dB
≥65dB
≥50dB
Interchangeability
≤0.2dB
Repeatability
≤0.1dB
Durability
≤0.2dB
(1000 times mating)
Tensile Strength
>
10kg
Temperature
≤0.2dB
(-40+85 sustain 100 hours)
Humidity
≤0.2dB (+25+65 93 R.H.100 hours)
