Fiber Optic Box

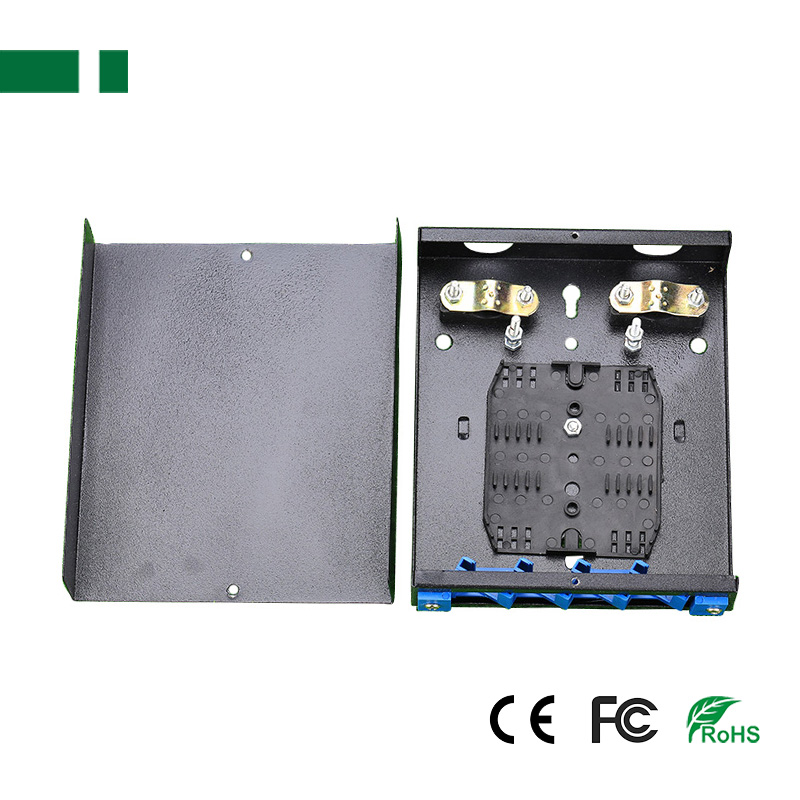

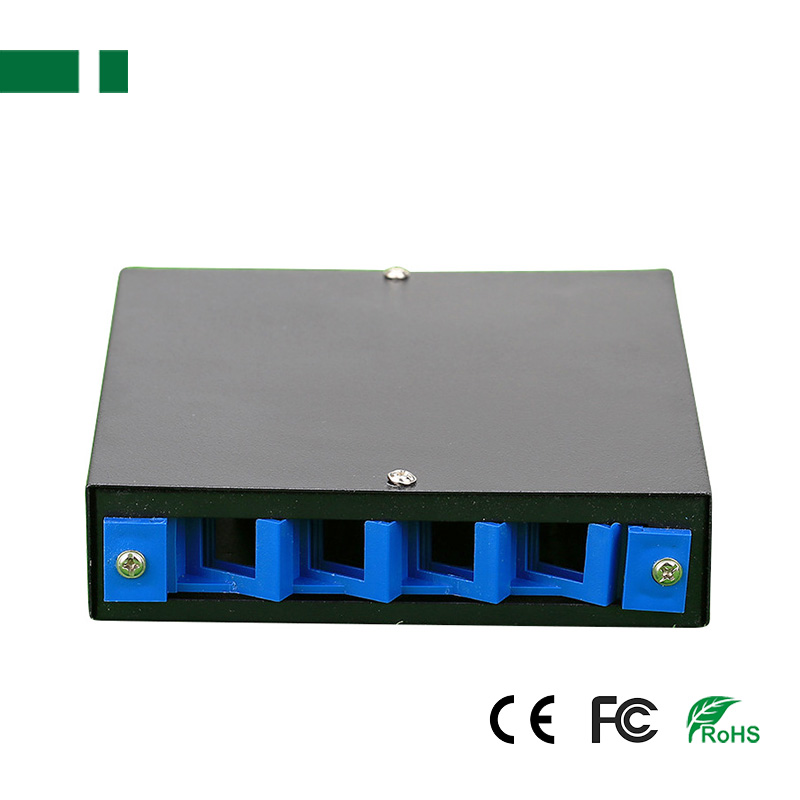

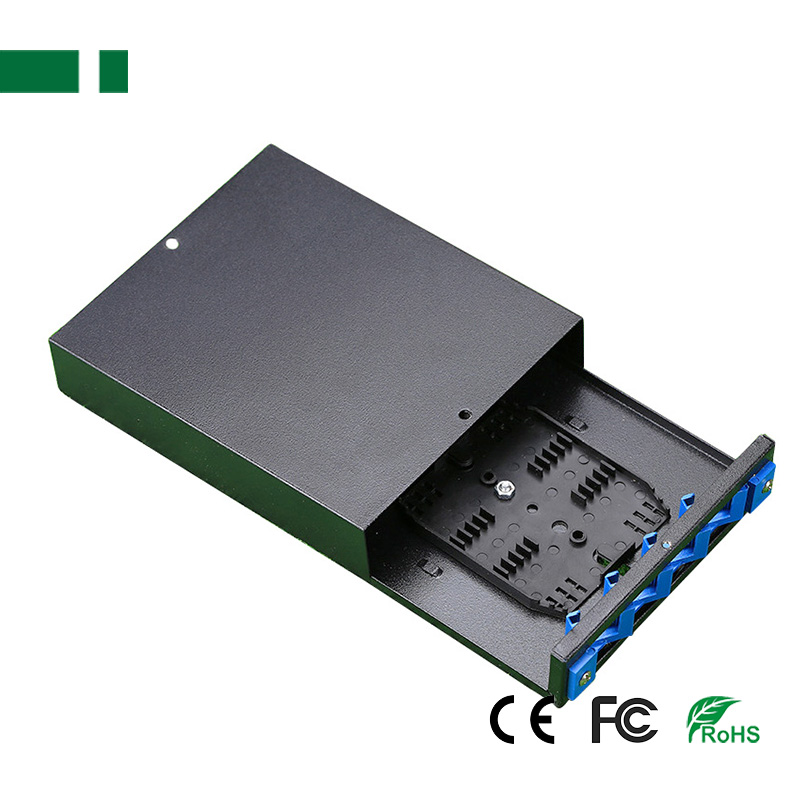

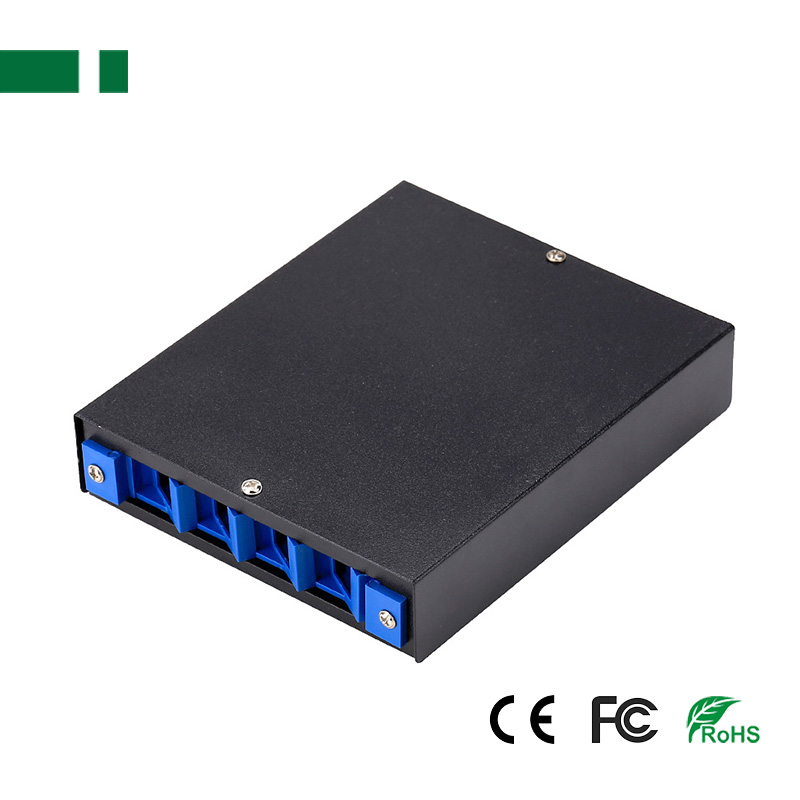

CFB-204C 4 Ports ST/SC/FC Fiber Optic Box

4 Ports ST/SC/FC Fiber Optic Box
Material of box: SPCC
Insulation Resistance: >2*104MΩ
Size: 155*130*31, 300g.
Product description: FTTH Terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
INQUIRY EMAIL

4 Ports ST/SC/FC Fiber Optic Termination Desktop Type Box

Description:
FTTH Terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.

Feature:
1. Port of the box: 4 ports with SC, FC and LC type.
2. Cable gland: size for 5mm to 10mm cable.
3. Splice tray: 4 core.
4. Material of box: SPCC, Thickness: 0.74mm.
5. Good properties of dust, and moisture proofing.
6. Insulation Resistance: >2*104MΩ， Electrical Strength: <15KV
7. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
8. Suitable for SC、FC and LC duplex adaptor and pigtail.
9. Suitable for indoor use.
10: Size: 155*130*31, 300g.
