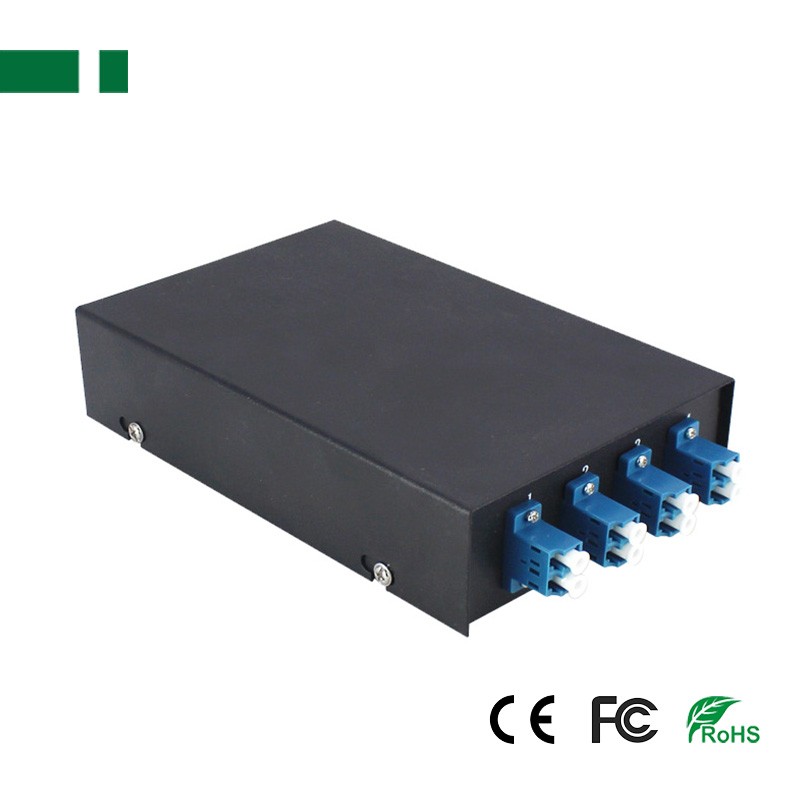

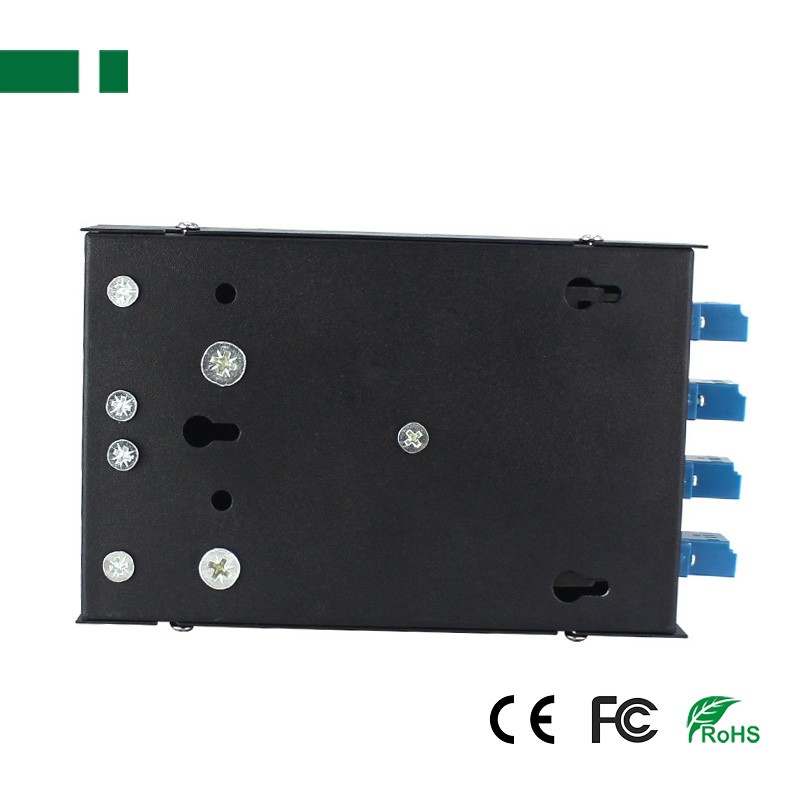

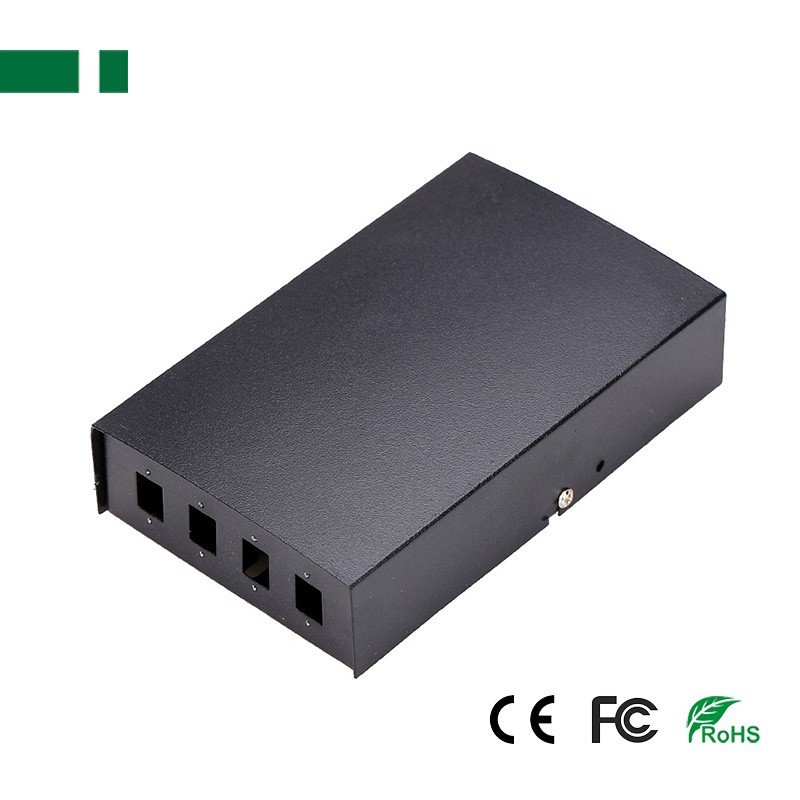

▪ 4 Ports Desktop Fiber Optic Termination Box with LC adapter pigtail;
▪ Material: Hight quality steel with cover by electrostatic painted;

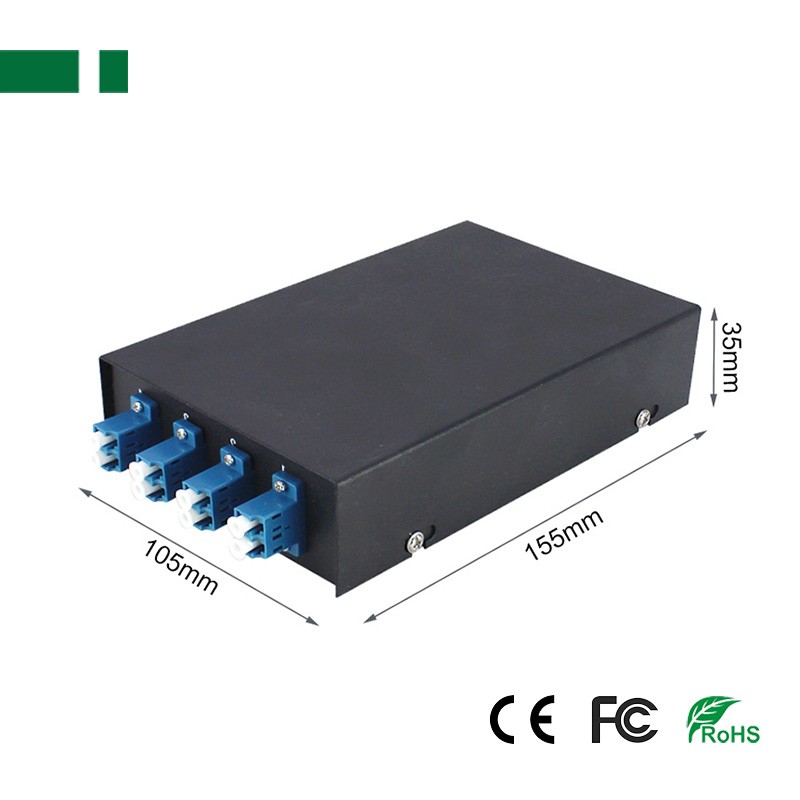

▪ Dimension: 155*105*35mm;
▪ Optional sdapter types: FC, LC, SC, ST;
▪ Fiber Optic Terminal Box is a user terminal device. lt is mainly used for terminal of FTTH system. The functions are splicing, splitting and output etc., and can prolong terminating, protection and management for the optical cable, which is the necessary device of optical network transfer.
Description:
FTTH Terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Feature:
▪ 4 Ports Desktop Fiber Optic Termination Box with LC adapter pigtail;
▪ Material: Hight quality steel with cover by electrostatic painted;
▪ Dimension: 155*105*35mm;
▪ Optional sdapter types: FC, LC, SC, ST;
▪ Suitable for indoor use.

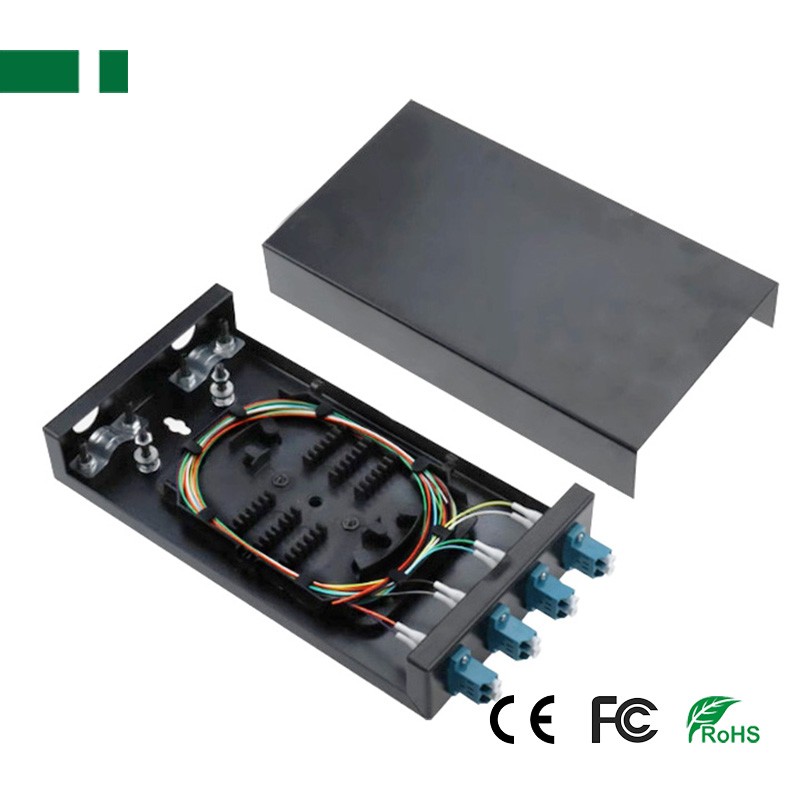

▪ Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution. etc. all in one;
Specification:
| 4-Port, 8-Port, 12-Port, 24-Port, 48-Port FC Single Mode Fiber Optic Termination Box | ||||||
| Picture | Model | Channel | Conenctor | Fiber Type | Dimension(L*W*H) | Material |
 | CFB-104C/FC | 4 Ports | FC/UPC | Single Mode | 155*105*35mm | Thickening strengthens cold-rolled plates |
| CFB-108C/FC | 8 Ports | 240*135*40mm | ||||
| CFB-1012C/FC | 12 Ports | 485*200*40mm | ||||
| CFB-1024C/FC | 24 Ports | 485*200*40mm | ||||
| CFB-1048C/FC | 48 Ports | 485*200*87mm | ||||
| 4-Port, 8-Port, 12-Port, 24-Port, 48-Port LC Single Mode Fiber Optic Termination Box | ||||||
| Picture | Model | Channel | Conenctor | Fiber Type | Dimension(L*W*H) | Material |
 | CFB-104C/LC | 4 Ports | LC/UPC | Single Mode | 155*105*35mm | Thickening strengthens cold-rolled plates |
| CFB-108C/LC | 8 Ports | 240*135*40mm | ||||
| CFB-1012C/LC | 12 Ports | 485*200*40mm | ||||
| CFB-1024C/LC | 24 Ports | 485*200*40mm | ||||
| CFB-1048C/LC | 48 Ports | 485*200*87mm | ||||
| 4-Port, 8-Port, 12-Port, 24-Port, 48-Port SC Single Mode Fiber Optic Termination Box | ||||||
| Picture | Model | Channel | Conenctor | Fiber Type | Dimension(L*W*H) | Material |
 | CFB-104C/SC | 4 Ports | SC/UPC | Single Mode | 155*105*35mm | Thickening strengthens cold-rolled plates |
| CFB-108C/SC | 8 Ports | 240*135*40mm | ||||
| CFB-1012C/SC | 12 Ports | 485*200*40mm | ||||
| CFB-1024C/SC | 24 Ports | 485*200*40mm | ||||
| CFB-1048C/SC | 48 Ports | 485*200*87mm | ||||
| 4-Port, 8-Port, 12-Port, 24-Port, 48-Port ST Single Mode Fiber Optic Termination Box | ||||||
| Picture | Model | Channel | Conenctor | Fiber Type | Dimension(L*W*H) | Material |
 | CFB-104C/ST | 4 Ports | ST/UPC | Single Mode | 155*105*35mm | Thickening strengthens cold-rolled plates |
| CFB-108C/ST | 8 Ports | 240*135*40mm | ||||
| CFB-1012C/ST | 12 Ports | 485*200*40mm | ||||
| CFB-1024C/ST | 24 Ports | 485*200*40mm | ||||
| CFB-1048C/ST | 48 Ports | 485*200*87mm | ||||
