8 Ports 100Mbps Network Switch
Auto-MDI/MDIX eliminates the need for crossover cables.
Supports MAC address auto-learning and auto-aging.

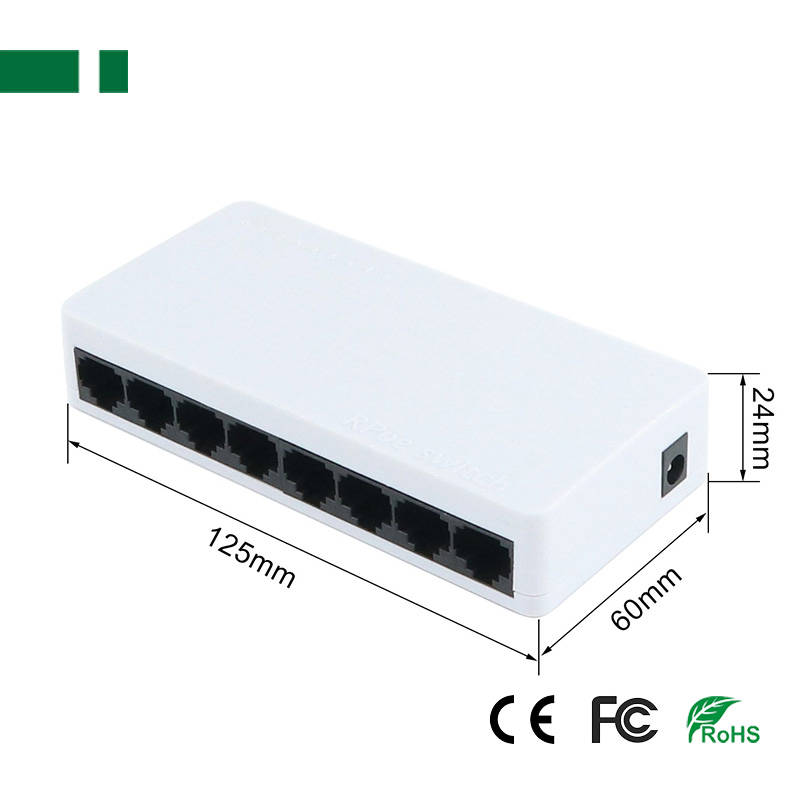

Size(W×D×H): 125*60*24mm
100Mbps non-managed switch, provide 8 *10/100Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small home office, small and medium business environment.
8 Ports 100Mbps RJ45 Fast Network Switch Ethernet Smart Switcher Hub with EU/US Adapter Mini Network Switch
Description:
100Mbps non-managed switch, provide 8* 10/100Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small home office, small and medium business environment.
Features:
● 8* 10/100/Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
● Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
● Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
● Auto-MDI/MDIX eliminates the need for crossover cables.
● Supports MAC address auto-learning and auto-aging.
● Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
● Fanless design ensures quiet operation.
● Desktop or wall-mounting design.
● Plug and Play design simplifies installation.
● Size(W×D×H): 125*60*24mm
Specification:
| Model | CES-2105 | CES-2308 |
| Port number | 5 port 10/100Mbps Auto MDI-MDIXRJ45 | 8 port 10/100Mbps Auto MDI-MDIXRJ45 |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az | |
| Network media | 10Base-T, cat6 or above UTP,10Base-Tx, cat5 UTP | |
| Data rate | 10/100Mbps | |
| Forwarding rate | 10Mbps / 14,880pps, 100Mbps / 148,800pps | |
| LED Indicator | 10/100Mbps (Link/Act), Power | |
| Dimension | 97*68*25mm | 125*60**24mm |
| Power Input | DC5V/500mA | |
| Power Consumption | Max. 1.5W | |
| Operating Temperature | 0℃-40℃ | |
| Relative Humidity | 10%-90%(non-condensing) | |
| Storage Temperature | -40℃-70℃ | |
| Relative Humidity | 5%-90%(non-condensing) | |
Packaging contains:
1* 8 Port Desktop Switch
1* DC5V Power supply
