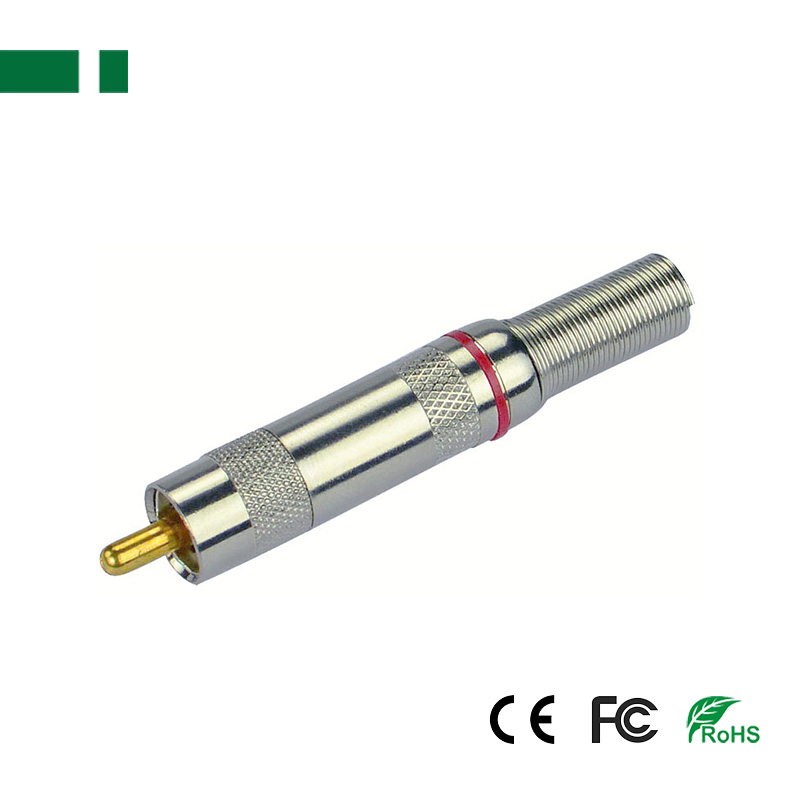

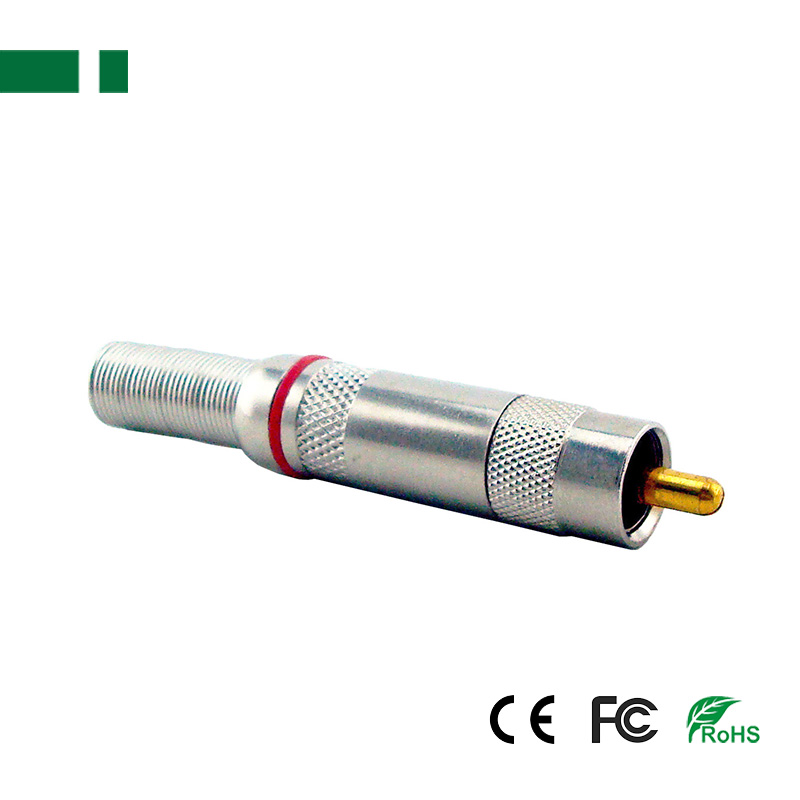

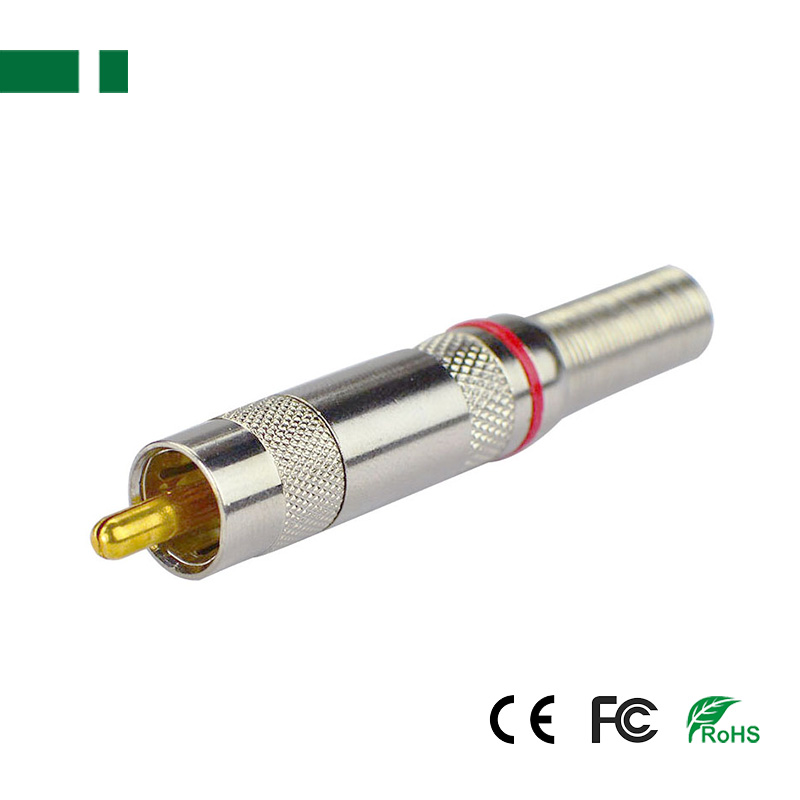

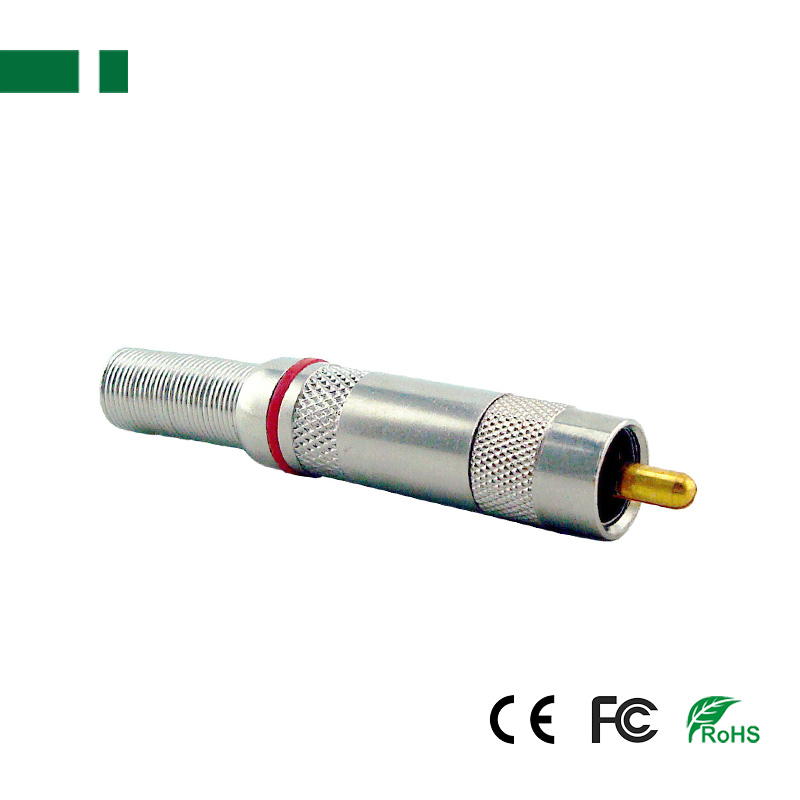

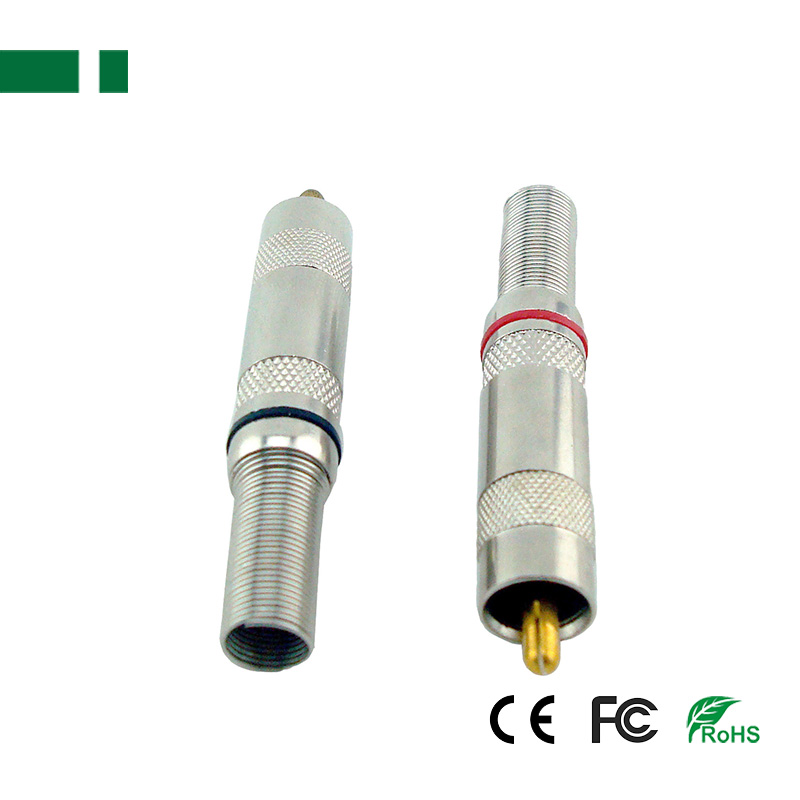

RCA Male Connector
Copper Material
Great for cctv system connection
CASVIEW technology concentrating on CCTV power supply, video balun, CCTV Cable BNC Connectors and other cctv accessories etc. email: info@casview.com

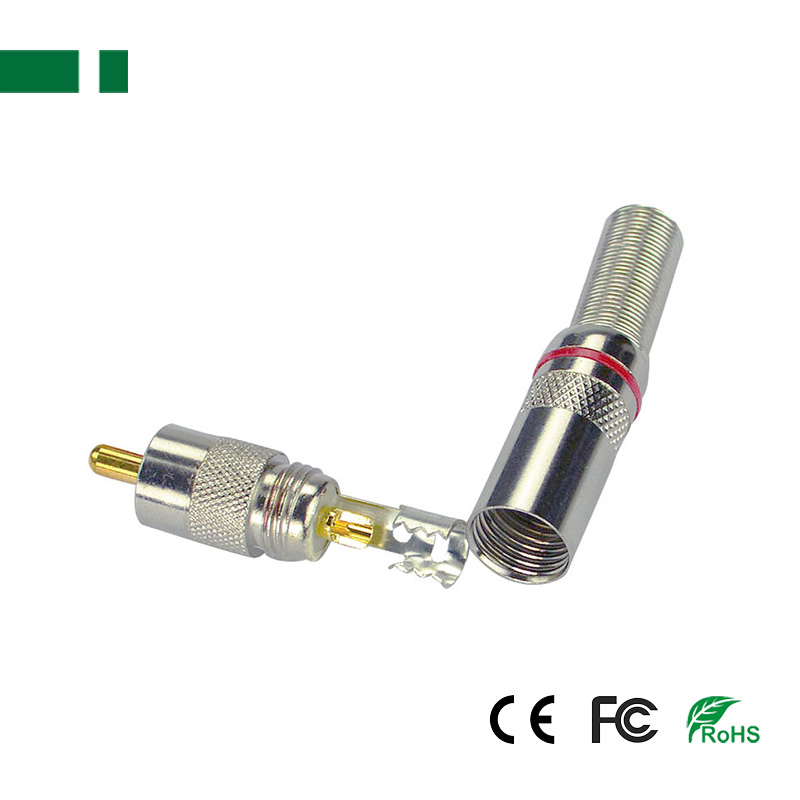

RCA Male Connector without screw, Copper Material
Simply & Professional appearance for cabling
Specification:
<span style="color:#222222;font-family:Roboto, Arial, " font-size:14px;background-color:#ffffff;"="">
| Model | CBN-068 | CBN-069 |
| Connection | Solder without Screw | Solderless with Screw |
| Impedance | 50Ω,75Ω | |
| Resistance | Inner conductor ≤2.0mΩ | |
| Contact Resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ | |
| Insulation Resistance | ≥5000MΩ | |
| Frequency Range | 0~3GHZ | |
| Disengage Force | ≥0.6N | |
| Attenuation | 0.5dB type | |
| Wire Type | Coaxial Cable | |
| DC Loop Resistance | 52 ohms per 1,000 ft | |
| Withstand Voltage | 1500V rms | |
| Frequency Response | DC to 8 MHz | |
| Working Temperature | -10°C to +70°C | |
| Humidity | 0 to 95% | |
| Packing | 100pcs/bag | |
