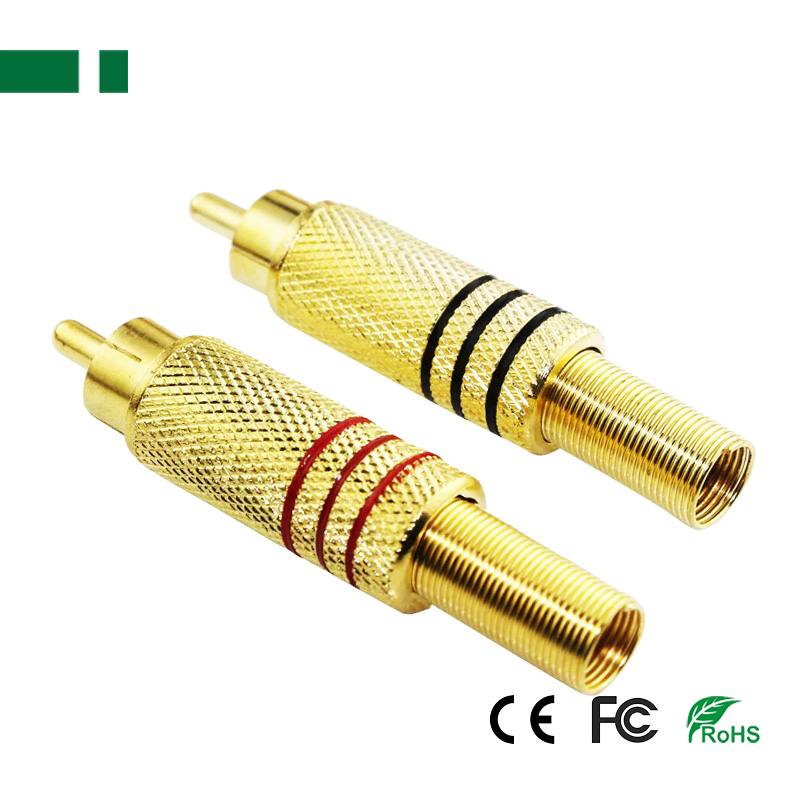

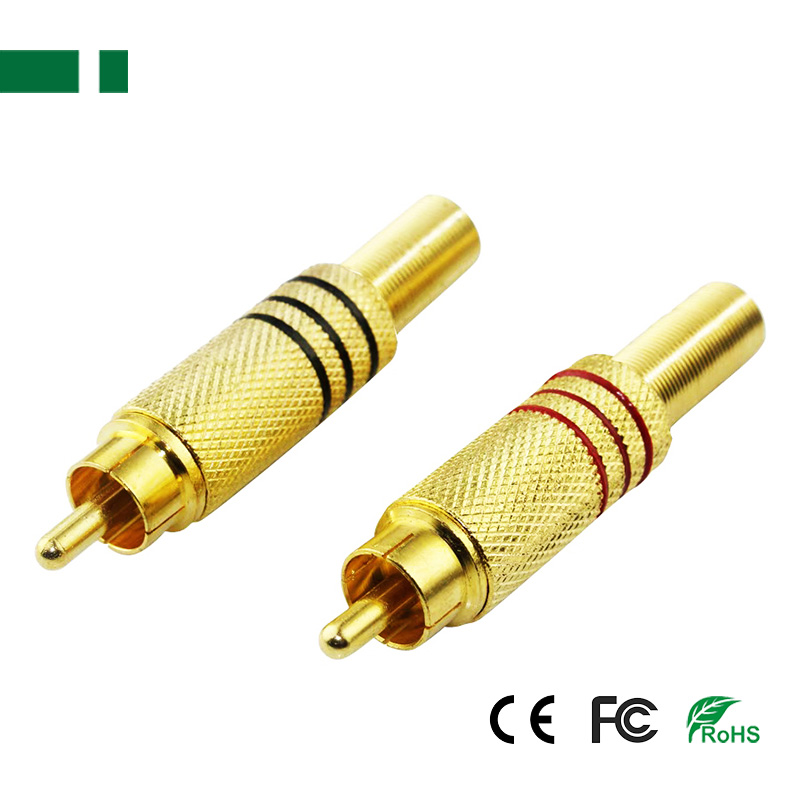

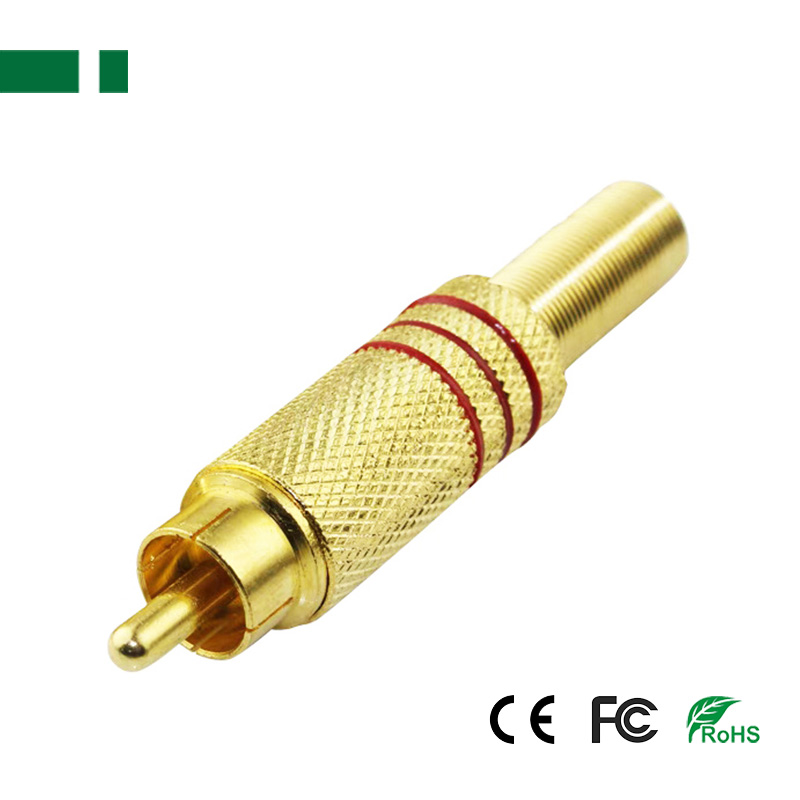

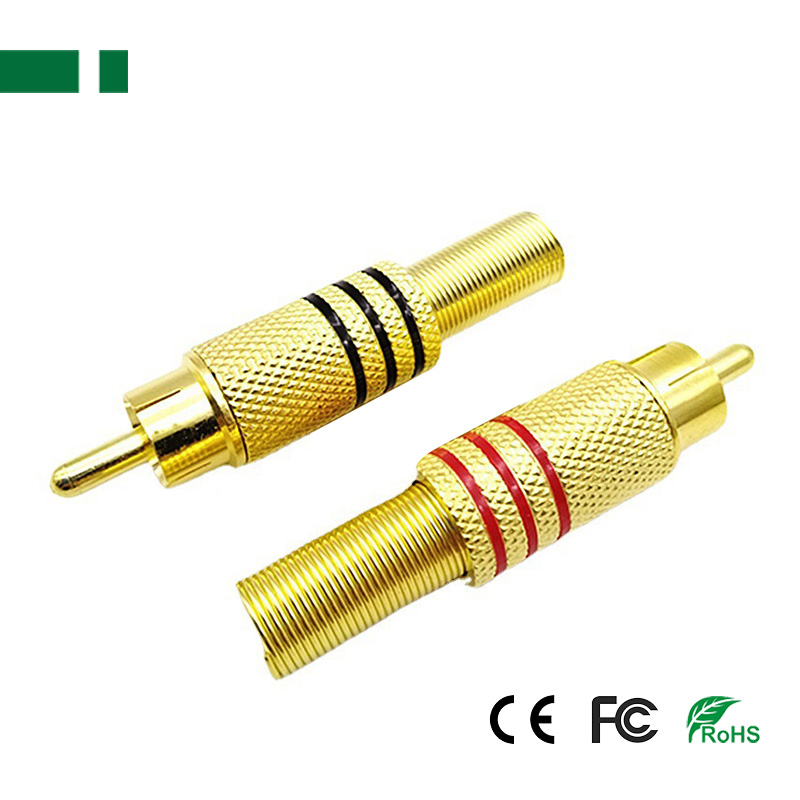

AV to RCA male Connector

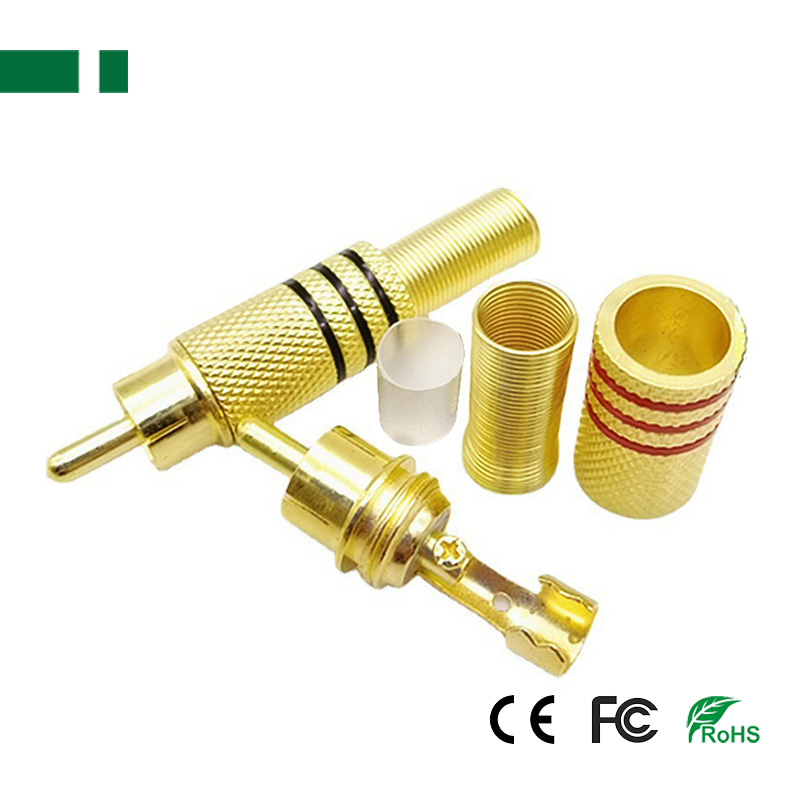

Solderless type with screw inside
Gold Plated RCA Plug
AV to RCA male Connector. email: info@casview.com
Feature:
1. AV to RCA male Connector;
2. Solderless type with screw inside;
3. Material: Copper Pin and Zinc Alloy Body;
4. Gold Plated RCA Plug;
5. 100% brand new and high quality product;
6. Great for cctv system connection;
7. High quality termination;
8. Simply & Professional appearance for cabling;
9. Easier for CCTV camera installation save time and money.
Specification:
| Model | CBN-033 | CBN-034 |
| Connectors | Male RCA | |
| Installation | Solder type without screw | Solderless with screw inside |
| Material | Zinc Alloy Body + Copper Pin | |
| Contact Resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ | |
| Insulation Resistance | ≥5000MΩ | |
| Frequency Range | 0~3GHZ | |
| Disengage Force | ≥0.6N | |
| Attenuation | 0.5dB type | |
| Wire Type | Coaxial Cable | |
| DC Loop Resistance | 52 ohms per 1,000 ft | |
| Withstand Voltage | 1500V rms | |
| Frequency Response | DC to 8 MHz | |
| Working Temperature | -10°C to +70°C | |
| Humidity | 0 to 95% | |
| Packing | 100pcs/bag | |

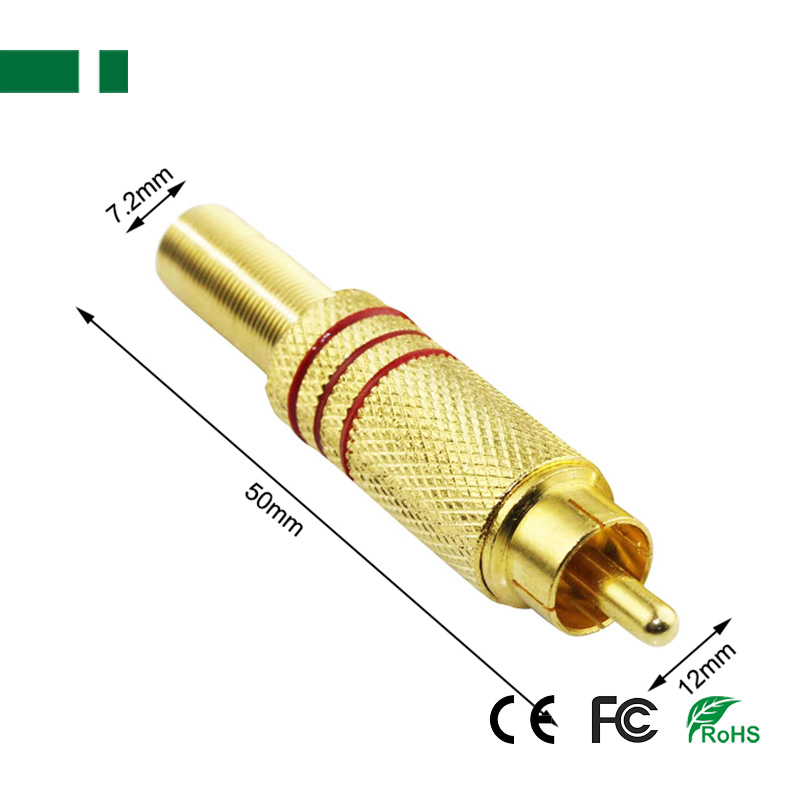

| Dimension | 12*50*7.2mm | |
| Weight | 12g | |
