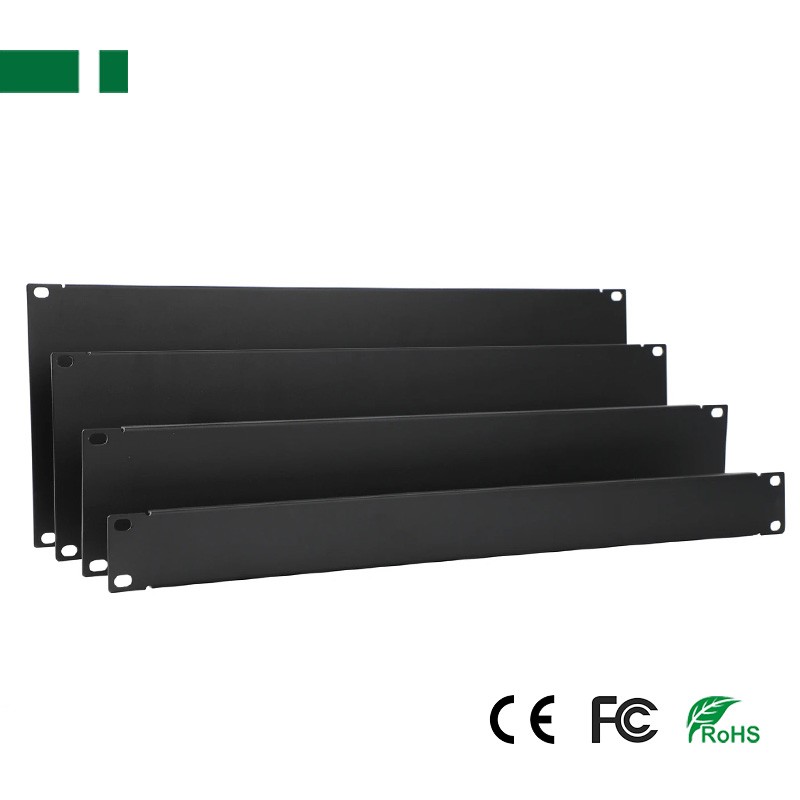

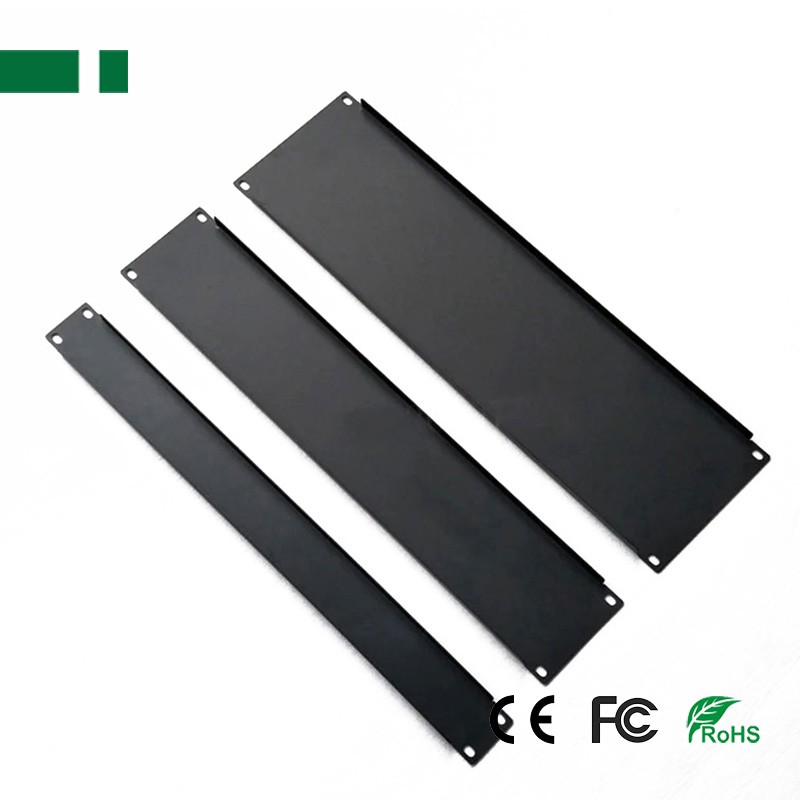

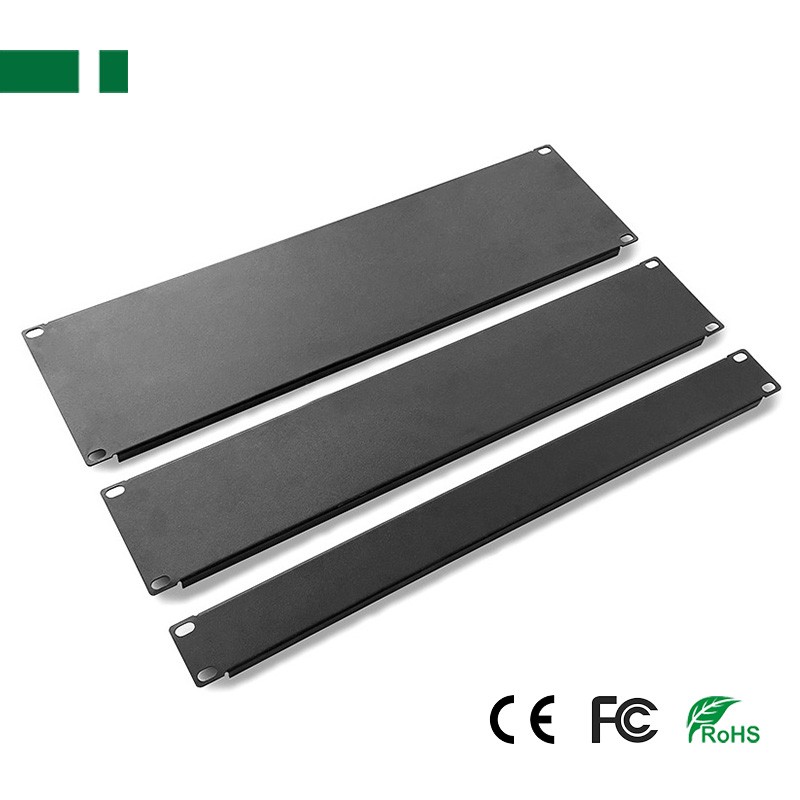

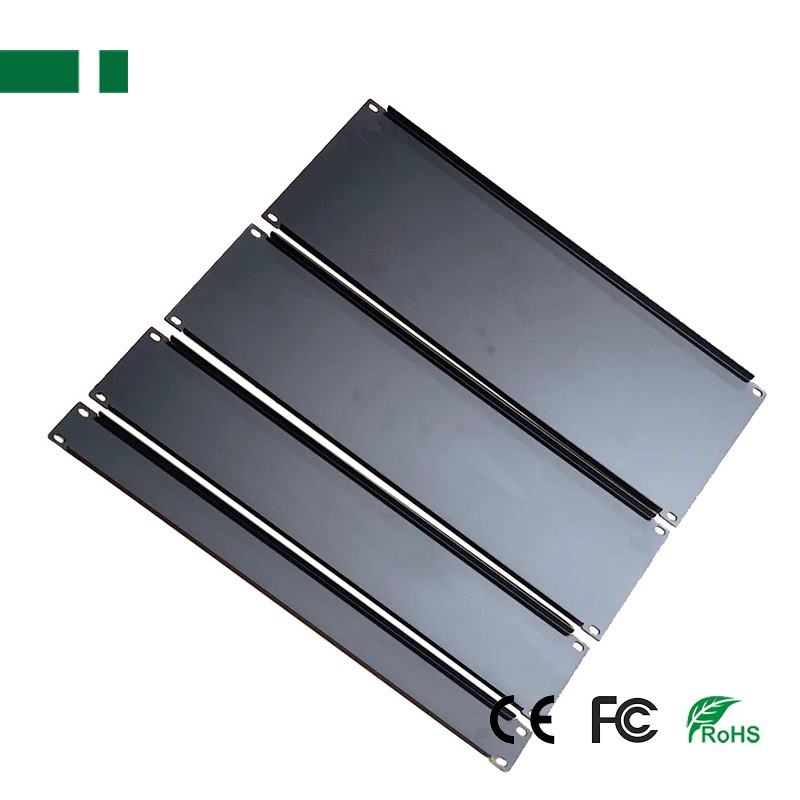

▪ 5U Blank panel for 19 inch Cabinet Rack;
▪ Material: 1.4mm thickness SPCC cold rolled steel;
▪ Process: Electrostatic Plastic Spraying;

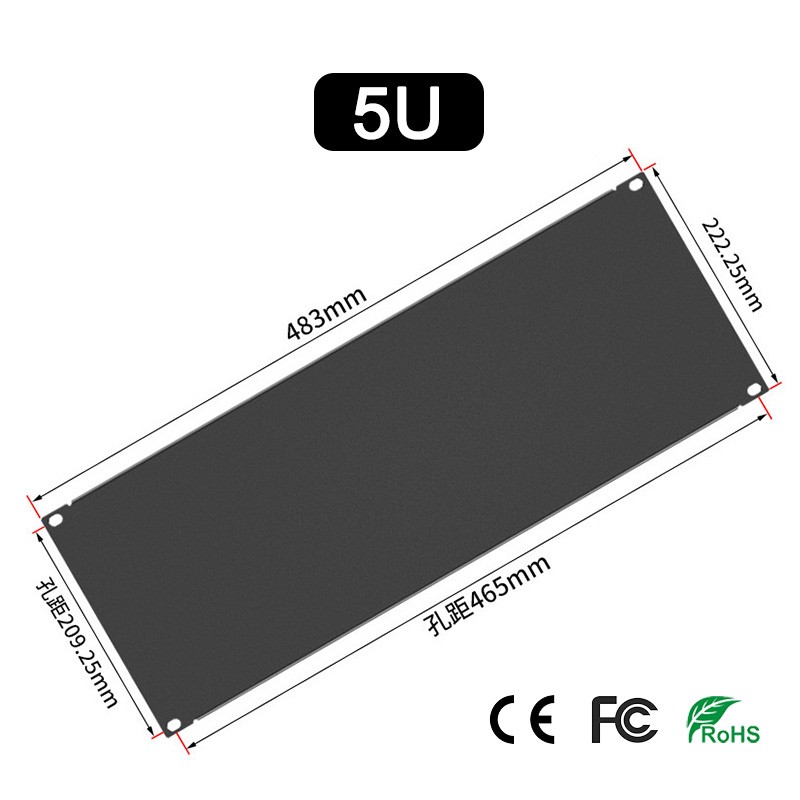

▪ Product Size: 19inch, 483mm(Length)*222.25mm(Width);
▪ Color: Black.
▪ Blank panel Made of high quality metal, the surface is treated with phosphating and electrostatic spraying process. Can protects internal equipment from dust and electromagnetic interference enhances equipment appearance organizes cables and keeps the rack clean and tidy.
Description:
Blank panel Made of high quality metal, the surface is treated with phosphating and electrostatic spraying process. Can protects internal equipment from dust and electromagnetic interference enhances equipment appearance organizes cables and keeps the rack clean and tidy.
Feature:
▪ 5U Blank panel for 19 inch Cabinet Rack;
▪ Material: 1.4mm thickness SPCC cold rolled steel;
▪ Process: Electrostatic Plastic Spraying;
▪ Product Size: 19inch, 483mm(Length)*222.25mm(Width);
▪ Color: Black.
▪ Application: Server Room, Data Center Server Rack, Broadband Network, Integrated Cabling, Monitoring System, Tele-communications, Office Network, Control Center etc..
Specification:
| Item | Model | Diemnsion (L*W) | Material | Thickness | Mounting Holes | Installation Method | Color |
| 1U | CBB-01-1U | 483*44.5mm | SPCC cold rolled steel | 1.4mm | 2 | Screw Fixation | Black |
| 2U | CBB-01-2U | 483*88.9mm | 2 | ||||
| 3U | CBB-01-3U | 483*133.35mm | 2 | ||||
| 4U | CBB-01-4U | 483*177.8mm | 4 | ||||
| 5U | CBB-01-5U | 483*222.25mm | 6 | ||||
| 6U | CBB-01-6U | 483*266.7mm | 6 | ||||
| 8U | CBB-01-8U | 483*355.6mm | 8 | ||||
| 9U | CBB-01-9U | 483*400.05mm | 8 | ||||
| 10U | CBB-01-10U | 483*444.5mm | 8 |
