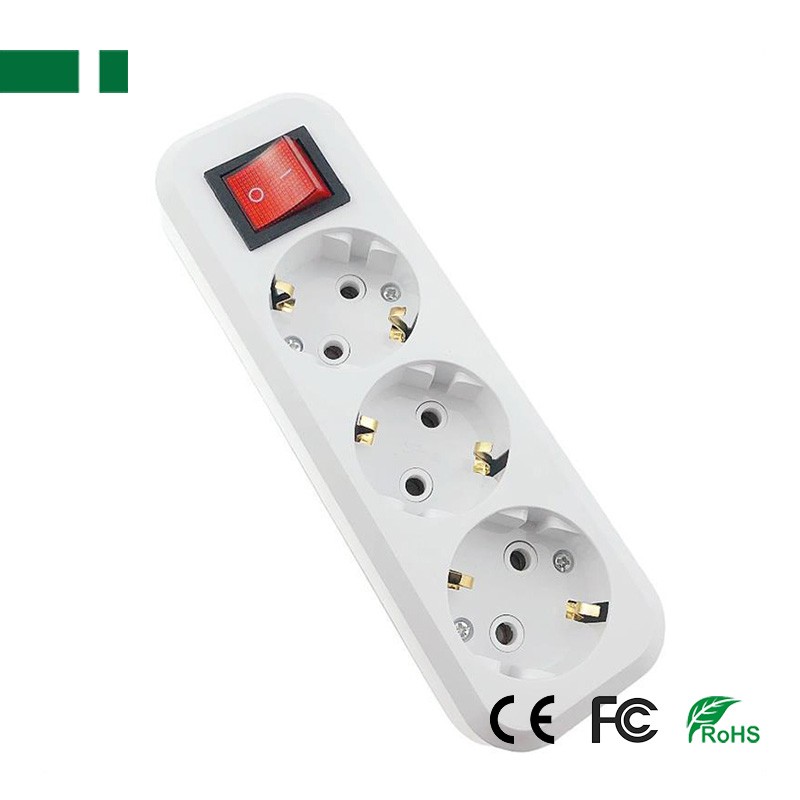

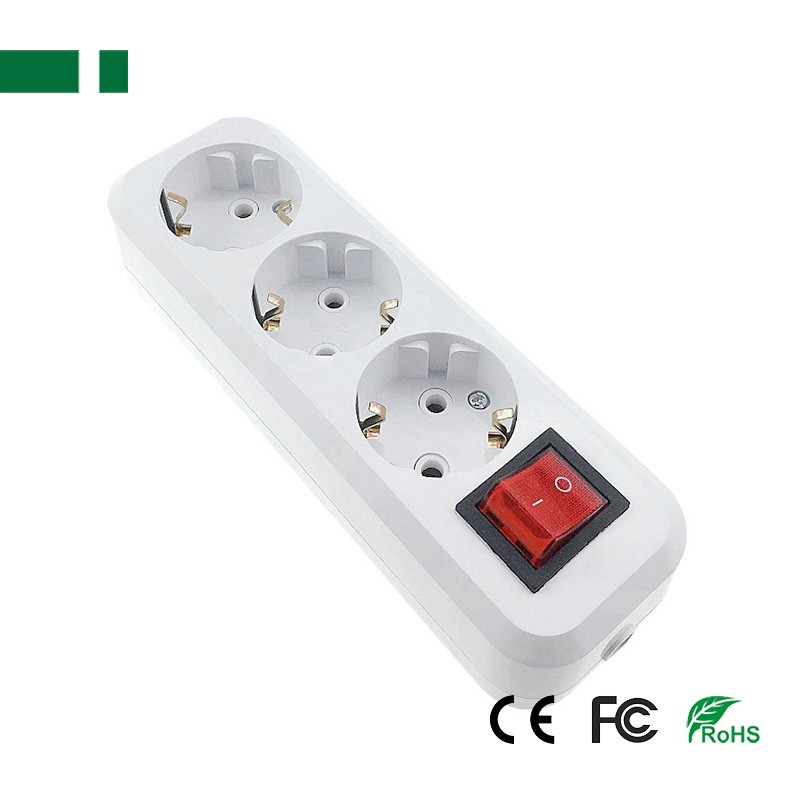

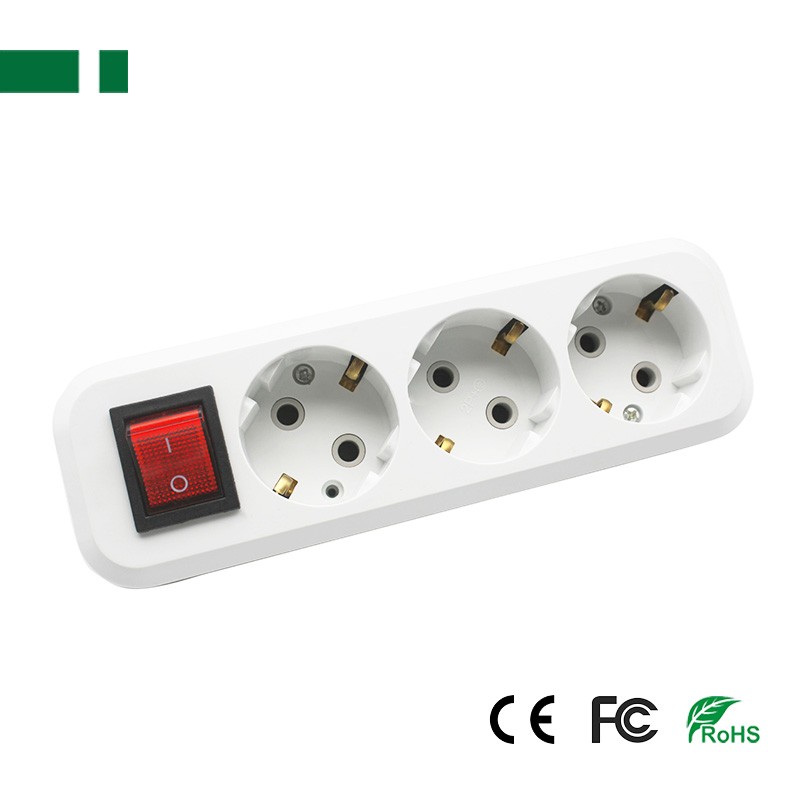

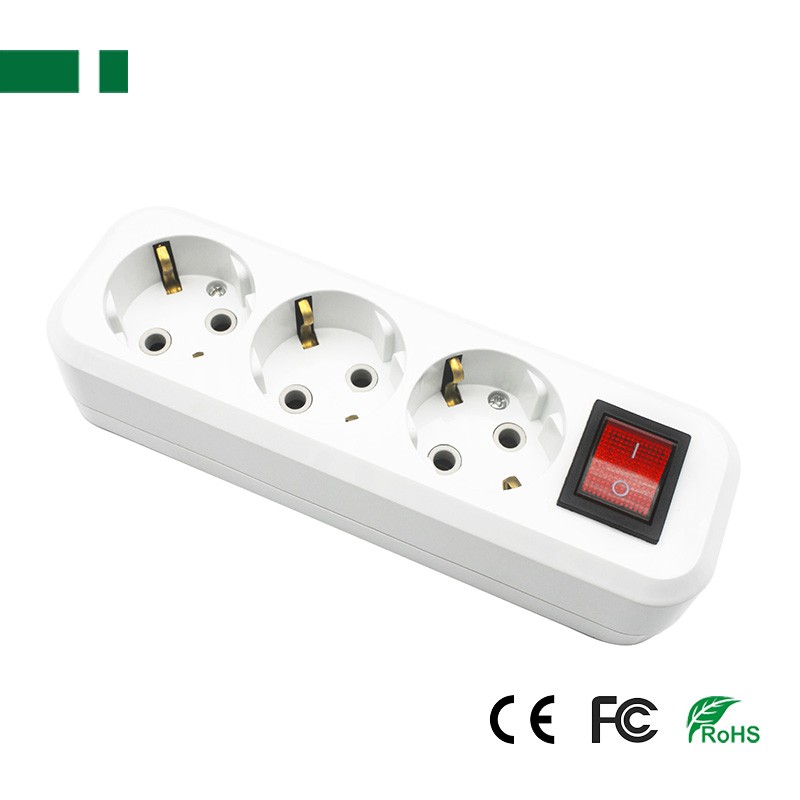

▪ 3-Way 16A EU Standard Without Cable With Button Power Strip;
▪ Rated Current: 16A;
▪ Rated Voltage: 250VAC;
▪ Rated Power: 3500W;
▪ Shell material: ABS Cover + Retardant ABS base;
▪ Conductor material: Brass;

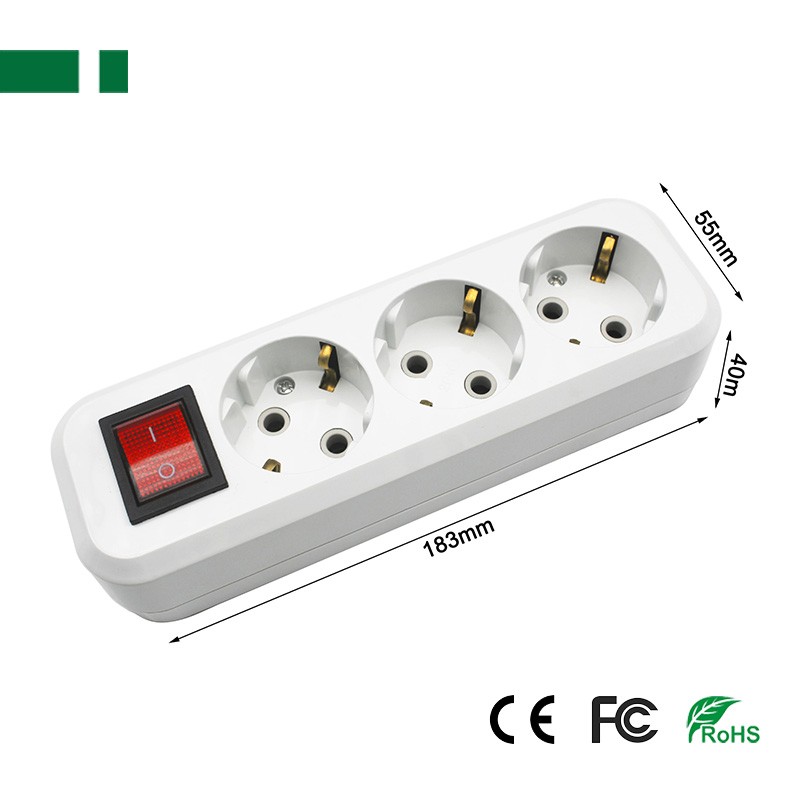

▪ Dimension: 183*55*40mm (L*W*H).
▪ A Power Socket is an electrical interface that allows installing on walls, furniture, or devices to connect electrical appliances to the power supply, enabling electricity transmission safely and efficiently.
Description:

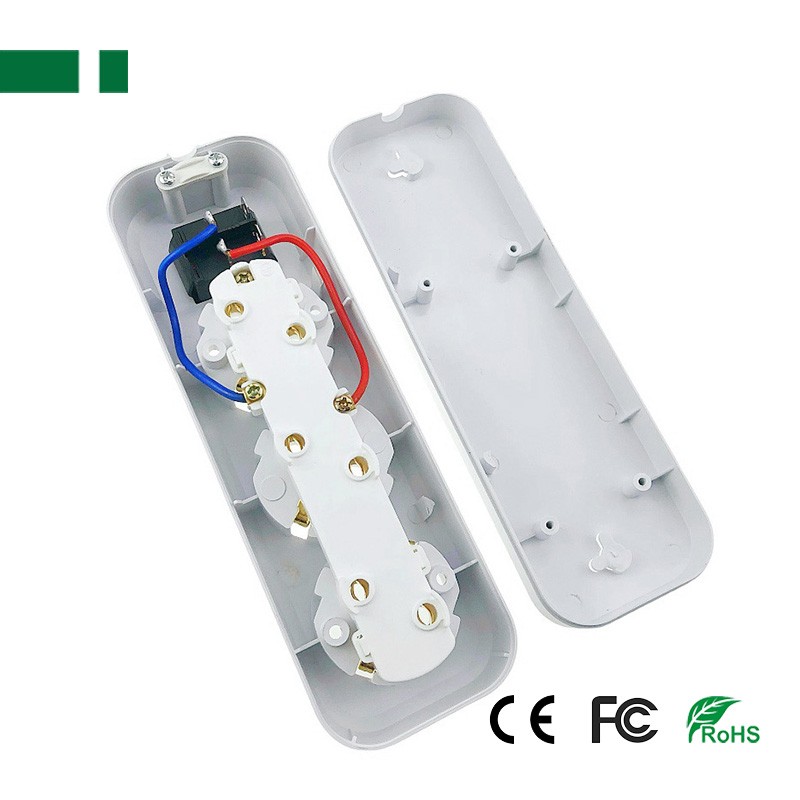

A Power Socket is an electrical interface that allows installing on walls, furniture, or devices to connect electrical appliances to the power supply, enabling electricity transmission safely and efficiently. It typically consists of plug holes, contact springs, and a grounding terminal, which together ensure a reliable electrical connection and prevent accidents.
Feature:
▪ 3-Way 16A EU Standard Without Cable With Button Power Strip;
▪ Number of Ways: 5 Ways;
▪ Rated Current: 16A;
▪ Rated Voltage: 250VAC;
▪ Rated Power: 3500W;
▪ Shell material: ABS Cover + Retardant ABS base;
▪ Conductor material: Brass;
▪ Cable Length: without cable;
▪ Dimension: 183*55*40mm (L*W*H).
Specification:
| Model | C-PD5823 | C-PD5824 | C-PD5825 | C-PD5826 |
| NO. of Ways | 3-Way | 4-Way | 5-Way | 6-Way |
| Rated Current | 16A | |||
| Rated Voltage | 250VAC | |||
| Rated Power | 3500W | |||
| Material | ABS Cover + Retardant ABS base | |||
| Conductor | Brass | |||
| Cable Length | Without Cable | |||
| Temperature | Working: -10℃-50℃, Storage: -40℃-70℃ | |||
| Humidity | Working & Storage: 10%-95% , non-condensing | |||
| Dimension | 183*55*40mm (L*W*H) | 225*55*40mm (L*W*H) | 270*55*40mm (L*W*H) | 315*55*40mm (L*W*H) |
