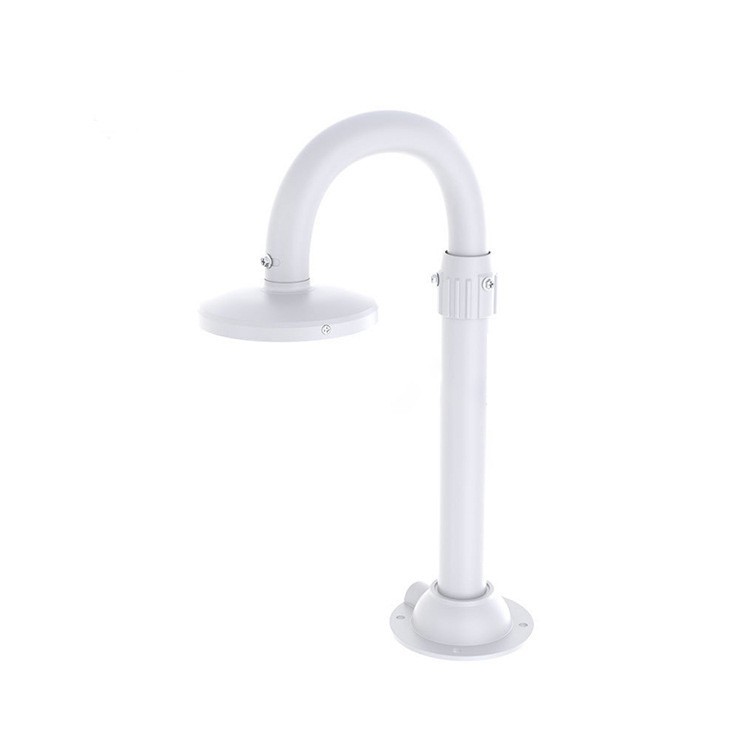

CB-233 Aluminium Ceiling or Wall Mount CCTV Bracket

L-type monitoring hemisphere telescopic support, outdoor ceiling hemisphere lifting, conch hemisphere base, hemisphere extension rod

Features

Material: aluminum alloy

Color: White

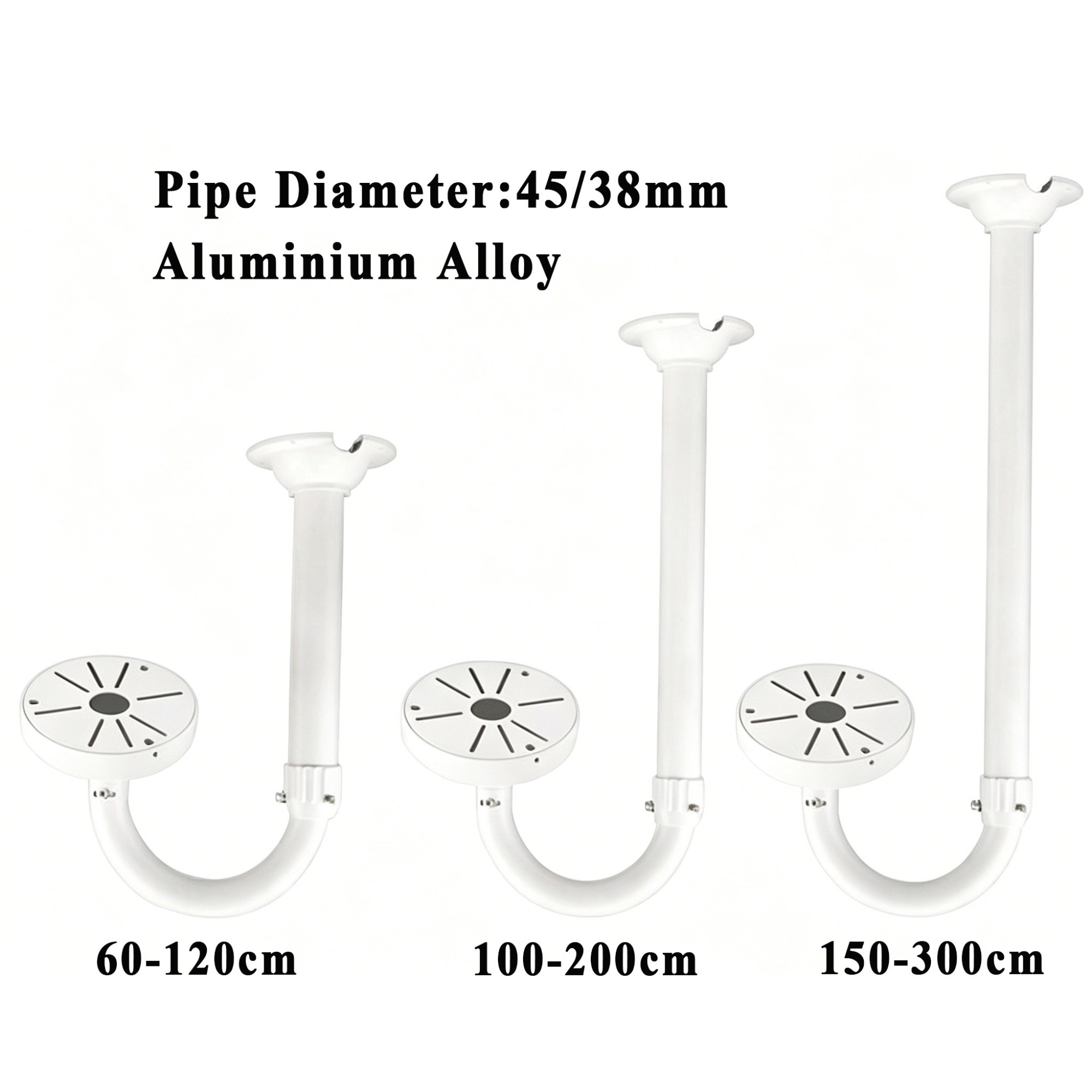

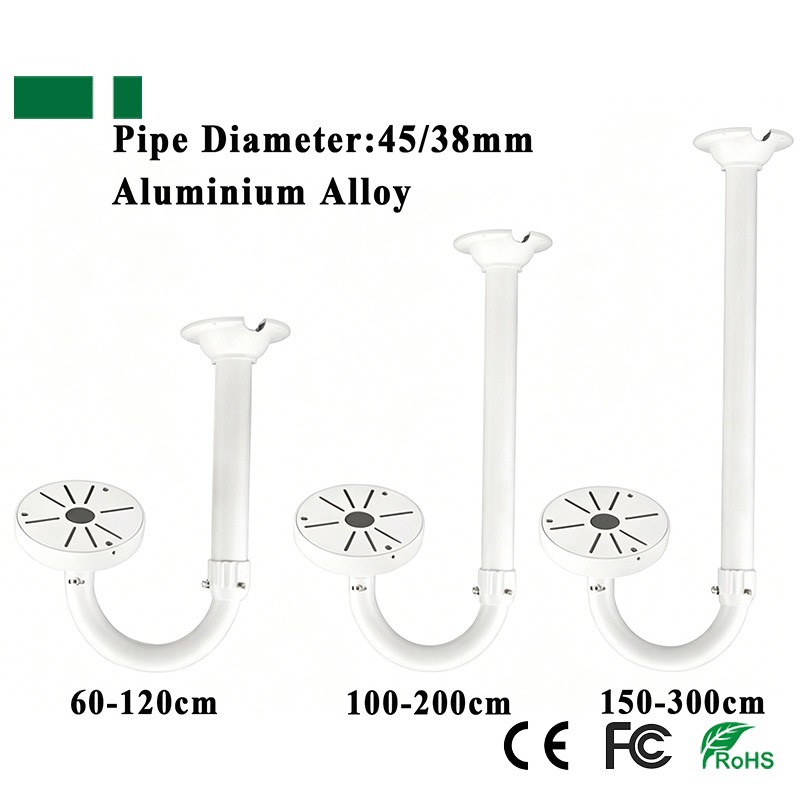

Pipe diameter: 45/38mm

Outer tube: 45mm

Inner tube: 38mm

Hemispherical disc diameter: 150mm

Base diameter: 138mm

Installation method: Wall-Mounted, ceiling-mounted, lifting, hoisting

Applicable environment: outdoor, indoor

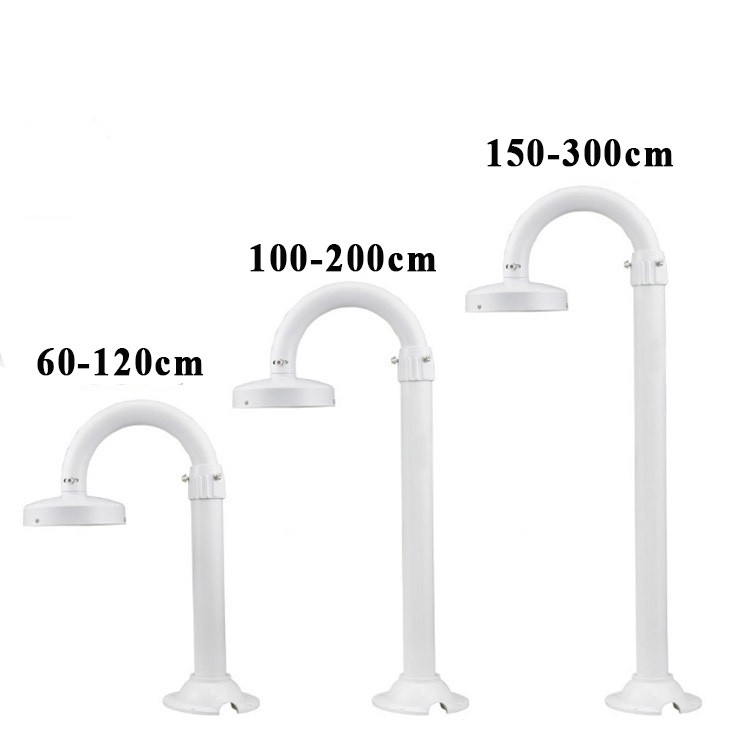

Length optional: 20-40cm/30-60cm/40-80cm/60-120cm/75-150cm/100-200cm/150-300cm for optional.

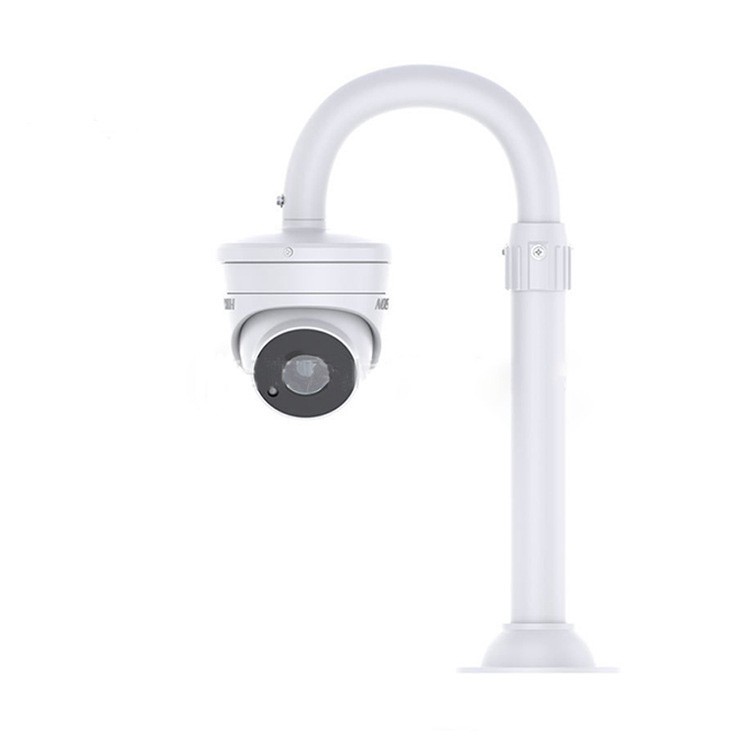

It supports universal adjustment, aluminum alloy material, surface painting treatment, corrosion prevention and rust prevention, durability, high compatibility, and supports for HIKVISION Dahua camera.

Optional Models:

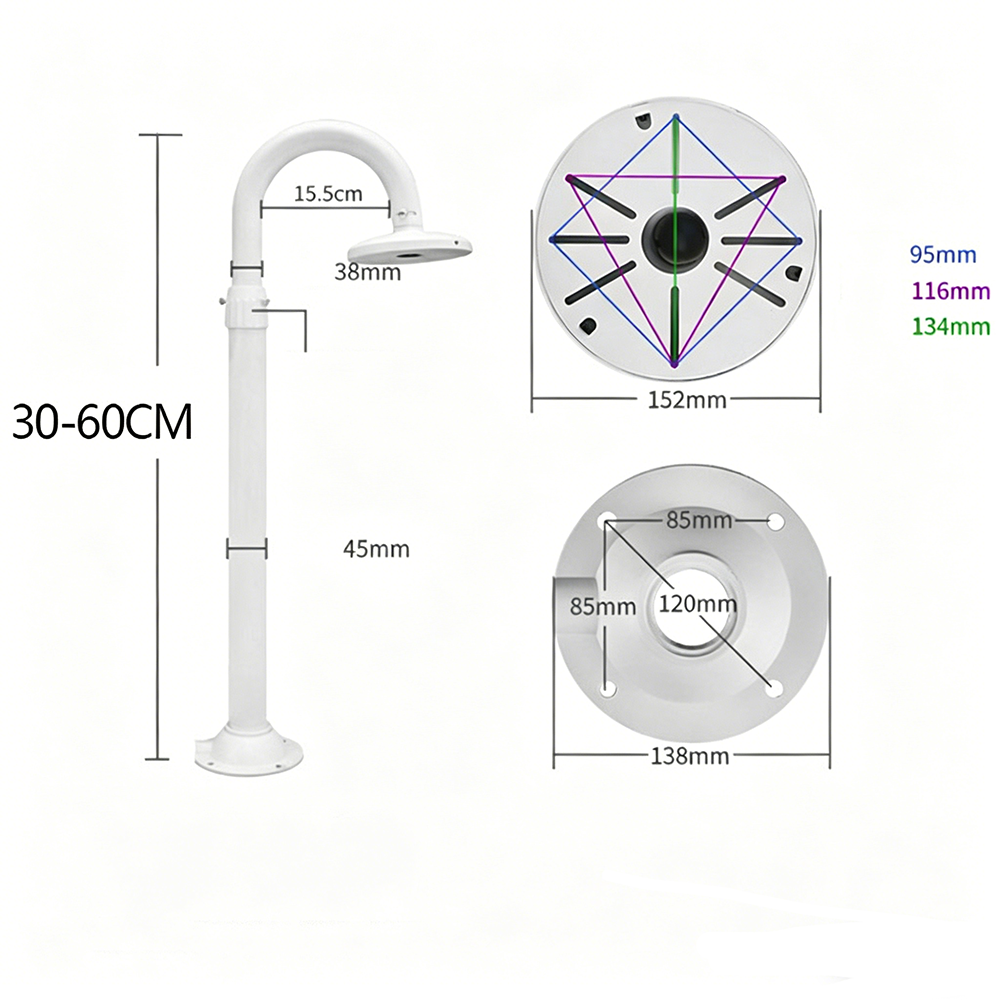

Ceiling/Wall Mount Bracket

Model:CB-233 (30-60cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 45/38mm

Adjustable Length: 30-60cm

Ceiling/Wall Mount Bracket

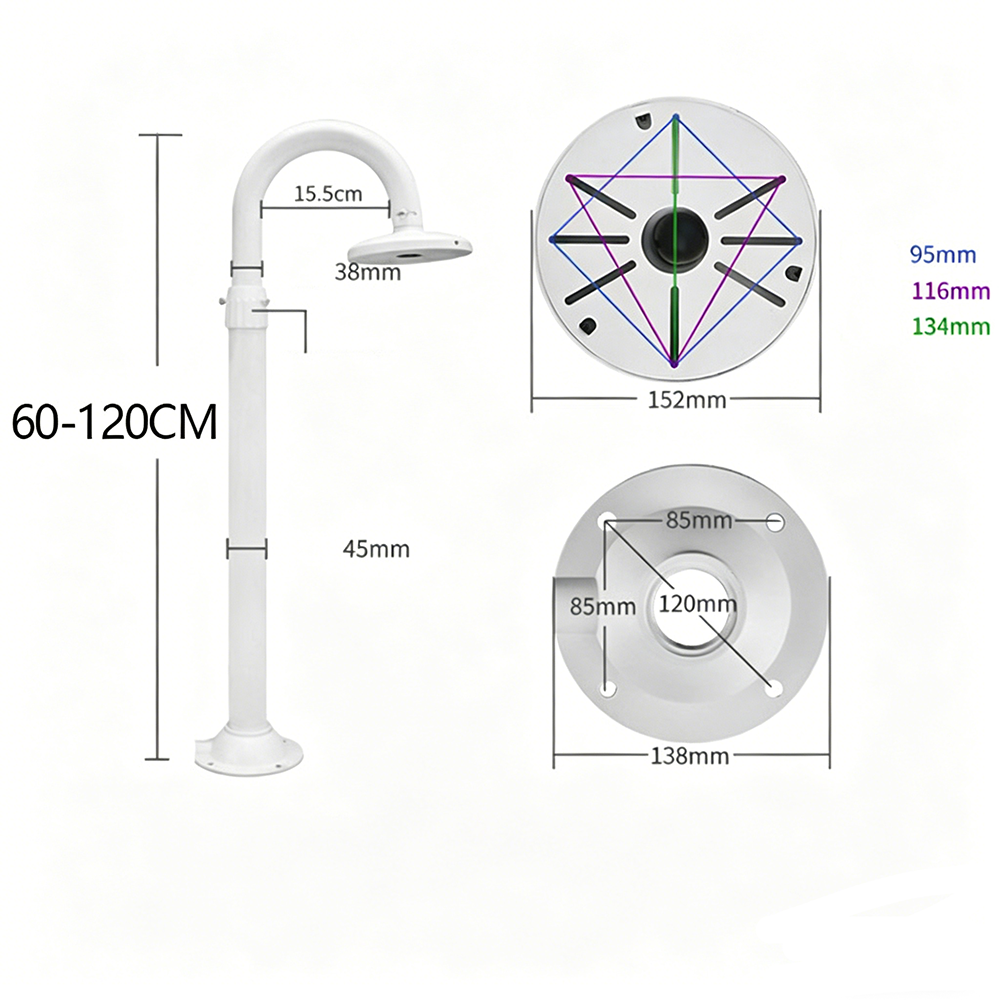

Model:CB-233 (60-120cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 45/38mm

Adjustable Length: 60-120cm

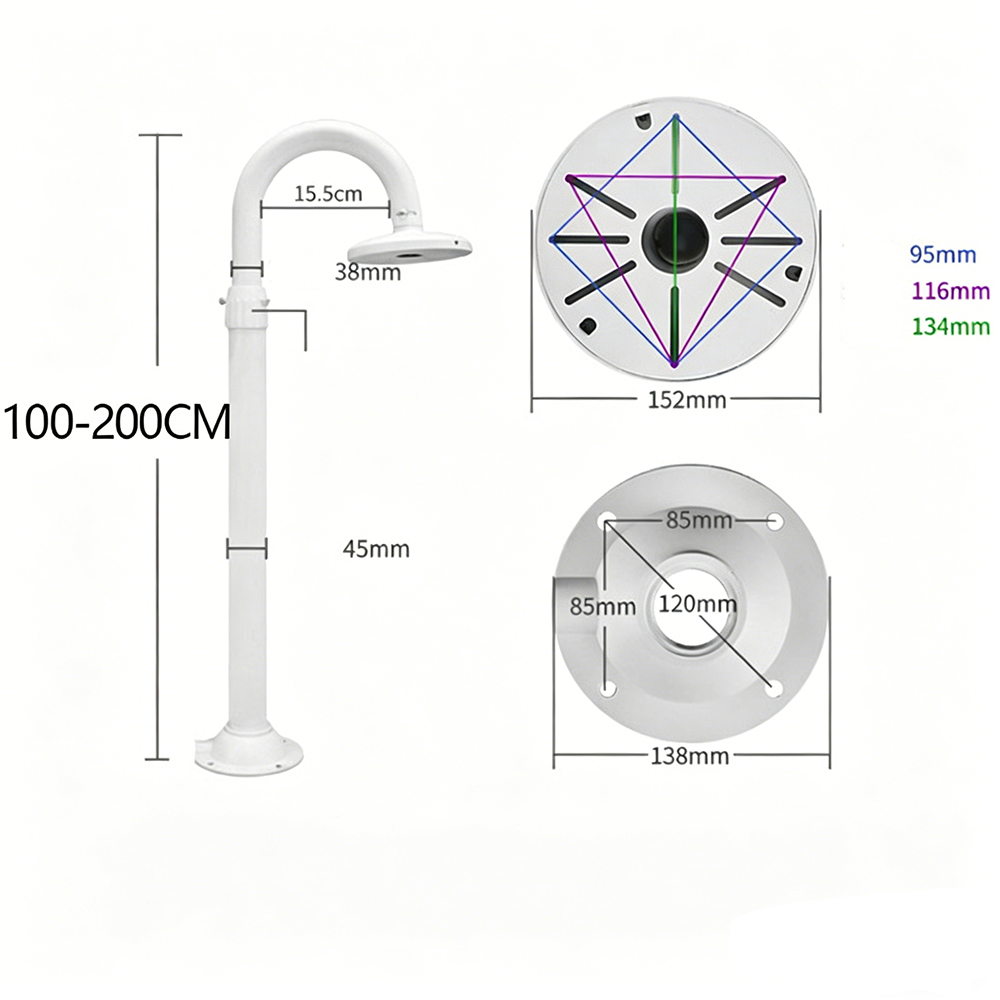

Ceiling/Wall Mount Bracket

Model:CB-233 (100-200cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 45/38mm

Adjustable Length: 100-200cm

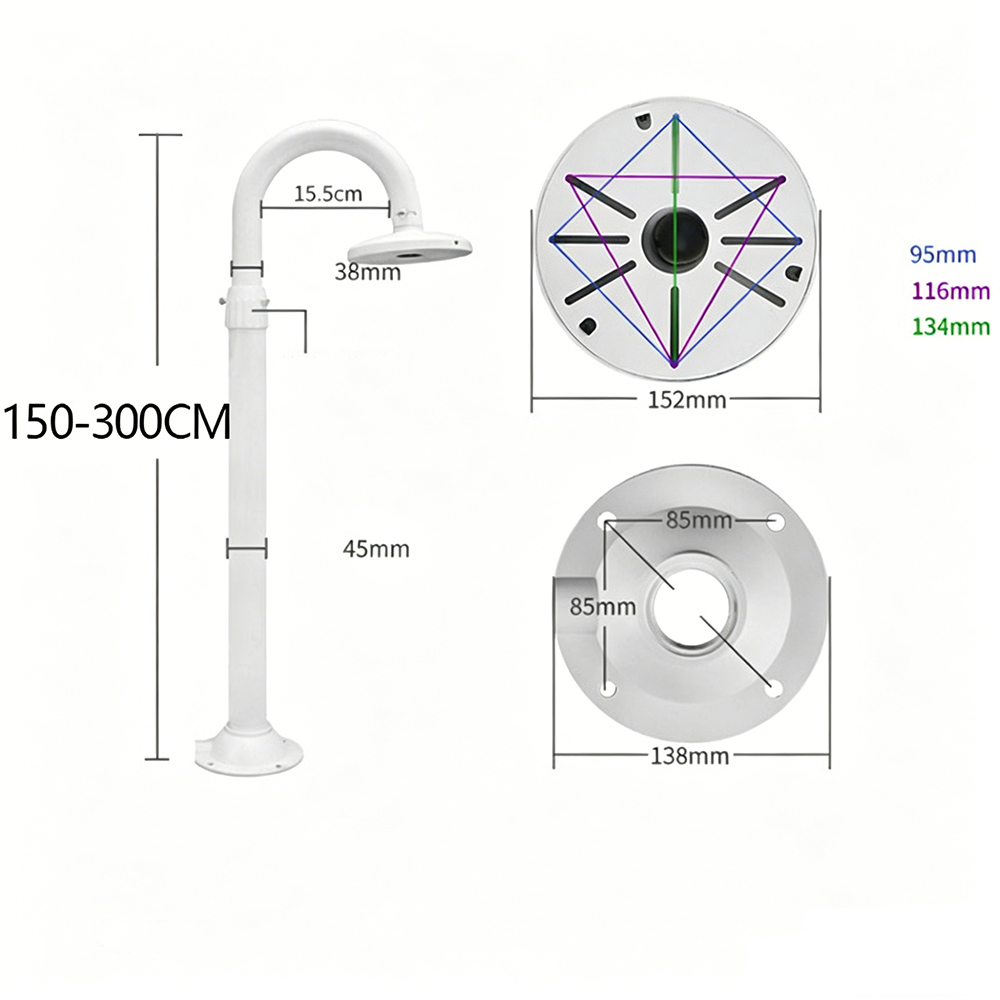

Ceiling/Wall Mount Bracket

Model:CB-233 (150-300cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 45/38mm

Adjustable Length: 150-300cm
