CB-224 Aluminium Ceiling or Wall Mount CCTV Bracket

I-type monitoring hemisphere telescopic support, outdoor ceiling hemisphere lifting, conch hemisphere base, hemisphere extension rod

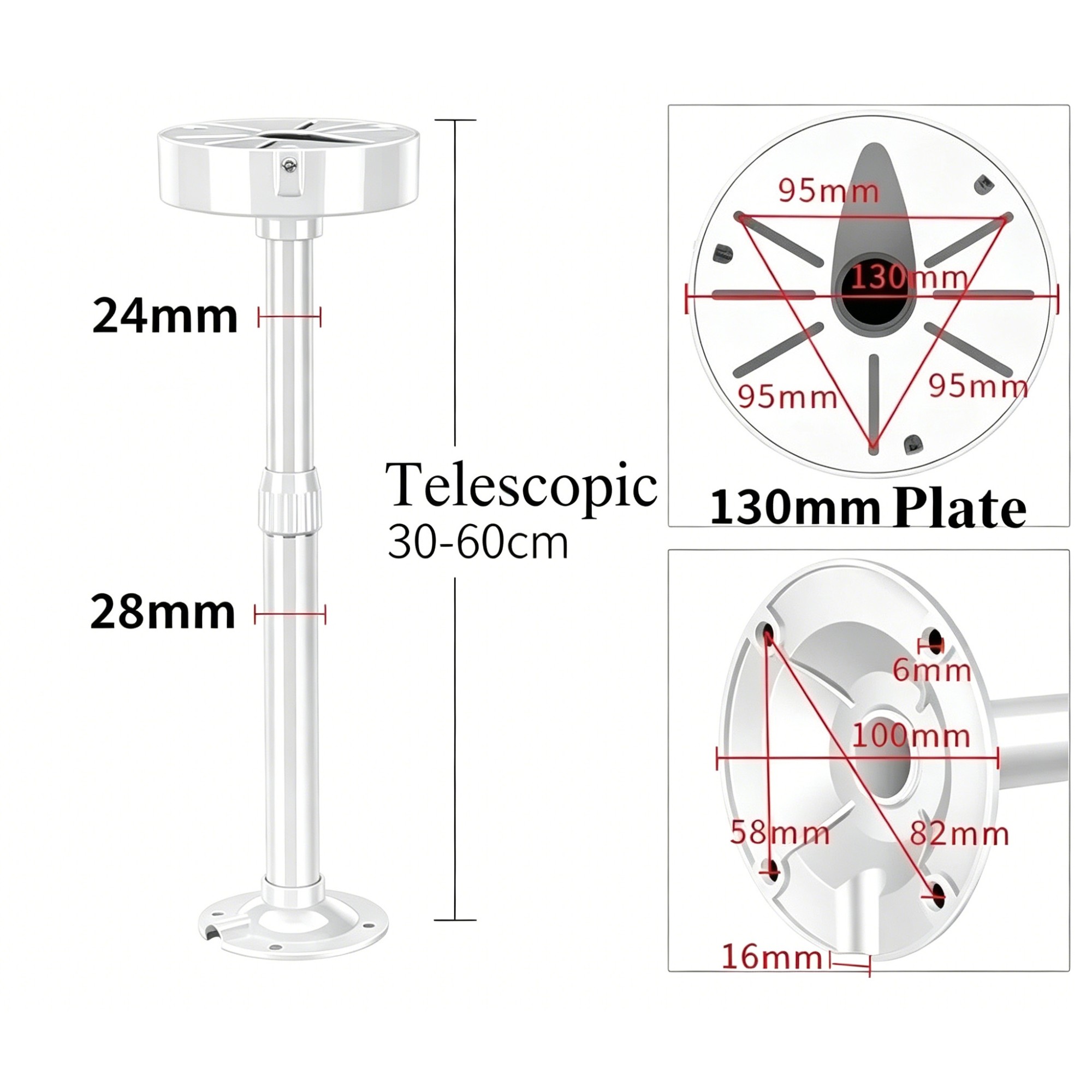

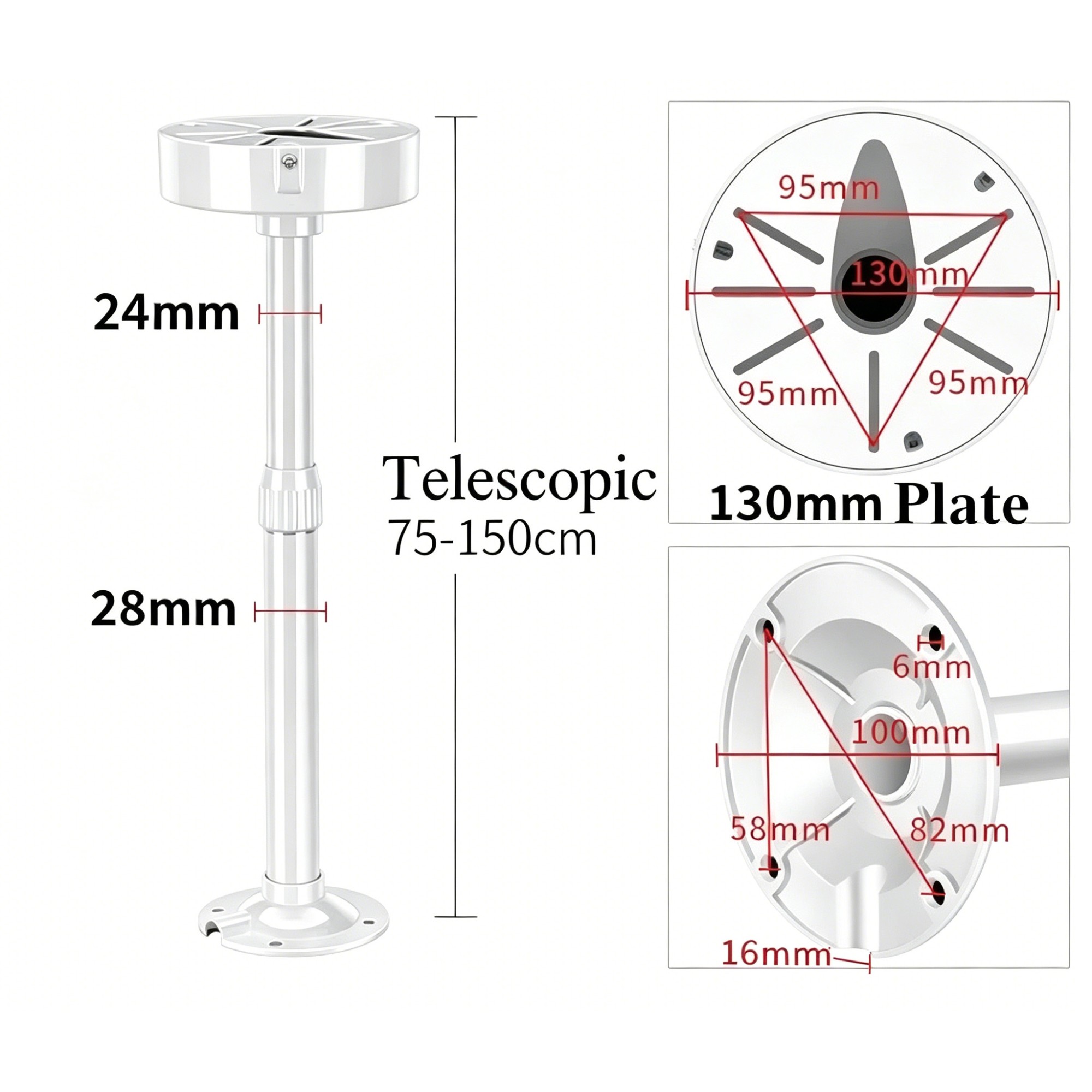

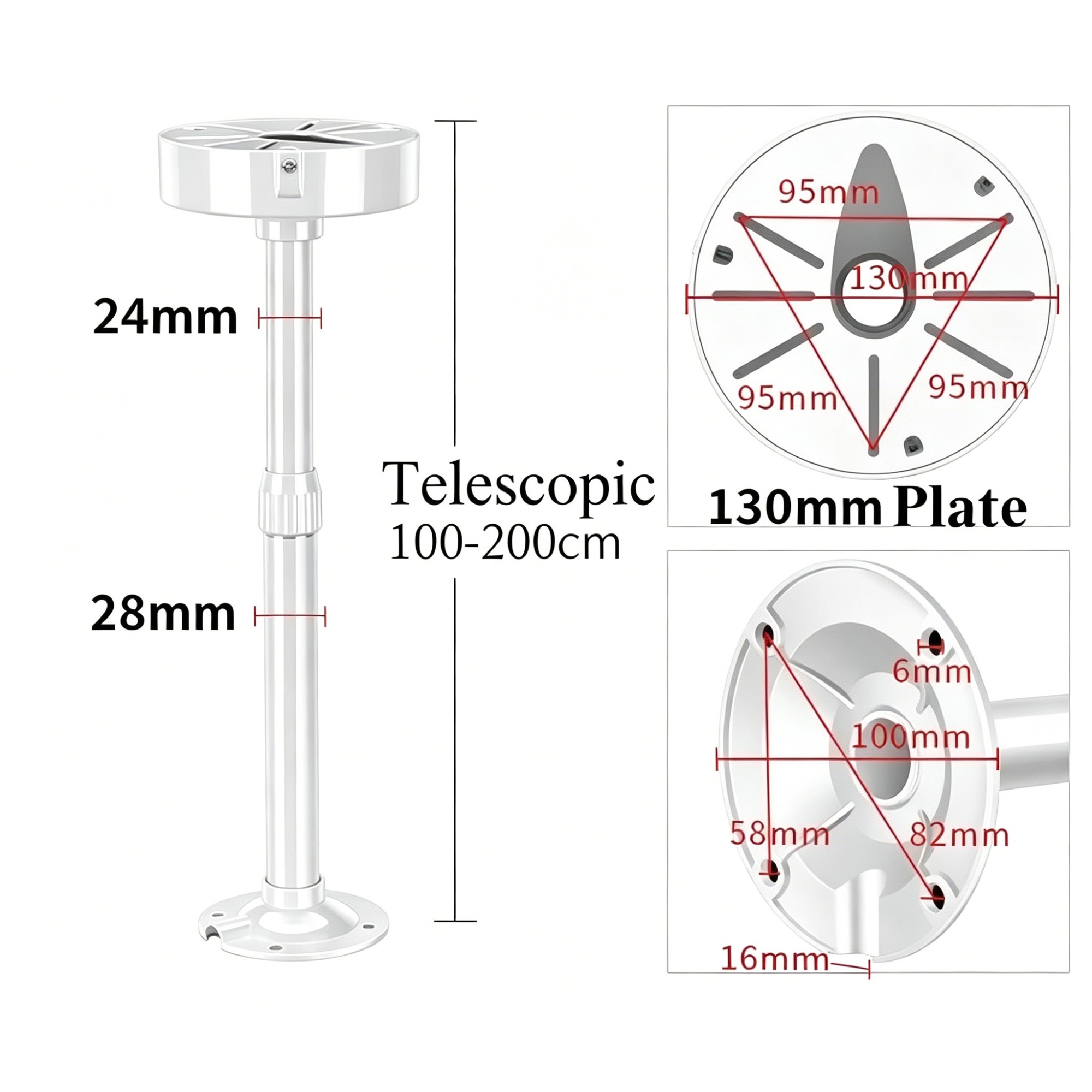

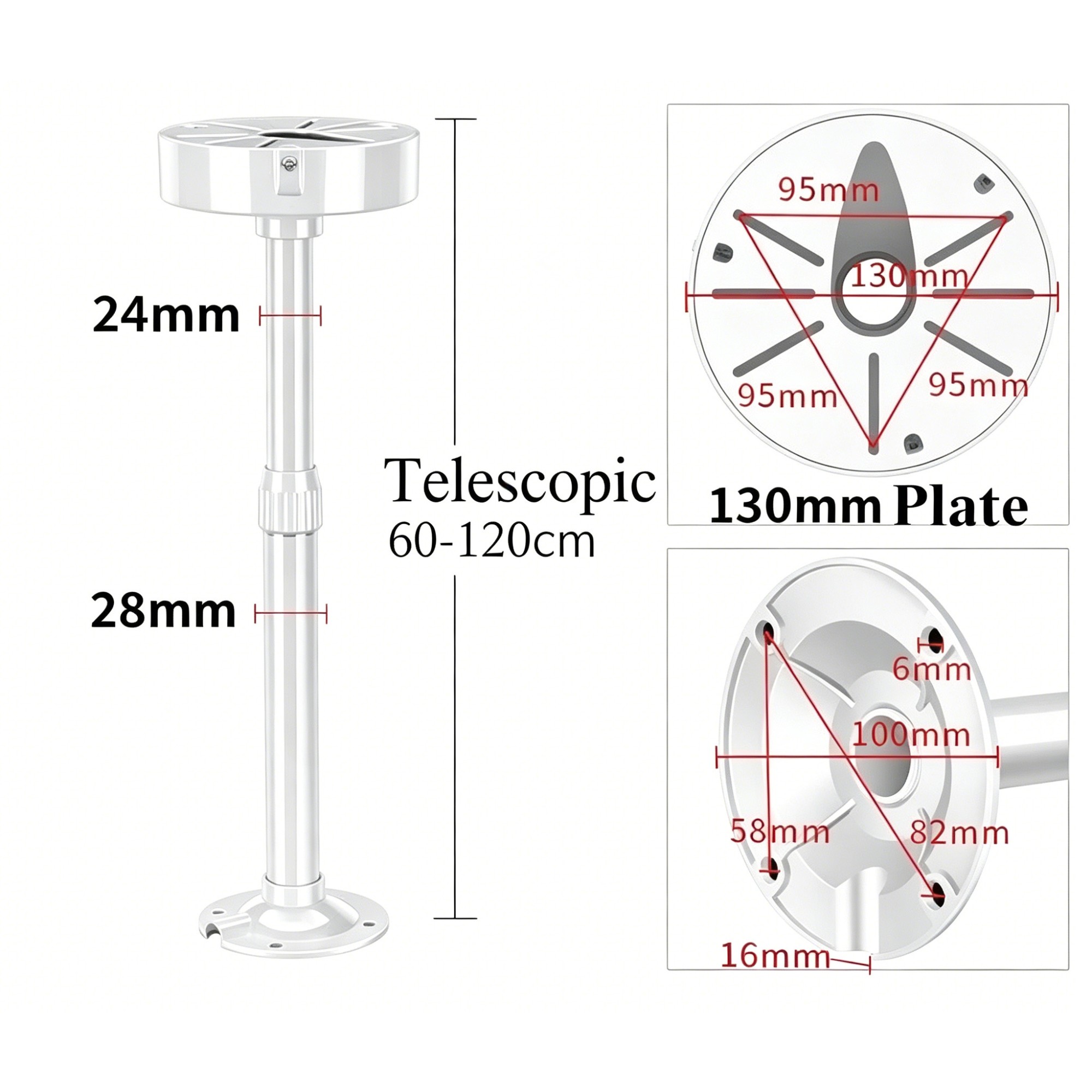

Features

Material: aluminum alloy

Color: White

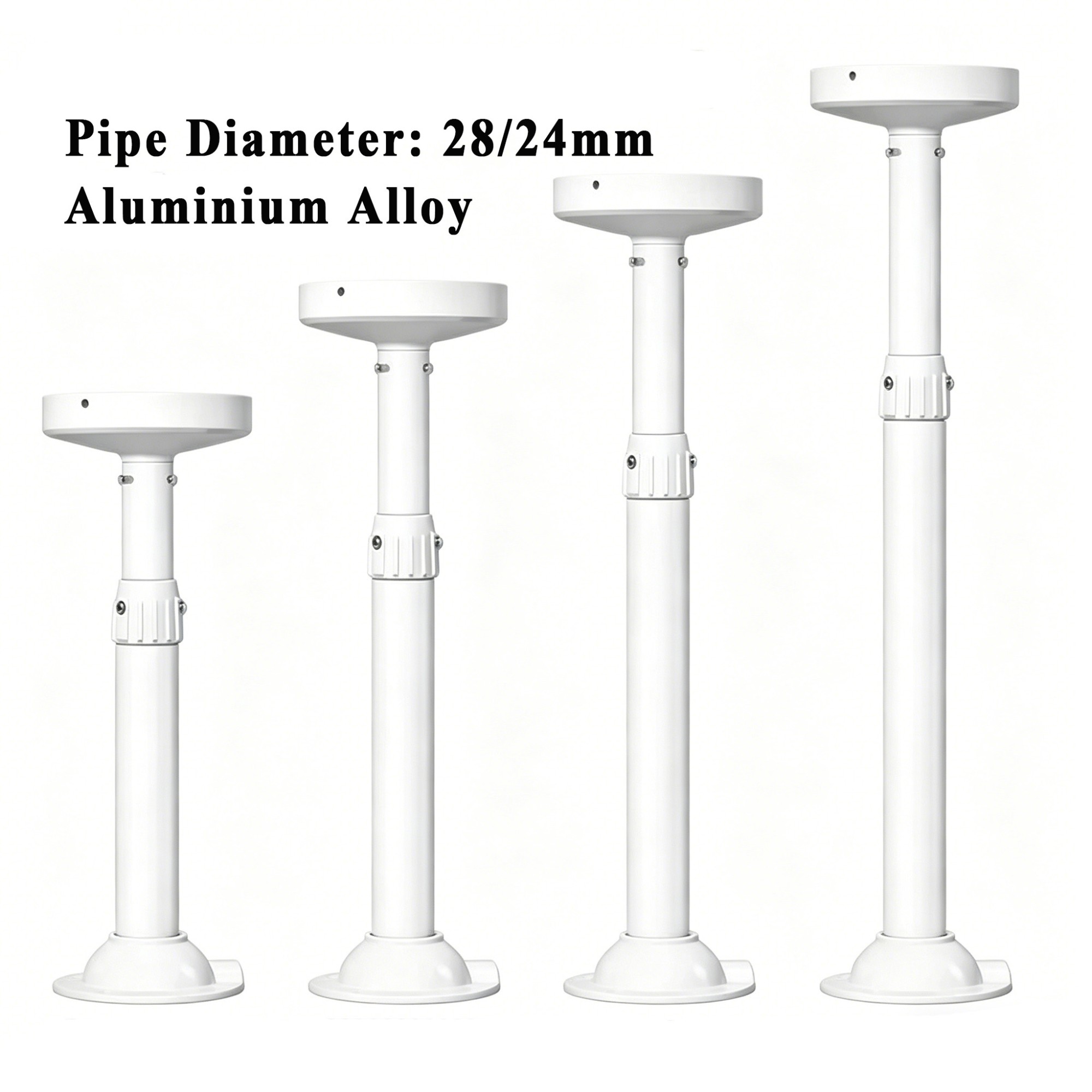

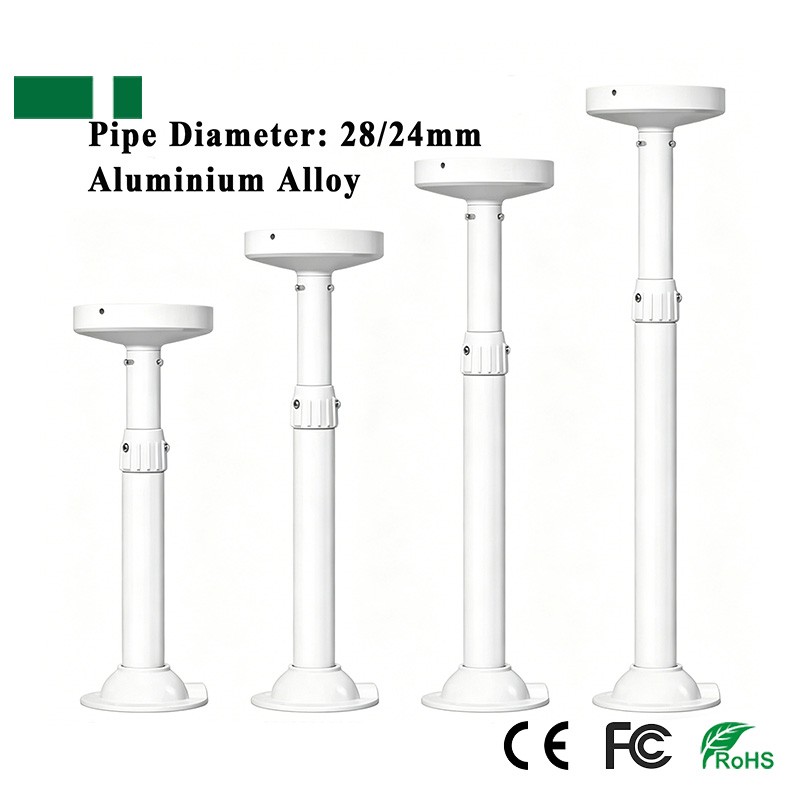

Pipe diameter: 28/24mm

Outer tube: 28mm

Inner tube: 24mm

Hemispherical disc diameter: 130mm

Base diameter: 100mm

Installation method: Wall-Mounted, ceiling-mounted, lifting, hoisting

Applicable environment: outdoor, indoor

Length optional: 20-40cm/30-60cm/40-80cm/60-120cm/75-150cm/100-200cm/150-300cm for optional.

It supports universal adjustment, aluminum alloy material, surface painting treatment, corrosion prevention and rust prevention, durability, high compatibility, and supports for HIKVISION Dahua camera.

Optional Models:

Ceiling/Wall Mount Bracket

Model:CB-224 (20-40cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 28/24mm

Adjustable Length: 20-40cm

Ceiling/Wall Mount Bracket

Model:CB-224 (30-60cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 28/24mm

Adjustable Length: 30-60cm

Ceiling/Wall Mount Bracket

Model:CB-224 (40-80cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 28/24mm

Adjustable Length: 40-80cm

Ceiling/Wall Mount Bracket

Model:CB-224 (60-120cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 28/24mm

Adjustable Length: 60-120cm

Ceiling/Wall Mount Bracket

Model:CB-224 (75-150cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 28/24mm

Adjustable Length: 75-150cm

Ceiling/Wall Mount Bracket

Model:CB-224 (100-200cm)

Material: Aluminium Alloy;
Color: White;

Pipe diameter: 28/24mm

Adjustable Length: 100-200cm
