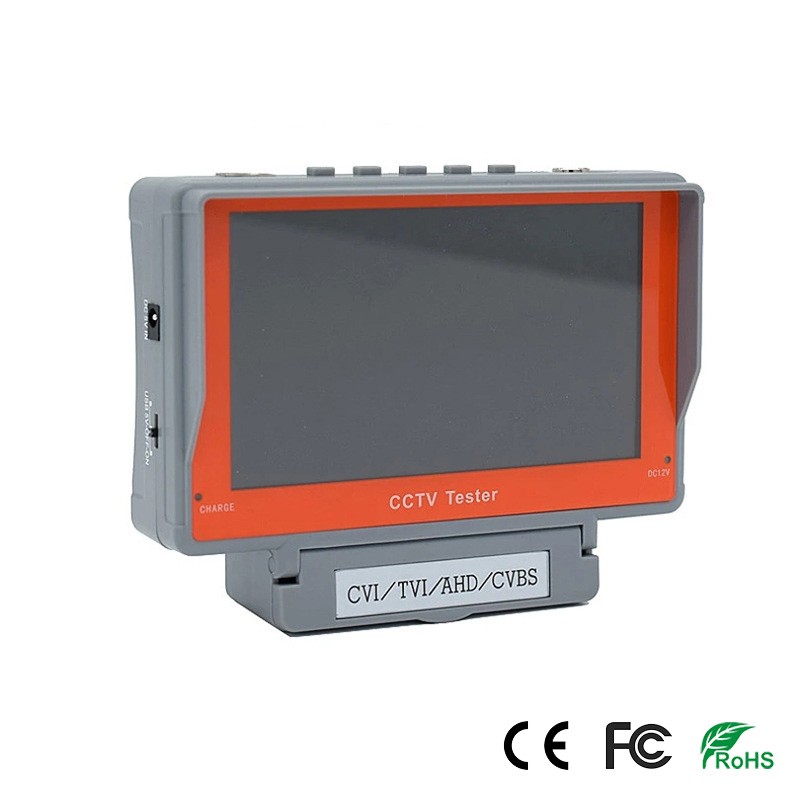

C-IV5ATC 5 inch HD CVI TVI AHD Video Camera Tester

Feature:
● HD coaxial camera testing
● Control over Coax
● PTZ controller
The Tester built-in Pelco-D / P PTZ control protocol, etc., through its own RS485 interface.
● Color-bar generator (TV OUT)

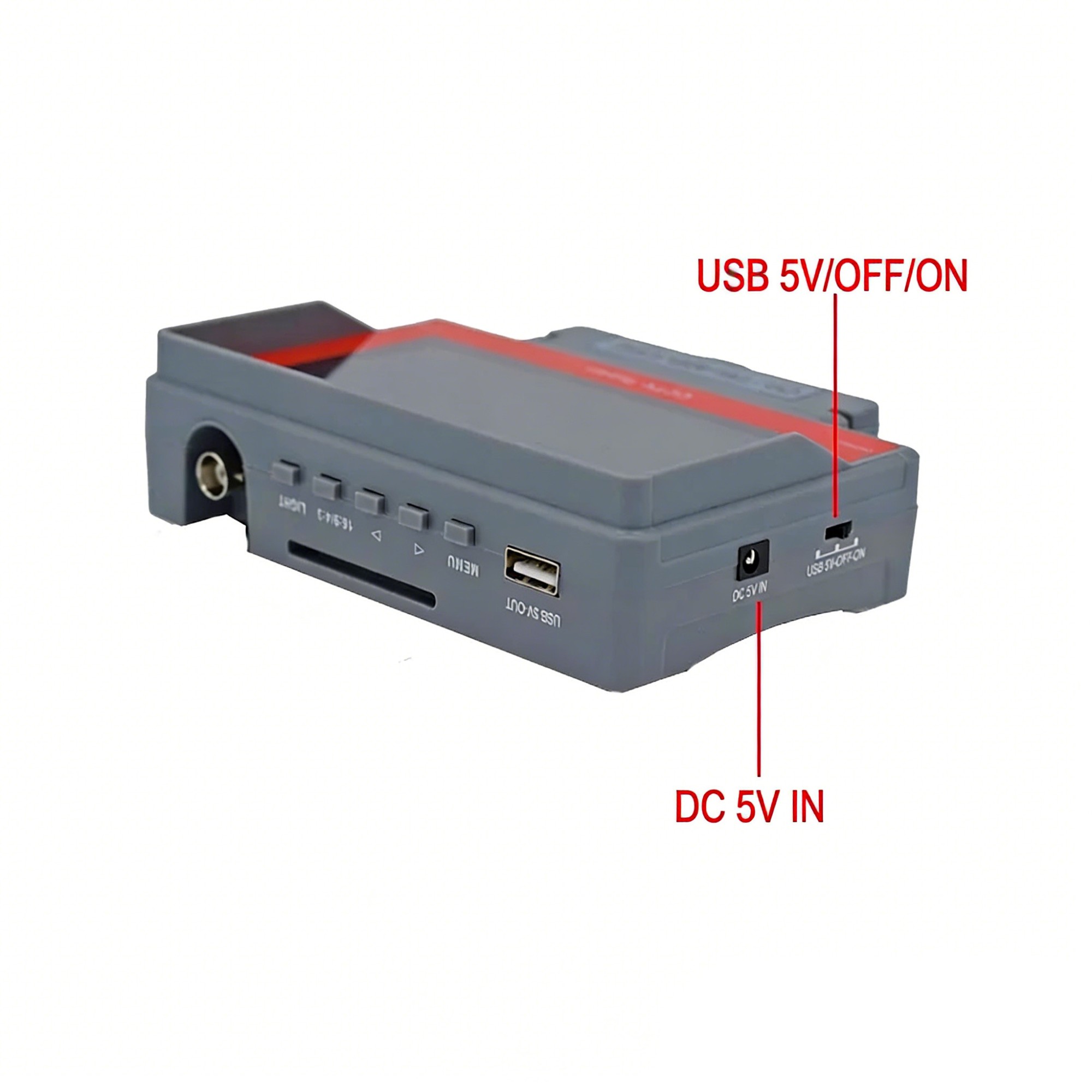

● DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for testing when the power supply is not available.
● Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

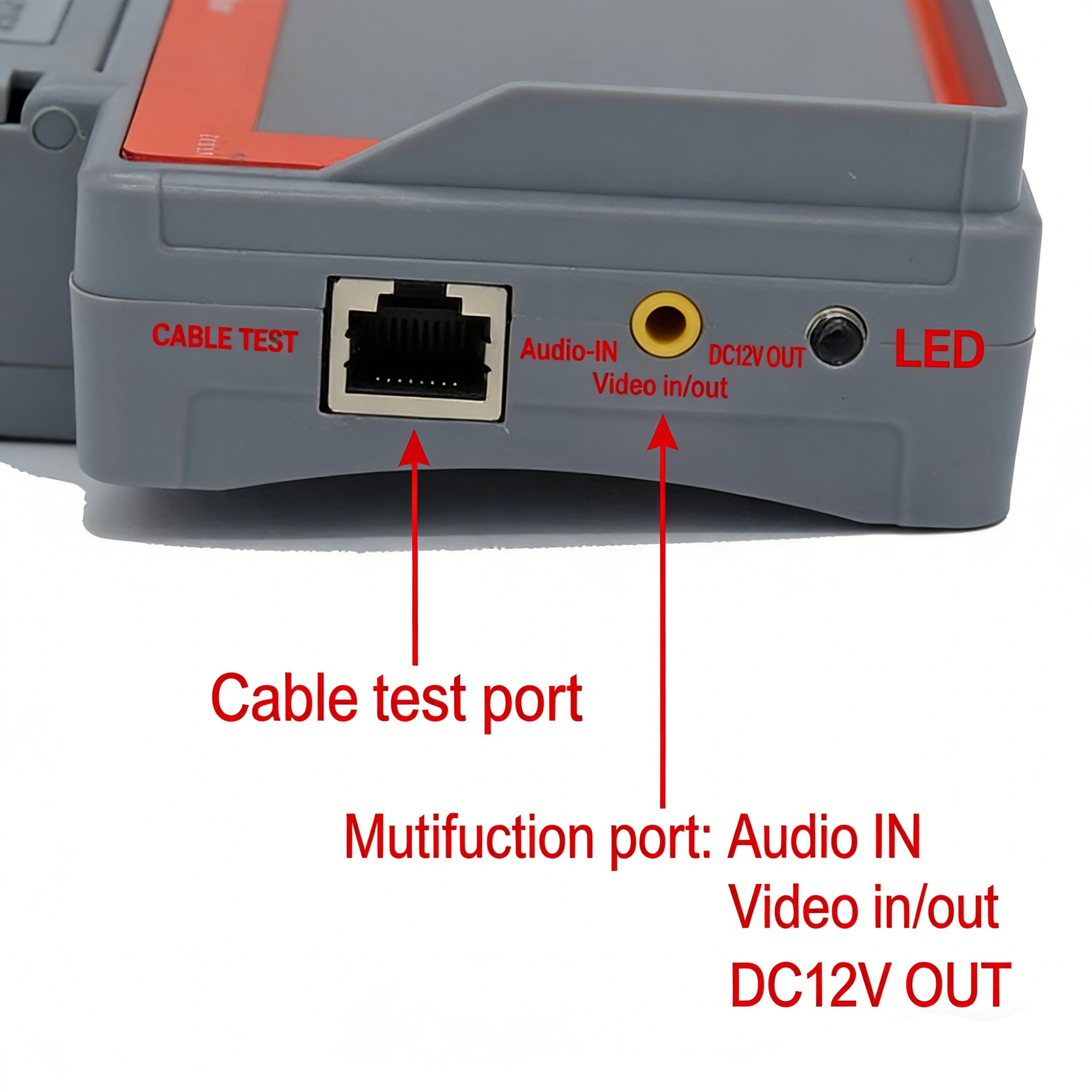

● Enhanced UTP cable testing
By UTP CABLE TEST port on the meter, you can test the connection of Network Cable.
● TVI camera test
HD TVI camera testing, support 1MP, 2MP, 3MP, 4MP, 5MP, 8MP
● AHD camera test
AHD camera testing, support 1MP, 2MP, 3MP, 4MP, 5MP, 8MP
● CVI camera test
HD CVI camera testing, support 1MP, 2MP, 3MP, 4MP, 8MP
● LED lamp
lt is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
● The battery graphic display
The tester has advanced power control and protection circuit, low-power energy saving, 2 to 4 hours on a single charge. Normally it can be used for 6 hours.

Specification:
