HD Video Ground Loop Isolator
support 1080P AHD/CVI/TVI
Lightning protection design
Real-time transmission over UTP Cat5e/6
The product is a ground loop isolator for HD video. It can effectively eliminate interference like distortion, tearing, cross striation, reticulate pattern and snowflake caused by earth potential difference. The isolation voltage reaches 800V. It features super surge protection and can be widely used in HD video transmission.
Features:

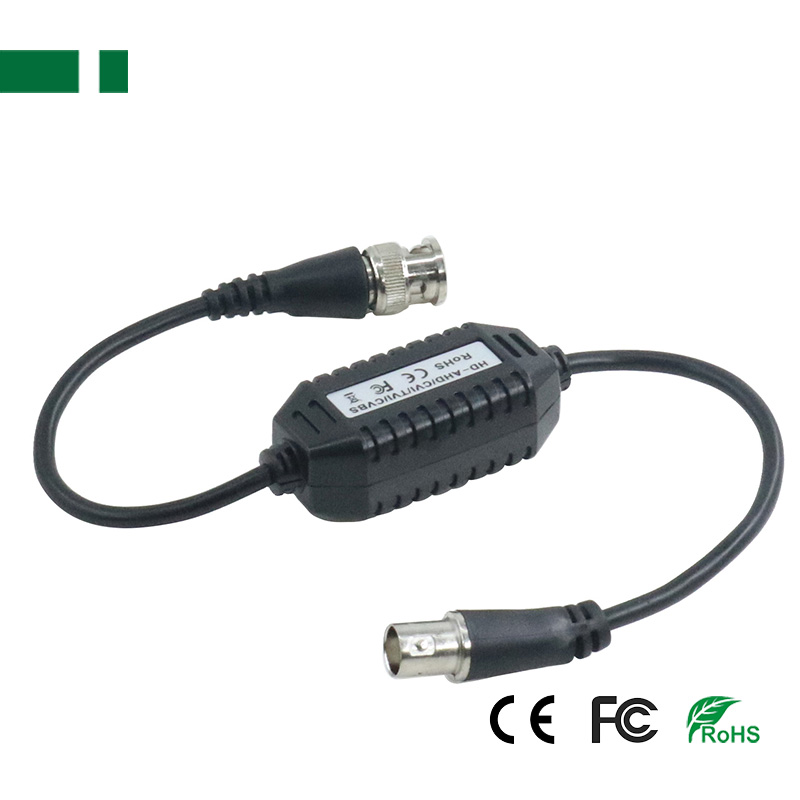

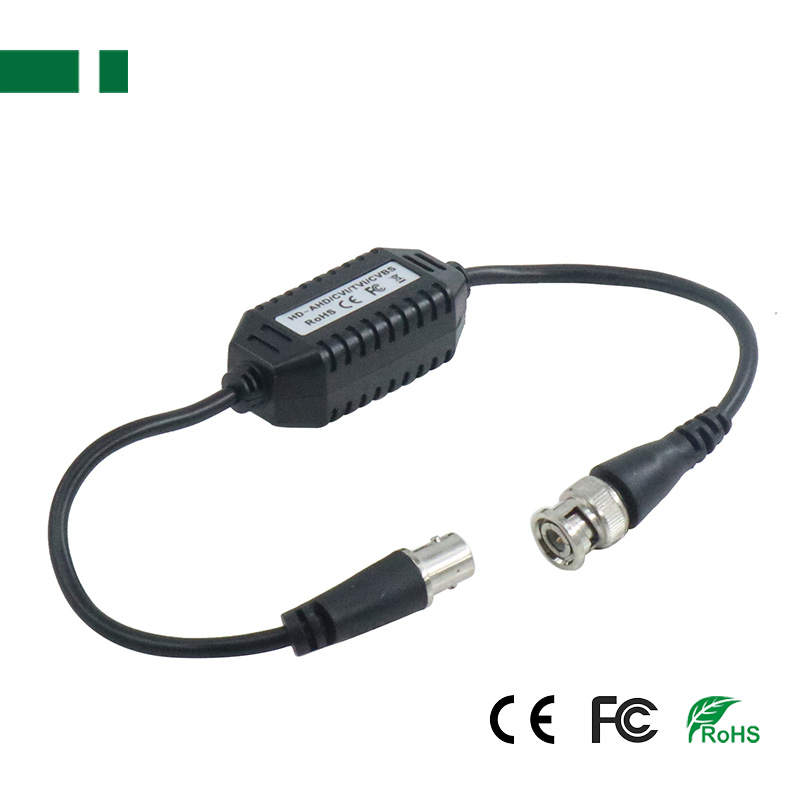

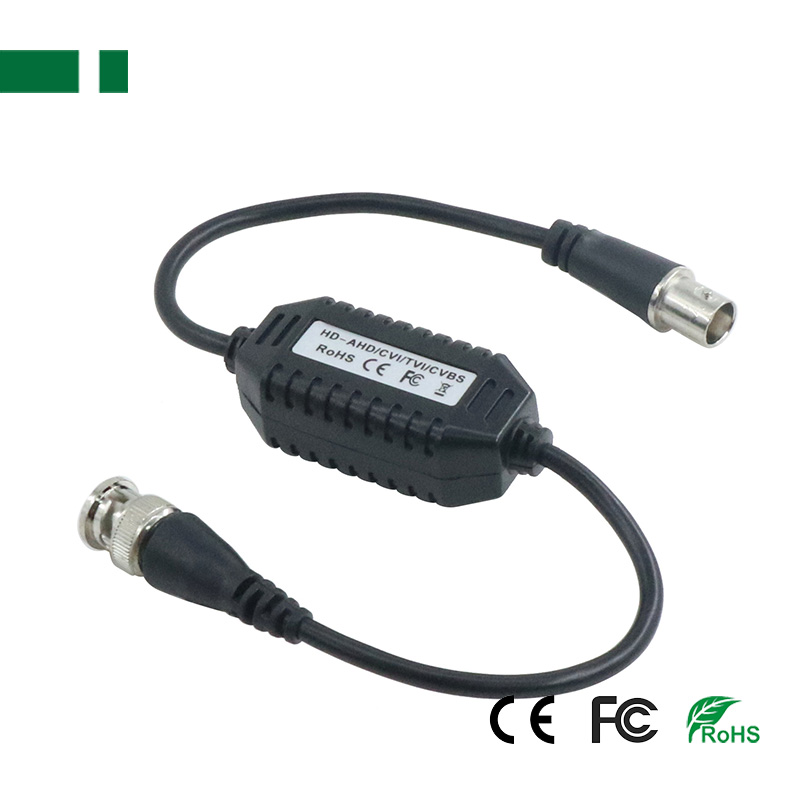

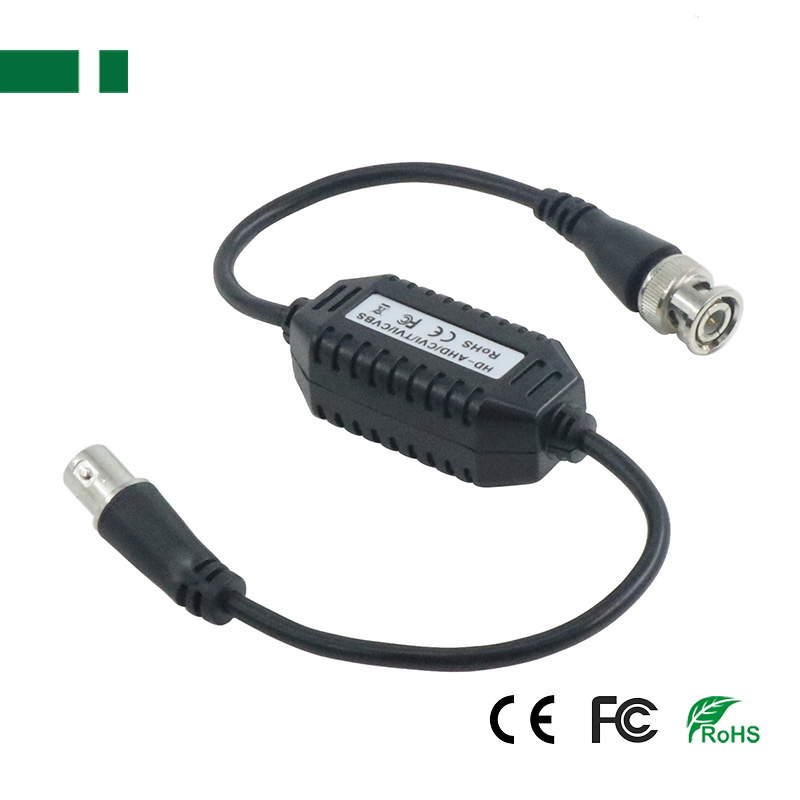

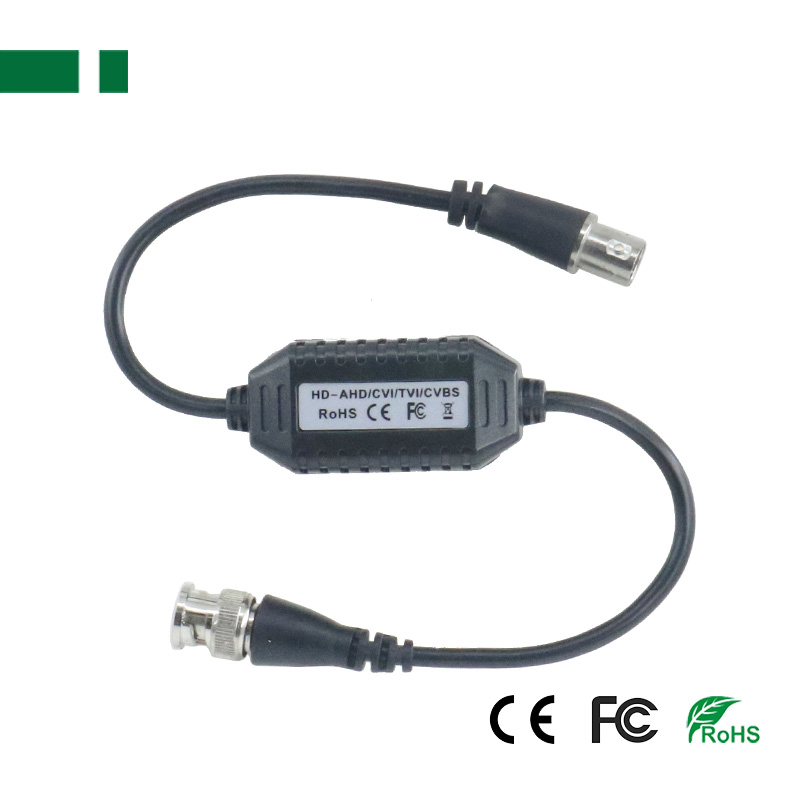

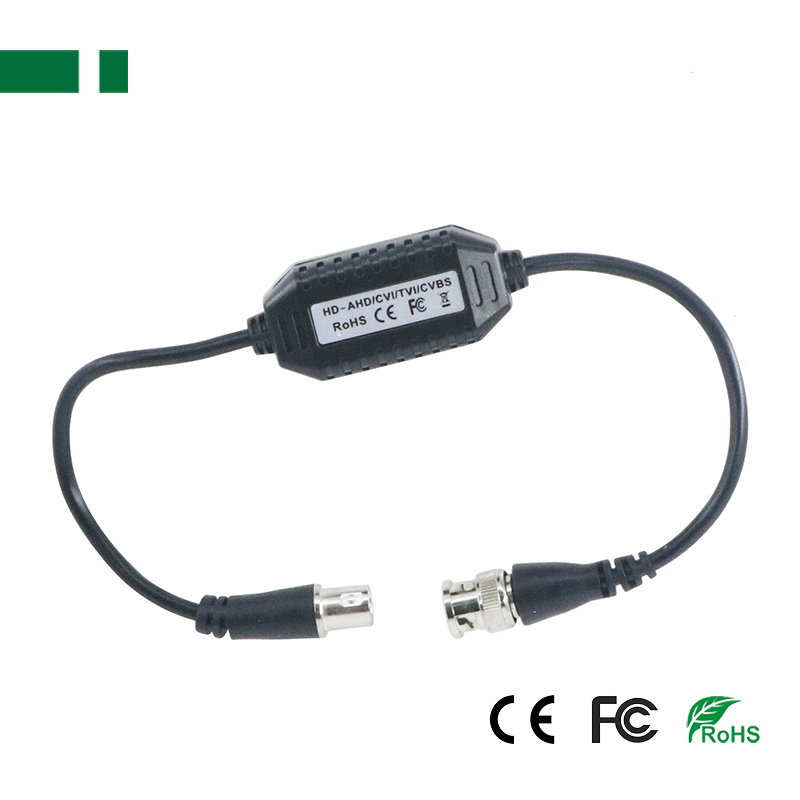

Video Ground Loop Isolator
BNC male to BNC female with mini cable on both sides
Passive no power required
Prevents video-signal distortion caused by video ground loops
Eliminates picture tearing cross talk and rolling
Specifications <div class="rich-text-table" style="margin:0px;padding:0px;color:#222222;font-family:Roboto, Arial, " font-size:14px;background-color:#ffffff;"="">
| Model | C-GB001-HD |
| Insertion Loss | ≤0.5dB |
| Frequency Response | 0-3dB at 10Mhz |
| Input Resistance | 75ohm |
| Output Resistance | 75ohm |
| Isolation Voltage | DC 600V |
| Insulation Resistance | 100m ohm |
| Transient voltage suppressors | 12Vrms |
| Working temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 0 to 95% |
