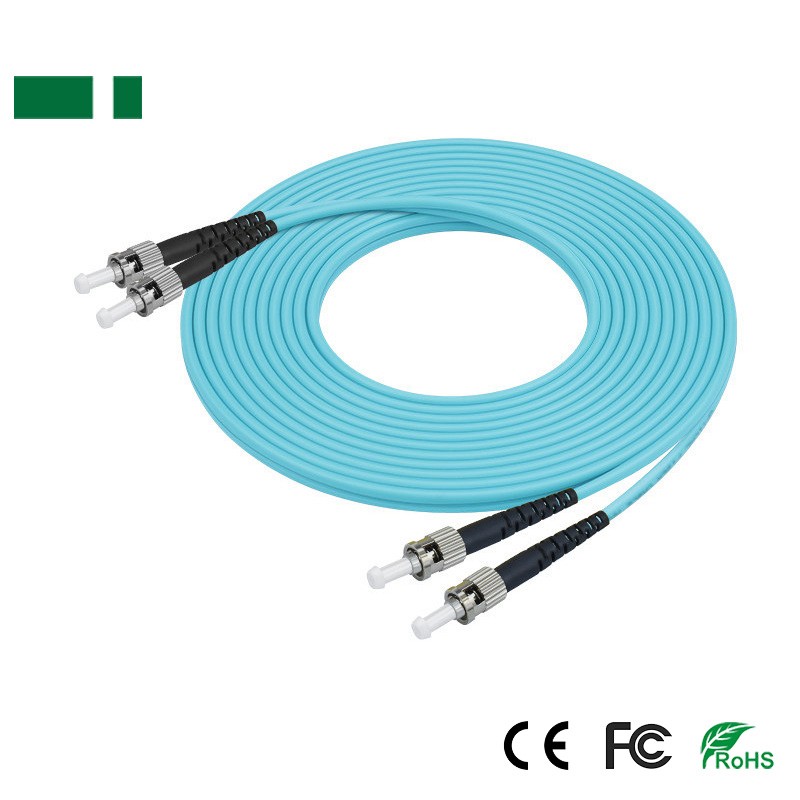

CPC01-ST-ST-1M-D-OM3 CPC01-ST-ST-2M-D-OM3 CPC01-ST-ST-3M-D-OM3 CPC01-ST-ST-5M-D-OM3 CPC01-ST-ST-8M-D-OM3 CPC01-ST-ST-10M-D-OM3 10Gigabit Multi Mode Dual Core Optical Fiber Patch Cord

OM3 10Gigabit Multi Mode Dual Core Optical Fiber Patch Cords

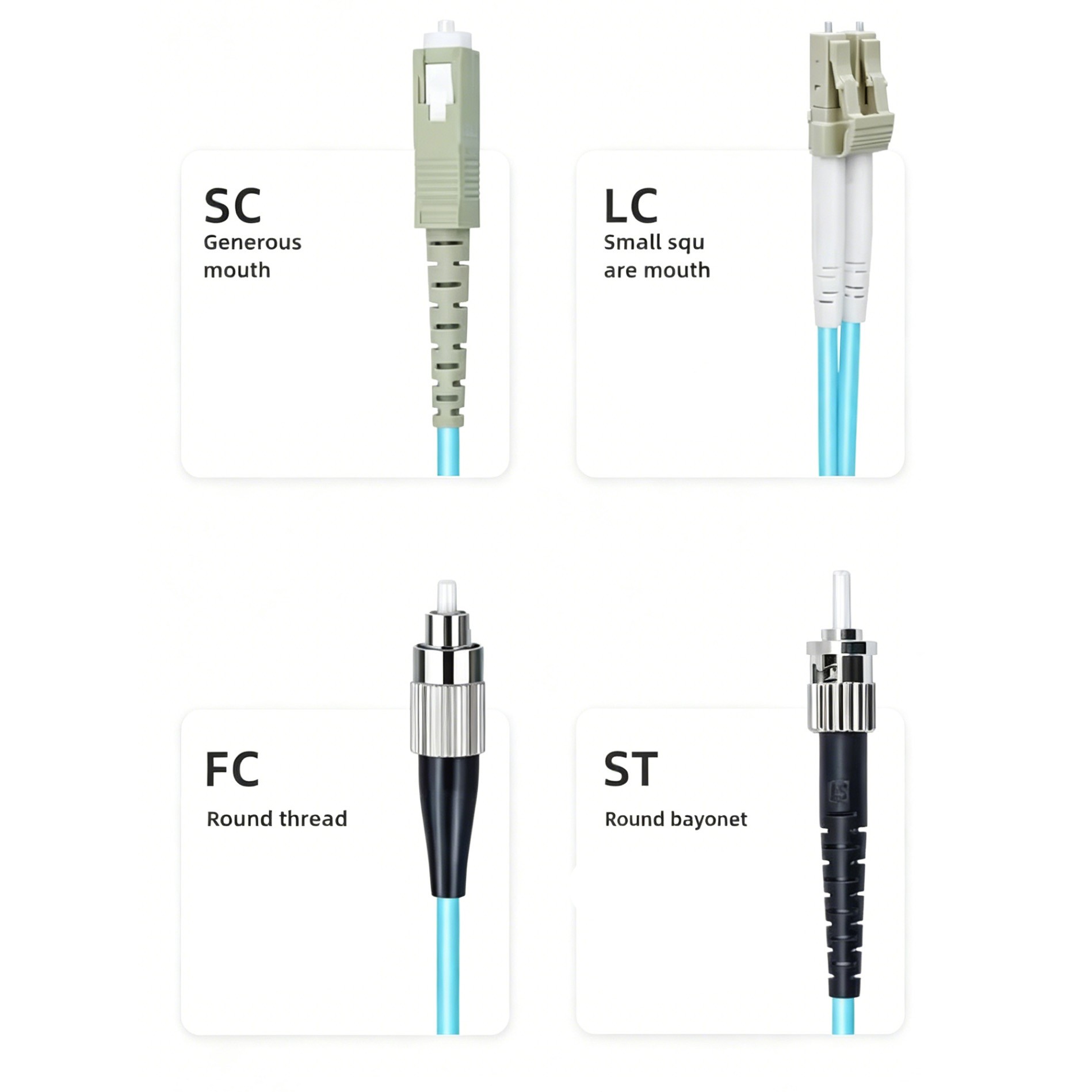

Connector Type: ST-ST

Features

Optional Length: 1M/ 2M/ 3M/ 5M/ 8M/ 10M/ 15M/ 20M/ 25M/ 30M/ 40M/ 45M/ 50M;

PVC outer skin: Flame retardant, Anti pulling & Bend-resistant

LSZH Jacket: The cable features a Low Smoke Zero jacket, ensuring fire safety and environmental protection, making it ideal for indoor network environments.

Using high-quality fiber cores to reduce Fiber Optic connection losses from conductors

Brand new A-grade fiber core：More stable data transmission, strong bending resistance, flexibility, high sensitivity, and strong resistance to electromagnetic interference

Both ends of the interface are equipped with dust caps to protect the plug from damage

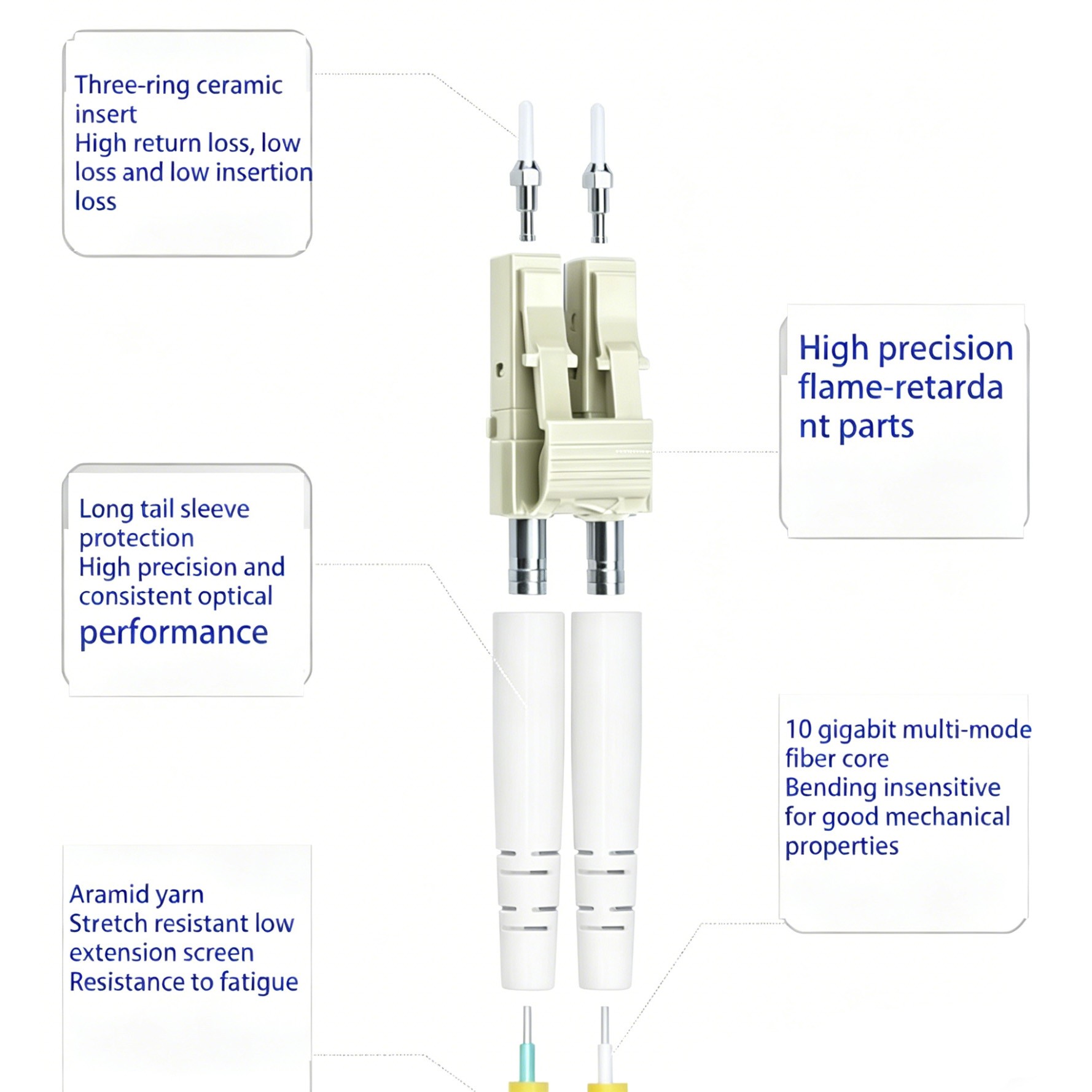

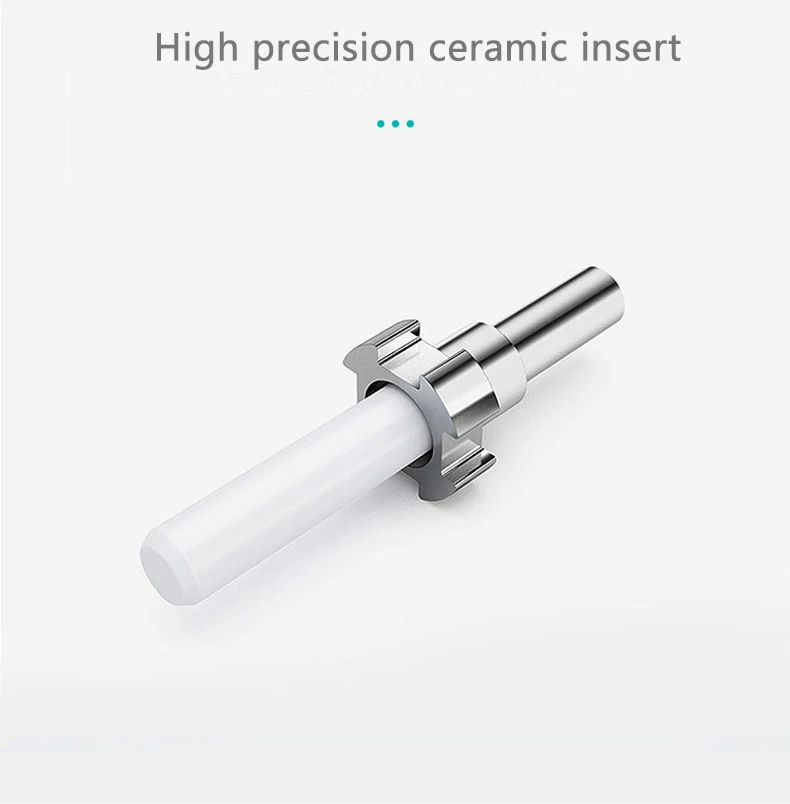

A-grade plug-in core, low loss, stable performance

Double wrapped with TPE and stainless steel ring, resistant to pulling during daily use and does not break

Specifications

10 Gigabit multimode duplex

Transmission wavelength : 850nm

Wire Diameter: 3.0mm

Insertion loss : Typical value ≤0.2dB, maximum ≤0.3dB

return loss :≥38dB

Bending radius :30mm

Insert and remove times: ≥1000 times

Operating temperature : -20°C~+60℃

Optional Models:
