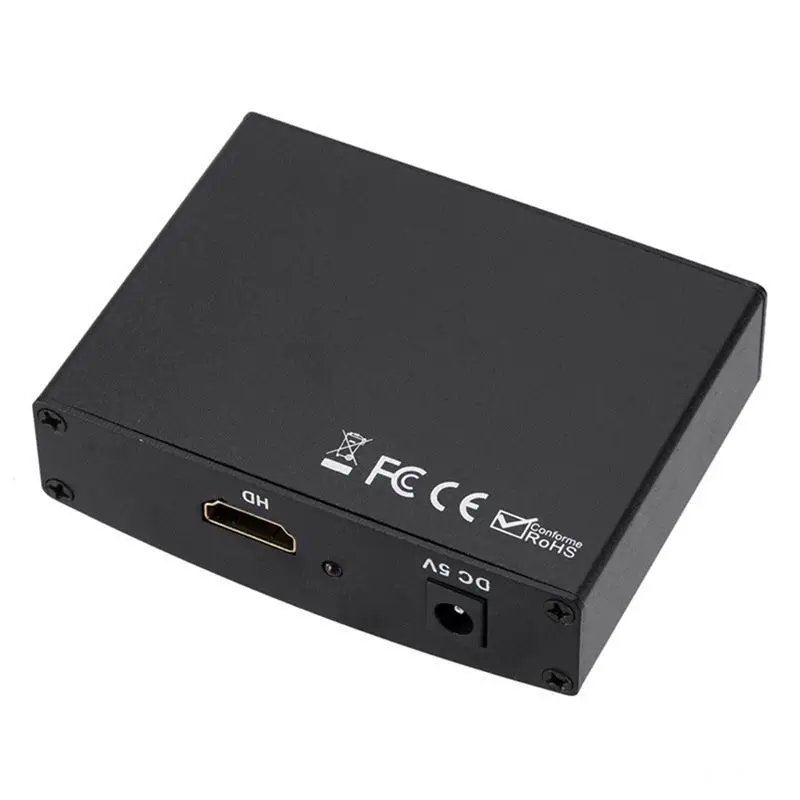

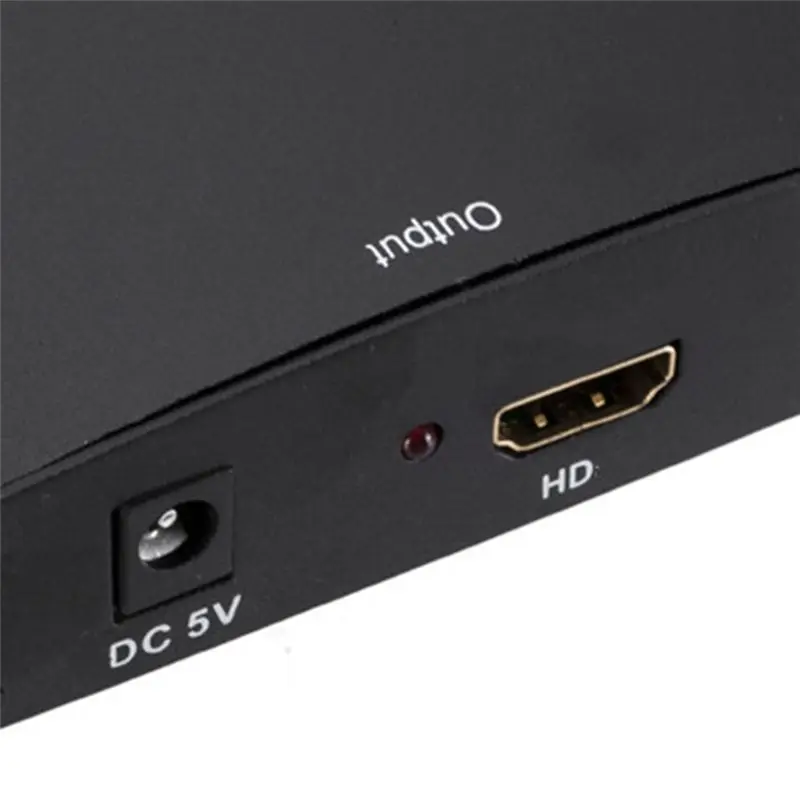

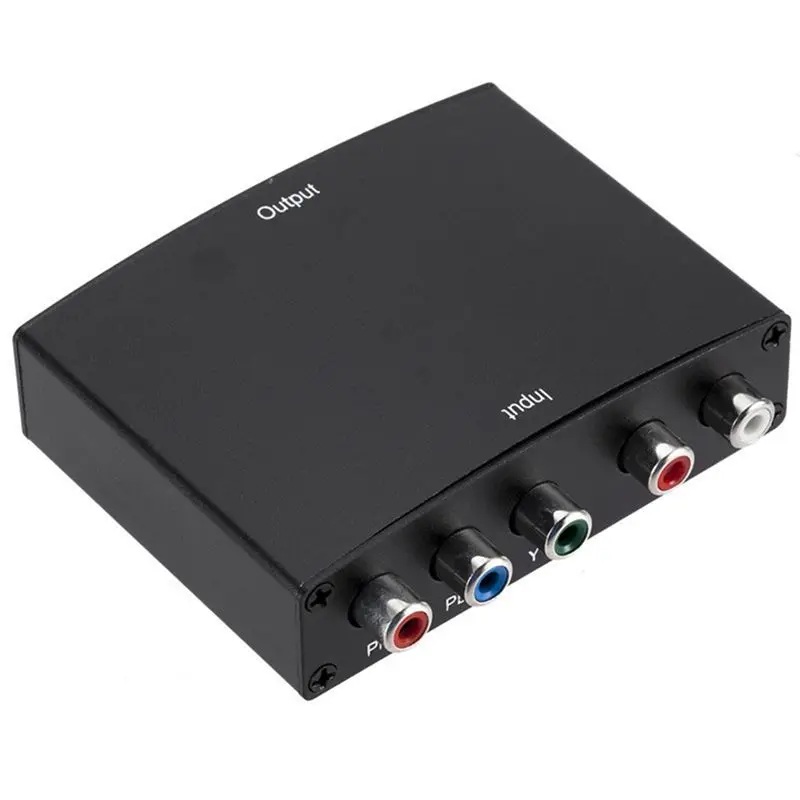

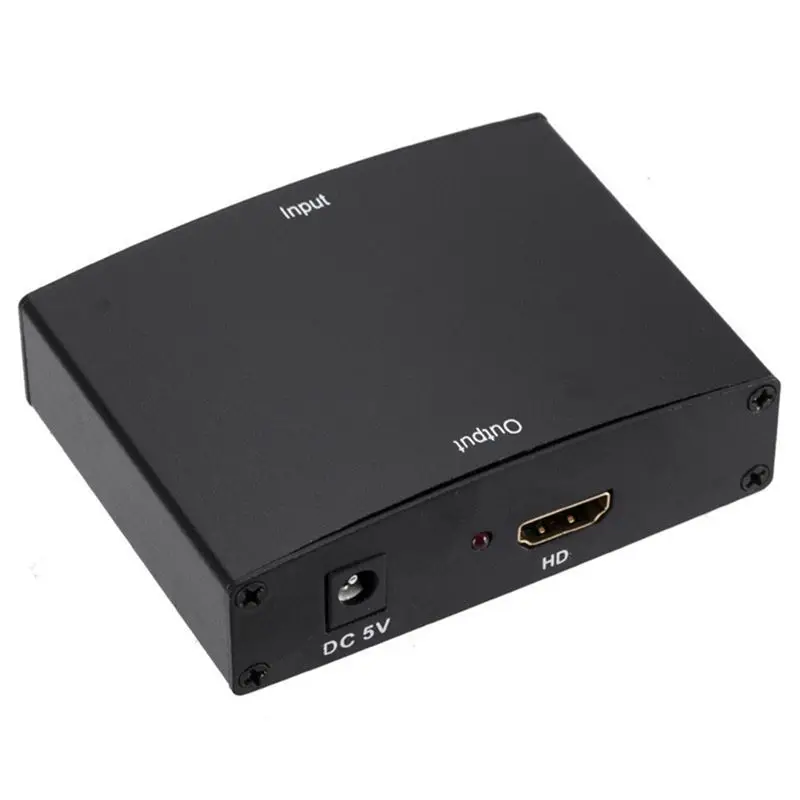

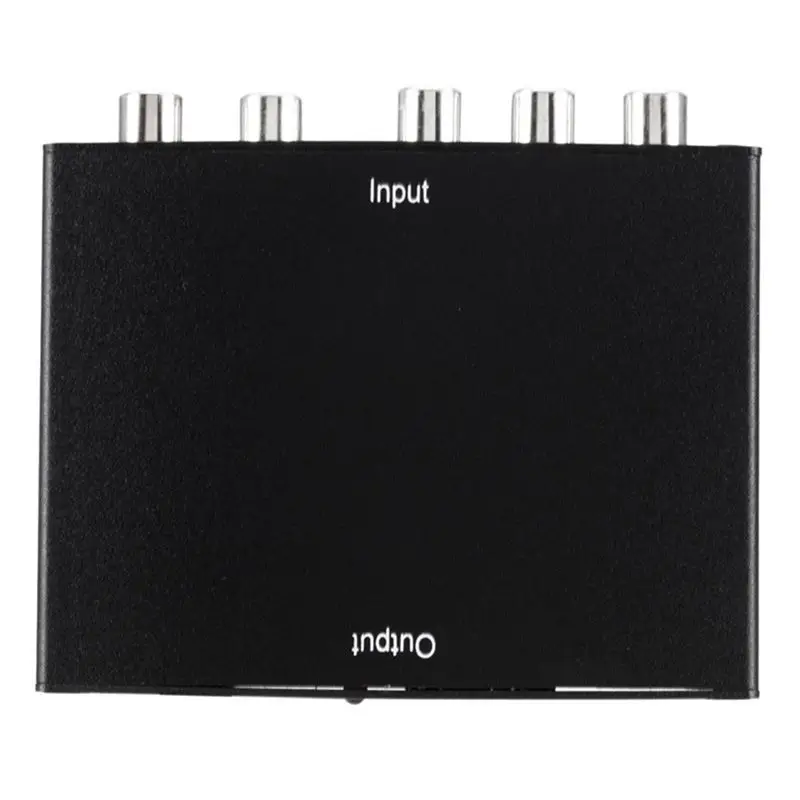

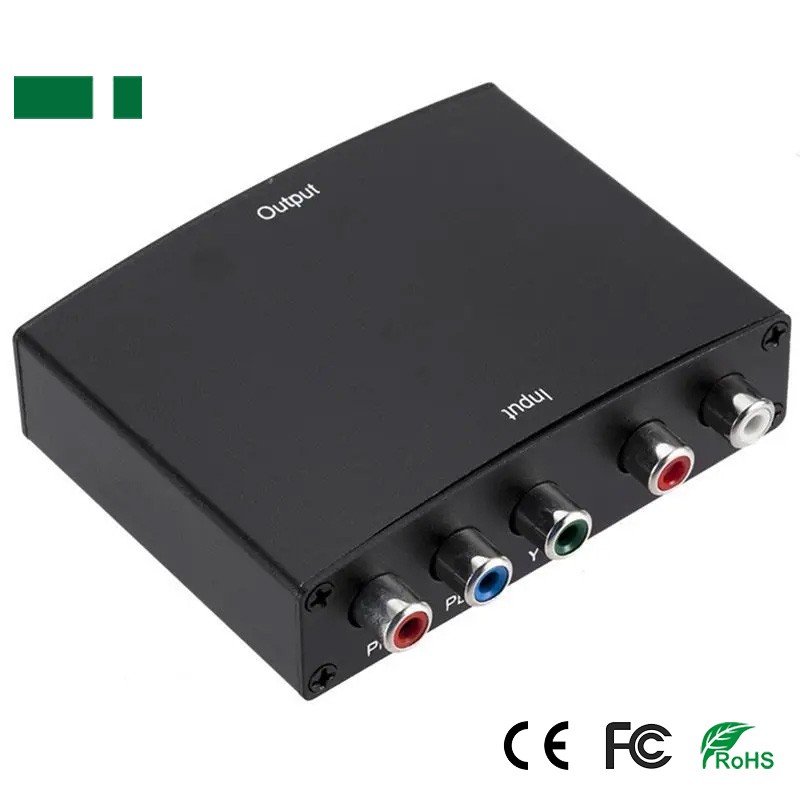

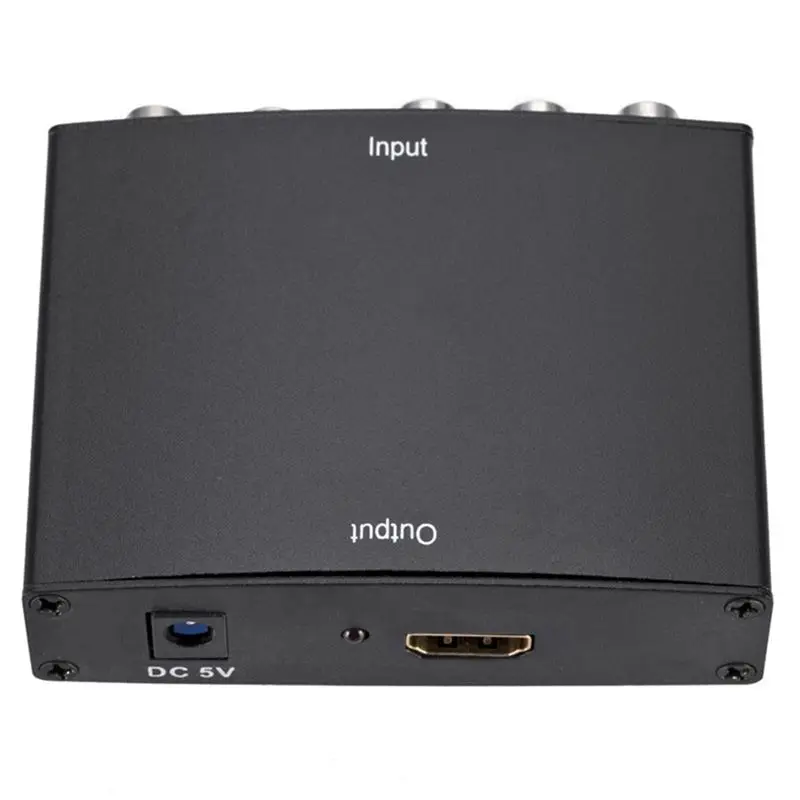

CVA-3043 YPBPR+L/R Audio To HDMI Converter

YPBPR+L/R Audio To HDMI Converter

1. Conversion with R/L Audio.

2. It provides solutions for digital entertainment centers, HDTV retail and performance venues, HDTV, STB, DVD and projector factories, noise space and safety issues.

3. It can also be used in data center control, information distribution, conference room demonstration, school and enterprise training environment.

4. This -compatible converter has many functions that enable it to operate in an excellent manner.

5. Easy to use without worrying about installation.

Feature:

1. Allows you to connect the YPbPr HDTV signal source to the -Compatible display;

2. Simulate the video signal into -Compatible video and audio;

3. Support HDTV/YPbPr;

4. Support the highest video resolution 1080P;

5. Support 165MHz/1.65Gbps per channel (6.75Gbps full channel) bandwidth;

6. Support 8bit per channel (24bit for all channels) deep color;

7. Support uncompressed audio, such as for DTS Digital, for Dolby Digital (including for DTS-HD and for Dolby True HD)

Specification:

Input DDC signal: 0.5-1.0 V p-p

-Compatible connector: Type A (19-pin) female

Video interface: 3 RCA component

Audio interface: 2 RCA component

Output video: -Compatible 1.3

Vertical frequency range: 50/60Hz

Input video amplifier bandwidth: 1.65Gbps/165MHz

Interlaced (50&60HZ): 480i, 576U, 10801

Progressive (50&60Hz): 480p, 576p, 720p, 1080p

Working temperature: 0 to +70°C

Working humidity: 10% to 85% RH (non-condensing)

Storage temperature: -10 to +80°C

Storage humidity: 5% to 95% RH (non-condensing)

External power supply: DC 5V/1A

Power consumption (maximum): 5W

size: about 88 x 68 x 25.5mm

Material: ABS

colour: black

Package Contents:

1 x HD Video Converter

1 x USB power cable
