Inquiry:
Model | CSC-OM1 | CSC-OM2 | CSC-OM3 | CSC-OM4 | CSC-SM |
Item | SC/UTP Duplex Fiber Optic Loopback Adapter | ||||
Fiber Type | OM1 | OM2 | OM3 | OM4 | SM |
Multi/Single Mode | MM: 62.5/125μm | multi-mode: 50/125μm | SM: 9/125μm | ||
Connector | SC/UTP | ||||
Insertion Loss | ≤0.2dB | ||||
Consistency | 0.1dB | ||||
Return loss | PC≥45dB; UPC≥50dB; APC≥60dB. | ||||
Wavelength | 850nm, 1300nm | ||||
Usage times | 1000 times | ||||
Type of Ferrule | ceramics | ||||
Operating Temperature | —40℃~85℃ | ||||
Storage Temperature | —55℃~85℃ | ||||

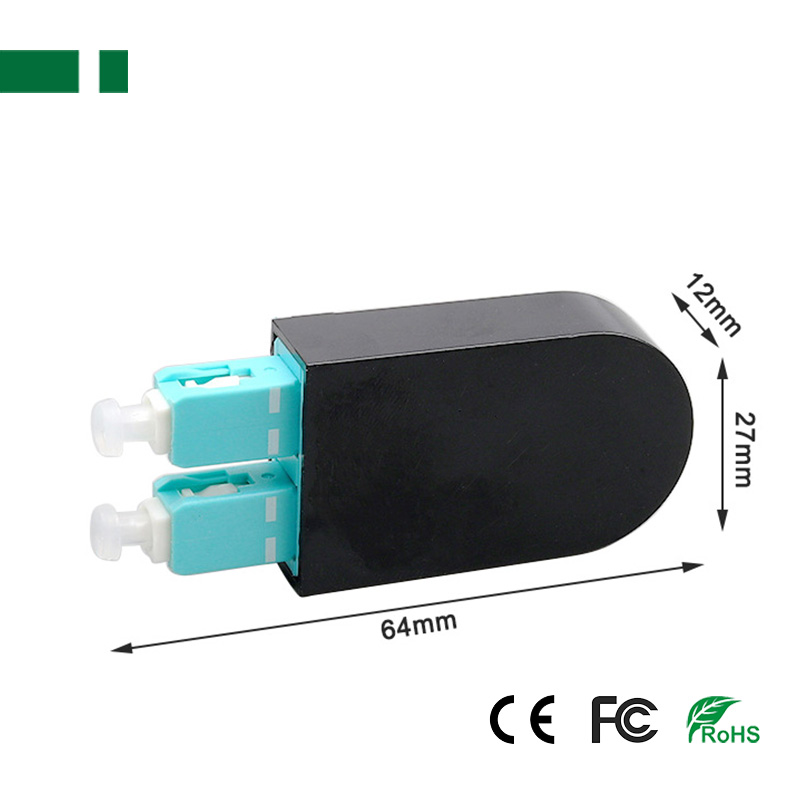

Size | 64*27*12mm | ||||
Weight | 13g | ||||
Package | 100pcs/pack, 160*270mm, 1306g |
