Product Parameter :
>>more
◆ Used to convert RS-232 to RS-485
◆ Port protection: 600W surge protection 15Kv static protection
◆ Port powered no external power supply required

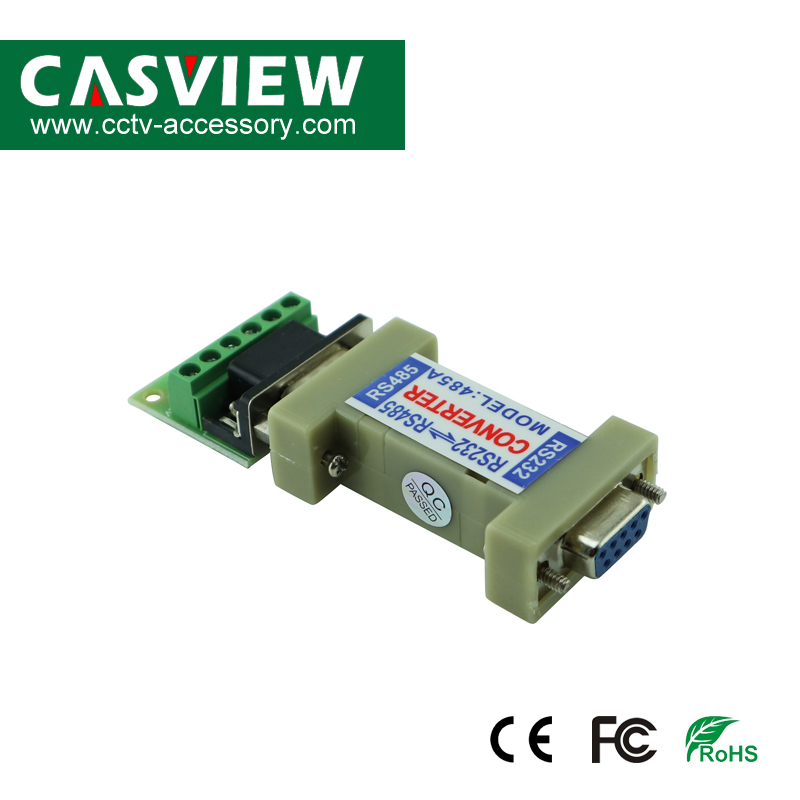

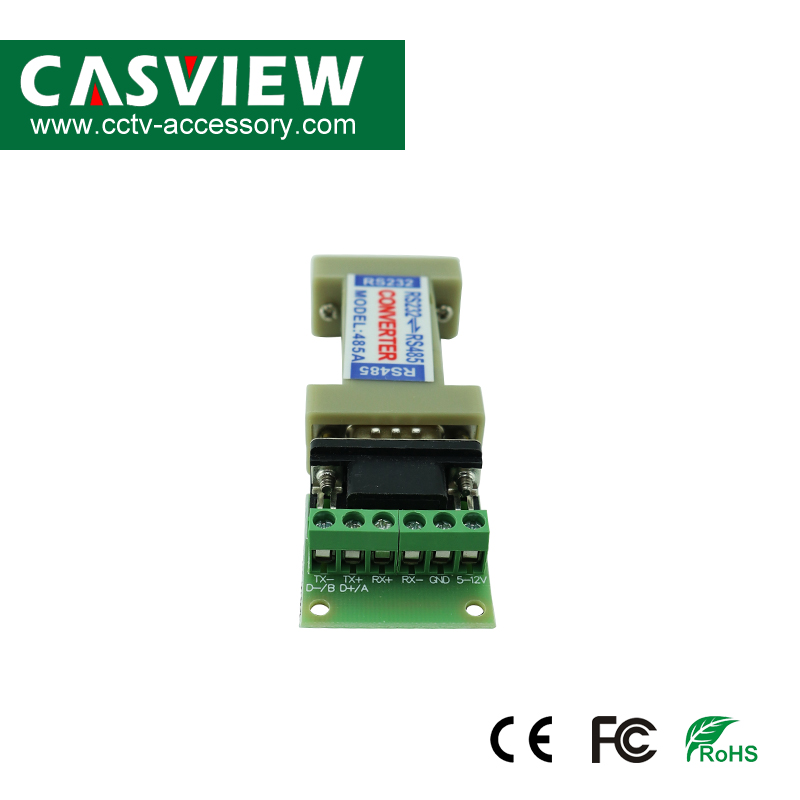

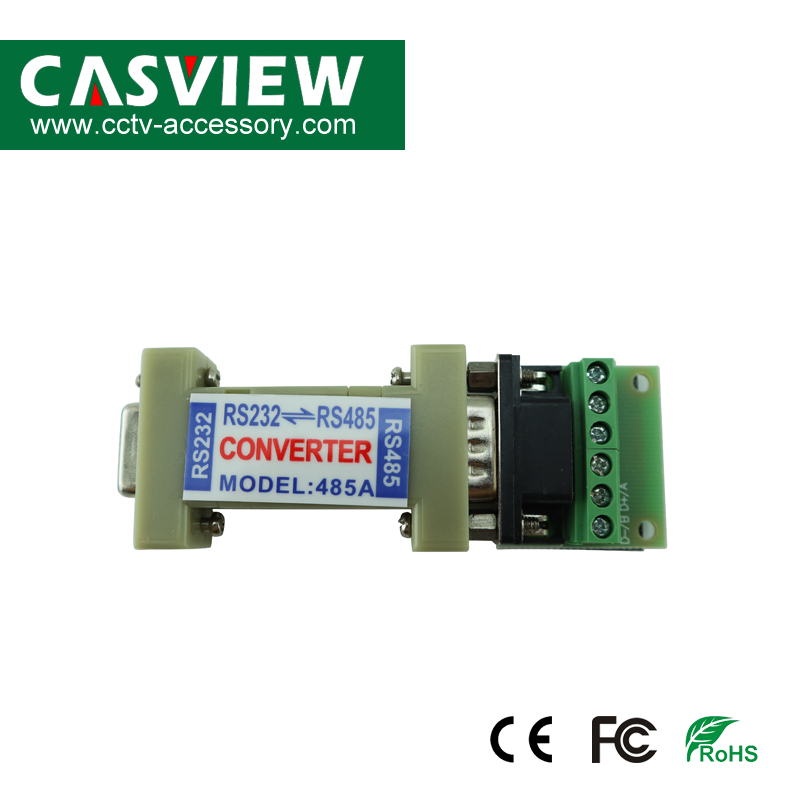

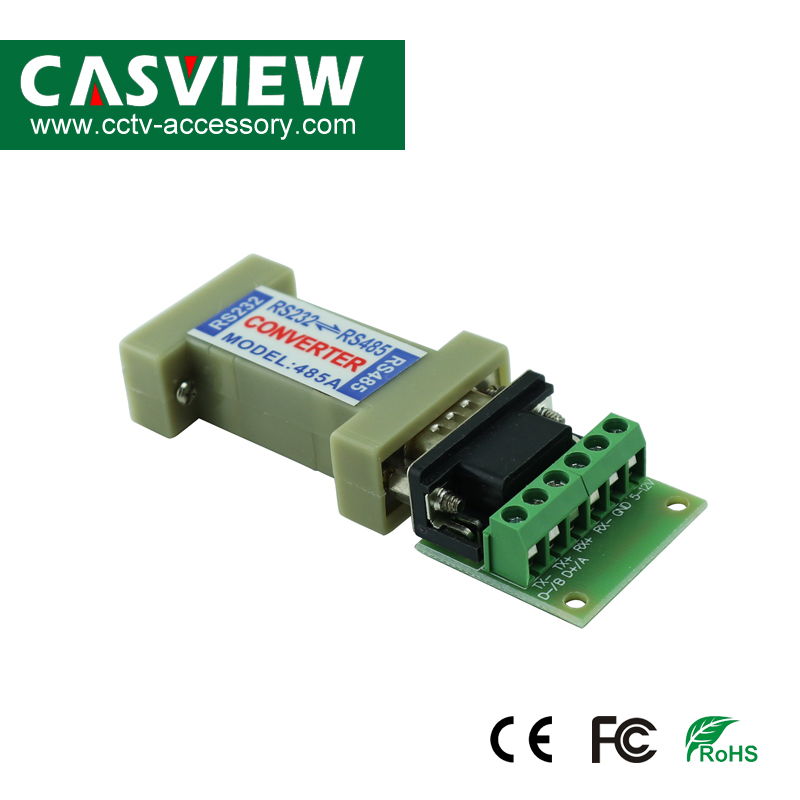

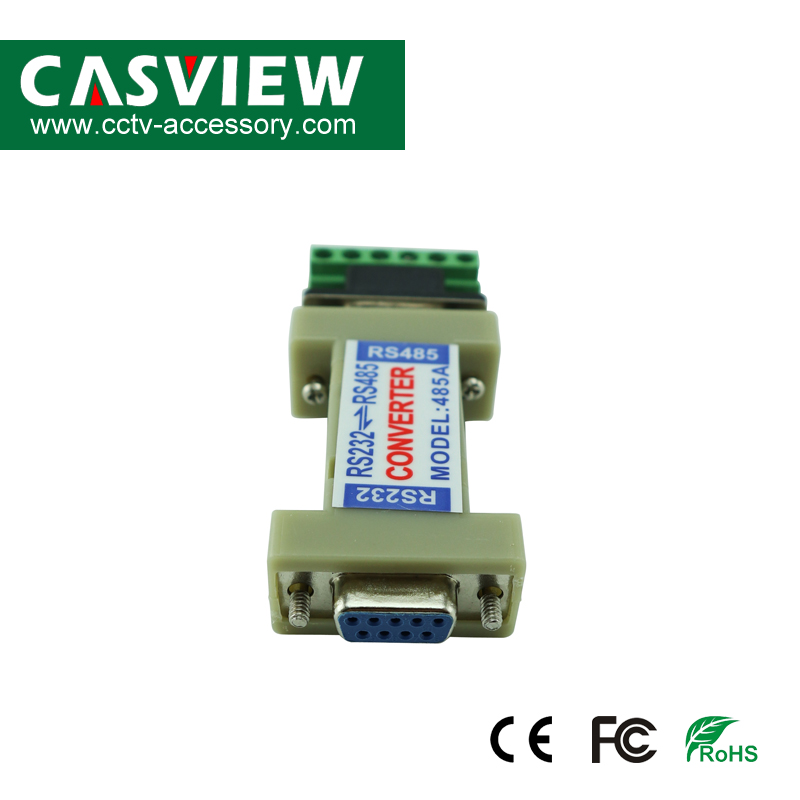

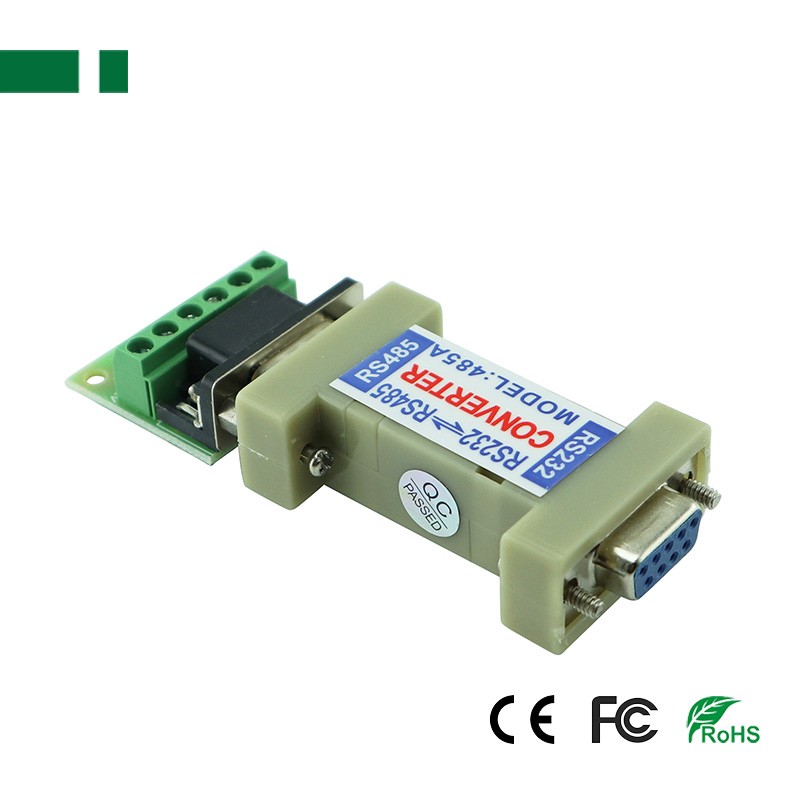

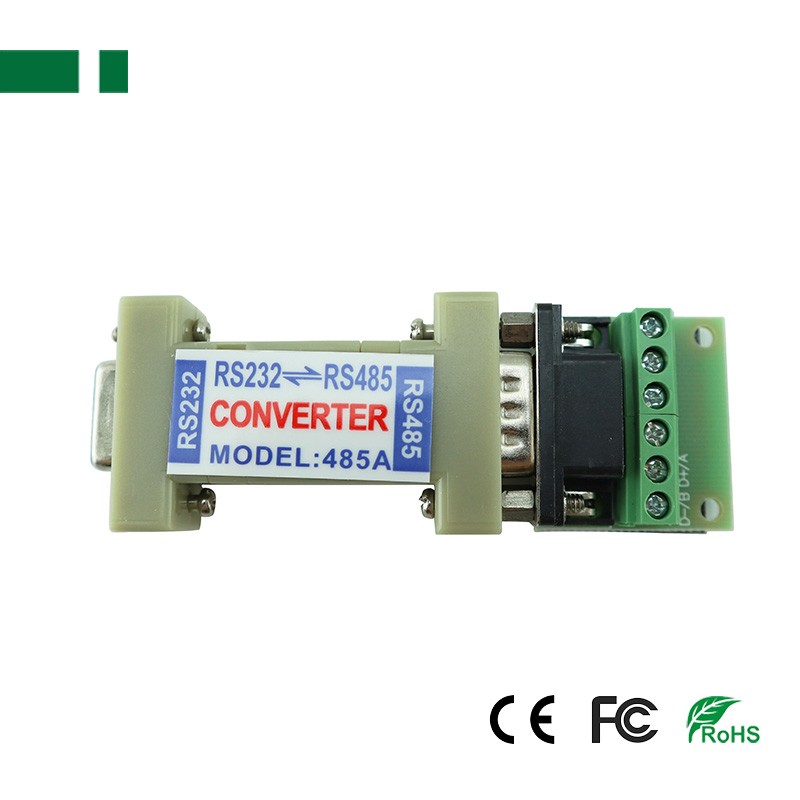

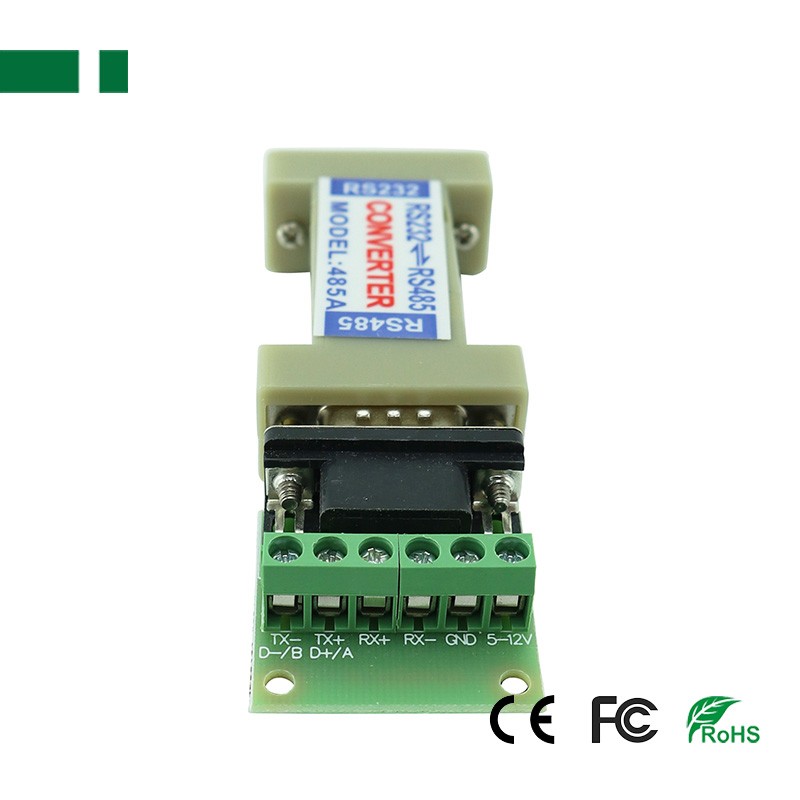

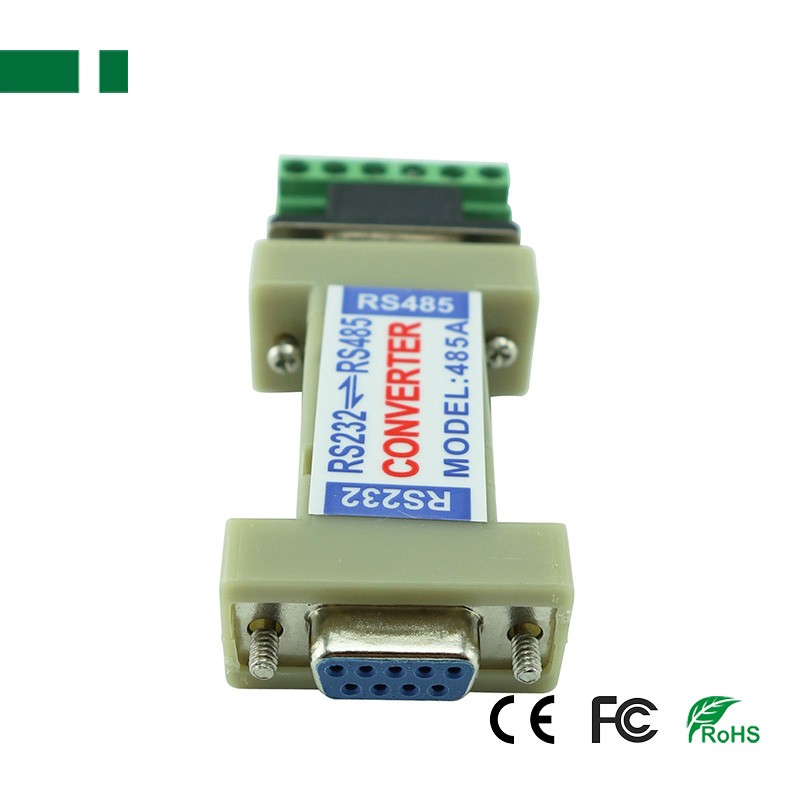

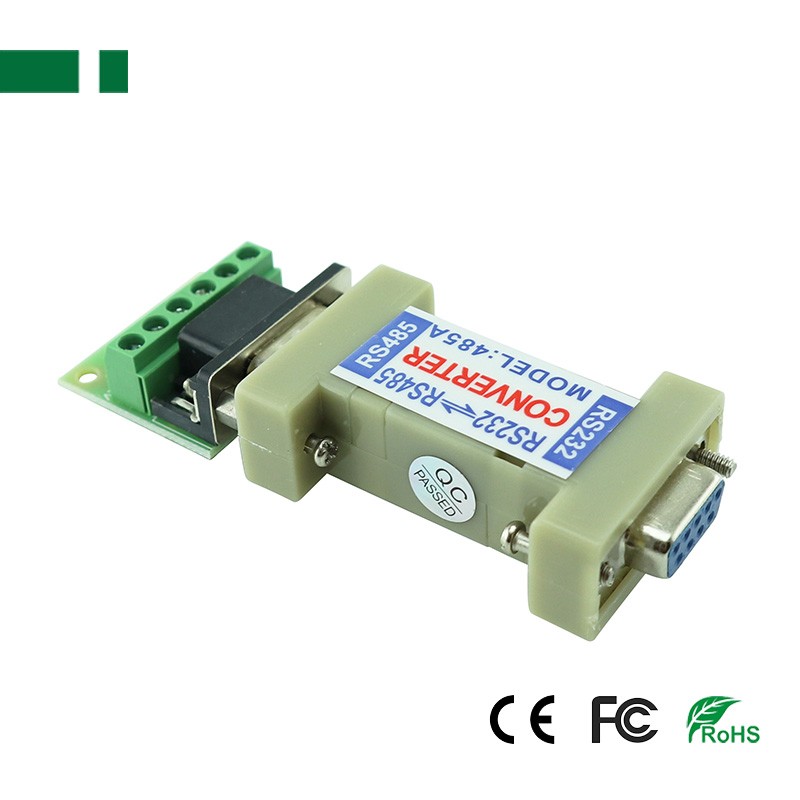

| Model | CRS-AD485A |
| Interface | Conforms to ETA/TIA RS-232C RS-485 standards |
| Interface RS232 side | DB9 female connector |

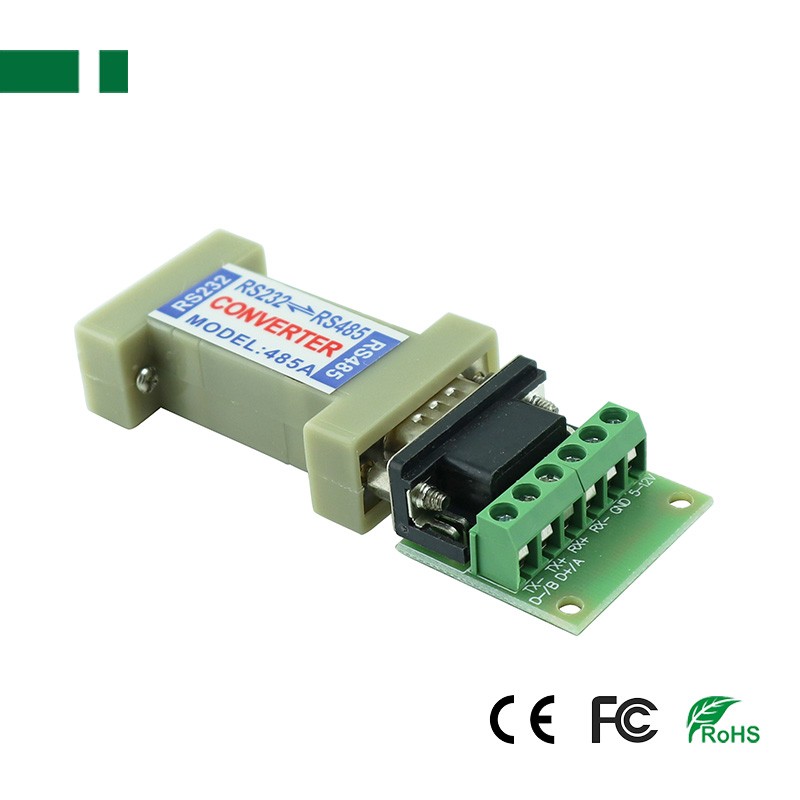

| Interface RS485 side | DB9 male connector with optional terminal board |
| Working mode | asynchronous, half-duplex, differential transmission |
| Transmission media | common wire, double wire or UTP or Shielding Line |
| Transmission rate | 300 - 115200bps |
| Transmission distance | RS485 max. 1200m, RS232 side max. 5m. |
| Telecommunication agreement | Transparent |
| Signals | RS-232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, CND, RS-485: Date+, Date-, GND. |
| Operating Environment | -40°C to +85°C |
