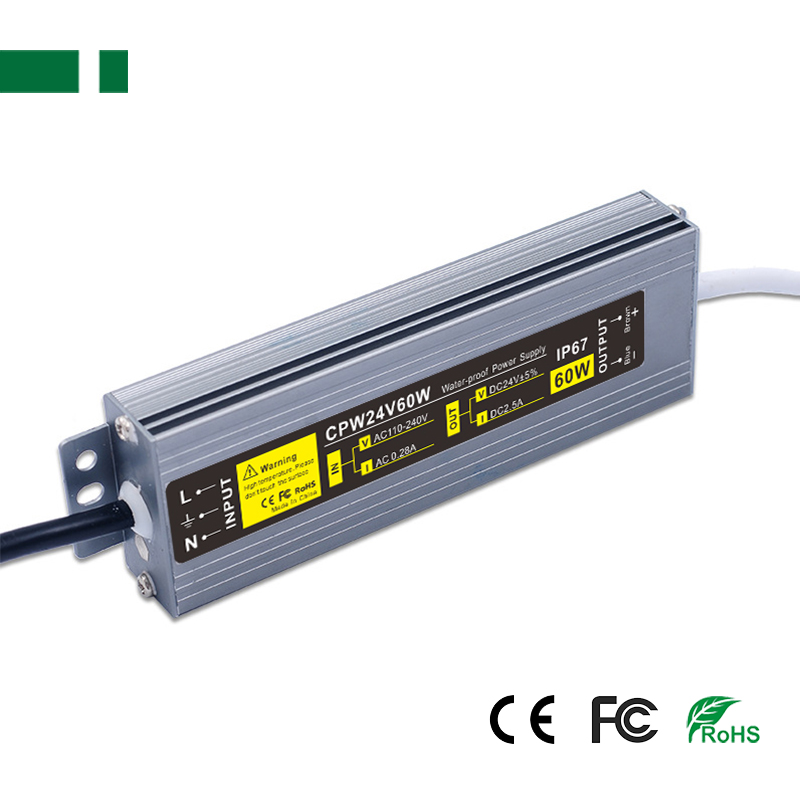

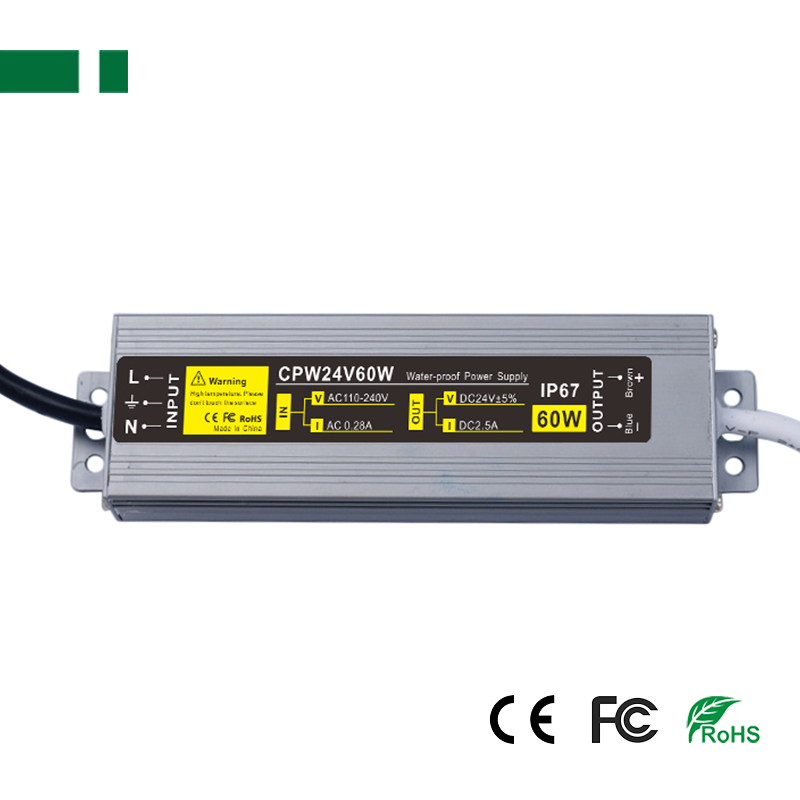

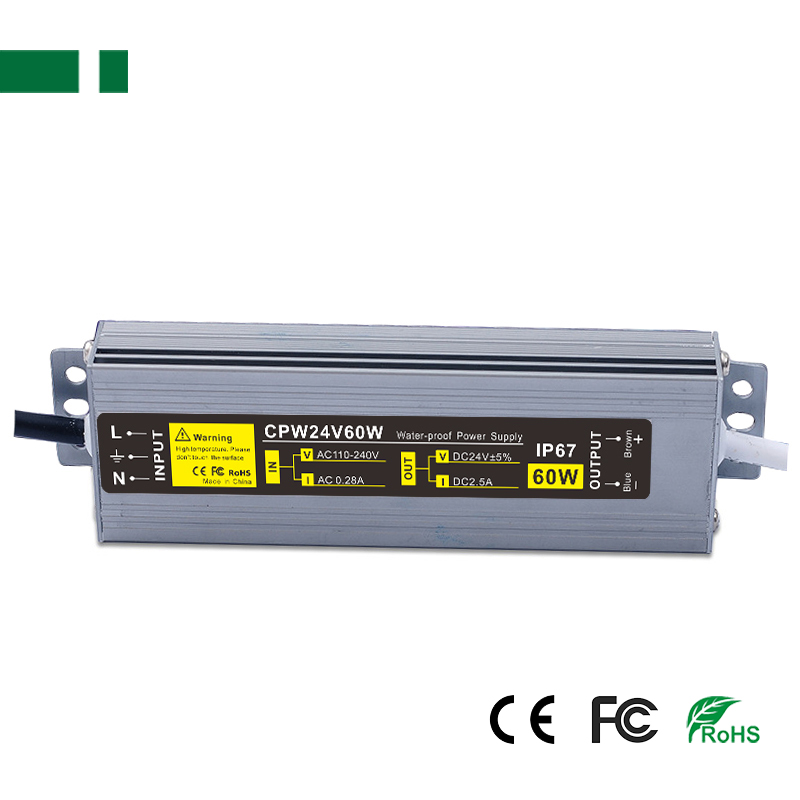

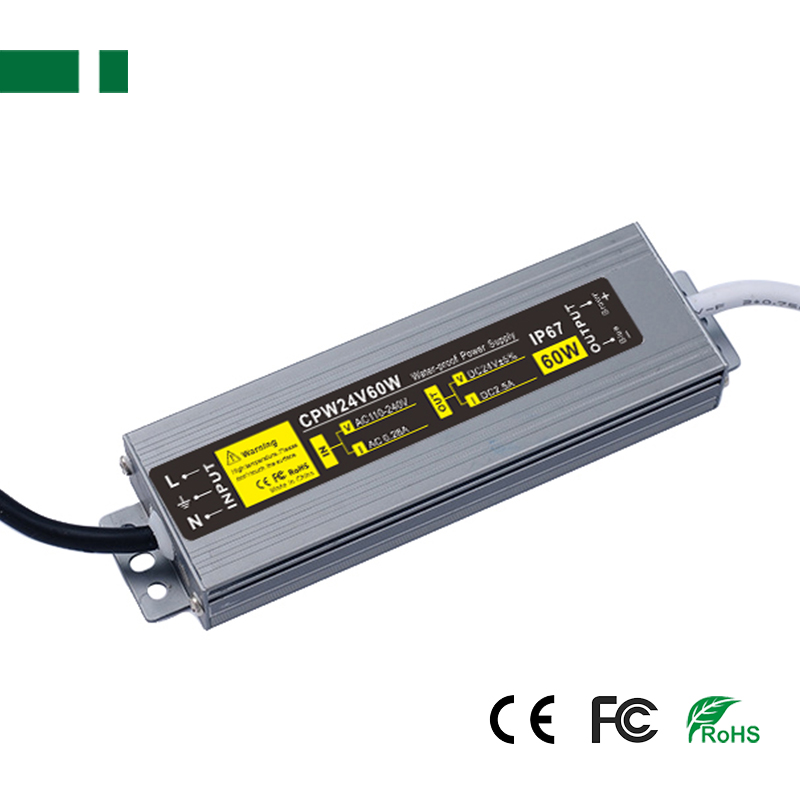

CPW24V60W Water Proof Power Supply

  • 60W Water proof Power Supply
  • Input voltage range: 90~240VAC
  • Waterproof grade IP65 or IP67
  • DC12V and DC24V optional
  • Product description: Waterproof AC-DC power supply is available in many configurable power variations, including Waterproof 12V AC-DC power supply, waterproof 24V AC-DC power supply, and waterproof grade IP65 or IP67.
  • INQUIRY   EMAIL

Features:

1. 60W Single Output Water-proof Power Supply
2. Output voltage & current: DC24V 2.5A
3. Input voltage range: 90~240VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);

DC12V-DC24V Waterproof AC-DC power supply for LED Lightbox
More Model DC Output Input Voltage Input Current Dimension Weight
CPW24V20W DC24V 0.83A 20W 90~240VAC 0.2A/115V, 0.1A/230V 168*22*20mm 140g
CPW24V30W DC24V 1.25A 30W 90~240VAC 0.28A/115V, 0.14A/230V 172*22*20mm 200g
CPW24V50W DC24V 2.1A 50W 90~240VAC 0.46A/115V, 0.23A/230V 267*22*20mm 230g
CPW24V60W DC24V 2.5A 60W 90~240VAC 0.56A/115V, 0.28A/230V 155*44*20mm 260g
CPW24V100W DC24V 4.15A 100W 90~240VAC 0.88A/ 115V, 0.44A/ 230V 180*54*20mm 380g
CPW24V150W DC24V 6.25A 150W 90~240VAC 1.34A/115V, 0.67A/230V 225*54*20mm 460g
CPW24V200W DC24V 8.35A 200W 180~260VAC 0.9A/230V 225*65*30mm 800g
CPW24V300W DC24V 12.5A 300W 180~260VAC 1.1A/230V 235*76*36mm 1050g
CPW24V400W DC24V 16.7A 400W 180~260VAC 1.8A/230V 255*76*36mm 1220g

Specification:

Model CPW12V60W CPW24V60W
Output DC output Voltage 12V±5% 24V±5%
Output Current Range 0-5A 0-2.5A
Wave and Noise 120mVp-p
DC output Power 60W
Efficiency 0.85
DC Voltage Adjustable Scope (at full load)≦0.5%
Input Voltage Range 90~240VAC      47-63Hz
Input Current 0.56A/115V, 0.28A/230V
Leakage Current <1mA/ 240VAC
Inrush Current Cold start 36A/ 230VAC
Protection Over-load 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over-voltage 105%---150% Rated Voltage, Protection type: Shut off
High-temperature RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment Working temperature and humidity -10°C~+50°C,   20~90%RH
Store temperature and humidity -20°C~+85°C,   10~95%RH
Temperature coefficient ±0.03%°C(0~50°C)
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety Withstand voltage I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Standard CE EMC Standard EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
CE LVD Standard EN61347-2-13:2014+A1:2017, EB61347-1:2015
ROHS Standard IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.

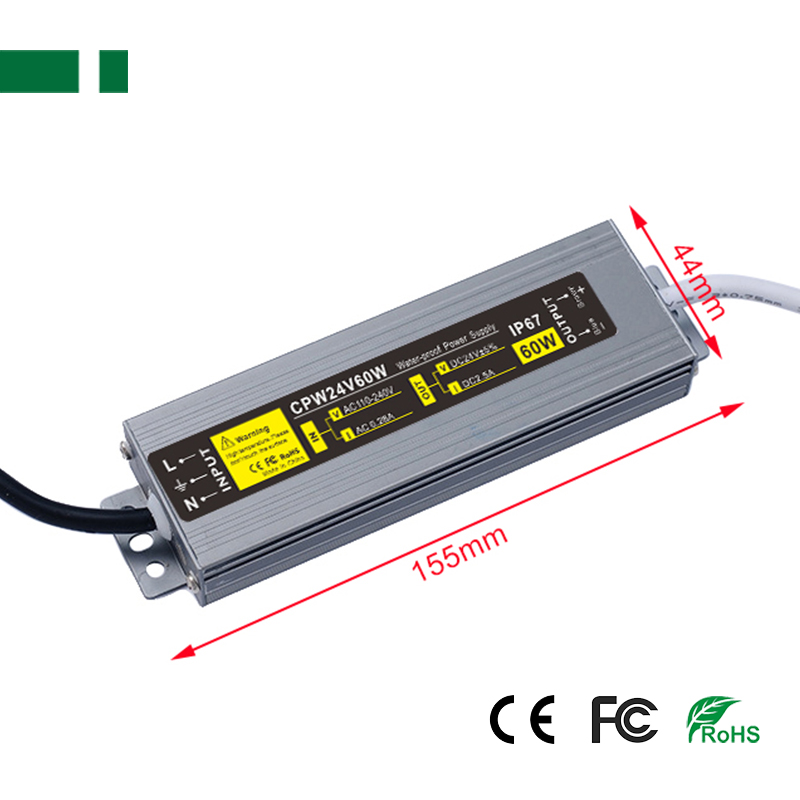

Other Dimension 155*44*20mm (L*W*H)
Weight 0.26kg
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. I/P-O/P: Input and output interval,  I/P-FG: Input and enclosure,  O/P-FG: Output and enclosure
