● Power Input: DC44V-57V;
● Power Output: DC24V, 3A
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Data Pin: 1/2: (+), 3/6: (-), 4/5(+), 7/8(-);

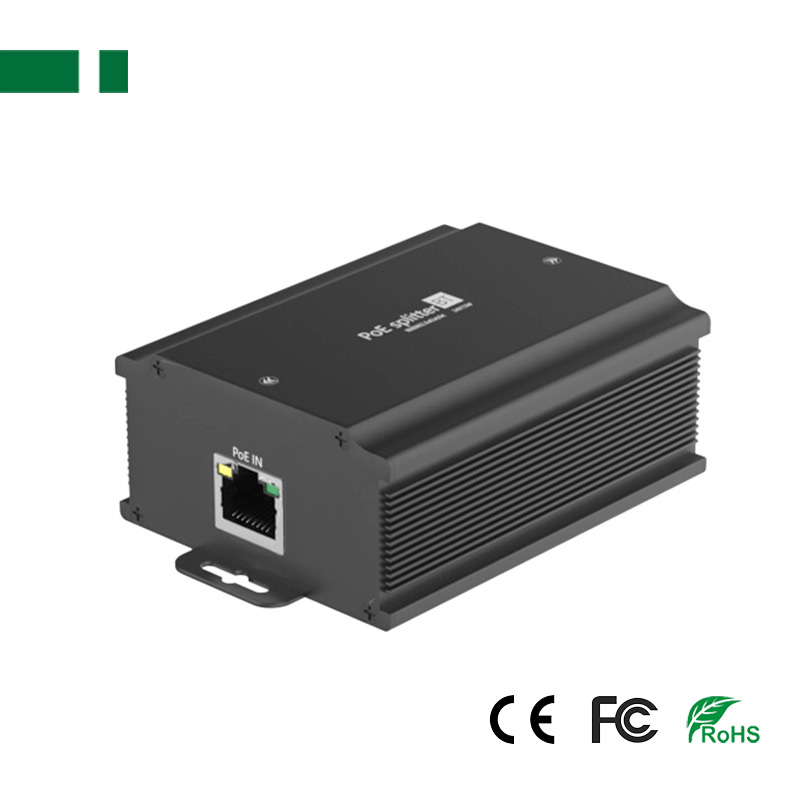

This DC48V-to-DC24V PoE Splitter working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device.
Description:
This DC48V-to-DC24V PoE Splitter working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.
Features:
● 10/100/1000Mbps POE Splitter;
● Power Input: DC44V-57V;
● Power Output: DC24V, 3A;

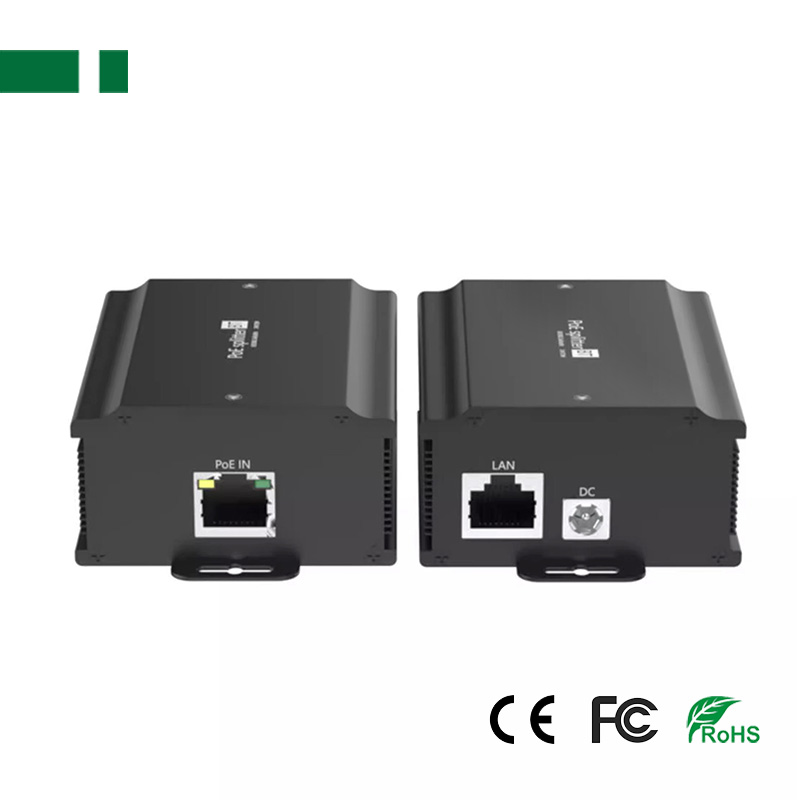

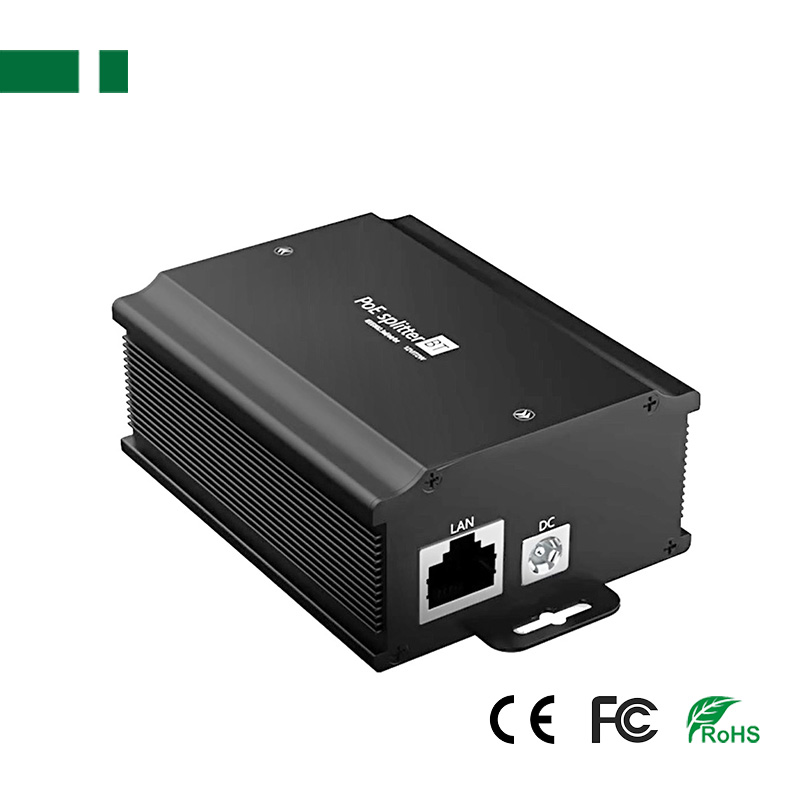

● Ports: RJ45(PoE) + RJ45(LAN) + DC Male Plug Interface;
● Network Speed: IEEE802.3at/af;
● Network Speed: 10/100/1000Mbps;
● Data Pin: 1/2: (+), 3/6: (-), 4/5(+), 7/8(-);
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Supports various DC Power Adapters and Solar Power Battery Packs.
Speicification:
| 1.0Gbps DC48V-to-DC5V/ DC12V/ DC24V POE Splitter | |||||
| Model | CPOE-11G | CPOE-11GMU | CPOE-11GTC | CPOE-12G | CPOE-12G-24V |
| Ports | PoE (RJ45) + LAN (RJ45) + DC 5.5*2.1mm Interface | ||||
| PoE Support | IEEE802.3at/af | ||||
| Power Input | DC44V-57V | DC44V-57V | DC44V-57V | DC44V-57V | DC44V-57V |
| DC Output | DC12V, 2A | DC5V, 4A | DC5V, 4A | DC12V, 6A | DC24V, 3A |
| DC Cable | 5.5*2.1mm DC Cable | DC-to-Micro USB Cable | DC-to-Type-C Cable | 5.5*2.1mm DC Cable | 5.5*2.1mm DC Cable |
| Data Speed | 10/100/1000Mbps | 10/100/1000Mbps | |||
| Data Pin | 1/2(+), 3/6(-), 4/5(+), 7/8(-) | 1/2(+), 3/6(-), 4/5(+), 7/8(-) | |||
| Power Pin | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) | ||||
| Extend Distance | 0~100M | ||||
| Network Cable | Un-shielded or Shielded Cat5E, Cat6 or Better | ||||
| Temperature | Working: -10℃~+50℃, Store: -20℃~+85℃ | ||||
| Humidity | Working: 20~90%RH, Store: 10~95%RH | ||||
| Material | ABS Plastic Housing | Metal Housing | |||
