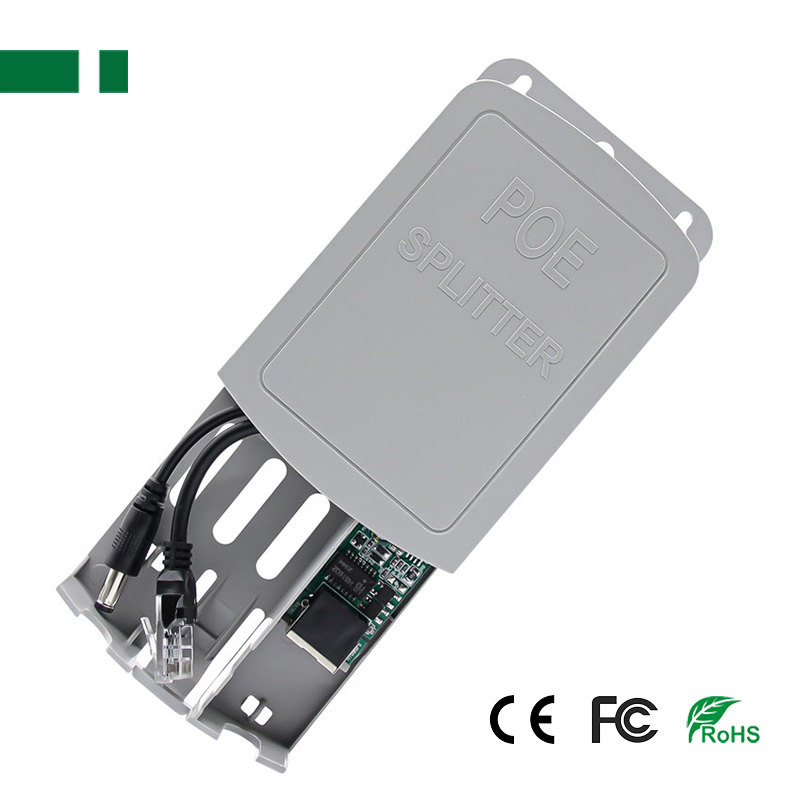

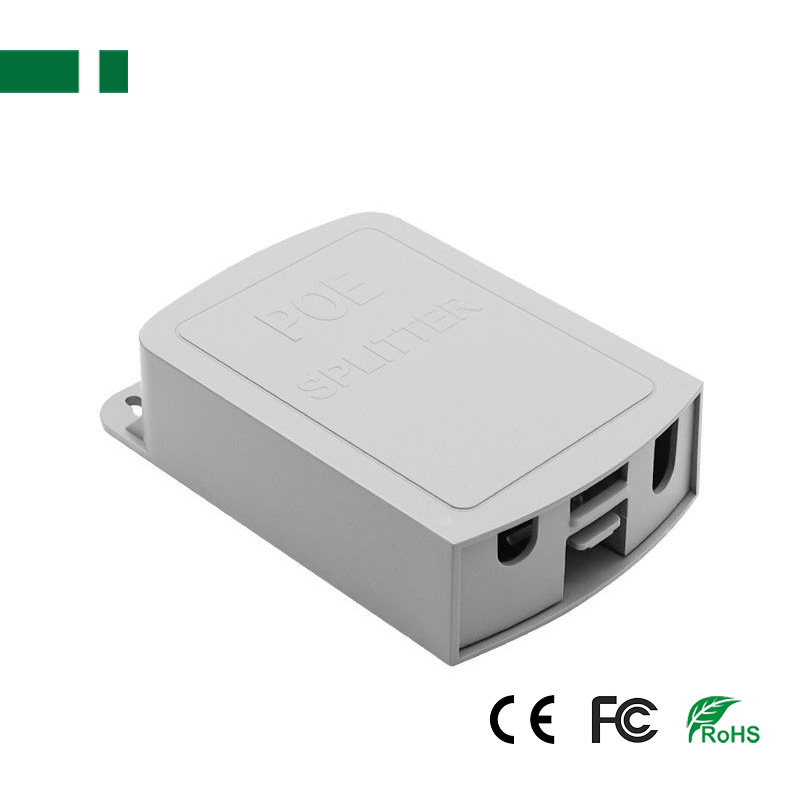

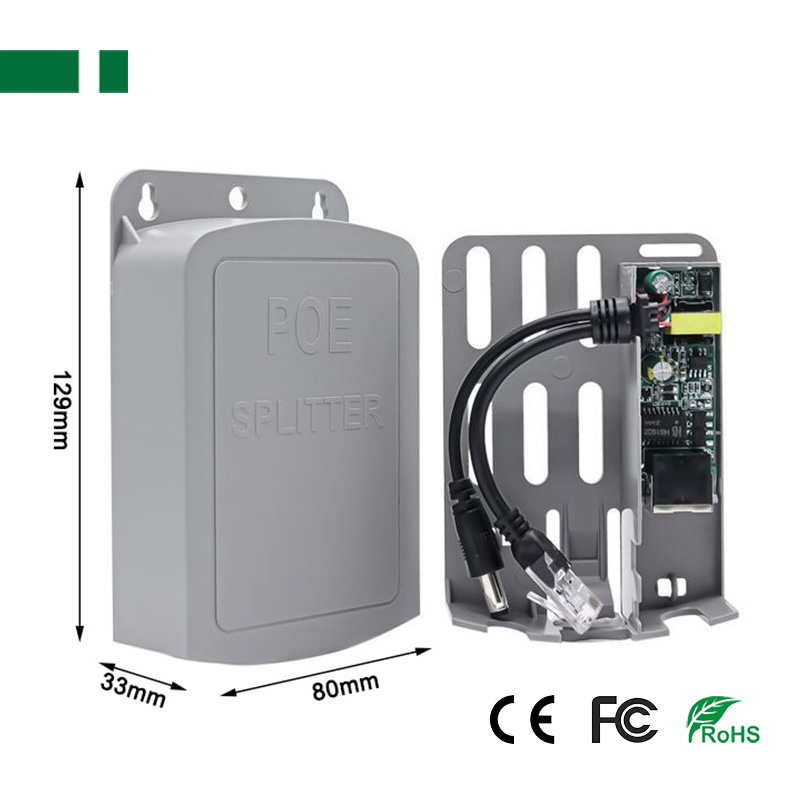

CPOE-07RG DC48V-to-DC12V 1.0Gbps Rainy-proof Isolated POE Cable

CPOE-07RG DC48V-to-DC12V 1.0Gbps Rainy-proof Isolated POE Cable

● Power Input: DC44V-57V;
● Power Output: DC12V, 2A
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Data Pin: 1/2: (+), 3/6: (-), 4/5(+), 7/8(-);
Product description: This DC48V-to-DC12V Rainy-proof PoE Cable working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device.
INQUIRY EMAIL

Description:
This DC48V-to-DC12V Rainy-proof PoE Cable working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.

Features:
● 10/100/1000Mbps Rainy-proof Isolated POE Splitter Cable;
● Power Input: DC44V-57V;
● Power Output: DC12V, 2A;
● Ports: RJ45(PoE) + RJ45(LAN) + DC Male Plug Interface;
● Network Speed: IEEE802.3at/af;
● Network Speed: 10/100/1000Mbps;
● Data Pin: 1/2: (+), 3/6: (-), 4/5(+), 7/8(-);
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Supports various DC Power Adapters and Solar Power Battery Packs.

Speicification:

100Mbps & 1.0Gbps DC48V-to-DC12V Rainy-proof POE Cable
Model	CPOE-07R	CPOE-07RA	CPOE-07RG

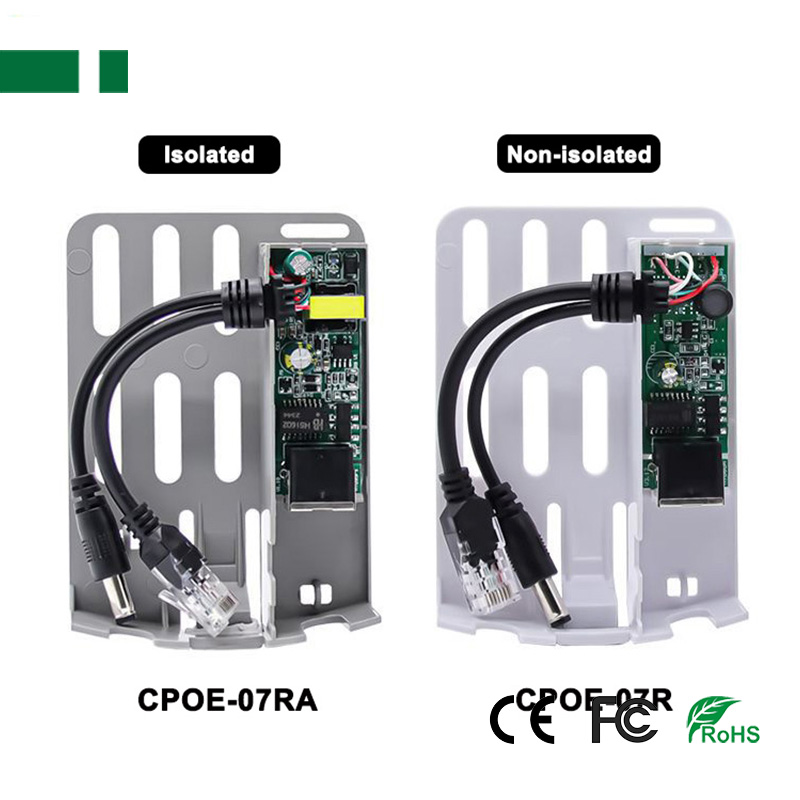

Feature	Non-isolated Type	Isolated Type
Ports	PoE (RJ45) + LAN (RJ45) + DC 5.5*2.1mm Interface
PoE Support	IEEE802.3at/af
Power Input	DC44V-57V	DC44V-57V	DC44V-57V
DC Output	DC12V, 1.2A	DC12V, 1.2A	DC12V, 2A
DC Connector	5.5*2.1mm DC Male Plug
Data Speed	10/100Mbps	10/100Mbps	1.0Gbps
Data Pin	1/2: (+), 3/6: (-)	1/2: (+), 3/6: (-)	1/2(+), 3/6(-), 4/5(+), 7/8(-)
Power Pin	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Extend Distance	0~100M
Network Cable	Un-shielded or Shielded Cat5E, Cat6 or Better
Temperature	Working: -10℃~+50℃, Store: -20℃~+85℃
Humidity	Working: 20~90%RH, Store: 10~95%RH
Material	ABS Plastic Housing
