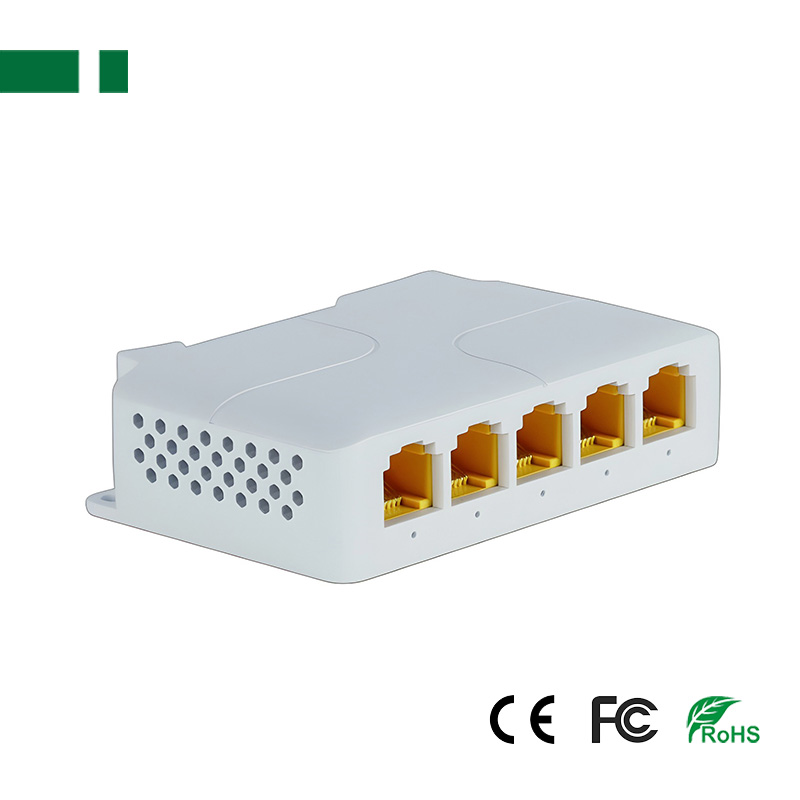

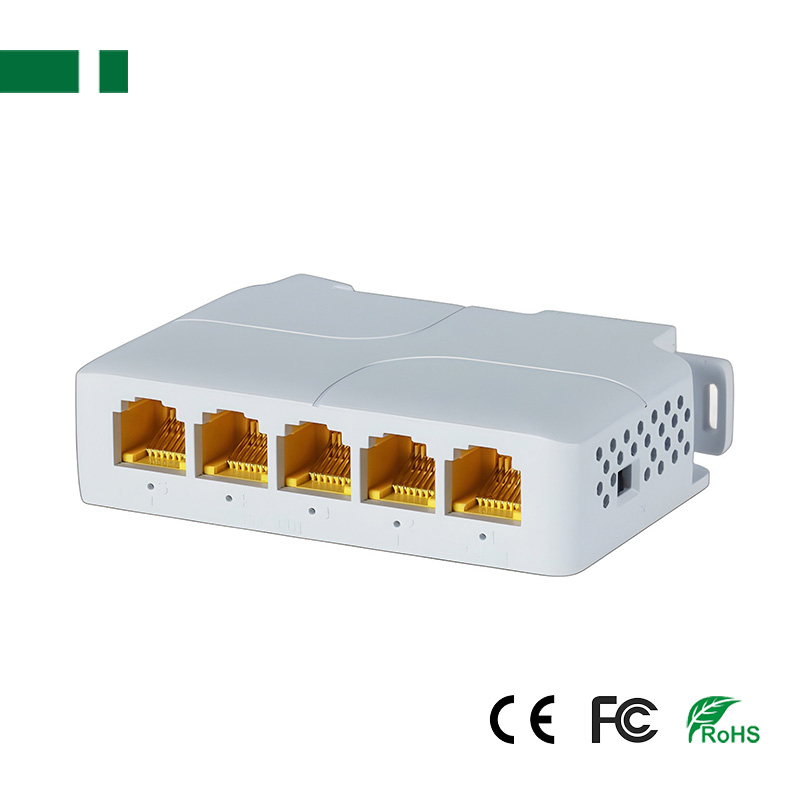

5 Ports 10/100/1000Mbps POE Cascade
POE In: 44V-57V/90W
POE Output: 44V-57V(3-5) 30W/ 60W
support IEEE 802.3af/at standard POE power supply
The POE extension device provides four 100Mbps or 1000Mbps power supply ports and one 100mbps or 1000Mbps up-link power supply port.
Description：
The POE extension device provides four 100Mbps or 1000Mbps power supply ports and one 100mbps or 1000Mbps up-link power supply port. 1-4 ports support IEEE 802.3af/at standard POE Power Supply, and the POE power of a single port is up to 30Watt.

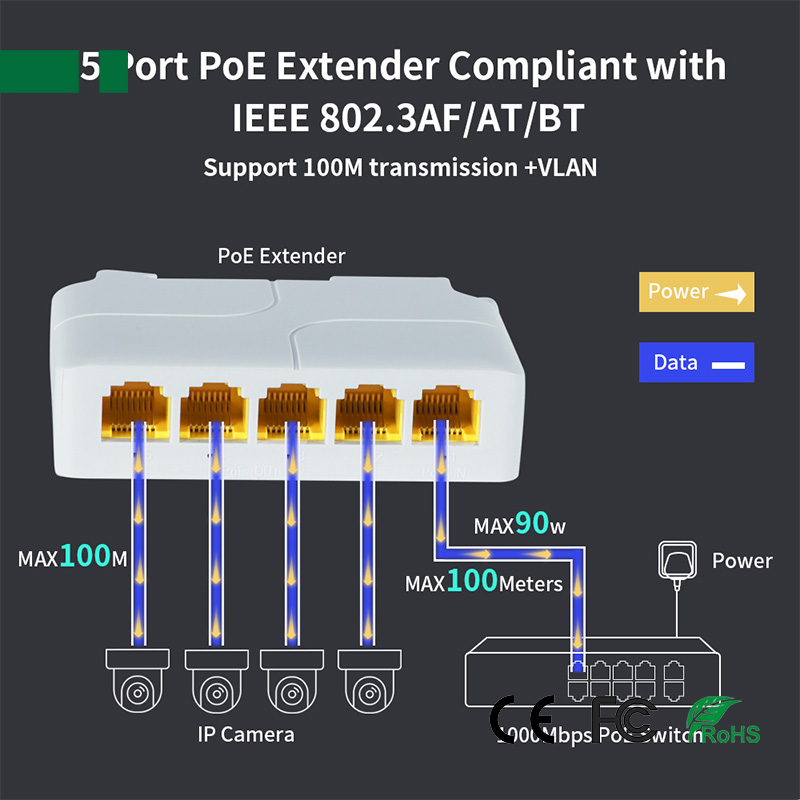

The POE Extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100 m Network Cable from a POE Switch. It can extend the network and POE power supply for another 100m at full rate.
Feature:

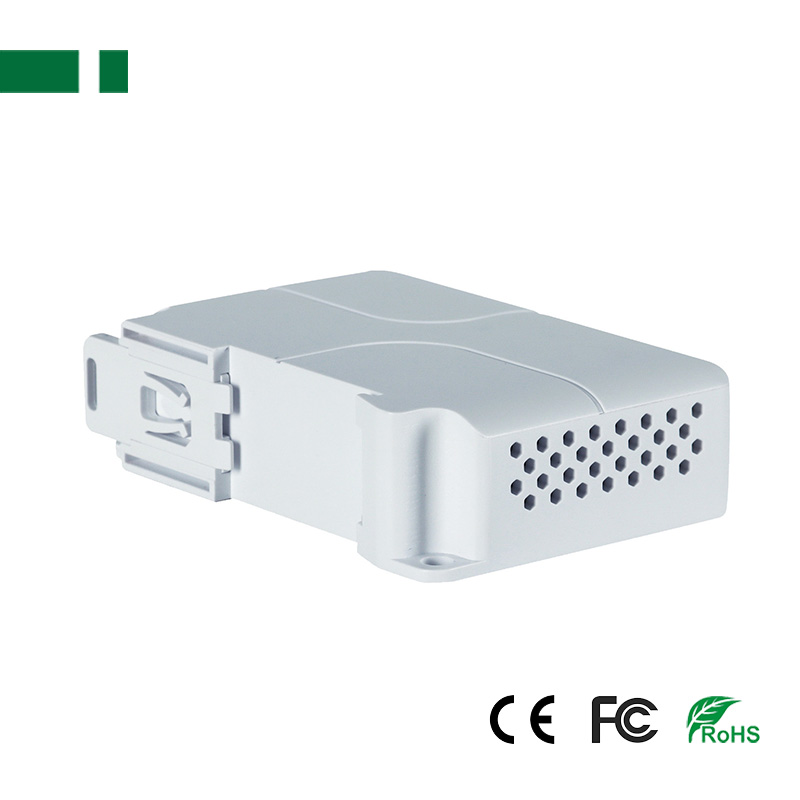

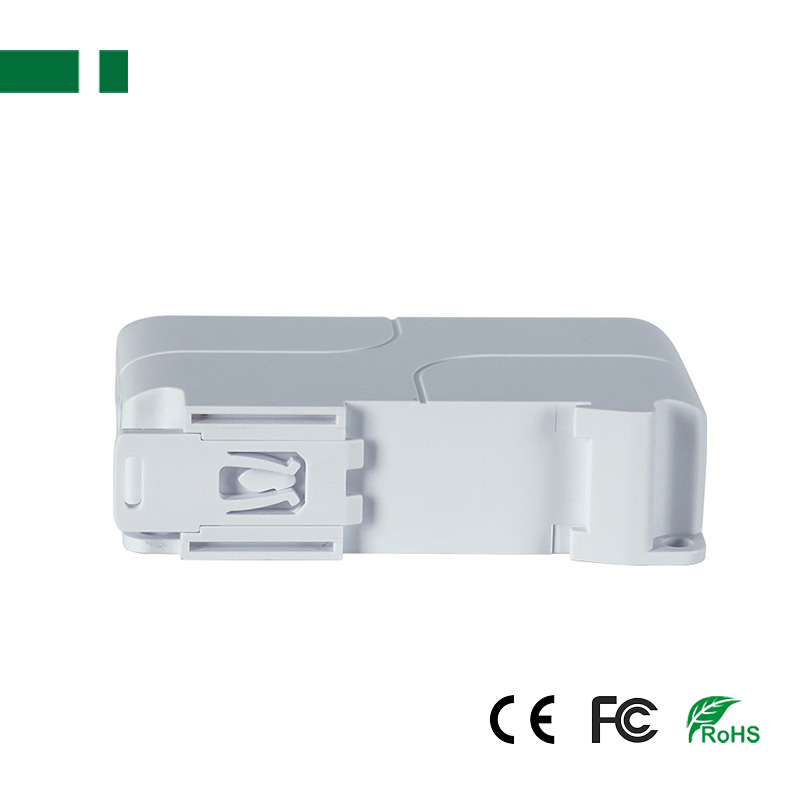

5 Ports Gigabit POE Extender with Railing mounting;

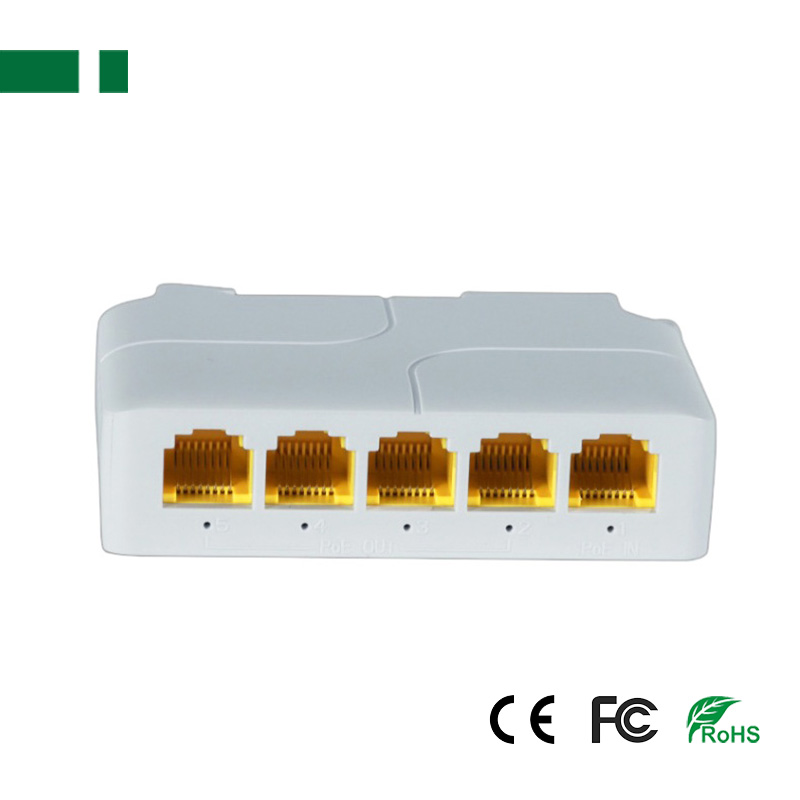

1*10/100/1000Base-TX POE port (Data/Power）input;
4*10/100/1000Base-TX POE port (Data/Power）output;
Transmission distance: 100m;
Support 10/100/1000Mbps IEEE802.3af/at/bt;
POE In: 44V-57V/90W;
POE Output: 44V-57V(3-5) 30W/ 60W;
All port supported by MDI/MDIX autoflip and self negotiation;
Supply 5*10/100/1000Mbps adaptive high speedforwarding data;
Dimension: 85mm*58mm*24mm(L*W*H), 67G.
Specification:
| Model | CPE-1073 | CPE-1073G | CPE-1074 | CPE-1074G |
| Product interface | 4*10/100Base-TX POE port (Data/Power） | 4*10/100/1000Base-TX POE port (Data/Power） | 5*10/100Base-TX POE port (Data/Power） | 5*10/100/1000Base-TX POE port (Data/Power） |
| Transmission distance | 100BASE-TX：Cat5 or later UTP(≤100meter) | |||
| Network protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x | |||
| Forwarding mode | Storage and forwarding (full line speed) | |||
| POE standard | Support IEEE802.3af/at | |||
| Power Supply Type | Default 1/2(+)，3/6(-) | |||
| Maximum POE power | 30Watt | |||
| Power consumption | ＜2Watt | |||
| Input voltage and interface | POE(IEEE802.3af/at)，RJ45 port | |||
| Working temperature | (-20℃～60°C) | |||
| Product size | 85*58*24mm(L*W*H) | |||
| Product weight | 67g | |||
