● POE Output: DC44-57V, Max.: 30W;
● Network Protocol: IEEE802.3at/af;
● Power Pin: 1/2(+)，3/6(-), Max.: 25.5W;
● Data Pin: 1/2(+), 3/6(-), 4/5(+), 7/8(-);
The POE Extender can automatically detect and identify the compliant power receiving devices and supply power to them through network cables.
Description：

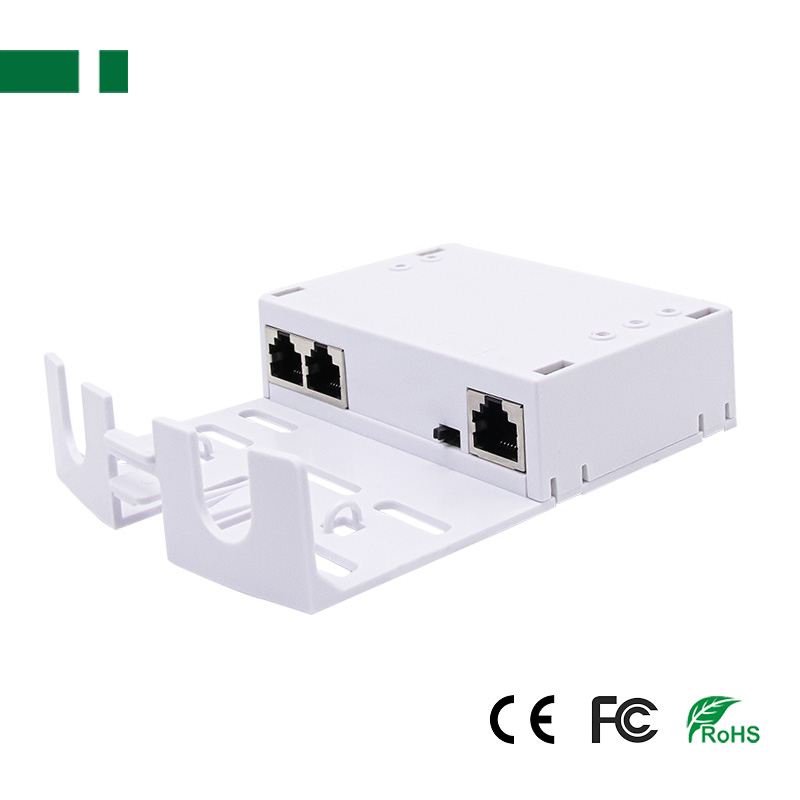

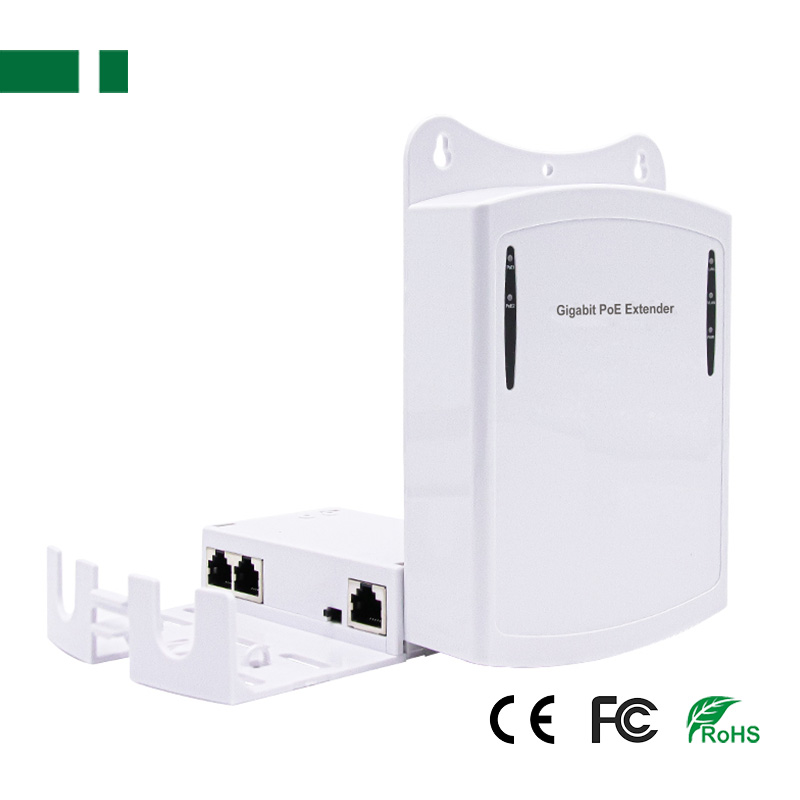

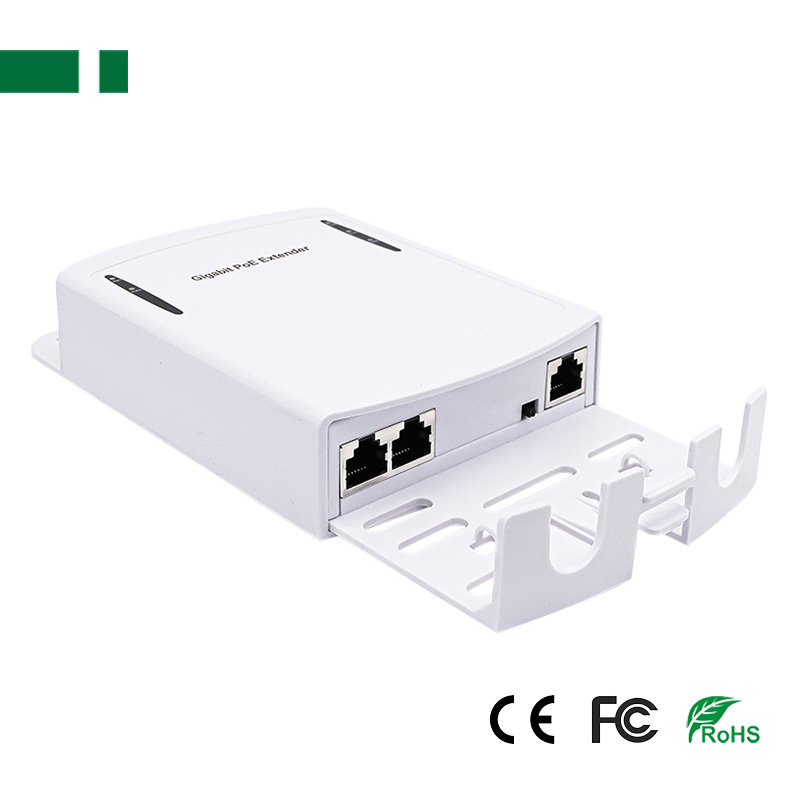

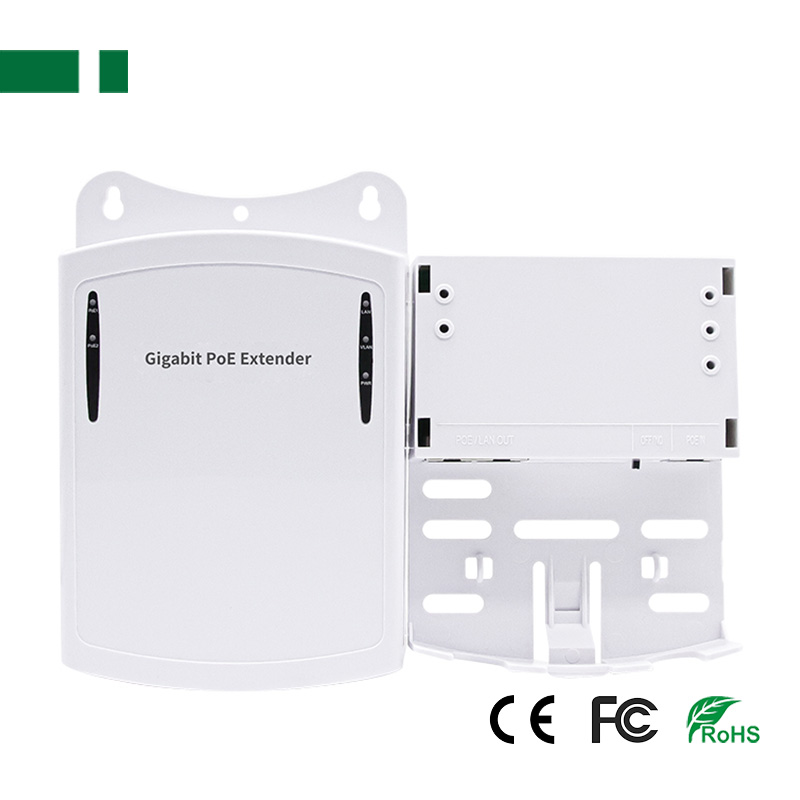

The POE Extension Device provides 2-Port 1000Mbps power supply ports and 1-Port 1000Mbps Up-link power supply port. These ports support IEEE 802.3af/at standard POE Power Supply, and the POE power of a single port is up to 30Watt.
The POE Extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100M Network Cable from a POE Switch. It can extend the network and POE power supply for another 100m at full rate.
Feature:
● 10/100/1000Mbps 1*2 POE Splitter/Extender;
● POE Input: DC44-57V;
● POE Output: DC44-57V, Max.: 30W;
● Network Protocol: IEEE802.3at/af;
● Network Speed: 10/100/1000Mbps;
● Data Pin: 1/2(+), 3/6(-), 4/5(+), 7/8(-);
● Power: 1/2(+)，3/6(-), Max.: 25.5W;
● Transmission distance: 100M;

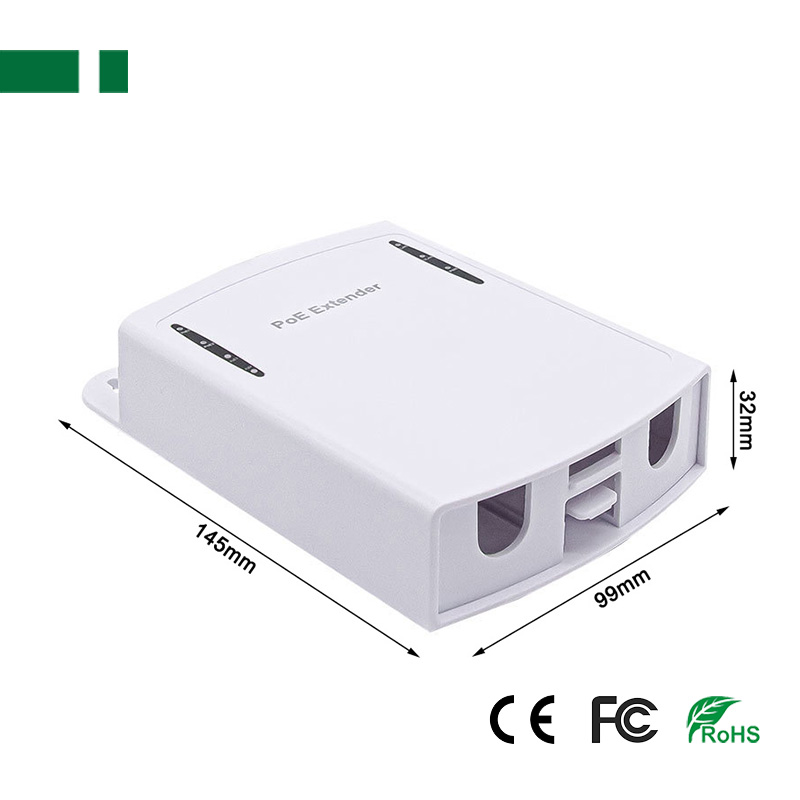

● ABS Plastic Shell, Size: 145*99*32mm(L*W*H);
Specification:
| 100Mbps & 1.0Gbps "1*2" "1*3" "1*4" POE Splitter/ Extender | ||||||
| Model | CPE-1032R | CPE-1033R | CPE-1034R | CPE-1032RG | CPE-1033RG | CPE-1034RG |
| Interface | 3*100Mbps RJ45 | 4*100Mbps RJ45 | 5*100Mbps RJ45 | 3*1.0Gbps RJ45 | 4*1.0Gbps RJ45 | 5*1.0Gbps RJ45 |
| PoE Support | IEEE802.3at/af | |||||
| Network protocol | IEEE802.3 10BASE-T； IEEE802.3i 10Base-T；IEEE802.3u 100Base-TX；IEEE802.3x | |||||
| Forwarding mode | Storage and forwarding (full line speed) | |||||
| Data Pin | 1/2(+), 3/6(-) | 1/2(+), 3/6(-), 4/5(+), 7/8(-) | ||||
| Power Pin | 1/2(+), 3/6(-) , Max.: 25.5W | |||||
| Extend Distance | 0~100M | |||||
| Max. POE Power | 30Watt | |||||
| Power Consumption | ＜2Watt | |||||
| Temperature | Working: -10℃~+50℃, Store: -20℃~+85℃ | |||||
| Humidity | Working: 20~90%RH, Store: 10~95%RH | |||||
| Material | ABS Plastic Housing | |||||
